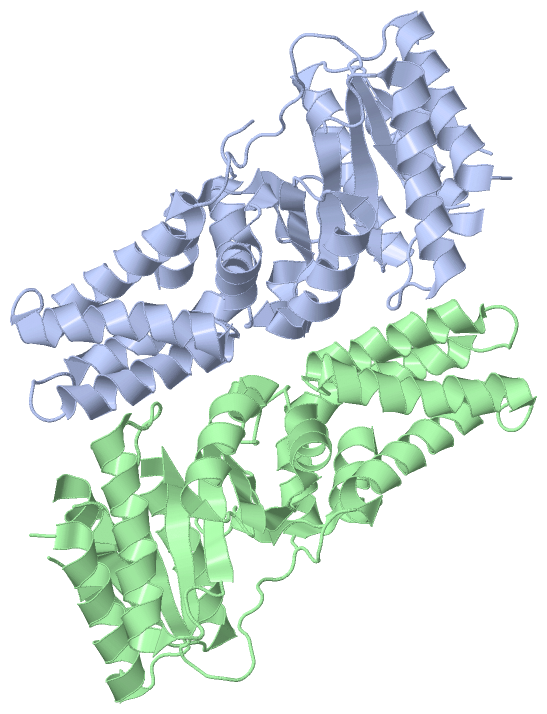

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF CHLOROPLAST FTSY FROM PHYSCOMITRELLA PATENS

Authors :  C. Trager, D. Schunemann, E. Hofmann
Date :  22 Feb 12  (Deposition) - 16 Jan 13  (Release) - 06 Feb 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Protein Transport, Chloroplast Biogenesis, Simibi Gtpase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Trager, M. A. Rosenblad, D. Ziehe, C. Garcia-Petit, L. Schrader, K. Kock, C. Vera Richter, B. Klinkert, F. Narberhaus, C. Herrmann, E. Hofmann, H. Aronsson, D. Schunemann
Evolution From The Prokaryotic To The Higher Plant Chloroplast Signal Recognition Particle: The Signal Recognition Particle Rna Is Conserved In Plastids Of A Wide Range Of Photosynthetic Organisms.
Plant Cell V. 24 4819 2012
PubMed-ID: 23275580  |  Reference-DOI: 10.1105/TPC.112.102996

(-) Compounds

Molecule 1 - CPFTSY
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-DUET-1-PP-CPFTSYD1-79
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Variant: ROSETTA PLYSS
    Expression System Vector Type: PLASMID
    Fragment: RESIDUES 80-383
    Organism Scientific: PHYSCOMITRELLA PATENS
    Organism Taxid: 3218

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4AK9)

(-) Sites  (0, 0)

(no "Site" information available for 4AK9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4AK9)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Arg A:180 -Pro A:181
2Ala A:300 -Pro A:301
3Arg B:180 -Pro B:181
4Ala B:300 -Pro B:301

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4AK9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4AK9)

(-) Exons   (0, 0)

(no "Exon" information available for 4AK9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:302
 aligned with A9SNI6_PHYPA | A9SNI6 from UniProtKB/TrEMBL  Length:383

    Alignment length:308
                                    85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375
         A9SNI6_PHYPA    76 KAKSDIQLLFSGFSKTRENLAVVDELLTYWNLDESESILDELEEVLLVSDFGPKTALKIVDTIRKDILAGRLKSGPQIKEALKKNIFKLLTERVTTTELQLGNSRPAVLMIVGVNGGGKTTTLGKLANRFKKEGVKVLMAAGDTFRAAAGEQLEVWAQRTGSEIVMAEGPKPRPAAVLSQAVRRAVEEDFDVVLCDTSGRLHTNYNLMEELRGCKRAVSKALSSAPNEVLLVLDGTTGLNMLAQAREFNQVIGVTGFILTKLDGTARGGCVVSVVDELSIPVKFVGVGEGIDDLQPFDAQSFVDALFP 383
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..............eeeeeee.hhhhhhhhhhhhhhhhhhh...eeee....--hhhhhhhhhhhhhhh.eee..----.hhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhhhhhh.....eeeeeee.hhhhhhhhhhhhhhhhh...eeeeehhhhh...hhhhhhhhhhh..eeeee.......eee.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ak9 A  76 SQDPDIQLLFSGFSKTRENLAVVDELLTYWNLDESESILDELEEVLLVSDFGPKTALKIVDTIRKDILAGRLKSGPQIKEALKKNIFKLLTERVTTTELQLGNSRPAVLMIVGVNGGGKTTTLGKLANRFKKEGVKVLMAAGDT--AAAGEQLEVWAQRTGSEIVMA----PRPAAVLSQAVRRAVEEDFDVVLCDTSGRLHTNYNLMEELRGCKRAVSKALSSAPNEVLLVLDGTTGLNMLAQAREFNQVIGVTGFILTKLDGTARGGCVVSVVDELSIPVKFVGVGEGIDDLQPFDAQSFVDALFP 383
                                    85        95       105       115       125       135       145       155       165       175       185       195       205       215   |  |225       235      |  - |     255       265       275       285       295       305       315       325       335       345       355       365       375
                                                                                                                                                                         219  |                 242  247
                                                                                                                                                                            222


Chain B from PDB  Type:PROTEIN  Length:297
 aligned with A9SNI6_PHYPA | A9SNI6 from UniProtKB/TrEMBL  Length:383

    Alignment length:305
                                    88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378
         A9SNI6_PHYPA    79 SDIQLLFSGFSKTRENLAVVDELLTYWNLDESESILDELEEVLLVSDFGPKTALKIVDTIRKDILAGRLKSGPQIKEALKKNIFKLLTERVTTTELQLGNSRPAVLMIVGVNGGGKTTTLGKLANRFKKEGVKVLMAAGDTFRAAAGEQLEVWAQRTGSEIVMAEGPKPRPAAVLSQAVRRAVEEDFDVVLCDTSGRLHTNYNLMEELRGCKRAVSKALSSAPNEVLLVLDGTTGLNMLAQAREFNQVIGVTGFILTKLDGTARGGCVVSVVDELSIPVKFVGVGEGIDDLQPFDAQSFVDALFP 383
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhh..............eeeeeee.--hhhhhhhhhhhhhhhhh...eeeeee..--hhhhhhhhhhhhhhh.eee..----.hhhhhhhhhhhhhhhh...eeeeee......hhhhhhhhhhhhhhhhhhh.....eeeeeee.hhhhhhhhhhhhhhhhh...eeeee........hhhhhhhhhhh..eeeee.......eee.hhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ak9 B  79 PDIQLLFSGFSKTRENLAVVDELLTYWNLDESESILDELEEVLLVSDFGPKTALKIVDTIRKDILAGRLKSGPQIKEALKKNIFKLLTERVTTTELQLGNSRPAVLMIVGV--GGKTTTLGKLANRFKKEGVKVLMAAGDT--AAAGEQLEVWAQRTGSEIVMA----PRPAAVLSQAVRRAVEEDFDVVLCDTSGRLHTNYNLMEELRGCKRAVSKALSSAPNEVLLVLDGTTGLNMLAQAREFNQVIGVTGFILTKLDGTARGGCVVSVVDELSIPVKFVGVGEGIDDLQPFDAQSFVDALFP 383
                                    88        98       108       118       128       138       148       158       168       178       188|  |   198       208       218|  |   228       238   |   248       258       268       278       288       298       308       318       328       338       348       358       368       378
                                                                                                                                        189  |                        219  |                 242  247
                                                                                                                                           192                           222
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4AK9)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4AK9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4AK9)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (A9SNI6_PHYPA | A9SNI6)
molecular function
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
biological process
    GO:0006614    SRP-dependent cotranslational protein targeting to membrane    The targeting of proteins to a membrane that occurs during translation and is dependent upon two key components, the signal-recognition particle (SRP) and the SRP receptor. SRP is a cytosolic particle that transiently binds to the endoplasmic reticulum (ER) signal sequence in a nascent protein, to the large ribosomal unit, and to the SRP receptor in the ER membrane.
cellular component
    GO:0005622    intracellular    The living contents of a cell; the matter contained within (but not including) the plasma membrane, usually taken to exclude large vacuoles and masses of secretory or ingested material. In eukaryotes it includes the nucleus and cytoplasm.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ak9)

  Sites
(no "Sites" information available for 4ak9)

  Cis Peptide Bonds
    Ala A:300 - Pro A:301   [ RasMol ]
    Ala B:300 - Pro B:301   [ RasMol ]
    Arg A:180 - Pro A:181   [ RasMol ]
    Arg B:180 - Pro B:181   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
