Title :   THE LIN28B COLD SHOCK DOMAIN IN COMPLEX WITH HEXATHYMIDINE.

Authors :   F. Mayr, A. Schuetz, N. Doege, U. Heinemann

Date :   11 Nov 11 (Deposition) - 05 Sep 12 (Release) - 05 Sep 12 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.75

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)
Biol. Unit 3: E,F  (1x)
Biol. Unit 4: G,H  (1x)

Keywords :   Chaperone-Dna Complex, Chaperone, Dna/Rna-Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   F. Mayr, A. Schutz, N. Doge, U. Heinemann
The Lin28 Cold-Shock Domain Remodels Pre-Let-7 Microrna.
Nucleic Acids Res. V. 40 7492 2012
PubMed-ID: 22570413 | Reference-DOI: 10.1093/NAR/GKS355

Molecule 1 - LIN28 COLD SHOCK DOMAIN
	Chains	:	A, C, E, G
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Organism Common	:	WESTERN CLAWED FROG
	Organism Scientific	:	XENOPUS (SILURANA) TROPICALIS
	Organism Taxid	:	8364

*Molecule 2 - 5'-D(TPTPTPTPTPTP)-3'*
	Chains	:	B, D, F, H
	Synonym	:	HEXATHYMIDINE
	Synthetic	:	YES

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D
Biological Unit 3 (1x)	:					E	F
Biological Unit 4 (1x)	:							G	H

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	SCN	2	Ligand/Ion	THIOCYANATE ION

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	SCN	1	Ligand/Ion	THIOCYANATE ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	SCN	-1	Ligand/Ion	THIOCYANATE ION

Biological Unit 3 (1, 1)

No.	Name	Count	Type	Full Name
1	SCN	1	Ligand/Ion	THIOCYANATE ION

Biological Unit 4 (0, 0)

No.	Name	Count	Type	Full Name
1	SCN	-1	Ligand/Ion	THIOCYANATE ION

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	DT H:4 , DT H:5	BINDING SITE FOR RESIDUE SCN A1114
2	AC2	SOFTWARE	THR E:89 , ARG E:101 , THR G:89	BINDING SITE FOR RESIDUE SCN E1114

(no "SS Bond" information available for 4A75)

(no "Cis Peptide Bond" information available for 4A75)

(no "SAP(SNP)/Variant" information available for 4A75)

(no "PROSITE Motif" information available for 4A75)

(no "Exon" information available for 4A75)

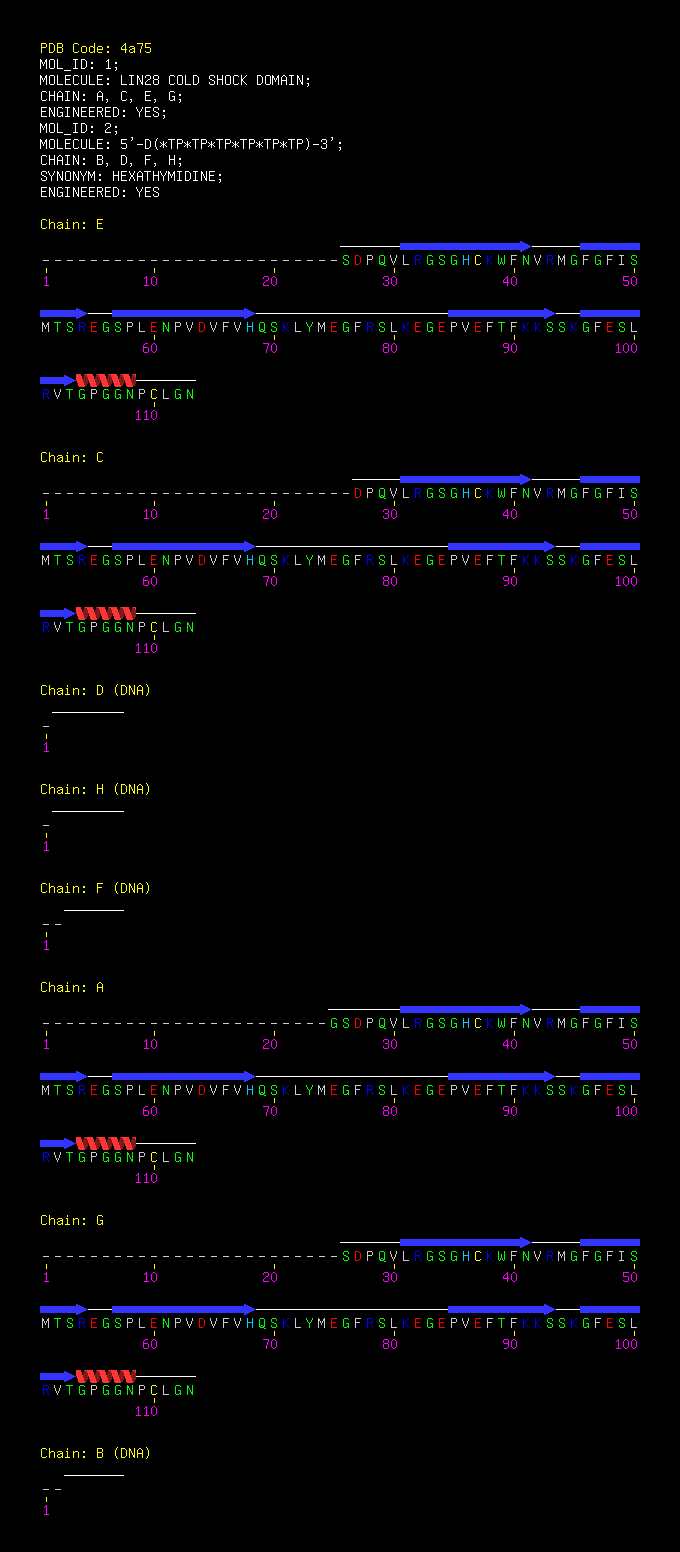

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:89
 aligned with B4F6I0_XENTR | B4F6I0 from UniProtKB/TrEMBL  Length:253

    Alignment length:105
                                    18        28        38        48        58        68        78        88        98       108
         B4F6I0_XENTR     9 GTREEQGKLPEQEEEEEEDPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
               SCOP domains d4                a75a_ A: automated matches                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..----------------....eeeeeeeeeee....eeeeeeeee..eeeeeeeeeeee................eeeeeeeee..eeeeeeeehhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 4a75 A  25 GS----------------DPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
                             |       -        28        38        48        58        68        78        88        98       108
                             |               27
                            26

Chain B from PDB  Type:DNA  Length:5

                 4a75 B   3 TTTTT   7

Chain C from PDB  Type:PROTEIN  Length:87
 aligned with B4F6I0_XENTR | B4F6I0 from UniProtKB/TrEMBL  Length:253

    Alignment length:87
                                    36        46        56        66        76        86        96       106
         B4F6I0_XENTR    27 DPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
               SCOP domains d4a75c_ C: automated matches                                                            SCOP domains
               CATH domains --------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeeeeeee....eeeeeeeee..eeeeeeeeeeee................eeeeeeeee..eeeeeeeehhhhh..... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------- Transcript
                 4a75 C  27 DPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
                                    36        46        56        66        76        86        96       106

Chain D from PDB  Type:DNA  Length:6

                 4a75 D   2 TTTTTT   7

Chain E from PDB  Type:PROTEIN  Length:88
 aligned with B4F6I0_XENTR | B4F6I0 from UniProtKB/TrEMBL  Length:253

    Alignment length:88
                                    35        45        55        65        75        85        95       105
         B4F6I0_XENTR    26 EDPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
               SCOP domains d4a75e_ E: automated matches                                                             SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeeeee....eeeeeeeee..eeeeeeeeeeee................eeeeeeeee..eeeeeeeehhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                 4a75 E  26 SDPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
                                    35        45        55        65        75        85        95       105

Chain F from PDB  Type:DNA  Length:5

                 4a75 F   3 TTTTT   7

Chain G from PDB  Type:PROTEIN  Length:88
 aligned with B4F6I0_XENTR | B4F6I0 from UniProtKB/TrEMBL  Length:253

    Alignment length:88
                                    35        45        55        65        75        85        95       105
         B4F6I0_XENTR    26 EDPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
               SCOP domains d4a75g_ G: automated matches                                                             SCOP domains
               CATH domains ---------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eeeeeeeeeee....eeeeeeeee..eeeeeeeeeeee................eeeeeeeee..eeeeeeeehhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------- Transcript
                 4a75 G  26 SDPQVLRGSGHCKWFNVRMGFGFISMTSREGSPLENPVDVFVHQSKLYMEGFRSLKEGEPVEFTFKKSSKGFESLRVTGPGGNPCLGN 113
                                    35        45        55        65        75        85        95       105

Chain H from PDB  Type:DNA  Length:6

                 4a75 H   2 TTTTTT   7

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: All beta proteins (24004)

Fold: OB-fold (1179)

Superfamily: Nucleic acid-binding proteins (590)

Family: automated matches (46)

Protein domain: automated matches (46)

Xenopus (Silurana) tropicalis [TaxId: 8364] (3)

1a	d4a75a_	A:
1b	d4a75c_	C:
1c	d4a75e_	E:
1d	d4a75g_	G:

(no "CATH Domain" information available for 4A75)

(no "Pfam Domain" information available for 4A75)

Asymmetric Unit(hide GO term definitions)

Chain A,C,E,G (B4F6I0_XENTR | B4F6I0)

molecular function
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0003676	nucleic acid binding	Interacting selectively and non-covalently with any nucleic acid.
	GO:0008270	zinc ion binding	Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
