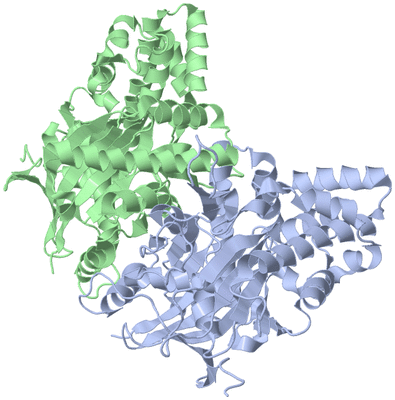

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A HIGHLY THERMAL STABLE BUT INACTIVE LEVOGLUCOSAN KINASE.

Authors :  J. P. Bacik, J. R. Klesmith, T. A. Whitehead
Date :  20 May 15  (Deposition) - 23 Sep 15  (Release) - 02 Dec 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Transferase, Sugar Kinase. , De Novo Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. R. Klesmith, J. P. Bacik, R. Michalczyk, T. A. Whitehead
Comprehensive Sequence-Flux Mapping Of A Levoglucosan Utilization Pathway In E. Coli.
Acs Synth Biol V. 4 1235 2015
PubMed-ID: 26369947  |  Reference-DOI: 10.1021/ACSSYNBIO.5B00131

(-) Compounds

Molecule 1 - LEVOGLUCOSAN KINASE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Organism Common: OLEAGINOUS YEAST
    Organism Scientific: LIPOMYCES STARKEYI
    Organism Taxid: 29829

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4ZXZ)

(-) Sites  (0, 0)

(no "Site" information available for 4ZXZ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ZXZ)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Ala A:164 -Pro A:165
2Pro A:264 -Pro A:265
3Ala B:164 -Pro B:165
4Pro B:264 -Pro B:265

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZXZ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZXZ)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZXZ)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:431

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeee......eeeeeeeeee......eeeeeeeeeee..hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.eeee..eeeeee.........eeeee.hhhhhhhhhh..eeehhhhhhhhh.......hhhhhhhhhh.....eeeeee..eeeeeee............eeeeeee.hhhhhhhhhhh.......hhhhhhhhhh..hhhhhhhhh.hhhhhh...........hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh......eeeeehhhhhhhhhhhhhhhhh...eeee.hhhh.hhhhhhhhhhhhhhhhhhhh..................eee...hhhhhhhhhhhh............eeeee..eee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zxz A  10 NPLDFTVLGLNSGTSMDGIDLALCHFYQKTPDAPMEFELLEYGEVPWAQPIKQRVMRMIQEDTTSLSELSEVNVILGETFADAVHQFAAERNVDLSTIDAIGSHGQTIWLNSMPEEGQVKSCLTMGEGAIIAARTGITTITDFRISDIAAGRQGAPLHAFFDALLLHHPTKLRACQNIGGIANVTFIPPDVDGRLTDEYYDFDTGPGTVMIDAVVRHFTNGEQEYDKDGEMGKRGKVDQELVDDFLKHPYFQLDPPKTCGREVFRDSLAHDLIRRAEAKGLSPDDIVATVTRITAQSIVDAYRRYAPSQEIDEIFLCGGGAYNPNIVEFIQQAYPNTKIMMLDEAGIPARAKEAITFAWLGMECLVGRSIPVPSRVETRQGYVLGKISPGLNYRSVMKKGMAFGGDAQQLPPVSEMIVKKKGKVITNNWDL 440
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439


Chain B from PDB  Type:PROTEIN  Length:431

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeee.......eeeeeeeeee......eeeeeeeeeee..hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhh.eeee..eeeeee.........eeeee.hhhhhhhhhh..eeehhhhhhhhh.......hhhhhhhhhh.....eeeeee..eeeeeee............eeeeeee.hhhhhhhhhhh.......hhhhhhhhhh..hhhhhhhhh.hhhhhh...........hhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhh......eeeeehhhhhhhhhhhhhhhhh...eeee.hhhh.hhhhhhhhhhhhhhhhhhhh..................eee...hhhhhhhhhhhh............eeeee..eee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4zxz B  10 NPLDFTVLGLNSGTSMDGIDLALCHFYQKTPDAPMEFELLEYGEVPWAQPIKQRVMRMIQEDTTSLSELSEVNVILGETFADAVHQFAAERNVDLSTIDAIGSHGQTIWLNSMPEEGQVKSCLTMGEGAIIAARTGITTITDFRISDIAAGRQGAPLHAFFDALLLHHPTKLRACQNIGGIANVTFIPPDVDGRLTDEYYDFDTGPGTVMIDAVVRHFTNGEQEYDKDGEMGKRGKVDQELVDDFLKHPYFQLDPPKTCGREVFRDSLAHDLIRRAEAKGLSPDDIVATVTRITAQSIVDAYRRYAPSQEIDEIFLCGGGAYNPNIVEFIQQAYPNTKIMMLDEAGIPARAKEAITFAWLGMECLVGRSIPVPSRVETRQGYVLGKISPGLNYRSVMKKGMAFGGDAQQLPPVSEMIVKKKGKVITNNWDL 440
                                    19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419       429       439
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4ZXZ)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ZXZ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ZXZ)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4ZXZ)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4zxz)

  Sites
(no "Sites" information available for 4zxz)

  Cis Peptide Bonds
    Ala A:164 - Pro A:165   [ RasMol ]
    Ala B:164 - Pro B:165   [ RasMol ]
    Pro A:264 - Pro A:265   [ RasMol ]
    Pro B:264 - Pro B:265   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
