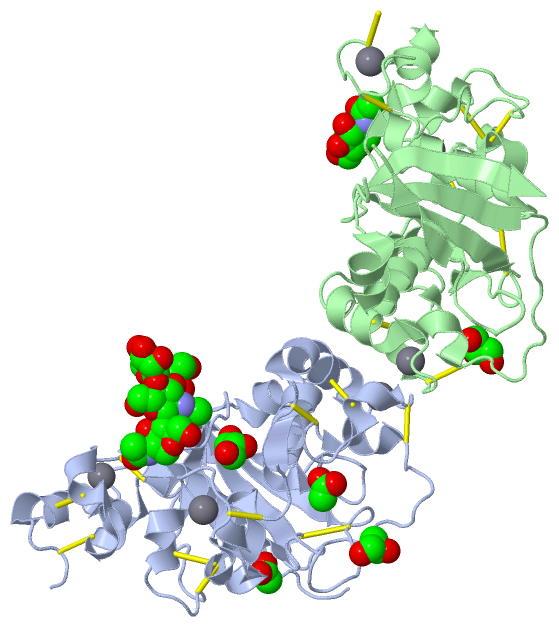

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

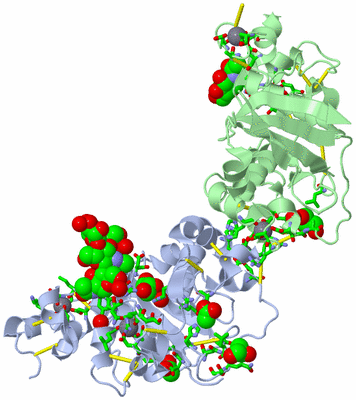

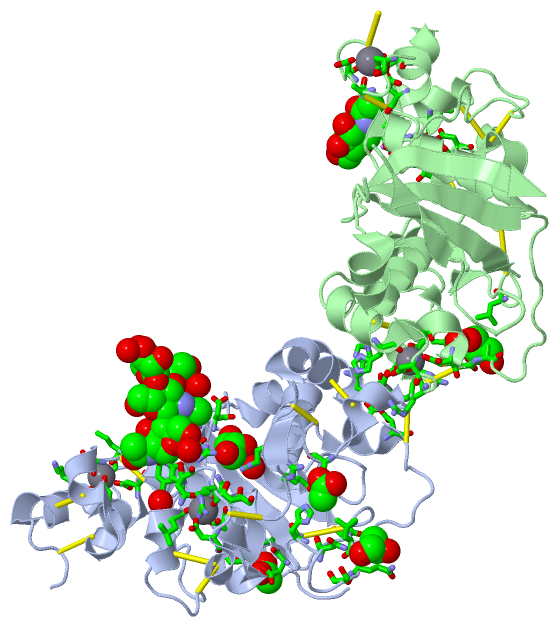

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NOTCH3 NEGATIVE REGULATORY REGION

Authors :  X. Xu, S. C. Blacklow
Date :  01 May 15  (Deposition) - 19 Aug 15  (Release) - 19 Aug 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.48
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Notch, Mutation, Disease, Autoinhibiton, Transcription (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Xu, S. H. Choi, T. Hu, K. Tiyanont, R. Habets, A. J. Groot, M. Vooijs, J. C. Aster, R. Chopra, C. Fryer, S. C. Blacklow
Insights Into Autoregulation Of Notch3 From Structural And Functional Studies Of Its Negative Regulatory Region.
Structure V. 23 1227 2015
PubMed-ID: 26051713  |  Reference-DOI: 10.1016/J.STR.2015.05.001

(-) Compounds

Molecule 1 - NEUROGENIC LOCUS NOTCH HOMOLOG PROTEIN 3
    Chains: A, B
    Engineered: YES
    Expression System: HOMO SAPIENS
    Expression System Cell Line: HEK293S GNTI-
    Expression System Taxid: 9606
    Gene: NOTCH3
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: NOTCH 3

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (5, 16)

Asymmetric/Biological Unit (5, 16)
No.NameCountTypeFull Name
1ACT2Ligand/IonACETATE ION
2CA6Ligand/IonCALCIUM ION
3GOL3Ligand/IonGLYCEROL
4MAN2Ligand/IonALPHA-D-MANNOSE
5NAG3Ligand/IonN-ACETYL-D-GLUCOSAMINE

(-) Sites  (13, 13)

Asymmetric Unit (13, 13)
No.NameEvidenceResiduesDescription
01AC1SOFTWARELYS A:1395 , ASP A:1398 , ARG A:1400 , ASP A:1402 , ASP A:1413 , ASP A:1416binding site for residue CA A 5001
02AC2SOFTWARELEU A:1436 , ASN A:1439 , ARG A:1441 , ASP A:1443 , ASP A:1454 , ASP A:1457binding site for residue CA A 5002
03AC3SOFTWAREHIS A:1478 , ASP A:1481 , ARG A:1483 , ASP A:1485 , ASP A:1496 , ASP A:1499binding site for residue CA A 5003
04AC4SOFTWARECYS A:1591 , LEU A:1592 , GLN A:1593 , SER A:1594 , ASN A:1597 , HOH A:5120binding site for residue GOL A 5008
05AC5SOFTWAREASN A:1455 , ARG A:1465 , ARG A:1619 , ASP A:1621 , HOH A:5131binding site for residue GOL A 5009
06AC6SOFTWAREASP A:1603 , ALA A:1604 , GLN A:1605 , GLY A:1631 , GLU A:1632binding site for residue ACT A 5010
07AC7SOFTWAREGLU A:1491 , ARG A:1540 , HIS A:1599binding site for residue ACT A 5011
08AC8SOFTWAREASP B:1398 , ARG B:1400 , ASP B:1402 , ASP B:1413 , ASP B:1416binding site for residue CA B 5001
09AC9SOFTWARELEU B:1436 , ASN B:1439 , ARG B:1441 , ASP B:1443 , ASP B:1454 , ASP B:1457binding site for residue CA B 5002
10AD1SOFTWAREHIS B:1478 , ASP B:1481 , ARG B:1483 , ASP B:1485 , ASP B:1496 , ASP B:1499binding site for residue CA B 5003
11AD2SOFTWAREASN B:1489 , CYS B:1500 , ALA B:1501 , LEU B:1590 , HOH B:5106binding site for residue GOL B 5005
12AD3SOFTWAREASN A:1438 , GLN A:1593 , VAL A:1617 , GLU A:1618 , ARG A:1619 , HOH A:5102 , HOH A:5104 , HOH A:5105 , HOH A:5127binding site for Poly-Saccharide residues NAG A 5004 through MAN A 5007 bound to ASN A 1438
13AD4SOFTWAREASN B:1438 , VAL B:1617binding site for Mono-Saccharide NAG B 5004 bound to ASN B 1438

(-) SS Bonds  (19, 19)

Asymmetric/Biological Unit
No.Residues
1A:1387 -A:1410
2A:1392 -A:1405
3A:1401 -A:1417
4A:1428 -A:1451
5A:1433 -A:1446
6A:1442 -A:1458
7A:1467 -A:1493
8A:1475 -A:1488
9A:1484 -A:1500
10A:1591 -A:1600
11B:1392 -B:1405
12B:1401 -B:1417
13B:1428 -B:1451
14B:1433 -B:1446
15B:1442 -B:1458
16B:1467 -B:1493
17B:1475 -B:1488
18B:1484 -B:1500
19B:1591 -B:1600

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ZLP)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ZLP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ZLP)

(-) Exons   (0, 0)

(no "Exon" information available for 4ZLP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:241

               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhh.....hhhhhhhhhhhhhh................hhhhhh.....hhhhhhhhhhhhhhh...hhhhh..hhhhhhhhhhhh.....hhhhh....hhhhhh............eeeeee..hhhhhhhhhhhhhhhhhhhhh.eeee.........eeeee.....eeeeeeeeeee...............hhhhhhhhhhhhhhh........eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4zlp A 1385 PRCPRAACQAKRGDQRCDRECNSPGCGWDGGDCSLSVGDPWRQCEALQCWRLFNNSRCDPACSSPACLYDNFDCHAGGRERTCNPVYEKYCADHFADGRCDQGCNTEECGWDGLDCASEVPALLARGVLVLTVLLPPEELLRSSADFLQRLSAILRTSLRFRLDAHGQAMVFPYHRPSPEVIGSVVMLEIDNRLCLQSPENDHCFPDAQSAADYLGALSAVERLDFPYPLRDVRGEPLEPP 1637
                                  1394      1404      1414      1424      1434      1444      1454      1464      1474      1484      1494      1504      1514      1524      1534      1544      1554      1576      1586      1596      1606      1616      1626      1636
                                                                                                                                                                                                          1562|
                                                                                                                                                                                                           1575


Chain B from PDB  Type:PROTEIN  Length:218

               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...........hhhhhhhhhh...............hhhhh......hhhhhhhhhhhhhhh....hhhhh....hhhhhhhhh.....hhhhh....hhhhhh............eeeeee..hhhhhhhhhhhhhhhhhhhhh.eeee.........eeee.....eeeeeeeee..........hhhhhhhhhhhhhhh........eeeeeee. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4zlp B 1392 CGDQRCDRECNSPGCGWDGGDCSLSVGDPWRQCEALQCWRLFNNSRCDPACSSPACLYDNFDCHAGGRERTCNPVYEKYCADHFADGRCDQGCNTEECGWDGLDCASEVPALLARGVLVLTVLLPPEELLRSSADFLQRLSAILRTSLRFRLDAHGQAMVFPYHREVIGSVVMLEIDNRLCLDHCFPDAQSAADYLGALSAVERLDFPYPLRDVRGEP 1633
                            ||    1405      1415      1425      1435      1445      1455      1465      1475      1485      1495      1505      1515      1525      1535      1545      1555    ||1580      1590 ||   1605      1615      1625
                         1392|                                                                                                                                                               1560|            1592|
                          1397                                                                                                                                                                1576             1598
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
