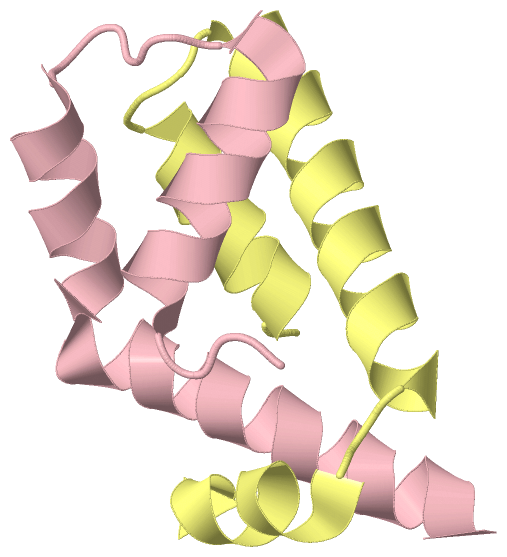

Biological Unit 1 (Jmol Viewer)

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Biological Unit 4 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF BAG6-UBL4A DIMERIZATION DOMAIN

Authors :   J. Y. Mock, J. W. Chartron, W. M. Clemons Jr.

Date :   12 Nov 14 (Deposition) - 24 Dec 14 (Release) - 21 Jan 15 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B,C,D,E,F,G,H
Biol. Unit 1: A,B  (1x)
Biol. Unit 2: G,H  (1x)
Biol. Unit 3: C,D  (1x)
Biol. Unit 4: E,F  (1x)

Keywords :   Endoplasmic Reticulum, Recombinant Proteins, Human (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   J. Y. Mock, J. W. Chartron, M. Zaslaver, Y. Xu, Y. Ye, W. M. Clemons
Bag6 Complex Contains A Minimal Tail-Anchor-Targeting Modul And A Mock Bag Domain.
Proc. Natl. Acad. Sci. Usa V. 112 106 2015
PubMed-ID: 25535373 | Reference-DOI: 10.1073/PNAS.1402745112

Molecule 1 - UBIQUITIN-LIKE PROTEIN 4A
	Chains	:	B, H, D, F
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET33B
	Expression System Taxid	:	562
	Gene	:	UBL4A, DXS254E, GDX, UBL4
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	UBIQUITIN-LIKE PROTEIN GDX

Molecule 2 - LARGE PROLINE-RICH PROTEIN BAG6
	Chains	:	A, G, C, E
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET33B
	Expression System Taxid	:	562
	Gene	:	BAG6, BAT3, G3
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606
	Synonym	:	BAG FAMILY MOLECULAR CHAPERONE REGULATOR 6,BCL2-ASSOCIATED ATHANOGENE 6,BAG6,HLA-B-ASSOCIATED TRANSCRIPT 3,PROTEIN G3,PROTEIN SCYTHE

		1	2	3	4	5	6	7	8
Asymmetric Unit	:	A	B	C	D	E	F	G	H
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:							G	H
Biological Unit 3 (1x)	:			C	D
Biological Unit 4 (1x)	:					E	F

Summary Information (see also Sequences/Alignments below)

(no "Ligand,Modified Residues,Ions" information available for 4WWR)

(no "Site" information available for 4WWR)

(no "SS Bond" information available for 4WWR)

(no "Cis Peptide Bond" information available for 4WWR)

(no "SAP(SNP)/Variant" information available for 4WWR)

(no "PROSITE Motif" information available for 4WWR)

(no "Exon" information available for 4WWR)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:53

               SCOP domains ----------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------- Transcript
                4wwr A 1053 MQLLLSEAVSRAAKAAGARPLTSPESLSRDLEAPEVQESYRQQLRSDIQKRLQ 1105
                                  1062      1072      1082      1092      1102

Chain B from PDB  Type:PROTEIN  Length:46

               SCOP domains ---------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                4wwr B   93 PQVWQLISKVLARHFSAADASRVLEQLQRDYERSLSRLTLDDIERL  138
                                   102       112       122       132

Chain C from PDB  Type:PROTEIN  Length:53

               SCOP domains ----------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------- Transcript
                4wwr C 1053 MQLLLSEAVSRAAKAAGARPLTSPESLSRDLEAPEVQESYRQQLRSDIQKRLQ 1105
                                  1062      1072      1082      1092      1102

Chain D from PDB  Type:PROTEIN  Length:46

               SCOP domains ---------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh..hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                4wwr D   94 QVWQLISKVLARHFSAADASRVLEQLQRDYERSLSRLTLDDIERLA  139
                                   103       113       123       133

Chain E from PDB  Type:PROTEIN  Length:52

               SCOP domains ---------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                4wwr E 1053 MQLLLSEAVSRAAKAAGARPLTSPESLSRDLEAPEVQESYRQQLRSDIQKRL 1104
                                  1062      1072      1082      1092      1102

Chain F from PDB  Type:PROTEIN  Length:46

               SCOP domains ---------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------- PROSITE
                 Transcript ---------------------------------------------- Transcript
                4wwr F   93 PQVWQLISKVLARHFSAADASRVLEQLQRDYERSLSRLTLDDIERL  138
                                   102       112       122       132

Chain G from PDB  Type:PROTEIN  Length:52

               SCOP domains ---------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------- Transcript
                4wwr G 1054 QLLLSEAVSRAAKAAGARPLTSPESLSRDLEAPEVQESYRQQLRSDIQKRLQ 1105
                                  1063      1073      1083      1093      1103

Chain H from PDB  Type:PROTEIN  Length:45

               SCOP domains --------------------------------------------- SCOP domains
               CATH domains --------------------------------------------- CATH domains
               Pfam domains --------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhh..hhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------- PROSITE
                 Transcript --------------------------------------------- Transcript
                4wwr H   94 QVWQLISKVLARHFSAADASRVLEQLQRDYERSLSRLTLDDIERL  138
                                   103       113       123       133

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 4WWR)

(no "CATH Domain" information available for 4WWR)

(no "Pfam Domain" information available for 4WWR)
