Title :   LABORATORY EVOLVED VARIANT R-C1B1 OF POTATO EPOXIDE HYDROLASE STEH1

Authors :   A. J. Carlsson, P. Bauer, M. Nilsson, D. Dobritzsch, S. C. L. Kamerlin, M. Widersten

Date :   17 Mar 15 (Deposition) - 13 Apr 16 (Release) - 19 Oct 16 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.00

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Hydrolase, Epoxide Hydrolysis, Alpha/Beta-Hydrolase, Directed Evolution, Asymmetric Syntheses (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   P. Bauer, A. J. Carlsson, B. A. Amrein, D. Dobritzsch, M. Widersten, S. C. L. Kamerlin
Conformational Diversity And Enantioconvergence In Potato Epoxide Hydrolase 1.
Org. Biomol. Chem. V. 14 5639 2016
PubMed-ID: 27049844 | Reference-DOI: 10.1039/C6OB00060F

Molecule 1 - EPOXIDE HYDROLASE
	Chains	:	A, B
	EC Number	:	3.3.2.3
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PGTACSTEH1-5H
	Expression System Strain	:	XL1 BLUE
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Fragment	:	RESIDUES 3-321
	Mutation	:	YES
	Organism Common	:	POTATO
	Organism Scientific	:	SOLANUM TUBEROSUM
	Organism Taxid	:	4113
	Strain	:	LEMHI RUSSET

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	DIO	2	Ligand/Ion	1,4-DIETHYLENE DIOXIDE

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	DIO	1	Ligand/Ion	1,4-DIETHYLENE DIOXIDE

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	DIO	1	Ligand/Ion	1,4-DIETHYLENE DIOXIDE

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	PHE A:33 , TYR A:154 , PHE A:189 , HIS A:300 , HOH A:2133	BINDING SITE FOR RESIDUE DIO A1322
2	AC2	SOFTWARE	PHE B:33 , TYR B:154 , LEU B:266 , HIS B:300	BINDING SITE FOR RESIDUE DIO B1322

(no "SS Bond" information available for 4UFN)

Asymmetric Unit

No.	Residues
1	Phe A:33	-	Pro A:34
2	Phe B:33	-	Pro B:34

(no "SAP(SNP)/Variant" information available for 4UFN)

(no "PROSITE Motif" information available for 4UFN)

(no "Exon" information available for 4UFN)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:321

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee..eeeeeeee....eeeee.....hhhhhhhhhhhhhhh..eeeee..............hhhhhhhhhhhhhhhhhhhhhh.....eeeeeehhhhhhhhhhhhhh...eeeeeee...........hhhhhhhhhhh..hhhhhh...hhhhhhhh..hhhhhhhhhhh.....................hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeee..hhhhhh.hhhhhhhhhhhhhhh......eee.....hhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ufn A   2 KKIEHKMVAVNGLNMHLAELGEGPTILFIHGFPELWYSWRHQMVYLAERGYRAVAPDLRGYGDTTGAPLNDPSKFSILHLVGDVVALLEAIALNEEKVFVVAHDLGAYIAWHLCLFRPDKVKALVNLSVHFSKRNPKMNKVEGLKAIYGEDHYVSRFQVPGEIEAEFAPIGAKSVLKKILTYRDPAPFYFPKGKGLEAIPDAPVALSSWLSEEELDYYANKFEQTGFTGAVNYYRALPINWELTAPWTGAQVKVPTKFIVGEFDLVYHIPGAKEYIHNGGFKKDVPLLEEVVVLEGAAHFVSQERPHEISKHIYDFIQKFT 322
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321

Chain B from PDB  Type:PROTEIN  Length:321

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee..eeeeeeee....eeeee.....hhhhhhhhhhhhhhh..eeeee..............hhhhhhhhhhhhhhhhhhhhhh.....eeeeeehhhhhhhhhhhhhh...eeeeeee...........hhhhhhhhhhh..hhhhhh...hhhhhhhh..hhhhhhhhhhh.....................hhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeee..hhhhhh.hhhhhhhhhhhhhhh......eee.....hhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4ufn B   2 KKIEHKMVAVNGLNMHLAELGEGPTILFIHGFPELWYSWRHQMVYLAERGYRAVAPDLRGYGDTTGAPLNDPSKFSILHLVGDVVALLEAIALNEEKVFVVAHDLGAYIAWHLCLFRPDKVKALVNLSVHFSKRNPKMNKVEGLKAIYGEDHYVSRFQVPGEIEAEFAPIGAKSVLKKILTYRDPAPFYFPKGKGLEAIPDAPVALSSWLSEEELDYYANKFEQTGFTGAVNYYRALPINWELTAPWTGAQVKVPTKFIVGEFDLVYHIPGAKEYIHNGGFKKDVPLLEEVVVLEGAAHFVSQERPHEISKHIYDFIQKFT 322
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 4UFN)

(no "CATH Domain" information available for 4UFN)

(no "Pfam Domain" information available for 4UFN)

Asymmetric Unit(hide GO term definitions)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		DIO	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

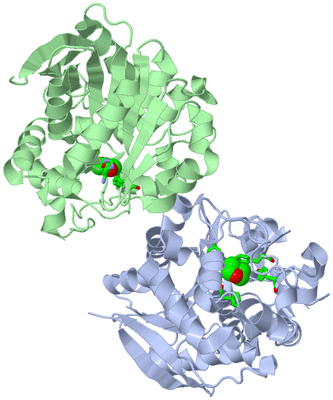

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Phe A:33 - Pro A:34	[ RasMol ]
		Phe B:33 - Pro B:34	[ RasMol ]

Biological Units
	Complete Structure

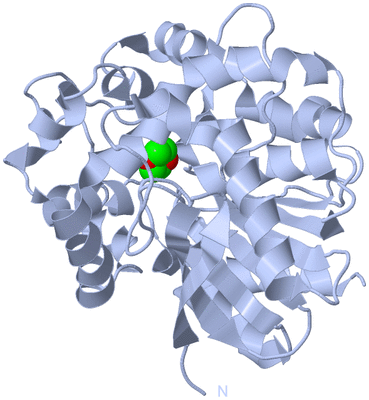

		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
