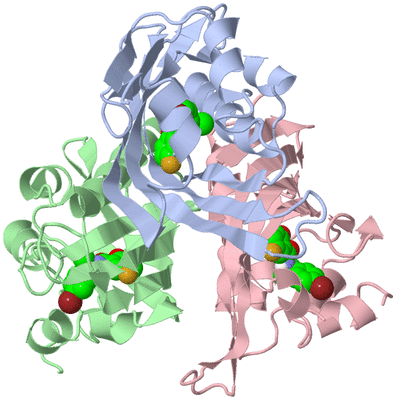

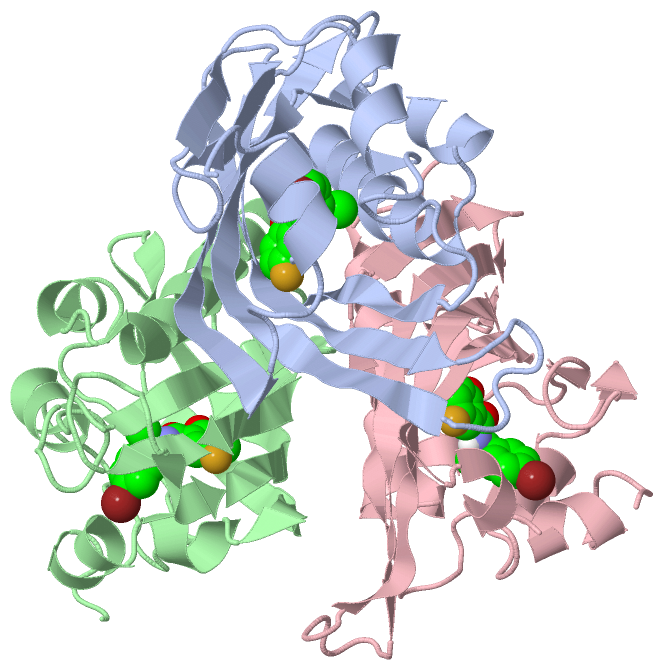

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

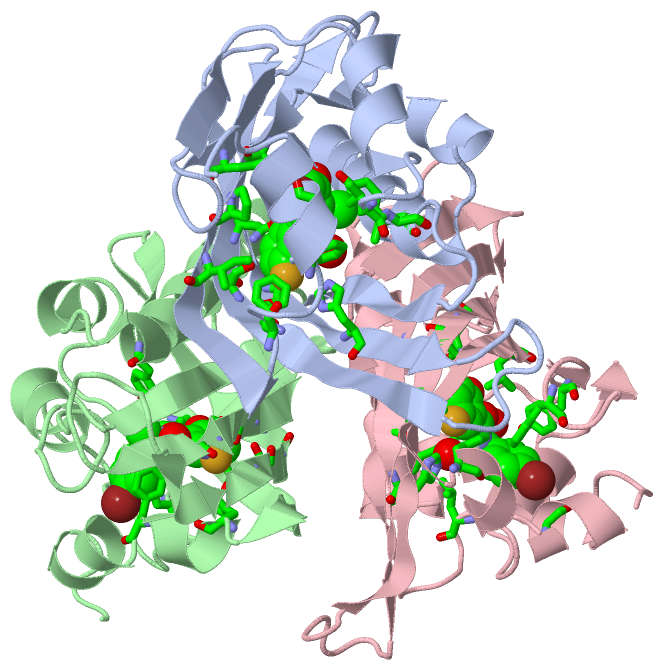

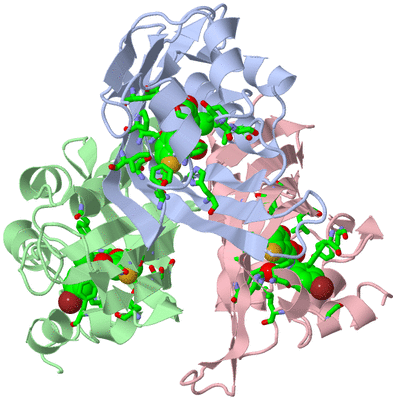

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  HIGH RESOLUTION STRUCTURES OF SCYTALONE DEHYDRATASE-INHIBITOR COMPLEXES CRYSTALLIZED AT PHYSIOLOGICAL PH

Authors :  Z. Wawrzak, T. Sandalova, J. J. Steffens, G. S. Basarab, T. Lundqvist, Y. Lindqvist, D. B. Jordan
Date :  10 Feb 99  (Deposition) - 29 Dec 99  (Release) - 21 Jun 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.15
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Lyase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Wawrzak, T. Sandalova, J. J. Steffens, G. S. Basarab, T. Lundqvist, Y. Lindqvist, D. B. Jordan
High-Resolution Structures Of Scytalone Dehydratase-Inhibitor Complexes Crystallized At Physiological Ph.
Proteins V. 35 425 1999

(-) Compounds

Molecule 1 - SCYTALONE DEHYDRATASE
    Chains: A, B, C
    EC Number: 4.2.1.94
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Organism Scientific: MAGNAPORTHE GRISEA
    Organism Taxid: 148305
    Synonym: SDH

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 3)

Asymmetric/Biological Unit (1, 3)
No.NameCountTypeFull Name
1BFS3Ligand/IonN-[1-(4-BROMOPHENYL)ETHYL]-5-FLUORO SALICYLAMIDE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWARETYR A:30 , TYR A:50 , VAL A:75 , LEU A:76 , LEU A:106 , HIS A:110 , ALA A:127 , SER A:129 , ASN A:131 , LEU A:147 , PRO A:149 , ILE A:151 , PHE A:158 , PHE A:162 , GLY A:165 , HOH A:187 , HOH A:190BINDING SITE FOR RESIDUE BFS A 173
2AC2SOFTWARETYR B:30 , TYR B:50 , VAL B:108 , HIS B:110 , ALA B:127 , SER B:129 , ASN B:131 , LEU B:147 , PRO B:149 , PHE B:158 , PHE B:162 , HOH B:189BINDING SITE FOR RESIDUE BFS B 174
3AC3SOFTWARETYR C:30 , TYR C:50 , PHE C:53 , LEU C:76 , LEU C:106 , VAL C:108 , HIS C:110 , ALA C:127 , SER C:129 , ASN C:131 , LEU C:147 , PHE C:158 , GLY C:165 , HOH C:185 , HOH C:188BINDING SITE FOR RESIDUE BFS C 175

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4STD)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4STD)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4STD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4STD)

(-) Exons   (0, 0)

(no "Exon" information available for 4STD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:164

               SCOP domains d4stda_ A: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 4stdA00 A:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhh.......eeee.....eee....hhhhhhhh..........eeeeeee..eeeee....eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeee....eee.eeeeeeeeeee......hhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4std A   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168


Chain B from PDB  Type:PROTEIN  Length:164

               SCOP domains d4stdb_ B: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 4stdB00 B:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhh.......................hhhhhhhh..........eeeeeee..eeeee....eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeeee..eeee..eeeeeeeeee.hhhh.hhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4std B   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168


Chain C from PDB  Type:PROTEIN  Length:164

               SCOP domains d4stdc_ C: Scytalone dehydratase                                                                                                                                     SCOP domains
               CATH domains 4stdC00 C:9-172  [code=3.10.450.50, no name defined]                                                                                                                 CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....hhhhhhhhhhhhhhhhhhhh..hhhhh.......eeee.....eee....hhhhhhhh..........eeeeeee..eeeee....eeeeeeeeeeeeeee.......eeeeeeeeeeeeeeeee....eee.eeeeeeeeeee.hhhh.hhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4std C   9 GEITFSDYLGLMTCVYEWADSYDSKDWDRLRKVIAPTLRIDYRSFLDKLWEAMPAEEFVGMVSSKQVLGDPTLRTQHFIGGTRWEKVSEDEVIGYHQLRVPHQRYKDTTMKEVTMKGHAHSANLHWYKKIDGVWKFAGLKPDIRWGEFDFDRIFEDGRETFGDK 172
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4STD)

(-) Gene Ontology  (6, 6)
