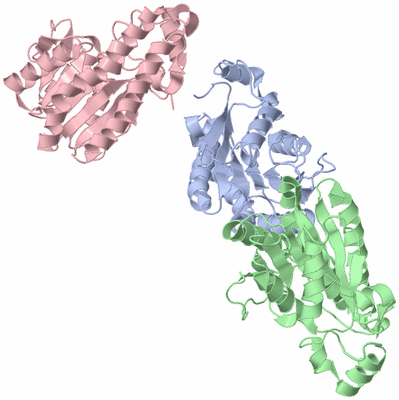

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

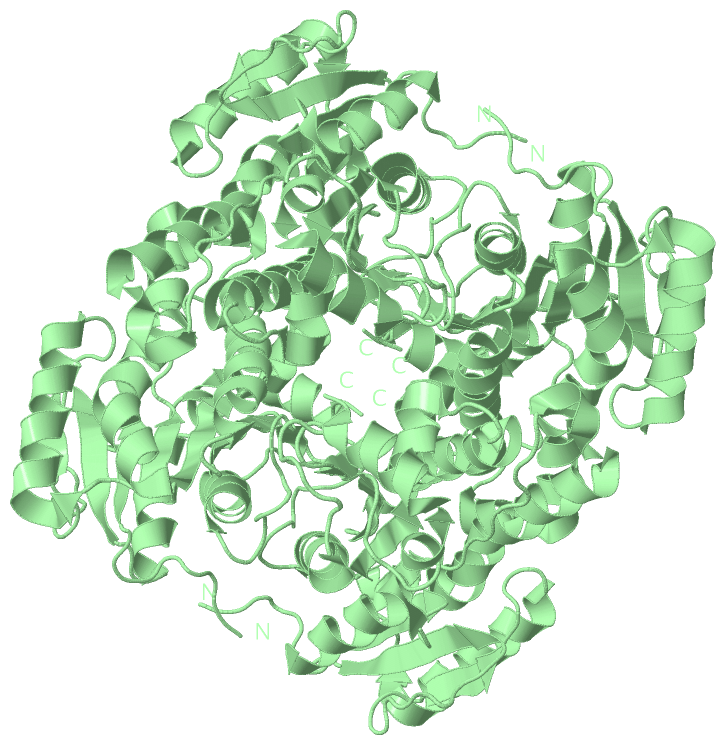

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

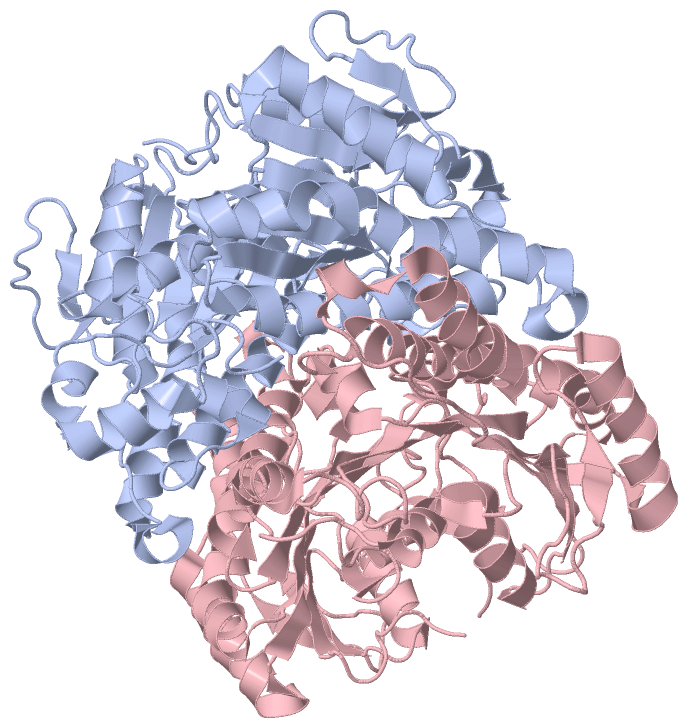

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PHAB FROM SYNECHOCYSTIS SP. PCC 6803

Authors :  S. Xue, Y. Liu
Date :  22 Dec 14  (Deposition) - 30 Sep 15  (Release) - 21 Oct 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.89
Chains :  Asym. Unit :  A,B,C
Biol. Unit 1:  B  (4x)
Biol. Unit 2:  A,C  (2x)
Keywords :  Short-Chain Dehydrogenase/Reductase (Sdr) Family, Acaccoa Reductase, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. Liu, Y. Feng, X. Cao, X. Li, S. Xue
Structure-Directed Construction Of A High-Performance Version Of The Enzyme Fabg From The Photosynthetic Microorganism Synechocystis Sp. Pcc 6803.
Febs Lett. V. 589 3052 2015
PubMed-ID: 26358291  |  Reference-DOI: 10.1016/J.FEBSLET.2015.09.001

(-) Compounds

Molecule 1 - 3-KETOACYL-ACYL CARRIER PROTEIN REDUCTASE
    Chains: B, A, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: FABG, MYO_113190
    Organism Scientific: SYNECHOCYSTIS SP. PCC 6803
    Organism Taxid: 1148

 Structural Features

(-) Chains, Units

  123
Asymmetric Unit : ABC
Biological Unit 1 (4x):  B
Biological Unit 2 (2x): A C

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4RZI)

(-) Sites  (0, 0)

(no "Site" information available for 4RZI)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4RZI)

(-) Cis Peptide Bonds  (9, 9)

Asymmetric Unit
No.Residues
1Asp B:43 -Gly B:44
2Gly B:44 -Gly B:45
3Ser B:133 -Ser B:134
4Asp A:43 -Gly A:44
5Gly A:44 -Gly A:45
6Ser A:133 -Ser A:134
7Asp C:43 -Gly C:44
8Gly C:44 -Gly C:45
9Ser C:133 -Ser C:134

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4RZI)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4RZI)

(-) Exons   (0, 0)

(no "Exon" information available for 4RZI)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:239

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeee...hhhhhhhhhhhhh...eeeeee...........eee....hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeee.hhhhhh....hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeee......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhh..........eeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rzi A   2 LSLGLEDKVIVVTGGNRGIGAAIVKLLQEMGAKVAFTDLATDGGNTEALGVVANVTDLESMTAAAAEITDKLGPVYGVVANAGITKDNFFPKLTPADWDAVLNVNLKGVAYSIKPFIEGMYERKAGSIVAISSISGERGNVGQTNYSATKAGVIGMMKSLAREGARYGVRANAVAPGFIDTEMTLAIREDIREKITKEIPFRRFGKPEEIAWAVAFLLSPVASSYVTGEVLRVNGAHHT 240
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231


Chain B from PDB  Type:PROTEIN  Length:239

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeee...hhhhhhhhhhhhh...eeeeee...........eee....hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeee.hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeee......hhhhhhhhhhhhhhh........hhhhhhhhhhhhhh..........eeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rzi B   2 LSLGLEDKVIVVTGGNRGIGAAIVKLLQEMGAKVAFTDLATDGGNTEALGVVANVTDLESMTAAAAEITDKLGPVYGVVANAGITKDNFFPKLTPADWDAVLNVNLKGVAYSIKPFIEGMYERKAGSIVAISSISGERGNVGQTNYSATKAGVIGMMKSLAREGARYGVRANAVAPGFIDTEMTLAIREDIREKITKEIPFRRFGKPEEIAWAVAFLLSPVASSYVTGEVLRVNGAHHT 240
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231


Chain C from PDB  Type:PROTEIN  Length:239

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........eeeee...hhhhhhhhhhhhh...eeeeee...........eee....hhhhhhhhhhhhhhhhh.eeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhhhh...hhhhhhhhhhhhhhhhhhhhhhh...eeeeeeee...........hhhhhhhhhh........hhhhhhhhhhhhhh..........eeee...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rzi C   2 LSLGLEDKVIVVTGGNRGIGAAIVKLLQEMGAKVAFTDLATDGGNTEALGVVANVTDLESMTAAAAEITDKLGPVYGVVANAGITKDNFFPKLTPADWDAVLNVNLKGVAYSIKPFIEGMYERKAGSIVAISSISGERGNVGQTNYSATKAGVIGMMKSLAREGARYGVRANAVAPGFIDTEMTLAIREDIREKITKEIPFRRFGKPEEIAWAVAFLLSPVASSYVTGEVLRVNGAHHT 240
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4RZI)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4RZI)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4RZI)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4rzi)

  Sites
(no "Sites" information available for 4rzi)

  Cis Peptide Bonds
    Asp A:43 - Gly A:44   [ RasMol ]
    Asp B:43 - Gly B:44   [ RasMol ]
    Asp C:43 - Gly C:44   [ RasMol ]
    Gly A:44 - Gly A:45   [ RasMol ]
    Gly B:44 - Gly B:45   [ RasMol ]
    Gly C:44 - Gly C:45   [ RasMol ]
    Ser A:133 - Ser A:134   [ RasMol ]
    Ser B:133 - Ser B:134   [ RasMol ]
    Ser C:133 - Ser C:134   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

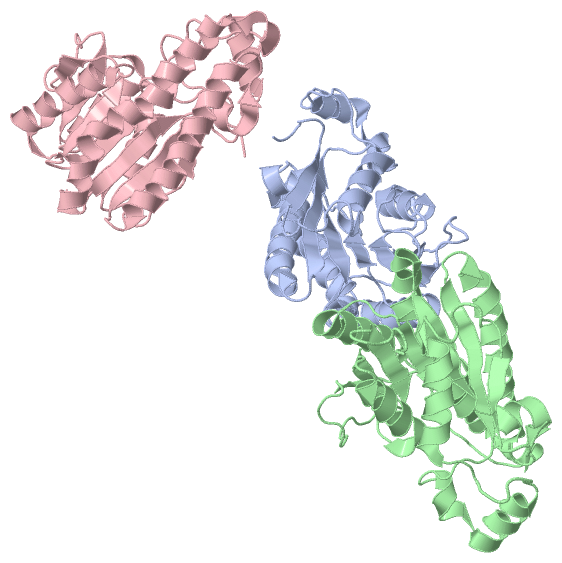

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4rzi
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PHAB_SYNY3 | P73826
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PHAB_SYNY3 | P73826
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4RZI)

(-) Related Entries Specified in the PDB File

4rzh MAYBE A PARALOGOUS PROTEIN OF FABG
