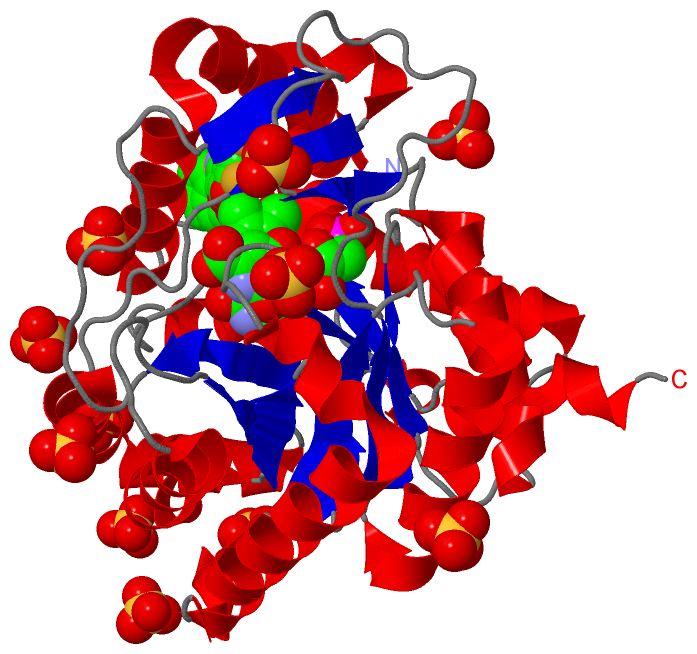

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HUMAN DIHYDROOROTATE DEHYDROGENASE (DHODH) WITH DH03A356

Authors :  L. Zhu, X. Ren, J. Zhu, H. Li
Date :  12 Oct 14  (Deposition) - 11 Nov 15  (Release) - 11 Nov 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.22
Chains :  Asym./Biol. Unit :  A
Keywords :  Oxidoreductase, Fmn Binding, Mitochondria Inner Membrane, Oxidoreductase-Oxidoreductase Inhibitor Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Zhu, X. Ren, J. Zhu, H. Li
Crystal Structure Of Human Dihydroorotate Dehydrogenase (Dhodh) With Dh03A356
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - DIHYDROOROTATE DEHYDROGENASE (QUINONE), MITOCHONDRIAL
    Chains: A
    EC Number: 1.3.5.2
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: DHODH
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: DHODEHASE, DIHYDROOROTATE OXIDASE

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 14)

Asymmetric/Biological Unit (4, 14)
No.NameCountTypeFull Name
13RV1Ligand/Ion5-FLUORO-2-{[(5Z)-5-(NAPHTHALEN-1-YLMETHYLIDENE)-4-OXO-4,5-DIHYDRO-1,3-THIAZOL-2-YL]AMINO}BENZOIC ACID
2FMN1Ligand/IonFLAVIN MONONUCLEOTIDE
3ORO1Ligand/IonOROTIC ACID
4SO411Ligand/IonSULFATE ION

(-) Sites  (14, 14)

Asymmetric Unit (14, 14)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREALA A:95 , ALA A:96 , GLY A:97 , LYS A:100 , SER A:120 , ASN A:145 , TYR A:147 , ASN A:181 , ASN A:212 , LYS A:255 , THR A:283 , ASN A:284 , THR A:285 , SER A:305 , GLY A:306 , LEU A:309 , VAL A:333 , GLY A:334 , GLY A:335 , LEU A:355 , TYR A:356 , THR A:357 , ORO A:402 , 3RV A:403 , HOH A:508 , HOH A:653BINDING SITE FOR RESIDUE FMN A 401
02AC2SOFTWARELYS A:100 , ASN A:145 , TYR A:147 , GLY A:148 , PHE A:149 , ASN A:212 , SER A:215 , ASN A:217 , ASN A:284 , THR A:285 , FMN A:401BINDING SITE FOR RESIDUE ORO A 402
03AC3SOFTWAREMET A:43 , LEU A:46 , PRO A:52 , ALA A:55 , HIS A:56 , ALA A:59 , PHE A:62 , THR A:63 , LEU A:67 , LEU A:68 , PHE A:98 , VAL A:134 , ARG A:136 , TYR A:356 , LEU A:359 , THR A:360 , PRO A:364 , FMN A:401 , HOH A:523BINDING SITE FOR RESIDUE 3RV A 403
04AC4SOFTWARELYS A:170 , THR A:261 , GLN A:263 , HOH A:660BINDING SITE FOR RESIDUE SO4 A 404
05AC5SOFTWAREARG A:160 , HOH A:623 , HOH A:704BINDING SITE FOR RESIDUE SO4 A 405
06AC6SOFTWAREALA A:219 , GLY A:220 , ARG A:222 , HOH A:576 , HOH A:588BINDING SITE FOR RESIDUE SO4 A 406
07AC7SOFTWAREPRO A:123 , LYS A:124 , GLU A:197BINDING SITE FOR RESIDUE SO4 A 407
08AC8SOFTWAREALA A:163 , LYS A:167 , LYS A:227 , GLU A:266 , ASP A:267BINDING SITE FOR RESIDUE SO4 A 408
09AC9SOFTWAREARG A:246 , ARG A:249BINDING SITE FOR RESIDUE SO4 A 409
10BC1SOFTWAREHIS A:86 , ALA A:206 , ASP A:207 , VAL A:247 , ARG A:249 , HOH A:611BINDING SITE FOR RESIDUE SO4 A 410
11BC2SOFTWAREARG A:57 , HIS A:101 , ARG A:133 , ASN A:150 , HOH A:667 , HOH A:688 , HOH A:694 , HOH A:717BINDING SITE FOR RESIDUE SO4 A 411
12BC3SOFTWARELYS A:167 , LYS A:227 , ARG A:231BINDING SITE FOR RESIDUE SO4 A 412
13BC4SOFTWAREARG A:245 , VAL A:247 , HIS A:248 , HOH A:647 , HOH A:699BINDING SITE FOR RESIDUE SO4 A 413
14BC5SOFTWARELYS A:307 , PRO A:308 , ASP A:311 , THR A:314 , GLN A:315 , ARG A:318 , HOH A:698BINDING SITE FOR RESIDUE SO4 A 414

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4RK8)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Gly A:119 -Ser A:120
2Arg A:131 -Pro A:132
3Val A:282 -Thr A:283

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4RK8)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4RK8)

(-) Exons   (0, 0)

(no "Exon" information available for 4RK8)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:365

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..........hhhhheee..eee...eee.........hhhhhhhhh..eeeeeee............eeeehhh.eeee.......hhhhhhhhhhhhhhhhhhhhhh...eeeee.......hhhhhhhhhhhhhhhhh.eeeee.......hhhhhhhhhhhhhhhhhhhhhhhh.hhhhh.eeeeee....hhhhhhhhhhhhhhhh..eeee....................eeee..hhhhhhhhhhhhhhhh.....eeee....hhhhhhhhhhhh..eeeehhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4rk8 A  32 TGDERFYAEHLMPTLQGLLDPESAHRLAVRFTSLGLLPRARFQDSDMLEVRVLGHKFRNPVGIAAGFDKHGEAVDGLYKMGFGFVEIGSVTPKPQEGNPRPRVFRLPEDQAVINRYGFNSHGLSVVEHRLRARQQKQAKLTEDGLPLGVNLGKNKTSVDAAEDYAEGVRVLGPLADYLVVNVSSPNTAGLRSLQGKAELRRLLTKVLQERDGLRRVHRPAVLVKIAPDLTSQDKEDIASVVKELGIDGLIVTNTTVSRPAGLQGALRSETGGLSGKPLRDLSTQTIREMYALTQGRVPIIGVGGVSSGQDALEKIRAGASLVQLYTALTFWGPPVVGKVKRELEALLKEQGFGGVTDAIGADHRR 396
                                    41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371       381       391
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4RK8)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4RK8)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4RK8)

(-) Gene Ontology  (27, 27)
