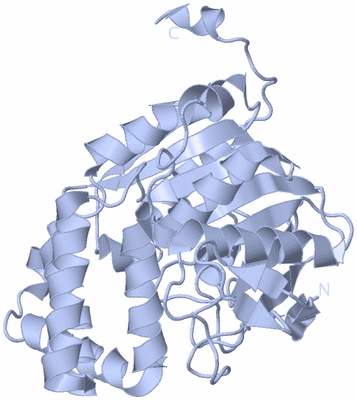

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF HOMOSERINE O-ACETYLTRANSFERASE FROM STAPHYLOCOCCUS AUREUS

Authors :  B. Thangavelu, A. G. Pavlovsky, R. E. Viola
Date :  12 Jun 14  (Deposition) - 20 Aug 14  (Release) - 17 Dec 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.45
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  A  (2x)
Keywords :  Rossmann Fold, Acetyltransferase, Acetylco-A Binding, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  B. Thangavelu, A. G. Pavlovsky, R. Viola
Structure Of Homoserine O-Acetyltransferase From Staphylococcus Aureus: The First Gram-Positive Ortholog Structure.
Acta Crystallogr. , Sect. F V. 70 1340 2014
PubMed-ID: 25286936  |  Reference-DOI: 10.1107/S2053230X14018664

(-) Compounds

Molecule 1 - HOMOSERINE O-ACETYLTRANSFERASE
    Chains: A
    EC Number: 2.3.1.31
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PDEST42
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Gene: AZ30_00060, METX, SACOL0012, USA300HOU_0012
    Organism Scientific: STAPHYLOCOCCUS AUREUS SUBSP. AUREUS
    Organism Taxid: 451516
    Strain: TCH1516

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (1x): A
Biological Unit 2 (2x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4QLO)

(-) Sites  (0, 0)

(no "Site" information available for 4QLO)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4QLO)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Gly A:130 -Ser A:131
2Tyr A:328 -Lys A:329

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4QLO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4QLO)

(-) Exons   (0, 0)

(no "Exon" information available for 4QLO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:327

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee...ee.....ee...eeeeeee......eeeee..................hhhhhhh........eeeee......................hhhhhhhhhhhhhhhh...eeeeeeeehhhhhhhhhhhhhh..eeeeeeee......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhh...eeeeeee......hhhhhhhhhh...eeeeeee....hhhhh..hhhhhhhhhhhhhh.......hhhhh.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4qlo A   3 NYTVDTLNLGEFITESGEVIDNLRLRYEHVGYHGQPLVVVCHALTGNHLTYGTDDYPGWWREIIDGGYIPIHDYQFLTFDVIGSPFGSSSPLNDPHFPKKLTLRDIVRANERGIQALGYDKINILIGGSLGGMQAMELLYNQQFEVDKAIILAATSRTSSYSRAFNEIARQAIHLGGKEGLSIARQLGFLTYRSSKSYDERFTPDEVVAYQQHQGNKFKEHFDLNCYLTLLDVLDSHNIDRGRTDVTHVFKNLETKVLTMGFIDDLLYPDDQVRALGERFKYHRHFFVPDNVGHDGFLLNFSTWAPNLYHFLNLKHFKRKDPAFLYK 329
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4QLO)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4QLO)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4QLO)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4QLO)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4qlo)

  Sites
(no "Sites" information available for 4qlo)

  Cis Peptide Bonds
    Gly A:130 - Ser A:131   [ RasMol ]
    Tyr A:328 - Lys A:329   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
