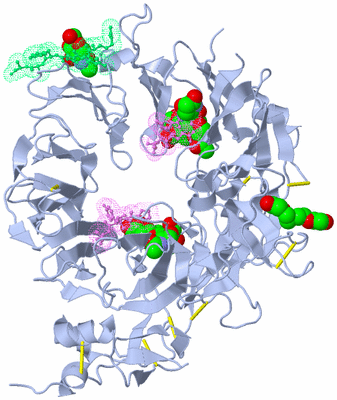

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

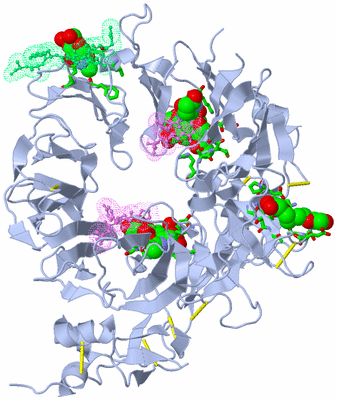

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE SORTILIN:NEUROTENSIN COMPLEX AT EXCESS NEUROTENSIN CONCENTRATION

Authors :  E. M. Quistgaard, M. K. Groftehauge, S. S. Thirup
Date :  25 Feb 14  (Deposition) - 23 Jul 14  (Release) - 24 Sep 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.66
Chains :  Asym./Biol. Unit :  A,N,P
Keywords :  10 Bladed Beta-Propeller, Protein Sorting Receptor, Neurotensin, Glycosylation, Trans Golgi Network, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. M. Quistgaard, M. K. Grftehauge, P. Madsen, L. T. Pallesen, B. Christensen, E. S. Srensen, P. Nissen, C. M. Petersen, S. S. Thirup
Revisiting The Structure Of The Vps10 Domain Of Human Sortilin And Its Interaction With Neurotensin.
Protein Sci. V. 23 1291 2014
PubMed-ID: 24985322  |  Reference-DOI: 10.1002/PRO.2512

(-) Compounds

Molecule 1 - SORTILIN
    Chains: A
    Engineered: YES
    Expression System: CRICETULUS GRISEUS
    Expression System Cell Line: CHO-K1
    Expression System Taxid: 10029
    Fragment: UNP RESIDUES 78-756
    Gene: SORT1
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: 100 KDA NT RECEPTOR, GLYCOPROTEIN 95, GP95, NEUROTENSIN RECEPTOR 3, NT3, NTR3

Molecule 2 - NEUROTENSIN/NEUROMEDIN N
    Chains: N, P
    Engineered: YES
    Fragment: UNP RESIDUES 151-163
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: LARGE NEUROMEDIN N, NMN-125, NEUROMEDIN N, NN, NMN, NEUROTENSIN, NT, TAIL PEPTIDE
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ANP

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 9)

Asymmetric/Biological Unit (4, 9)
No.NameCountTypeFull Name
1BMA2Ligand/IonBETA-D-MANNOSE
2NAG5Ligand/IonN-ACETYL-D-GLUCOSAMINE
3PCA1Mod. Amino AcidPYROGLUTAMIC ACID
4PG41Ligand/IonTETRAETHYLENE GLYCOL

(-) Sites  (4, 4)

Asymmetric Unit (4, 4)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:412 , SER A:413 , GLU A:414 , GLY A:459 , SER A:460 , VAL A:461 , PRO A:470 , ASP A:471 , TYR A:473 , LYS A:484 , HOH A:990BINDING SITE FOR RESIDUE PG4 A 808
2AC2SOFTWARELEU A:127 , ASN A:129 , PHE A:174 , GLN A:176 , HOH A:983BINDING SITE FOR MONO-SACCHARIDE NAG A 807 BOUND TO ASN A 129
3AC3SOFTWAREALA A:322 , ALA A:323 , ASN A:324 , ASN A:373 , THR A:375 , TYR A:381 , HOH A:944 , HOH A:948 , HOH A:950 , HOH A:956 , HOH A:964BINDING SITE FOR CHAIN A OF SUGAR BOUND TO ASN A 373 RESIDUES 801 TO 803
4AC4SOFTWAREASP A:116 , TYR A:117 , LYS A:119 , SER A:547 , MET A:548 , ASN A:549 , ASP A:570 , ARG A:622BINDING SITE FOR CHAIN A OF SUGAR BOUND TO ASN A 549 RESIDUES 804 TO 806

(-) SS Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1A:53 -A:523
2A:224 -A:244
3A:415 -A:425
4A:579 -A:618
5A:601 -A:633
6A:635 -A:690
7A:642 -A:655
8A:669 -A:707

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4PO7)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4PO7)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4PO7)

(-) Exons   (0, 0)

(no "Exon" information available for 4PO7)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:658

               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhh.eeeeee.....eeeeee.......eeeeee..............eeee.......ee.hhhhh.........eee.......eeee..........eeeee.......eeee.........eee..eeeeeeee.....eeee.......eeee..eeeeee.hhh.eeeee.............eeeee.......ee....eeeeeee..eeeeeee......eeeeee.......ee...........eeeeee....eeeeee......eeeeeee......eeeeeeeee..........ee.......eeeeee.....eeeeee......eee...................eeee.hhhhhhh.................eeeeeeee........eeeee.......eeee...eeeeeehhhheeeeee.......eeeee.......eeee.....eeeeeee........eeeeeeee......eeeeeee.hhh.....hhh.eeeee................eeeeeeee...............eeeee...hhh.eee...ee.....ee.....hhhhhhhhhhhhhhhh...eee..................hhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4po7 A  53 CGRVRDFVAKLANNTHQHVFDDLRGSVSLSWVGDSTGVILVLTTFHVPLVIMTFGQSKLYRSEDYGKNFKDITDLINNTFIRTEFGMAIGPENSGKVVLTAEVSGGSRGGRIFRSSDFAKNFVQTDLPFHPLTQMMYSPQNSDYLLALSTENGLWVSKNFGGKWEEIHKAVCLAKWGSDNTIFFTTYANGSCKADLGALELWRTSDLGKSFKTIGVKIYSFGLGGRFLFASVMADKDTTRRIHVSTDQGDTWSMAQLPSVGQEQFYSILAANDDMVFMHVDEPGDTGFGTIFTSDDRGIVYSKSLDRHLYTTTGGETDFTNVTSLRGVYITSVLSEDNSIQTMITFDQGGRWTHLRKPENSECDATAKNKNECSLHIHASYSISQKLNVPMAPLSEPNAVGIVIAHGSVGDAISVMVPDVYISDDGGYSWTKMLEGPHYYTILDSGGIIVAIEHSSRPINVIKFSTDEGQCWQTYTFTRDPIYFTGLASEPGARSMNISIWGFTESLTSQWVSYTIDFKDILERNCEEKDYTIWLAHSTDPEDYEDGCILGYKEQFLRLRKSSMCQNGRDYVVTKQPSICLCSLEDFLCDFGYYRPSKCVEQPELKGHDLEFCLYGREEHLTTNGYRKIPGDKCQGGVNPVREVKDLKKKCTSNFLSP 714
                                    62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502       512       522       532       542       552     ||563       573       583       593       603       613       623       633       643     ||656       666       676       686       696       706
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                   558|                                                                                      649|
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    560                                                                                       653


Chain N from PDB  Type:PROTEIN  Length:9

               SCOP domains --------- SCOP domains
               CATH domains --------- CATH domains
               Pfam domains --------- Pfam domains
         Sec.struct. author .eee..ee. Sec.struct. author
                 SAPs(SNPs) --------- SAPs(SNPs)
                    PROSITE --------- PROSITE
                 Transcript --------- Transcript
                 4po7 N   1 xLYENPYIL  13
                            |   ||
                            1-PCA|
                                10


Chain P from PDB  Type:PROTEIN  Length:6

               SCOP domains ------ SCOP domains
               CATH domains ------ CATH domains
               Pfam domains ------ Pfam domains
         Sec.struct. author ...... Sec.struct. author
                 SAPs(SNPs) ------ SAPs(SNPs)
                    PROSITE ------ PROSITE
                 Transcript ------ Transcript
                 4po7 P   8 RRPYIL  13
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
