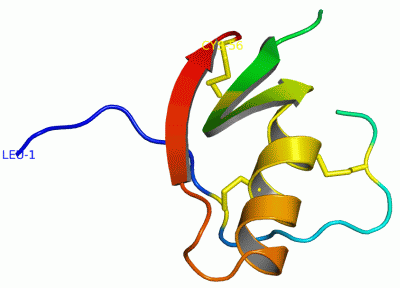

Image Asym.Unit - manually
Asym.Unit - manually  (Jmol Viewer)

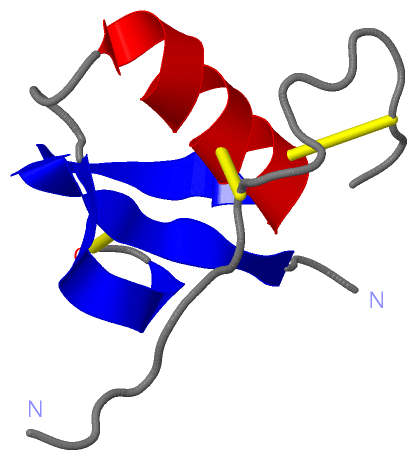

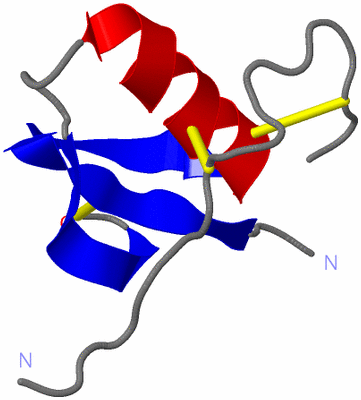

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

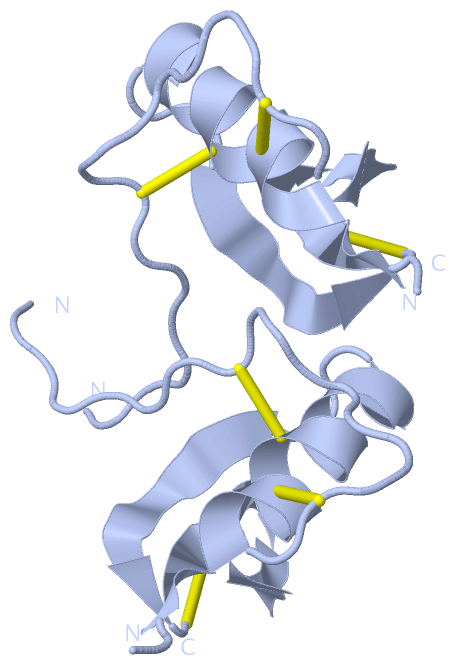

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

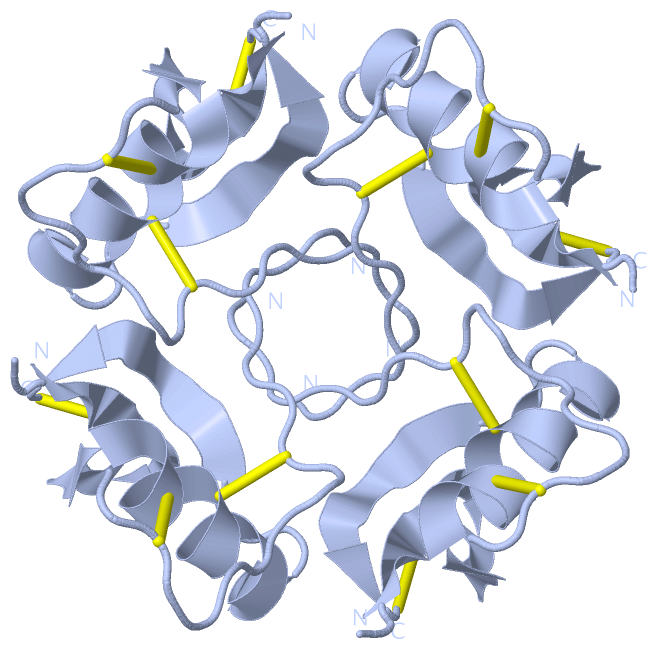

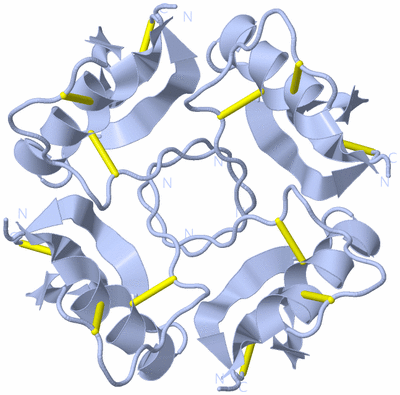

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  REFINED X-RAY CRYSTAL STRUCTURES OF THE REACTIVE SITE MODIFIED OVOMUCOID INHIBITOR THIRD DOMAINS FROM SILVER PHEASANT (OMSVP3(ASTERISK)) AND FROM JAPANESE QUAIL (OMJPQ3(ASTERISK))

Authors :  D. Musil, W. Bode
Date :  13 May 91  (Deposition) - 15 Jan 93  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.50
Chains :  Asym. Unit :  A
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  A  (4x)
Keywords :  Proteinase Inhibitor (Kazal) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Musil, W. Bode, R. Huber, M. Laskowski Jr. , T. Y. Lin, W. Ardelt
Refined X-Ray Crystal Structures Of The Reactive Site Modified Ovomucoid Inhibitor Third Domains From Silver Pheasant (Omsvp3*) And From Japanese Quail (Omjpq3*).
J. Mol. Biol. V. 220 739 1991
PubMed-ID: 1870129  |  Reference-DOI: 10.1016/0022-2836(91)90114-L

(-) Compounds

Molecule 1 - OVOMUCOID THIRD DOMAIN CLEAVED RDI
    Chains: A
    Engineered: YES
    Organism Common: SILVER PHEASANT
    Organism Scientific: LOPHURA NYCTHEMERA
    Organism Taxid: 9046

 Structural Features

(-) Chains, Units

  1
Asymmetric Unit : A
Biological Unit 1 (2x): A
Biological Unit 2 (4x): A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4OVO)

(-) Sites  (0, 0)

(no "Site" information available for 4OVO)

(-) SS Bonds  (3, 3)

Asymmetric Unit
No.Residues
1A:8 -A:38
2A:16 -A:35
3A:24 -A:56

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Tyr A:11 -Pro A:12

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4OVO)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4OVO)

(-) Exons   (0, 0)

(no "Exon" information available for 4OVO)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:56

               SCOP domains d4ovoa_ A: Ovomucoid domains                             SCOP domains
               CATH domains 4ovoA00 A:1-56  [code=3.30.60.30, no name defined]       CATH domains
               Pfam domains -------------------------------------------------------- Pfam domains
         Sec.struct. author ....................eeeeeeeeeeeehhhhhhhhhhhh....eeeeee.. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------- Transcript
                  4ovo A  1 LAAVSVDCSEYPKPACTMEYRPLCGSDNKTYGNKCNFCNAVVESNGTLTLSHFGKC 56
                                    10        20        30        40        50
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric Unit
(-)
Class: Small proteins (3458)

(-) CATH Domains  (1, 1)

Asymmetric Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4OVO)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4ovo)

  Sites
(no "Sites" information available for 4ovo)

  Cis Peptide Bonds
    Tyr A:11 - Pro A:12   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4ovo
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  IOVO_LOPNY | P67954
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  IOVO_LOPNY | P67954
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        IOVO_LOPNY | P67954: 1iy5 1iy6 2ovo
