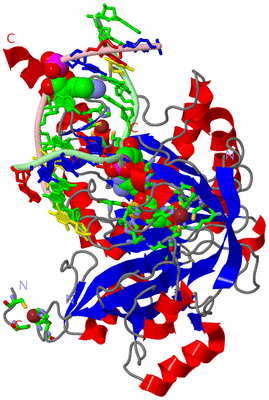

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TET2-DNA COMPLEX

Authors :  L. Hu, Z. Li, J. Cheng, Q. Rao, W. Gong, M. Liu, P. Wang, Y. Xu
Date :  14 Nov 13  (Deposition) - 18 Dec 13  (Release) - 15 Jan 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.03
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Dna Hydroxylation, Oxidoreductase-Dna Complex (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Hu, Z. Li, J. Cheng, Q. Rao, W. Gong, M. Liu, Y. G. Shi, J. Zhu, P. Wang, Y. Xu
Crystal Structure Of Tet2-Dna Complex: Insight Into Tet-Mediated 5Mc Oxidation.
Cell(Cambridge, Mass. ) V. 155 1545 2013
PubMed-ID: 24315485  |  Reference-DOI: 10.1016/J.CELL.2013.11.020

(-) Compounds

Molecule 1 - METHYLCYTOSINE DIOXYGENASE TET2
    Chains: A
    EC Number: 1.14.11.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Fragment: SEE REMARK 999
    Gene: TET2, KIAA1546, NBLA00191
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606

Molecule 2 - 5'-D(*AP*CP*CP*AP*CP*(5CM)P*GP*GP*TP*GP*GP*T)-3'
    Chains: B, C
    Engineered: YES
    Synthetic: YES

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (4, 7)

Asymmetric/Biological Unit (4, 7)
No.NameCountTypeFull Name
15CM2Mod. Nucleotide5-METHYL-2'-DEOXY-CYTIDINE-5'-MONOPHOSPHATE
2FE21Ligand/IonFE (II) ION
3OGA1Ligand/IonN-OXALYLGLYCINE
4ZN3Ligand/IonZINC ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWARECYS A:1193 , CYS A:1271 , CYS A:1273 , HIS A:1380BINDING SITE FOR RESIDUE ZN A 2001
2AC2SOFTWARECYS A:1133 , CYS A:1135 , HIS A:1219 , CYS A:1221BINDING SITE FOR RESIDUE ZN A 2002
3AC3SOFTWARECYS A:1289 , CYS A:1298 , CYS A:1358 , HIS A:1912BINDING SITE FOR RESIDUE ZN A 2003
4AC4SOFTWAREHIS A:1382 , ASP A:1384 , HIS A:1881 , OGA A:2005 , HOH A:2149BINDING SITE FOR RESIDUE FE2 A 2004
5AC5SOFTWAREARG A:1261 , CYS A:1374 , HIS A:1382 , ASP A:1384 , HIS A:1416 , HIS A:1881 , THR A:1883 , ARG A:1896 , SER A:1898 , FE2 A:2004 , HOH A:2142 , HOH A:2149 , 5CM B:6BINDING SITE FOR RESIDUE OGA A 2005

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4NM6)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Leu A:1151 -Gly A:1152
2Gln A:1191 -Gly A:1192
3Glu A:1411 -Asp A:1412
4Leu A:1447 -Ser A:1448

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4NM6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4NM6)

(-) Exons   (0, 0)

(no "Exon" information available for 4NM6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:407

               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .............ee.hhhhhhhhhhhhhh.hhh.eeeeeeee...............eee........eeeeeee.........eeeeeeee....hhhhhhhhhhhhhhhhhhhh....hhhhh.................eeeeee..ee....ee................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhh..........eeeeee.................eeeeeee.hhhh...........eee..eee.......hhhhhhhhhhhh.eee....eeeeeee.......eeeeeeehhhhhhh.....eee......eeee.......ee............eeeeeee......hhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                4nm6 A 1132 SCRCEGPFYTHLGAGPNVAAIREIMEERFGQKGKAIRIERVIYTGKEGKSSQGCPIAKWVVRRSSSEEKLLCLVRERAGHTCEAAVIVILILVWEGIPLSLADKLYSELTETLRKYGTLTNRRCALNEERTCACQGLDPETCGASFSFGCSWSMYYNGCKFARSKIPRKFKLLGDDPKEEEKLESHLQNLSTLMAPTYKKLAPDAYNNQIEYEHRAPECRLGLKEGRPFSGVTACLDFCAHAHRDLHNMQNGSTLVCTLTREDNREFGGKPEDEQLHVLPLYKVSDVDEFGSVEAQEEKKRSGAIQVLSSFRRKVRMLAEPVKTGSDEVWSDSEQSFLDPDIGGVAVAPTHGSILIECAKRELHATTPLKNPNRNHPTRISLVFYQHKSMNEPKHGLALWEAKMAEK 1924
                               || 1149      1159      1169      1179      1189      1199      1209      1219      1229      1239      1249      1259      1269      1279      1289      1299      1309      1319      1329      1339      1349      1359      1369      1379      1389      1399      1409      1419      1429      1439      1449      1459   || 1847      1857      1867      1877      1887      1897      1907      1917
                               ||                                                                                                                                                                                                                                                                                                                           1463|
                            1135|                                                                                                                                                                                                                                                                                                                            1842
                             1144


Chain B from PDB  Type:DNA  Length:11

                4nm6 B    1 ACCACcGGTGG   11
                                 |  10
                                 6-5CM


Chain C from PDB  Type:DNA  Length:10

                4nm6 C    3 CACcGGTGGT   12
                               |    12
                               6-5CM
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4NM6)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4NM6)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4NM6)

(-) Gene Ontology  (29, 29)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    5CM  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    FE2  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    OGA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    ZN  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Gln A:1191 - Gly A:1192   [ RasMol ]
    Glu A:1411 - Asp A:1412   [ RasMol ]
    Leu A:1151 - Gly A:1152   [ RasMol ]
    Leu A:1447 - Ser A:1448   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4nm6
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TET2_HUMAN | Q6N021
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.14.11.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TET2_HUMAN | Q6N021
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        TET2_HUMAN | Q6N021: 5d9y 5deu
