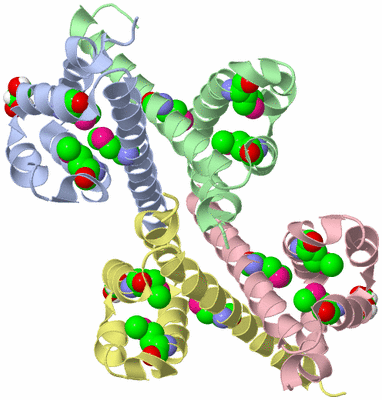

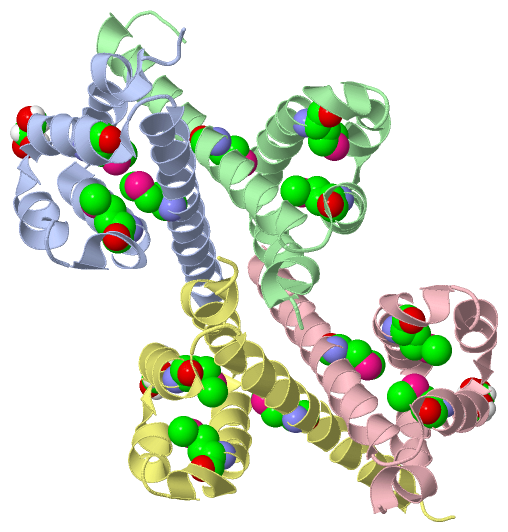

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

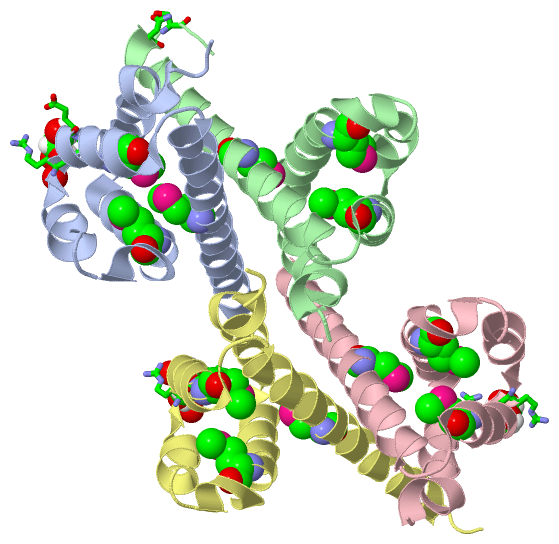

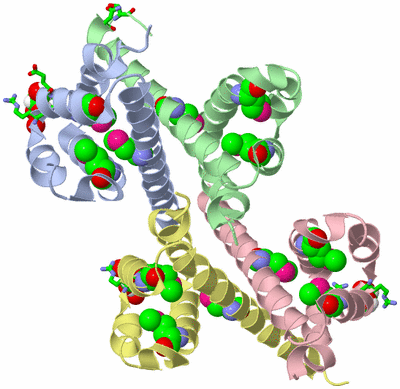

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)

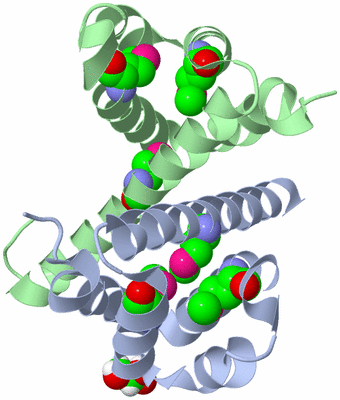

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

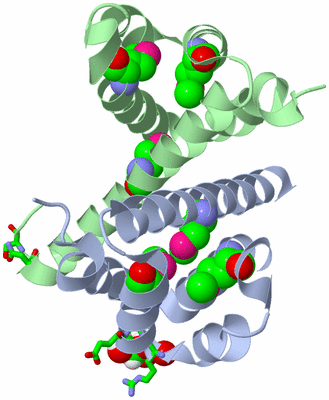

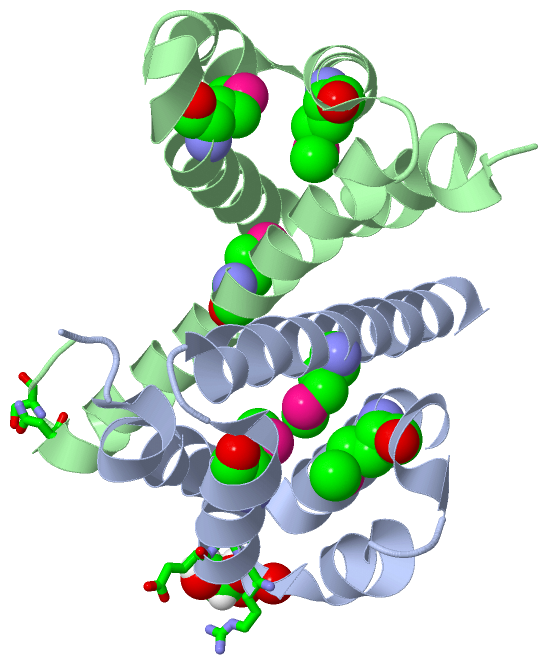

Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)

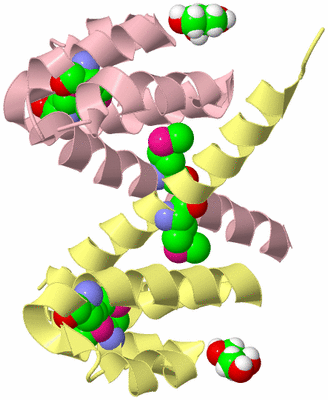

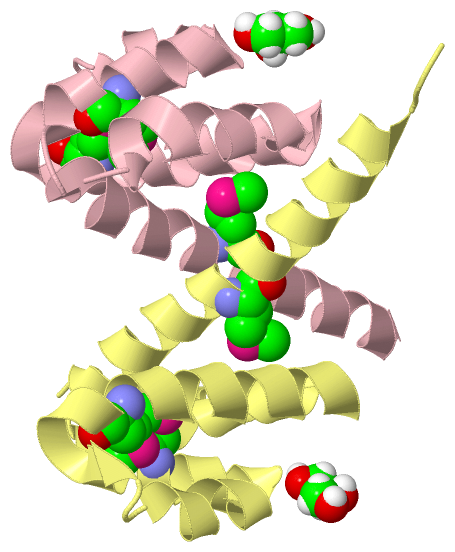

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

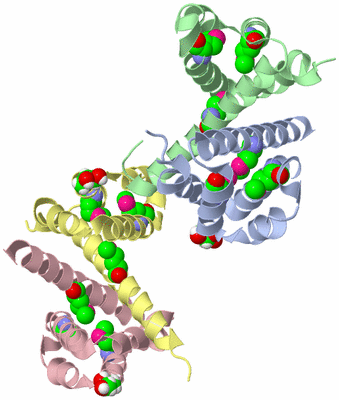

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURES OF NLRP14 PYRIN DOMAIN REVEAL A CONFORMATIONAL SWITCH MECHANISM, REGULATING ITS MOLECULAR INTERACTIONS

Authors :  C. Eibl, M. Hessenberger, J. Wenger, H. Brandstetter
Date :  04 Oct 13  (Deposition) - 16 Jul 14  (Release) - 24 Sep 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Biol. Unit 3:  A (1x),B (1x),C (1x),D (1x)
Keywords :  Death Domain Fold, Pyrin Domain, Nod-Like Receptor, Signaling Protein, Protein Binding, Spermatogenesis, Innate Immunity (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Eibl, M. Hessenberger, J. Wenger, H. Brandstetter
Structures Of The Nlrp14 Pyrin Domain Reveal A Conformational Switch Mechanism Regulating Its Molecular Interactions.
Acta Crystallogr. , Sect. D V. 70 2007 2014
PubMed-ID: 25004977  |  Reference-DOI: 10.1107/S1399004714010311

(-) Compounds

Molecule 1 - NACHT, LRR AND PYD DOMAINS-CONTAINING PROTEIN 14
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21 STAR (DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PET28
    Fragment: UNP RESIDUES 1-100
    Gene: NLRP14, NALP14, NOD5
    Organism Common: HUMAN
    Organism Scientific: HOMO SAPIENS
    Organism Taxid: 9606
    Synonym: NUCLEOTIDE-BINDING OLIGOMERIZATION DOMAIN PROTEIN 5

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD
Biological Unit 3 (1x): A (1x)B (1x)C (1x)D (1x)

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 15)

Asymmetric Unit (2, 15)
No.NameCountTypeFull Name
1GOL3Ligand/IonGLYCEROL
2MSE12Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (2, 7)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (2, 8)
No.NameCountTypeFull Name
1GOL2Ligand/IonGLYCEROL
2MSE6Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (2, 7)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2MSE6Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (3, 3)

Asymmetric Unit (3, 3)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREARG A:54 , ARG A:55 , GLU A:56 , HOH A:304BINDING SITE FOR RESIDUE GOL A 201
2AC2SOFTWAREASN B:96 , SER B:98 , ARG C:54 , ARG C:55BINDING SITE FOR RESIDUE GOL C 201
3AC3SOFTWAREARG D:54 , ARG D:55 , HOH D:302 , HOH D:307BINDING SITE FOR RESIDUE GOL D 201

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4N1J)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4N1J)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4N1J)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4N1J)

(-) Exons   (0, 0)

(no "Exon" information available for 4N1J)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:91

               SCOP domains ------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------- Transcript
                 4n1j A   6 SSSFFPDFGLLLYLEELNKEELNTFKLFLKETmEPEHGLTPWNEVKKARREDLANLmKKYYPGEKAWSVSLKIFGKmNLKDLCERAKEEIN  96
                                    15        25        35  |     45        55      | 65        75      | 85        95
                                                           38-MSE                  62-MSE              82-MSE


Chain B from PDB  Type:PROTEIN  Length:94

               SCOP domains ---------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                 4n1j B   7 SSFFPDFGLLLYLEELNKEELNTFKLFLKETmEPEHGLTPWNEVKKARREDLANLmKKYYPGEKAWSVSLKIFGKmNLKDLCERAKEEINWSAQ 100
                                    16        26        36 |      46        56     |  66        76     |  86        96
                                                          38-MSE                  62-MSE              82-MSE


Chain C from PDB  Type:PROTEIN  Length:89

               SCOP domains ----------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------- Transcript
                 4n1j C   8 SFFPDFGLLLYLEELNKEELNTFKLFLKETmEPEHGLTPWNEVKKARREDLANLmKKYYPGEKAWSVSLKIFGKmNLKDLCERAKEEIN  96
                                    17        27        37|       47        57    |   67        77    |   87
                                                         38-MSE                  62-MSE              82-MSE


Chain D from PDB  Type:PROTEIN  Length:94

               SCOP domains ---------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------- Transcript
                 4n1j D   6 SSSFFPDFGLLLYLEELNKEELNTFKLFLKETmEPEHGLTPWNEVKKARREDLANLmKKYYPGEKAWSVSLKIFGKmNLKDLCERAKEEINWSA  99
                                    15        25        35  |     45        55      | 65        75      | 85        95
                                                           38-MSE                  62-MSE              82-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4N1J)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4N1J)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4N1J)

(-) Gene Ontology  (5, 5)

Asymmetric Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4n1j)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Asym. Unit - sites PNG format | Biol. Unit 1 PNG format | Biol. Unit 1 - sites PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4n1j
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  NAL14_HUMAN | Q86W24
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  NAL14_HUMAN | Q86W24
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        NAL14_HUMAN | Q86W24: 4n1k 4n1l

(-) Related Entries Specified in the PDB File

4n1k NLRP14 PYD D86V
4n1l NLRP14 PYD L84R
