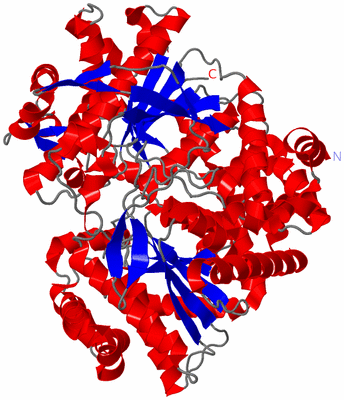

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF PUTATIVE GLYCOGEN PHOSPHORYLASE FROM STREPTOCOCCUS MUTANS

Authors :  M. -Y. Lihan, G. -L. Li, L. -F. Li, X. -D. Su
Date :  04 Jun 13  (Deposition) - 25 Jun 14  (Release) - 25 Jun 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.45
Chains :  Asym./Biol. Unit :  A
Keywords :  Glycogen Phosphorylase Activity, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  M. -Y. Lihan, G. -L. Li, L. -F. Li, X. -D. Su
Crystal Structure Of Putative Glycogen Phosphorylase From Streptococcus Mutans
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - PHOSPHORYLASE
    Chains: A
    EC Number: 2.4.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: GLGP, SMU_1564
    Organism Scientific: STREPTOCOCCUS MUTANS
    Organism Taxid: 210007
    Strain: ATCC 700610 / UA159

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4L22)

(-) Sites  (0, 0)

(no "Site" information available for 4L22)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4L22)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4L22)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4L22)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4L22)

(-) Exons   (0, 0)

(no "Exon" information available for 4L22)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:753

               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh........eeeee........hhhhhhhhhhhhhhhhhhhhhh..hhhhhhh.........hhhhhhhhhhhhhhhhh...eeeeee.......eeee....eeee...........ee.....eeee..eeee.eeeeeee........eeeeeee....hhhhhh........hhhhhh.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhh.eeeee......hhhhhhhhhhhh....hhhhhhhhhh..eeee....hhhhh.eeehhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhh......eeehhhhhhhh..eeee.hhhhhhhhhhh.hhhhhh.hhh.eee.....hhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.......eeeeee.......hhhhhhhhhhhhhhhhhh.......eeeeee......hhhhhhhhhhhhhhhhhhhh.......eeeeee...hhhhhhhhhhhh.eeee.........hhhhhhhhhh..eeeee..hhhhhhhhhhhhhhheee..hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4l22 A   6 KQFSKYVQEKTGQNLEQLSNEAIYVQLLHFVKEAAKDMPKNTSKRKVYYISAEFLIGKLLSNNLINLGLYKTVKDELAAAGKSISQVEDVELEPSLGNGGLGRLASCFIDSMATLGINGEGVGLNYHCGLFKQVFRDNQQEAEPNYWIEDDSWLVPTAISYDVPFRDFTLKSKLDRIDILGYHKDSKNYLNLFDIDGLDYGLIKDGITFDKTEIKKNLTLFLYPDDSDKNGELLRIYQQYFMVSNAAQLLIDEALERGSNLHDLADYAYVQINDTHPSMVIPELIRLLNEKHGLDFYEAVDIVKNMIGYTNHTILAEALEKWPLEYLNEVVPHLVTIIEHLDRIVRSQYKDDAVQIIDRDDRVHMAHMDIHFSTSVNGVAALHTDILKNSELKPFYDIYPEKFNNKTNGITFRRWLEFANQDLAAYIKELIGEGYLEDATELEKLLAFADDKTVHEQLAKIKFNNKLALKRYLKENKGINLDENSIIDTQIKRFHEYKRQQMNALYVIYKYLEIKKGNLPKRKITVIFGGKAAPAYTIAQDIIHLILCLSELINNDPDVSPYLNVFLVENYNVTVAEKLIPATDISEQISLASKEASGTGNMKFMLNGALTLGTMDGANVEIAELVGSDNIYIFGKDSDTIIDLYDKGTYVSKDYYTNNAVIKEAVDFIVSKDVLALGKKERLERLYHELINKDWFMTLIDLKEYIAKKEEMLADYEDQNVWNKKVIQNIAKAGFFSSDRTIQQYDKDIWHSL 758
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385       395       405       415       425       435       445       455       465       475       485       495       505       515       525       535       545       555       565       575       585       595       605       615       625       635       645       655       665       675       685       695       705       715       725       735       745       755
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4L22)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4L22)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4L22)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4l22)

  Sites
(no "Sites" information available for 4l22)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4l22)


(-) Still Images

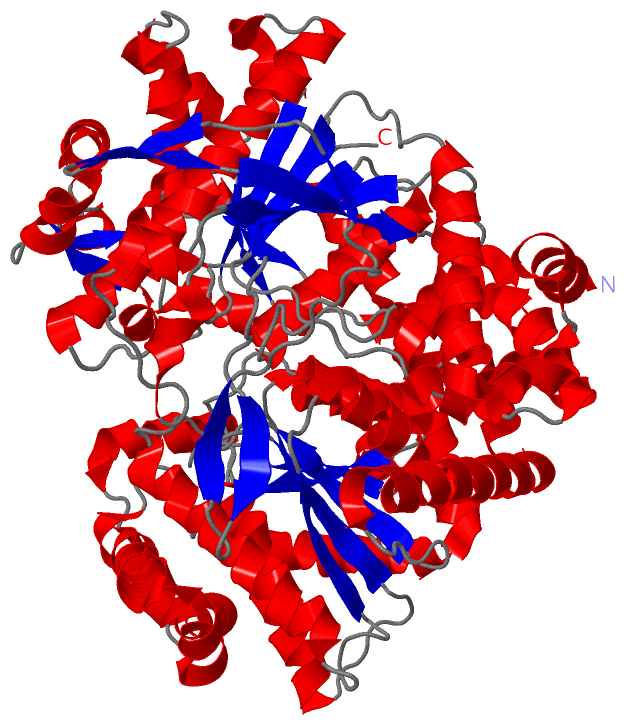

Jmol
