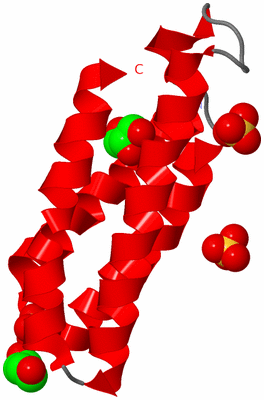

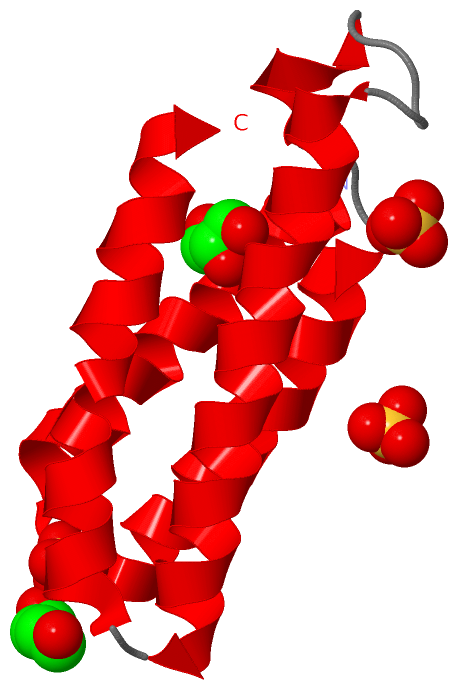

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

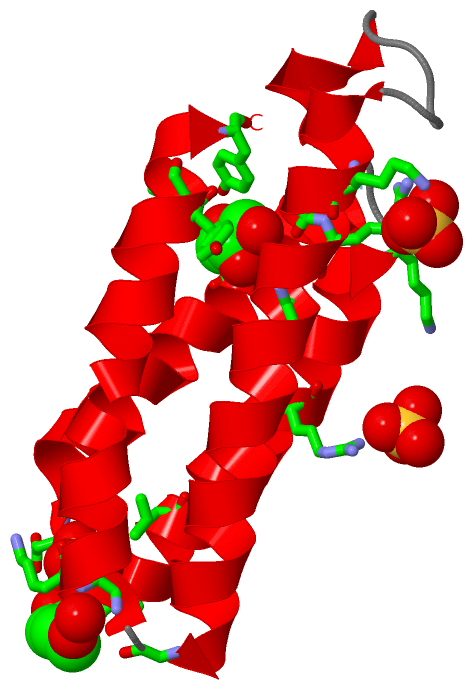

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CYTOCHROME B562 FROM SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM STR. 14028S

Authors :  K. Tan, C. Hatzos-Skintges, R. Jedrzejczak, J. Adkins, A. Joachimiak, Center For Structural Genomics (Mcsg), Program For The Characterization Of Secreted Effector Proteins (Pcsep)
Date :  19 Apr 12  (Deposition) - 09 May 12  (Release) - 09 May 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.90
Chains :  Asym./Biol. Unit :  A
Keywords :  Structural Genomics, Psi-Biology, Protein Structure Initiative, Midwest Center For Structural Genomics, Mcsg, Program For The Characterization Of Secreted Effector Proteins, Pcsep, Electron Transport (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. Tan, C. Hatzos-Skintges, R. Jedrzejczak, J. Adkins, A. Joachimiak
Crystal Structure Of Cytochrome B562 From Salmonella Enterica Subsp. Enterica Serovar Typhimurium Str. 14028S
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - SOLUBLE CYTOCHROME B562
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21(DE3)MAGIC
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: CYBC, STM4439
    Organism Scientific: SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM
    Organism Taxid: 90371
    Strain: 14028S
    Synonym: CYTOCHROME B-562

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 5)

Asymmetric/Biological Unit (3, 5)
No.NameCountTypeFull Name
1GOL1Ligand/IonGLYCEROL
2PEG1Ligand/IonDI(HYDROXYETHYL)ETHER
3SO43Ligand/IonSULFATE ION

(-) Sites  (5, 5)

Asymmetric Unit (5, 5)
No.NameEvidenceResiduesDescription
1AC1SOFTWARELYS A:64 , GLY A:104 , VAL A:106 , LYS A:107 , SO4 A:204 , HOH A:310BINDING SITE FOR RESIDUE PEG A 201
2AC2SOFTWAREARG A:56BINDING SITE FOR RESIDUE SO4 A 202
3AC3SOFTWARELYS A:81 , ARG A:84BINDING SITE FOR RESIDUE SO4 A 203
4AC4SOFTWARETHR A:42 , ASP A:43 , LEU A:48 , VAL A:106 , LYS A:107 , PEG A:201BINDING SITE FOR RESIDUE SO4 A 204
5AC5SOFTWAREMET A:29 , PHE A:83 , PHE A:87 , TYR A:123 , HIS A:124 , TYR A:127BINDING SITE FOR RESIDUE GOL A 205

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4ER9)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4ER9)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4ER9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4ER9)

(-) Exons   (0, 0)

(no "Exon" information available for 4ER9)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:105

               SCOP domains d4er9a_ A: automated matches                                                                              SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh...hhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------- Transcript
                 4er9 A  23 ADLEDNMDILNDNLKVVEKTDSAPELKAALTKMRAAALDAQKATPPKLEDKAPDSPEMKDFRHGFDILVGQIDGALKLANEGNVKEAKAAAEALKTTRNTYHKKY 127
                                    32        42        52        62        72        82        92       102       112       122
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All alpha proteins (14657)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4ER9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4ER9)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    PEG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4er9)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4er9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  C562_SALTY | P63727
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  C562_SALTY | P63727
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
