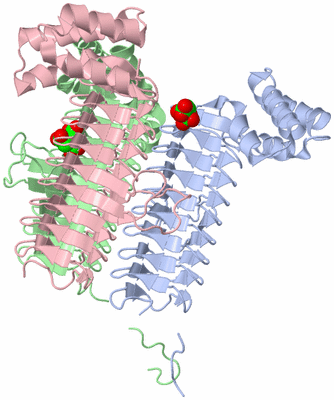

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)
Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF LPXA FROM ACINETOBACTER BAUMANNII AT 1.8A RESOLUTION (P212121 FORM)

Authors :  J. Badger, B. Chie-Leon, C. Logan, V. Sridhar, B. Sankaran, P. H. Zwart, V. Nienaber
Date :  15 Mar 12  (Deposition) - 12 Dec 12  (Release) - 12 Dec 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.80
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Lipopolysaccharide Synthesis, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Badger, B. Chie-Leon, C. Logan, V. Sridhar, B. Sankaran, P. H. Zwart V. Nienaber
Structure Determination Of Lpxa From The Lipopolysaccharide-Synthesis Pathway Of Acinetobacter Baumannii.
Acta Crystallogr. , Sect. F V. 68 1477 2012
PubMed-ID: 23192027  |  Reference-DOI: 10.1107/S174430911204571X

(-) Compounds

Molecule 1 - ACYL-[ACYL-CARRIER-PROTEIN]--UDP-N-ACETYLGLUCOSAMINE O- ACYLTRANSFERASE
    Chains: A, B, C
    EC Number: 2.3.1.129
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Cell Line: BL21 (DE3)
    Expression System Taxid: 562
    Gene: LPXA, ABTW07_2294
    Organism Scientific: ACINETOBACTER BAUMANNII
    Organism Taxid: 470
    Synonym: UDP-N-ACETYLGLUCOSAMINE ACYLTRANSFERASE

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1FLC2Ligand/IonCITRATE ANION

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREGLN B:72 , HIS B:121 , ALA B:123 , HIS B:124 , ALA B:141 , GLY B:142 , GLN B:160 , HOH B:402 , HOH B:414 , HOH B:476 , HOH B:500 , ASN C:136BINDING SITE FOR RESIDUE FLC B 301
2AC2SOFTWAREGLN B:-3 , GLY B:-2 , PHE B:-4 , HIS C:159 , ARG C:258 , HOH C:554BINDING SITE FOR RESIDUE FLC C 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4E6T)

(-) Cis Peptide Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1Asn A:189 -Pro A:190
2Asn B:189 -Pro B:190
3Asn C:189 -Pro C:190

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4E6T)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4E6T)

(-) Exons   (0, 0)

(no "Exon" information available for 4E6T)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:264

               SCOP domains d4e6ta_ A: automated matches                                                                                                                                                                                                                                             SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .............ee....ee....ee....ee...eee....ee....ee...eee....ee....eeee............eeee....ee....eee........eeee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee.......eeee....eeeeehhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...hhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4e6t A  -6 LYFQGADLIHSTAIIDPSAVIASDVQIGPYCIIGPQVTIGAGTKLHSHVVVGGFTRIGQNNEIFQFASVGEVCQDLKYKGEETWLEIGNNNLIREHCSLHRGTVQDNALTKIGSHNLLMVNTHIAHDCIVGDHNIFANNVGVAGHVHIGDHVIVGGNSGIHQFCKIDSYSMIGGASLILKDVPAYVMASGNPAHAFGINIEGMRRKGWSKNTIQGLREAYKLIFKSGLTSVQAIDQIKSEILPSVPEAQLLIDSLEQSERGIVR 262
                                 ||  8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258
                                -1|
                                  5


Chain B from PDB  Type:PROTEIN  Length:269

               SCOP domains d4e6tb_ B: automated matches                                                                                                                                                                                                                                                  SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..................ee....ee....ee....ee...eee....ee....ee...eee....ee....eeee............eeee....ee....eee........eeee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee.......eeee....eeeeehhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...hhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4e6t B  -9 TENLYFQGAGHDLIHSTAIIDPSAVIASDVQIGPYCIIGPQVTIGAGTKLHSHVVVGGFTRIGQNNEIFQFASVGEVCQDLKYKGEETWLEIGNNNLIREHCSLHRGTVQDNALTKIGSHNLLMVNTHIAHDCIVGDHNIFANNVGVAGHVHIGDHVIVGGNSGIHQFCKIDSYSMIGGASLILKDVPAYVMASGNPAHAFGINIEGMRRKGWSKNTIQGLREAYKLIFKSGLTSVQAIDQIKSEILPSVPEAQLLIDSLEQSERGIVR 262
                                     0|       13        23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253
                                     0|
                                      4


Chain C from PDB  Type:PROTEIN  Length:258

               SCOP domains d4e6tc_ C: automated matches                                                                                                                                                                                                                                       SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......ee....ee....ee....ee...eee....ee....ee...eee....ee....eeee............eeee....ee....eee........eeee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee....ee.......eeee....eeeeehhhhhhhh..hhhhhhhhhhhhhhhhh...hhhhhhhhhhhhh...hhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4e6t C   5 DLIHSTAIIDPSAVIASDVQIGPYCIIGPQVTIGAGTKLHSHVVVGGFTRIGQNNEIFQFASVGEVCQDLKYKGEETWLEIGNNNLIREHCSLHRGTVQDNALTKIGSHNLLMVNTHIAHDCIVGDHNIFANNVGVAGHVHIGDHVIVGGNSGIHQFCKIDSYSMIGGASLILKDVPAYVMASGNPAHAFGINIEGMRRKGWSKNTIQGLREAYKLIFKSGLTSVQAIDQIKSEILPSVPEAQLLIDSLEQSERGIVR 262
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 3)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4E6T)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4E6T)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 4E6T)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    FLC  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asn A:189 - Pro A:190   [ RasMol ]
    Asn B:189 - Pro B:190   [ RasMol ]
    Asn C:189 - Pro C:190   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
