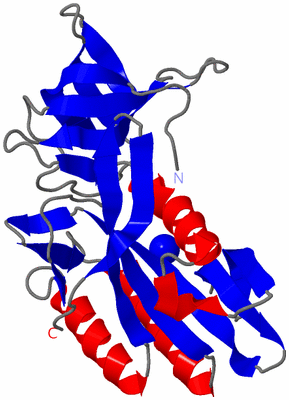

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

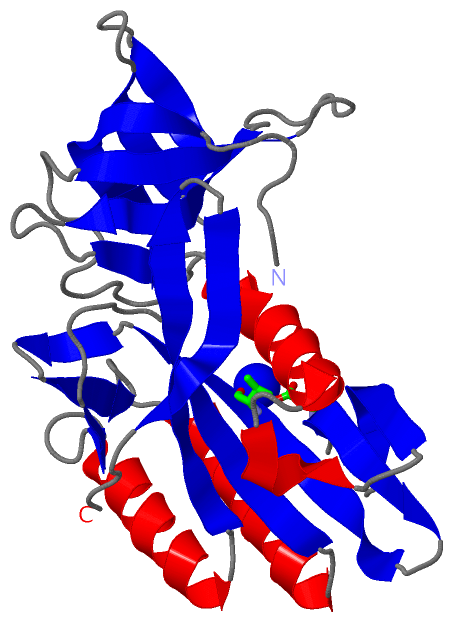

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF ESCHERICHIA COLI SFSA

Authors :  P. J. Baker, F. L. Allen
Date :  13 Jan 12  (Deposition) - 14 Aug 13  (Release) - 15 Oct 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A
Keywords :  Ob Fold, Pd-(D/E)Xk Domain, Nuclease, Dna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  F. L. Allen, J. Akerboom, S. J. Bliss, F. Blombach, S. E. Sedelnikova, J. Van Der Oost, P. J. Baker
The Structure Of Sfsa And Its Dna Complex; A Dna/Rna Nuclease With A Novel Domain Combination
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - SUGAR FERMENTATION STIMULATION PROTEIN A
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24D
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SFSA, SFS1, B0146, JW0142
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 83333
    Strain: K12

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1NA1Ligand/IonSODIUM ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASP A:121 , VAL A:136 , HOH A:401 , HOH A:402 , HOH A:403 , HOH A:404BINDING SITE FOR RESIDUE NA A 301

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4DAP)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser A:4 -Pro A:5
2Phe A:149 -Pro A:150

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4DAP)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4DAP)

(-) Exons   (0, 0)

(no "Exon" information available for 4DAP)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:232
 aligned with SFSA_ECOLI | P0A823 from UniProtKB/Swiss-Prot  Length:234

    Alignment length:234
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230
           SFSA_ECOLI     1 MEFSPPLQRATLIQRYKRFLADVITPDGRELTLHCPNTGAMTGCATPGDTVWYSTSDNTKRKYPHTWELTQSQSGAFICVNTLWANRLTKEAILNESISELSGYSSLKSEVKYGAERSRIDFMLQADSRPDCYIEVKSVTLAENEQGYFPDAVTERGQKHLRELMSVAAEGQRAVIFFAVLHSAITRFSPARHIDEKYAQLLSEAQQRGVEILAYKAEISAEGMALKKSLPVTL 234
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .......eeeeeeeee...eeeee.....eeeee...............eeeeee.........eeeeeee.....eee.hhhhhhhhhhhhhhh..hhhhh...eeeeeee...--.eeeeeeee..eeeeeeeeeee.eee..eeee....hhhhhhhhhhhhhhhhh..eeeeeeee......eeee....hhhhhhhhhhhhhh..eeeeeeeeee..eeeeeee..... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 4dap A   1 MEFSPPLQRATLIQRYKRFLADVITPDGRELTLHCPNTGAMTGCATPGDTVWYSTSDNTKRKYPHTWELTQSQSGAFICVNTLWANRLTKEAILNESISELSGYSSLKSEVKYGA--SRIDFMLQADSRPDCYIEVKSVTLAENEQGYFPDAVTERGQKHLRELMSVAAEGQRAVIFFAVLHSAITRFSPARHIDEKYAQLLSEAQQRGVEILAYKAEISAEGMALKKSLPVTL 234
                                    10        20        30        40        50        60        70        80        90       100       110    |  120       130       140       150       160       170       180       190       200       210       220       230
                                                                                                                                            115  |
                                                                                                                                               118
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4DAP)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4DAP)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4DAP)

(-) Gene Ontology  (3, 3)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (SFSA_ECOLI | P0A823)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0045893    positive regulation of transcription, DNA-templated    Any process that activates or increases the frequency, rate or extent of cellular DNA-templated transcription.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Phe A:149 - Pro A:150   [ RasMol ]
    Ser A:4 - Pro A:5   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4dap
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SFSA_ECOLI | P0A823
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SFSA_ECOLI | P0A823
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 4DAP)

(-) Related Entries Specified in the PDB File

4da2 PYROCOCCUS FURIOSUS SFSA
4dav
