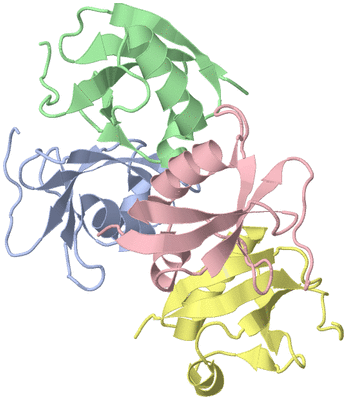

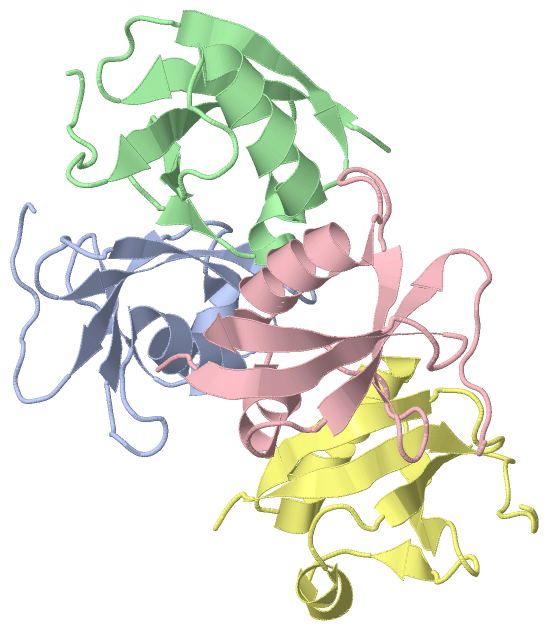

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

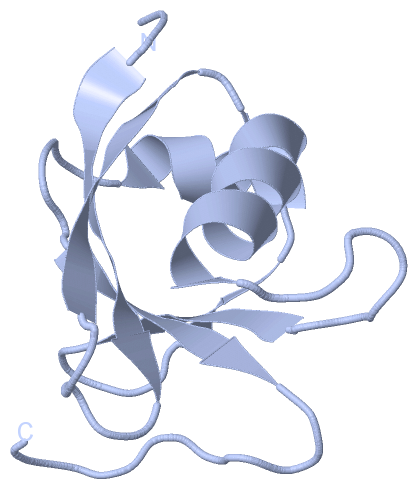

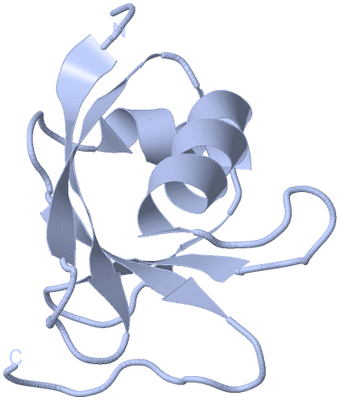

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

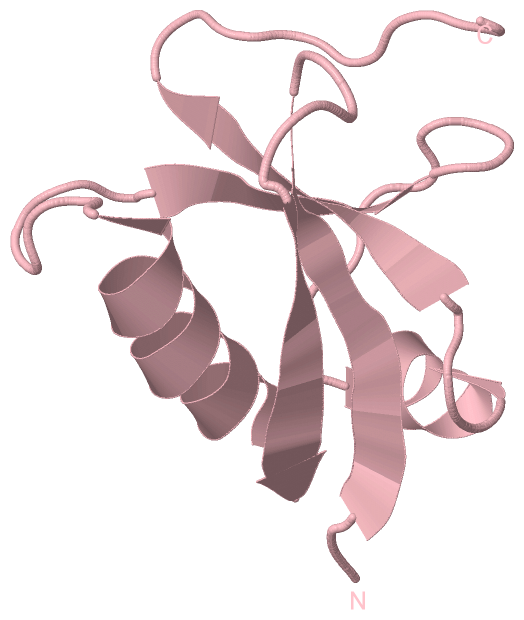

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

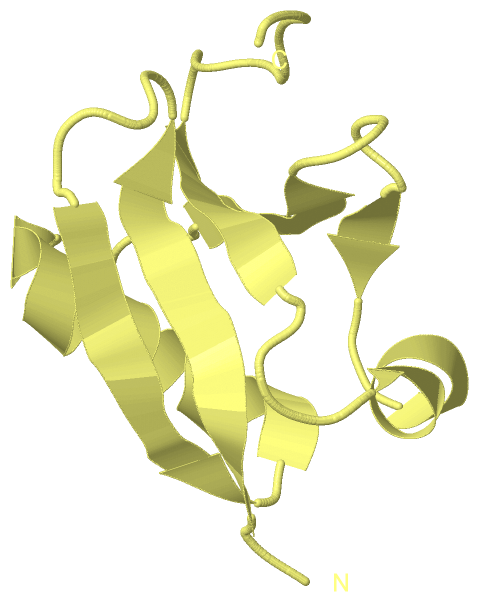

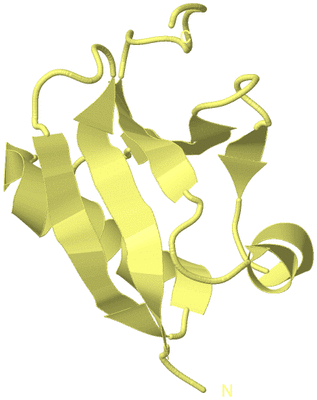

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF DREP2 CIDE DOMAIN

Authors :  T. H. Jang, H. H. Park, Y. G. Kim, J. H. Jeong
Date :  12 May 14  (Deposition) - 27 May 15  (Release) - 12 Jul 17  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Apoptosis, Energy Metabolism, Dna Fragmentation Factor (Dff) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Y. Choi, Q. Qiao, S. H. Hong, C. M. Kim, J. H. Jeong, Y. G. Kim, Y. K. Jung H. Wu, H. H. Park
Cide Domains Form Functionally Important Higher-Order Assemblies For Dna Fragmentation.
Proc. Natl. Acad. Sci. 2017 U. S. A.
PubMed-ID: 28652364  |  Reference-DOI: 10.1073/PNAS.1705949114

(-) Compounds

Molecule 1 - DREP2
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Fragment: CIDE DOMAIN, RESIDUES 1-84
    Organism Common: FRUIT FLY
    Organism Scientific: DROSOPHILA MELANOGASTER
    Organism Taxid: 7227

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4D2K)

(-) Sites  (0, 0)

(no "Site" information available for 4D2K)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4D2K)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4D2K)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4D2K)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4D2K)

(-) Exons   (0, 0)

(no "Exon" information available for 4D2K)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:81

               SCOP domains --------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeee.....eeeeee.hhhhhhhhhhhhh........eeee.....ee.hhhhhhh.....eeeee......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------- Transcript
                  4d2k A  7 RGKRPLKIWDSWRNVRKGVVVGTFEELLVRGKDKLGVPASEPVRVVLECDGTQIEDGEYFRTLANNTVLLLLRQGERWLEH 87
                                    16        26        36        46        56        66        76        86


Chain B from PDB  Type:PROTEIN  Length:80

               SCOP domains -------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee.....eeeeee.hhhhhhhhhhhhh.......eeeee.....ee.hhhhhhhh....eeeeee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  4d2k B  8 GKRPLKIWDSWRNVRKGVVVGTFEELLVRGKDKLGVPASEPVRVVLECDGTQIEDGEYFRTLANNTVLLLLRQGERWLEH 87
                                    17        27        37        47        57        67        77        87


Chain C from PDB  Type:PROTEIN  Length:80

               SCOP domains -------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee.....eeeeee.hhhhhhhhhhhhh.......eeeee.........hhhhhhh....eeeeee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  4d2k C  8 GKRPLKIWDSWRNVRKGVVVGTFEELLVRGKDKLGVPASEPVRVVLECDGTQIEDGEYFRTLANNTVLLLLRQGERWLEH 87
                                    17        27        37        47        57        67        77        87


Chain D from PDB  Type:PROTEIN  Length:80

               SCOP domains -------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeee.....eeeeee.hhhhhhhhhhhhhh......eeeee.....ee..hhhhhhh....eeeeee........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------- Transcript
                  4d2k D  8 GKRPLKIWDSWRNVRKGVVVGTFEELLVRGKDKLGVPASEPVRVVLECDGTQIEDGEYFRTLANNTVLLLLRQGERWLEH 87
                                    17        27        37        47        57        67        77        87
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4D2K)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4D2K)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4D2K)

(-) Gene Ontology  (10, 17)

Asymmetric Unit(hide GO term definitions)
