Title :   CRYSTAL STRUCTURE OF THE RPS4 AND RRS1 TIR DOMAIN HETERODIMER

Authors :   S. J. Williams, K. H. Sohn, L. Wan, M. Bernoux, Y. Ma, C. Segonzac, T. Ve, P D. J. Ericsson, S. B. Saucet, X. Zhang, J. Parker, P. N. Dodds, J. D. G. Jo B. Kobe

Date :   19 Sep 13 (Deposition) - 28 May 14 (Release) - 22 Apr 15 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.65

Chains :   Asym. Unit : A,B,C,D

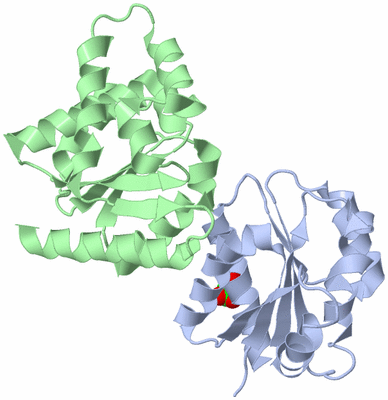

Biol. Unit 1: A,B  (1x)
Biol. Unit 2: C,D  (1x)

Keywords :   Immune System, Plant Tir Domain, Signal Transduction (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. J. Williams, K. H. Sohn, L. Wan, M. Bernoux, P. F. Sarris, C. Segonzac T. Ve, Y. Ma, S. B. Saucet, D. J. Ericsson, L. W. Casey, T. Lonhienne, D. J. Winzor, X. Zhang, A. Coerdt, J. E. Parker, P. N. Dodds, B. Kobe, J. D. G. Jones
Structural Basis For Assembly And Function Of A Heterodimeric Plant Immune Receptor.
Science V. 344 299 2014
PubMed-ID: 24744375 | Reference-DOI: 10.1126/SCIENCE.1247357

Molecule 1 - PROBABLE WRKY TRANSCRIPTION FACTOR 52
	Chains	:	A, C
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMCSG7
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Variant	:	ROSETTA
	Expression System Vector Type	:	PLASMID
	Fragment	:	TOLL/INTERLEUKIN-1 RECEPTOR DOMAIN, RESIDUES 6-153
	Organism Scientific	:	ARABIDOPSIS THALIANA
	Organism Taxid	:	3702
	Synonym	:	DISEASE RESISTANCE PROTEIN RRS1, DISEASE RESISTANCE PROTEIN SLH1, PROTEIN SENSITIVE TO LOW HUMIDITY 1, RESISTANCE TO RALSTONI A SOLANACEARUM 1 PROTEIN, WRKY DNA-BINDING PROTEIN 52

Molecule 2 - DISEASE RESISTANCE PROTEIN RPS4
	Chains	:	B, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PMCSG7
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Variant	:	ROSETTA
	Expression System Vector Type	:	PLASMID
	Fragment	:	TOLL/INTERLEUKIN-1 RECEPTOR DOMAIN, RESIDUES 11-178
	Organism Scientific	:	ARABIDOPSIS THALIANA
	Organism Taxid	:	3702

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A	B
Biological Unit 2 (1x)	:			C	D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 2)

No.	Name	Count	Type	Full Name
1	MLA	2	Ligand/Ion	MALONIC ACID

Biological Unit 1 (1, 1)

No.	Name	Count	Type	Full Name
1	MLA	1	Ligand/Ion	MALONIC ACID

Biological Unit 2 (1, 1)

No.	Name	Count	Type	Full Name
1	MLA	1	Ligand/Ion	MALONIC ACID

Asymmetric Unit (2, 2)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	ARG A:140 , SER C:130 , SER C:132 , ARG D:28 , SER D:33 , VAL D:36 , THR D:37 , LYS D:40	BINDING SITE FOR RESIDUE MLA B1179
2	AC2	SOFTWARE	SER A:130 , ARG B:28 , SER B:33 , VAL B:36 , THR B:37 , LYS B:40 , ARG C:140	BINDING SITE FOR RESIDUE MLA D1179

(no "SS Bond" information available for 4C6T)

(no "Cis Peptide Bond" information available for 4C6T)

(no "SAP(SNP)/Variant" information available for 4C6T)

Asymmetric Unit (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIR	PS50104	TIR domain profile.	RPS4C_ARATH	14-149	1	B:14-149

Biological Unit 1 (1, 1)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIR	PS50104	TIR domain profile.	RPS4C_ARATH	14-149	1	B:14-149

Biological Unit 2 (, 0)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	TIR	PS50104	TIR domain profile.	RPS4C_ARATH	14-149	0	-

(no "Exon" information available for 4C6T)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:141
 aligned with WR52C_ARATH | P0DKH5 from UniProtKB/Swiss-Prot  Length:1288

    Alignment length:141
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147
          WR52C_ARATH     8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFY 148
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhhhhhhhh...eeeee......hhhhhhhhhhhh.eeeeeee...hhhhhhhhhhhhhhh........eeeeeee....hhhhhhhhhhhhh...eee.....hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t A   8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFY 148
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147

Chain A from PDB  Type:PROTEIN  Length:141
 aligned with WR52N_ARATH | E1B328 from UniProtKB/Swiss-Prot  Length:1378

    Alignment length:141
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147
          WR52N_ARATH     8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFY 148
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhhhhhhhh...eeeee......hhhhhhhhhhhh.eeeeeee...hhhhhhhhhhhhhhh........eeeeeee....hhhhhhhhhhhhh...eee.....hhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t A   8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFY 148
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147

Chain B from PDB  Type:PROTEIN  Length:166
 aligned with RPS4C_ARATH | Q9XGM3 from UniProtKB/Swiss-Prot  Length:1217

    Alignment length:166
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172
          RPS4C_ARATH    13 PPQHQVFINFRGADLRRRFVSHLVTALKLNNINVFIDDYEDRGQPLDVLLKRIEESKIVLAIFSGNYTESVWCVRELEKIKDCTDEGTLVAIPIFYKLEPSTVRDLKGKFGDRFRSMAKGDERKKKWKEAFNLIPNIMGIIIDKKSVESEKVNEIVKAVKTALTGI 178
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee..hhhhhhhhhhhhhhhhhhh..eeee........hhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhh...eeeeeee..hhhhhhh.hhhhhhhhhhhh....hhhhhhhhhhhhhhh..eee....hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -TIR  PDB: B:14-149 UniProt: 14-149                                                                                                      ----------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t B  13 PPQHQVFINFRGADLRRRFVSHLVTALKLNNINVFIDDYEDRGQPLDVLLKRIEESKIVLAIFSGNYTESVWCVRELEKIKDCTDEGTLVAIPIFYKLEPSTVRDLKGKFGDRFRSMAKGDERKKKWKEAFNLIPNIMGIIIDKKSVESEKVNEIVKAVKTALTGI 178
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172

Chain C from PDB  Type:PROTEIN  Length:143
 aligned with WR52C_ARATH | P0DKH5 from UniProtKB/Swiss-Prot  Length:1288

    Alignment length:143
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147
          WR52C_ARATH     8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFYVG 150
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhhhh.eeeeeee...hhhhhhhhhhhhhhh........eeeeeee....hhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t C   8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFYVG 150
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147

Chain C from PDB  Type:PROTEIN  Length:143
 aligned with WR52N_ARATH | E1B328 from UniProtKB/Swiss-Prot  Length:1378

    Alignment length:143
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147
          WR52N_ARATH     8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFYVG 150
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeehhhhhhhhhhhhhhhhhhh...eeeee...hhhhhhhhhhhhhhh.eeeeeee...hhhhhhhhhhhhhhh........eeeeeee....hhhhhhhhhhhhh..eeee.....hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t C   8 EEFVCISCVEEVRYSFVSHLSEALRRKGINNVVVDVDIDDLLFKESQAKIEKAGVSVMVLPGNCDPSEVWLDKFAKVLECQRNNKDQAVVSVLYGDSLLRDQWLSELDFRGLSRIHQSRKECSDSILVEEIVRDVYETHFYVG 150
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147

Chain D from PDB  Type:PROTEIN  Length:163
 aligned with RPS4C_ARATH | Q9XGM3 from UniProtKB/Swiss-Prot  Length:1217

    Alignment length:163
                                    25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175
          RPS4C_ARATH    16 HQVFINFRGADLRRRFVSHLVTALKLNNINVFIDDYEDRGQPLDVLLKRIEESKIVLAIFSGNYTESVWCVRELEKIKDCTDEGTLVAIPIFYKLEPSTVRDLKGKFGDRFRSMAKGDERKKKWKEAFNLIPNIMGIIIDKKSVESEKVNEIVKAVKTALTGI 178
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeee..hhhhhhhhhhhhhhhhhhh..eeee........hhhhhhhhhhhh.eeeeee..hhhhhhhhhhhhhhhhhhhhhh..eeeeeee..hhhhhhh.hhhhhhhhhhhh....hhhhhhhhhhhhhhh..eee....hhhhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE TIR  PDB: - UniProt: 14-149                                                                                                           ----------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 4c6t D  16 HQVFINFRGADLRRRFVSHLVTALKLNNINVFIDDYEDRGQPLDVLLKRIEESKIVLAIFSGNYTESVWCVRELEKIKDCTDEGTLVAIPIFYKLEPSTVRDLKGKFGDRFRSMAKGDERKKKWKEAFNLIPNIMGIIIDKKSVESEKVNEIVKAVKTALTGI 178
                                    25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 4C6T)

(no "CATH Domain" information available for 4C6T)

(no "Pfam Domain" information available for 4C6T)

Asymmetric Unit(hide GO term definitions)

Chain A,C (WR52C_ARATH | P0DKH5)

molecular function
	GO:0043531	ADP binding	Interacting selectively and non-covalently with ADP, adenosine 5'-diphosphate.
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0043565	sequence-specific DNA binding	Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
	GO:0003700	transcription factor activity, sequence-specific DNA binding	Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0007165	signal transduction	The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain A,C (WR52N_ARATH | E1B328)

molecular function
	GO:0043531	ADP binding	Interacting selectively and non-covalently with ADP, adenosine 5'-diphosphate.
	GO:0005524	ATP binding	Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
	GO:0003677	DNA binding	Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
	GO:0000166	nucleotide binding	Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
	GO:0043565	sequence-specific DNA binding	Interacting selectively and non-covalently with DNA of a specific nucleotide composition, e.g. GC-rich DNA binding, or with a specific sequence motif or type of DNA e.g. promotor binding or rDNA binding.
	GO:0003700	transcription factor activity, sequence-specific DNA binding	Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0006355	regulation of transcription, DNA-templated	Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
	GO:0007165	signal transduction	The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
	GO:0006351	transcription, DNA-templated	The cellular synthesis of RNA on a template of DNA.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Chain B,D (RPS4C_ARATH | Q9XGM3)

molecular function
	GO:0043531	ADP binding	Interacting selectively and non-covalently with ADP, adenosine 5'-diphosphate.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
	GO:0004872	receptor activity	Combining with an extracellular or intracellular messenger to initiate a change in cell activity.
biological process
	GO:0006952	defense response	Reactions, triggered in response to the presence of a foreign body or the occurrence of an injury, which result in restriction of damage to the organism attacked or prevention/recovery from the infection caused by the attack.
	GO:0009870	defense response signaling pathway, resistance gene-dependent	A series of molecular signals that depends upon R-genes and is activated during defense response.
	GO:0042742	defense response to bacterium	Reactions triggered in response to the presence of a bacterium that act to protect the cell or organism.
	GO:0009626	plant-type hypersensitive response	The rapid, localized death of plant cells in response to invasion by a pathogen.
	GO:0007165	signal transduction	The cellular process in which a signal is conveyed to trigger a change in the activity or state of a cell. Signal transduction begins with reception of a signal (e.g. a ligand binding to a receptor or receptor activation by a stimulus such as light), or for signal transduction in the absence of ligand, signal-withdrawal or the activity of a constitutively active receptor. Signal transduction ends with regulation of a downstream cellular process, e.g. regulation of transcription or regulation of a metabolic process. Signal transduction covers signaling from receptors located on the surface of the cell and signaling via molecules located within the cell. For signaling between cells, signal transduction is restricted to events at and within the receiving cell.
cellular component
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0012505	endomembrane system	A collection of membranous structures involved in transport within the cell. The main components of the endomembrane system are endoplasmic reticulum, Golgi bodies, vesicles, cell membrane and nuclear envelope. Members of the endomembrane system pass materials through each other or though the use of vesicles.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005634	nucleus	A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		MLA	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4c6t)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	4c6t
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	RPS4C_ARATH \| Q9XGM3
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	WR52C_ARATH \| P0DKH5
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	WR52N_ARATH \| E1B328
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	RPS4C_ARATH \| Q9XGM3
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	WR52C_ARATH \| P0DKH5
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	WR52N_ARATH \| E1B328
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	RPS4C_ARATH \| Q9XGM3	:	4c6r
	WR52C_ARATH \| P0DKH5	:	4c6s
	WR52N_ARATH \| E1B328	:	4c6s

4c6r	CRYSTAL STRUCTURE OF THE TIR DOMAIN FROM THE ARABIDOPSIS THALIANA DISEASE RESISTANCE PROTEIN RPS4
4c6s	CRYSTAL STRUCTURE OF THE TIR DOMAIN FROM THE ARABIDOPSIS THALIANA DISEASE RESISTANCE PROTEIN RRS1

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 2)

Sites (2, 2)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 1)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (19, 36)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
