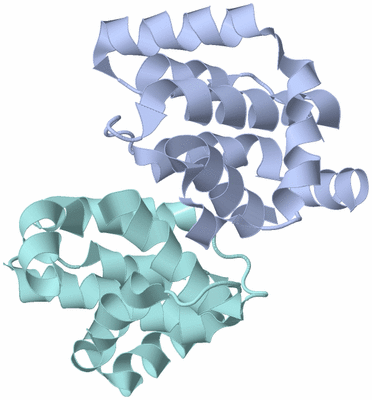

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF VACCINIA VIRUS N1 Q61Y MUTANT

Authors :  C. Maluquer De Motes, S. Cooray, K. Mcgourty, H. Ren, M. W. Bahar, D. I. J. M. Grimes, S. C. Graham, G. L. Smith
Date :  21 Sep 12  (Deposition) - 03 Oct 12  (Release) - 03 Oct 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.09
Chains :  Asym. Unit :  A,B,C,D,E,F
Biol. Unit 1:  B,E  (1x)
Biol. Unit 2:  A,F  (1x)
Biol. Unit 3:  C,D  (1x)
Keywords :  Viral Protein, Bcl-Like Protein, Apoptosis, Virulence Factor (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  C. Maluquer De Motes, S. Cooray, H. Ren, G. M. F. Almeida, K. Mcgourty M. W. Bahar, D. I. Stuart, J. M. Grimes, S. C. Graham, G. L. Smith
Inhibition Of Apoptosis And Nf-Kappab Activation By Vaccinia Protein N1 Occur Via Distinct Binding Surfaces And Make Different Contributions To Virulence.
Plos Pathog. V. 7 2430 2011
PubMed-ID: 22194685  |  Reference-DOI: 10.1371/JOURNAL.PPAT.1002430

(-) Compounds

Molecule 1 - N1L
    Chains: A, B, C, D, E, F
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: B834
    Expression System Taxid: 562
    Expression System Vector: PET24A
    Expression System Vector Type: PLASMID
    Mutation: YES
    Organism Scientific: VACCINIA VIRUS
    Organism Taxid: 696871
    Other Details: C40S MUTATION WAS INTRODUCED TO AVOID INTERMOLECULAR DISULPHIDE BOND DRIVEN AGGREGATION.
    Strain: WESTERN RESERVE
    Synonym: N1L PROTEIN, VACV-DUKE-037, VACV026, VIROKINE

 Structural Features

(-) Chains, Units

  123456
Asymmetric Unit : ABCDEF
Biological Unit 1 (1x):  B  E
Biological Unit 2 (1x): A    F
Biological Unit 3 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 4BBB)

(-) Sites  (0, 0)

(no "Site" information available for 4BBB)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 4BBB)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 4BBB)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 4BBB)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 4BBB)

(-) Exons   (0, 0)

(no "Exon" information available for 4BBB)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:114
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb A   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain A from PDB  Type:PROTEIN  Length:114
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb A   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain B from PDB  Type:PROTEIN  Length:114
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb B   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain B from PDB  Type:PROTEIN  Length:114
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb B   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain C from PDB  Type:PROTEIN  Length:114
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb C   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain C from PDB  Type:PROTEIN  Length:114
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb C   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain D from PDB  Type:PROTEIN  Length:110
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh..----.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb D   1 MRTLLIRYILWRNDNDQ----DDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10      |  - |      30        40        50        60        70        80        90       100       110
                                           17   22


Chain D from PDB  Type:PROTEIN  Length:110
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh..----.hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb D   1 MRTLLIRYILWRNDNDQ----DDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10      |  - |      30        40        50        60        70        80        90       100       110
                                           17   22


Chain E from PDB  Type:PROTEIN  Length:114
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb E   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain E from PDB  Type:PROTEIN  Length:114
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb E   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain F from PDB  Type:PROTEIN  Length:114
 aligned with N1_VACCC | P21054 from UniProtKB/Swiss-Prot  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
             N1_VACCC     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb F   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110


Chain F from PDB  Type:PROTEIN  Length:114
 aligned with Q49PX0_9POXV | Q49PX0 from UniProtKB/TrEMBL  Length:117

    Alignment length:114
                                    10        20        30        40        50        60        70        80        90       100       110
         Q49PX0_9POXV     1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVCTLIKNMRMTLSDGPLLDRLNQPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
               SCOP domains ------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh....hhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhh.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------ Transcript
                 4bbb F   1 MRTLLIRYILWRNDNDQTYYNDDFKKLMLLDELVDDGDVSTLIKNMRMTLSDGPLLDRLNYPVNNIEDAKRMIAISAKVARDIGERSEIRWEESFTILFRMIETYFDDLMIDLY 114
                                    10        20        30        40        50        60        70        80        90       100       110
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 4BBB)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 4BBB)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 4BBB)

(-) Gene Ontology  (4, 4)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F   (N1_VACCC | P21054)
biological process
    GO:0030683    evasion or tolerance by virus of host immune response    Any process, either active or passive, by which a virus avoids the effects of the host organism's immune response. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0039526    modulation by virus of host apoptotic process    Any process in which a virus modulates the frequency, rate or extent of apoptosis of infected host cells.
    GO:0039644    suppression by virus of host NF-kappaB transcription factor activity    Any process in which a virus stops, prevents, or reduces the activity of host NF-kappaB activity.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.

Chain A,B,C,D,E,F   (Q49PX0_9POXV | Q49PX0)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 4bbb)

  Sites
(no "Sites" information available for 4bbb)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 4bbb)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  4bbb
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  N1_VACCC | P21054
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  Q49PX0_9POXV | Q49PX0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  N1_VACCC | P21054
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  Q49PX0_9POXV | Q49PX0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        N1_VACCC | P21054: 2i39 2uxe 4bbc 4bbd
        Q49PX0_9POXV | Q49PX0: 4bbc 4bbd
UniProtKB/TrEMBL
        Q49PX0_9POXV | Q49PX0: 2i39 2uxe

(-) Related Entries Specified in the PDB File

2i39 CRYSTAL STRUCTURE OF VACCINIA VIRUS N1L PROTEIN
2uxe THE STRUCTURE OF VACCINIA VIRUS N1
4bbc THE STRUCTURE OF VACCINIA VIRUS N1 R71Y MUTANT
4bbd THE STRUCTURE OF VACCINIA VIRUS N1 R58Y MUTANT
