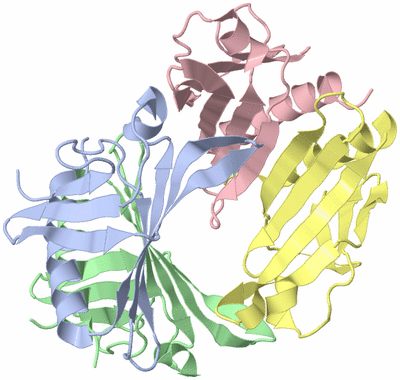

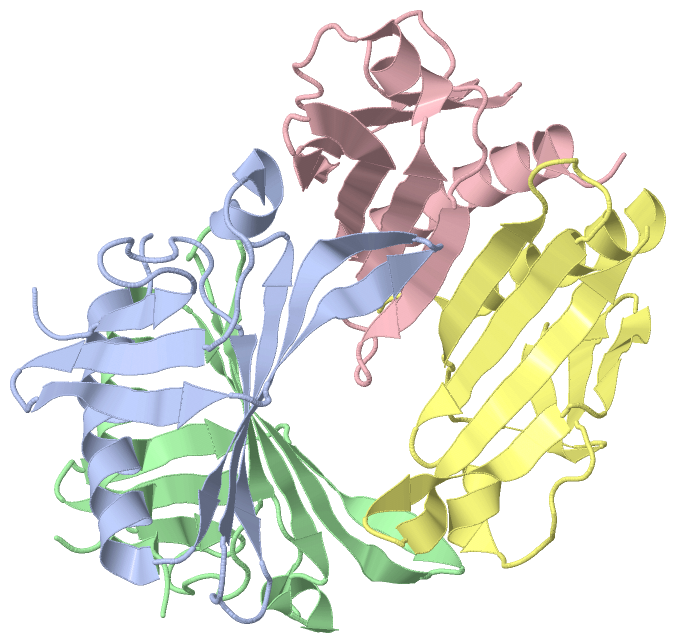

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

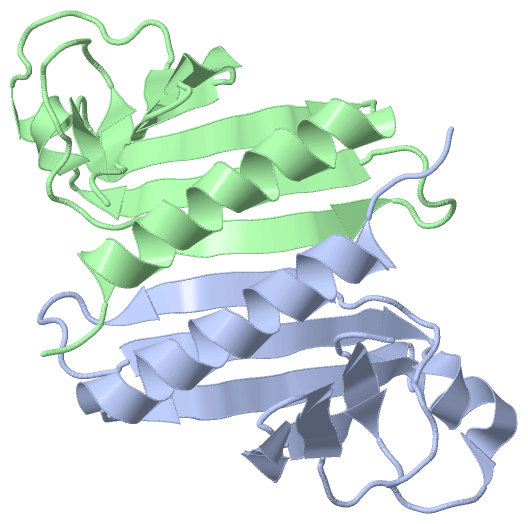

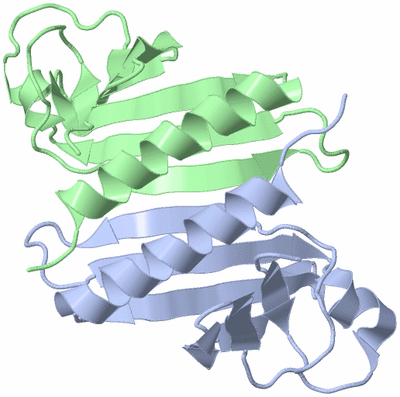

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

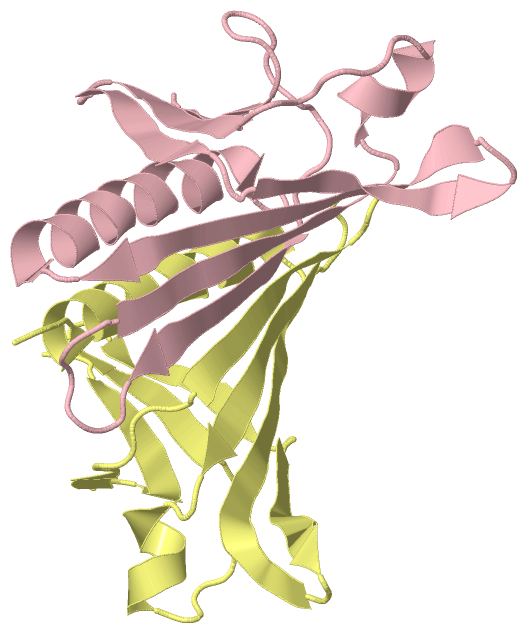

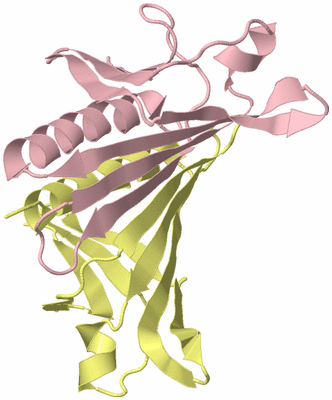

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF PSB28

Authors :  W. J. Bialek, F. Michoux, P. J. Nixon, J. W. Murray
Date :  28 Feb 13  (Deposition) - 30 Oct 13  (Release) - 20 Nov 13  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.36
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A,B  (1x)
Biol. Unit 2:  C,D  (1x)
Keywords :  Photosynthesis, Photosystem Ii Assembly (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  W. Bialek, S. Wen, F. Michoux, M. Beckova, J. Komenda, J. W. Murray, P. J. Nixon
Crystal Structure Of The Psb28 Accessory Factor Of Thermosynechococcus Elongatus Photosystem Ii At 2. 3 A
Photosynth. Res. V. 117 375 2013
PubMed-ID: 24126792  |  Reference-DOI: 10.1007/S11120-013-9939-6

(-) Compounds

Molecule 1 - PHOTOSYSTEM II REACTION CENTER PSB28 PROTEIN
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Strain: KRX
    Expression System Taxid: 562
    Expression System Vector: PRSETA
    Expression System Vector Type: PLASMID
    Organism Scientific: THERMOSYNECHOCOCCUS ELONGATUS
    Organism Taxid: 146786
    Synonym: PHOTOSYSTEM II 13 KDA PROTEIN, PHOTOSYSTEM II REACTION CENTER W PROTEIN

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): AB
Biological Unit 2 (1x):   CD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3ZPN)

(-) Sites  (0, 0)

(no "Site" information available for 3ZPN)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3ZPN)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Gly B:47 -Asn B:48

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3ZPN)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3ZPN)

(-) Exons   (0, 0)

(no "Exon" information available for 3ZPN)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:108
 aligned with PSB28_THEEB | Q8DLJ8 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:108
                                    12        22        32        42        52        62        72        82        92       102
          PSB28_THEEB     3 AMAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLGF 110
               SCOP domains ------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eee...........eeeeee......eeeeeeee.hhhhhhh......eeeee..eeeee..eeeeee..eeeeeeeeeee.hhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------ Transcript
                 3zpn A   3 AMAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLGF 110
                                    12        22        32        42        52        62        72        82        92       102


Chain B from PDB  Type:PROTEIN  Length:107
 aligned with PSB28_THEEB | Q8DLJ8 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:107
                                    12        22        32        42        52        62        72        82        92       102
          PSB28_THEEB     3 AMAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
               SCOP domains ----------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eee...........eeeeee......eeeeeeee.hhhhh........eeeee..eeeee..eeeeee..eeeeeeeeeee.hhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------- Transcript
                 3zpn B   3 AMAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
                                    12        22        32        42        52        62        72        82        92       102


Chain C from PDB  Type:PROTEIN  Length:106
 aligned with PSB28_THEEB | Q8DLJ8 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:106
                                    13        23        33        43        53        63        73        83        93       103
          PSB28_THEEB     4 MAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
               SCOP domains ---------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee...........eeeeee......eeeeeeee.hhhhhh.......eeeee..eeeee..eeeeee..eeeeeeeeeee.hhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3zpn C   4 MAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
                                    13        23        33        43        53        63        73        83        93       103


Chain D from PDB  Type:PROTEIN  Length:106
 aligned with PSB28_THEEB | Q8DLJ8 from UniProtKB/Swiss-Prot  Length:116

    Alignment length:106
                                    13        23        33        43        53        63        73        83        93       103
          PSB28_THEEB     4 MAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
               SCOP domains ---------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeee..ee.....eeeeee......eeeeeee..hhhhhh.......eeeee..eeeee..eeeeee..eeeeeeeeeee.hhhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------- Transcript
                 3zpn D   4 MAEIQFIRGINEEVVPDVRLTRARDGSSGQAMFYFDNPKIVQEGNLEVTGMYMVDEEGEIVTRDVNAKFINGQPVAIEATYTMRSPQEWDRFIRFMDRYAASHGLG 109
                                    13        23        33        43        53        63        73        83        93       103
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3ZPN)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3ZPN)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3ZPN)

(-) Gene Ontology  (6, 6)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (PSB28_THEEB | Q8DLJ8)
biological process
    GO:0015979    photosynthesis    The synthesis by organisms of organic chemical compounds, especially carbohydrates, from carbon dioxide (CO2) using energy obtained from light rather than from the oxidation of chemical compounds.
cellular component
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0009523    photosystem II    A photosystem that contains a pheophytin-quinone reaction center with associated accessory pigments and electron carriers. In cyanobacteria and chloroplasts, in the presence of light, PSII functions as a water-plastoquinone oxidoreductase, transferring electrons from water to plastoquinone, whereas other photosynthetic bacteria carry out anoxygenic photosynthesis and oxidize other compounds to re-reduce the photoreaction center.
    GO:0009654    photosystem II oxygen evolving complex    A complex, composed of a cluster of manganese, calcium and chloride ions bound to extrinsic proteins, that catalyzes the splitting of water to O2 and 4 H+. In cyanobacteria there are five extrinsic proteins in OEC (PsbO, PsbP-like, PsbQ-like, PsbU and PsbV), while in plants there are only three (PsbO, PsbP and PsbQ).
    GO:0009579    thylakoid    A membranous cellular structure that bears the photosynthetic pigments in plants, algae, and cyanobacteria. In cyanobacteria thylakoids are of various shapes and are attached to, or continuous with, the plasma membrane. In eukaryotes they are flattened, membrane-bounded disk-like structures located in the chloroplasts; in the chloroplasts of higher plants the thylakoids form dense stacks called grana. Isolated thylakoid preparations can carry out photosynthetic electron transport and the associated phosphorylation.
    GO:0042651    thylakoid membrane    The pigmented membrane of any thylakoid.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3zpn)

  Sites
(no "Sites" information available for 3zpn)

  Cis Peptide Bonds
    Gly B:47 - Asn B:48   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
