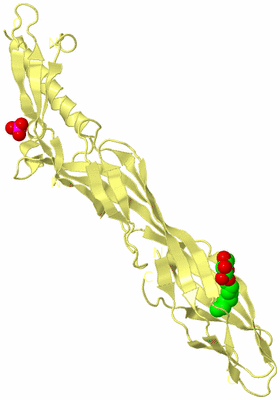

Biological Unit 4 (Jmol Viewer)

Title :   CLOSTRIDIUM PERFRINGENS EPSILON TOXIN MUTANT H149A BOUND TO OCTYL GLUCOSIDE

Authors :   M. Bokori-Brown, M. C. Kokkinidou, C. G. Savva, S. P. Fernandes Da Cos C. E. Naylor, A. R. Cole, A. K. Basak, R. W. Titball

Date :   20 Jan 13 (Deposition) - 27 Mar 13 (Release) - 01 Apr 15 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)
Biol. Unit 3: C  (1x)
Biol. Unit 4: D  (1x)

Keywords :   Toxin, Pore Forming Toxin, Enterotoxemia, Aerolysin Family (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   M. Bokori-Brown, M. C. Kokkinidou, C. G. Savva, S. P. Da Costa, C. E. Naylor, A. R. Cole, D. S. Moss, A. K. Basak, R. W. Titball
Clostridium Perfringens Epsilon Toxin H149A Mutant As A Platform For Receptor Binding Studies.
Protein Sci. V. 22 650 2013
PubMed-ID: 23504825 | Reference-DOI: 10.1002/PRO.2250

Molecule 1 - EPSILON-TOXIN
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PHIS PARALLEL II
	Expression System Strain	:	BL21(DE3)
	Expression System Taxid	:	469008
	Expression System Vector Type	:	PLASMID
	Mutation	:	YES
	Organism Scientific	:	CLOSTRIDIUM PERFRINGENS D
	Organism Taxid	:	107819
	Strain	:	NCTC 8346

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B
Biological Unit 3 (1x)	:			C
Biological Unit 4 (1x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (2, 8)

No.	Name	Count	Type	Full Name
1	BOG	4	Ligand/Ion	B-OCTYLGLUCOSIDE
2	PO4	4	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (2, 2)

No.	Name	Count	Type	Full Name
1	BOG	1	Ligand/Ion	B-OCTYLGLUCOSIDE
2	PO4	1	Ligand/Ion	PHOSPHATE ION

Biological Unit 2 (2, 2)

No.	Name	Count	Type	Full Name
1	BOG	1	Ligand/Ion	B-OCTYLGLUCOSIDE
2	PO4	1	Ligand/Ion	PHOSPHATE ION

Biological Unit 3 (2, 2)

No.	Name	Count	Type	Full Name
1	BOG	1	Ligand/Ion	B-OCTYLGLUCOSIDE
2	PO4	1	Ligand/Ion	PHOSPHATE ION

Biological Unit 4 (2, 2)

No.	Name	Count	Type	Full Name
1	BOG	1	Ligand/Ion	B-OCTYLGLUCOSIDE
2	PO4	1	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (8, 8)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLU A:74 , VAL A:85 , LYS A:87 , SER A:102 , PHE A:105 , THR A:106 , VAL A:179 , HOH A:2053	BINDING SITE FOR RESIDUE BOG A1297
2	AC2	SOFTWARE	GLU B:74 , VAL B:85 , SER B:102 , PHE B:105 , THR B:106 , VAL B:179 , HOH B:2043 , HOH B:2045	BINDING SITE FOR RESIDUE BOG B1296
3	AC3	SOFTWARE	VAL C:85 , GLY C:86 , SER C:102 , PHE C:105 , THR C:106 , VAL C:179 , HOH C:2128	BINDING SITE FOR RESIDUE BOG C1296
4	AC4	SOFTWARE	VAL D:85 , GLY D:86 , LYS D:87 , PHE D:105 , THR D:106 , VAL D:179 , HOH D:2110 , HOH D:2111	BINDING SITE FOR RESIDUE BOG D1296
5	AC5	SOFTWARE	ASP C:61 , SER C:201 , LYS C:218 , GLN D:98	BINDING SITE FOR RESIDUE PO4 C1297
6	AC6	SOFTWARE	GLN A:98 , ASP B:61 , SER B:201 , LYS B:218 , HOH B:2078 , HOH B:2080	BINDING SITE FOR RESIDUE PO4 B1297
7	AC7	SOFTWARE	GLN C:98 , HOH C:2050 , ASP D:61 , SER D:201 , LYS D:218	BINDING SITE FOR RESIDUE PO4 D1297
8	AC8	SOFTWARE	ASP A:61 , SER A:201 , LYS A:218 , HOH A:2095 , HOH A:2118 , GLN B:98	BINDING SITE FOR RESIDUE PO4 A1298

(no "SS Bond" information available for 3ZJX)

(no "Cis Peptide Bond" information available for 3ZJX)

(no "SAP(SNP)/Variant" information available for 3ZJX)

(no "PROSITE Motif" information available for 3ZJX)

(no "Exon" information available for 3ZJX)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:277
 aligned with E7D8R1_CLOPF | E7D8R1 from UniProtKB/TrEMBL  Length:334

    Alignment length:284
                                    54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324
         E7D8R1_CLOPF    45 KKASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITHNVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKKEKSNDSNIVKYRSLSIKAPGIK 328
               SCOP domains d3zjxa_ A: automated matches                                                                                                                                                                                                                                                                 SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhhhhhhhhh....hhhhhh.....eeeee..eeeeeeeee....eeee...eeeeeeeeee.....eeee...eeeeeeeeeeeeeee........eeeee..........eeeee.....eeeeeeeeeeee...eeee...eeeeeeeeeeeeeeeeeeeeeeeee.eeeeee........eeeeee.hhh.hhhhh.....eeeeeeeeeeeeeeeeeeeeeee.....eeeee..eee.-------.eee...eee..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3zjx A  13 AMASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITANVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKI-------IVKYRSLSIKAPGIK 296
                                    22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272 |     282       292
                                                                                                                                                                                                                                                                                               274     282

Chain B from PDB  Type:PROTEIN  Length:276
 aligned with E7D8R1_CLOPF | E7D8R1 from UniProtKB/TrEMBL  Length:334

    Alignment length:282
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325
         E7D8R1_CLOPF    46 KASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITHNVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKKEKSNDSNIVKYRSLSIKAPGI 327
               SCOP domains d3zjxb_ B: automated matches                                                                                                                                                                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhh....hhhhhh.....eeeee..eeeeeeeee....eeee...eeeeeeeeee.....eeee...eeeeeeeeeeeeeee........eeeee..........eeeee.....eeeeeeeeeeee...eeee...eeeeeeeeeeeeeeeeeeeeeeeee.eeeeee........eeeeee.hhh.hhhhh.....eeeeeeeeeeeeeeeeeeeeeee.....eeeee..eee.------.eeee...eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3zjx B  14 MASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITANVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKI------NIVKYRSLSIKAPGI 295
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273|      283       293
                                                                                                                                                                                                                                                                                              274    281

Chain C from PDB  Type:PROTEIN  Length:276
 aligned with E7D8R1_CLOPF | E7D8R1 from UniProtKB/TrEMBL  Length:334

    Alignment length:282
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325
         E7D8R1_CLOPF    46 KASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITHNVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKKEKSNDSNIVKYRSLSIKAPGI 327
               SCOP domains d3zjxc_ C: automated matches                                                                                                                                                                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhh....hhhhhh.....eeeee..eeeeeeeee....eeee...eeeeeeeeee.....eeee...eeeeeeeeeeeeeee........eeeee..........eeeee.....eeeeeeeeeeee...eeee...eeeeeeeeeeeeeeeeeeeeeeeee.eeeeee........eeeeee.hhhhhhhhh.....eeeeeeeeeeeeeeeeeeeeeee.....eeeee..eee.------.eeee...eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3zjx C  14 MASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITANVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKI------NIVKYRSLSIKAPGI 295
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273|      283       293
                                                                                                                                                                                                                                                                                              274    281

Chain D from PDB  Type:PROTEIN  Length:272
 aligned with E7D8R1_CLOPF | E7D8R1 from UniProtKB/TrEMBL  Length:334

    Alignment length:282
                                    55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325
         E7D8R1_CLOPF    46 KASYDNVDTLIEKGRYNTKYNYLKRMEKYYPNAMAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITHNVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKKEKSNDSNIVKYRSLSIKAPGI 327
               SCOP domains d3zjxd_ D: automated matches                                                                                                                                                                                                                                                               SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .....hhhhhhhhhhhhhhhhhhhhhh..----.........eeeee..eeeeeeeee....eeee...eeeeeeeeee.....eeee...eeeeeeeeeeeeeee........eeeee..........eeeee.....eeeeeeeeeeee...eeee...eeeeeeeeeeeeeeeeeeeeeeeee.eeeeee........eeeeee.hhh.hhhhh.....eeeeeeeeeeeeeeeeeeeeeee.....eeeee......------.eee....eee.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3zjx D  14 MASYDNVDTLIEKGRYNTKYNYLKRMEKY----MAYFDKVTINPQGNDFYINNPKVELDGEPSMNYLEDVYVGKALLTNDTQQEQKLKSQSFTCKNTDTVTATTTHTVGTSIQATAKFTVPFNETGVSLTTSYSFANTNTNTNSKEITANVPSQDILVPANTTVEVIAYLKKVNVKGNVKLVGQVSGSEWGEIPSYLAFPRDGYKFSLSDTVNKSDLNEDGTININGKGNYSAVMGDELIVKVRNLNTNNVQEYVIPVDKI------NIVKYRSLSIKAPGI 295
                                    23        33        |-   |    53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273|      283       293
                                                       42   47                                                                                                                                                                                                                                274    281

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Membrane and cell surface proteins and peptides (2046)

Fold: Aerolisin/ETX pore-forming domain (9)

Superfamily: Aerolisin/ETX pore-forming domain (9)

Family: ETX/MTX2 (2)

Protein domain: automated matches (1)

Clostridium perfringens [TaxId: 107819] (1)

1a	d3zjxa_	A:
1b	d3zjxb_	B:
1c	d3zjxc_	C:
1d	d3zjxd_	D:

(no "CATH Domain" information available for 3ZJX)

(no "Pfam Domain" information available for 3ZJX)

Asymmetric Unit(hide GO term definitions)

(no "Gene Ontology" information available for 3ZJX)

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		BOG	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3zjx)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]
		Biological Unit 4	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format \| Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3zjx
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	E7D8R1_CLOPF \| E7D8R1
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/TrEMBL

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	E7D8R1_CLOPF \| E7D8R1
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

(no "Entries Sharing at Least One Protein Chain" available for 3ZJX)

(no "Related Entries Specified in the PDB File" available for 3ZJX)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (2, 8)

Sites (8, 8)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 4)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (0, 0)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
