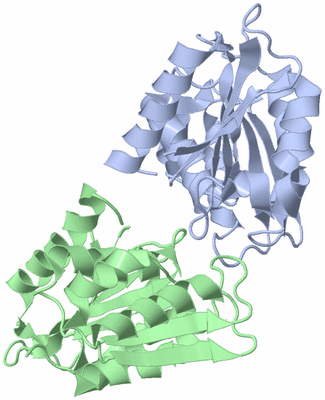

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  C-TERMINAL ESTERASE DOMAIN OF LC-EST1

Authors :  H. Okano, X. Hong, C. Angkawidjaja, S. Kanaya
Date :  26 Aug 14  (Deposition) - 12 Nov 14  (Release) - 12 Nov 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.53
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Leaf-Branch Compost; Metagenome, Alpha/Beta Hydrolase Fold, Esterase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Okano, X. Hong, E. Kanaya, C. Angkawidjaja, S. Kanaya
Structural And Biochemical Characterization Of A Metagenome-Derived Esterase With A Long N-Terminal Extensio
Protein Sci. 2014
PubMed-ID: 25348365  |  Reference-DOI: 10.1002/PRO.2591

(-) Compounds

Molecule 1 - LC-EST1C
    Chains: A, B
    EC Number: 3.1.1.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Organism Scientific: UNCULTURED ORGANISM
    Organism Taxid: 155900

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3WYD)

(-) Sites  (0, 0)

(no "Site" information available for 3WYD)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3WYD)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3WYD)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3WYD)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3WYD)

(-) Exons   (0, 0)

(no "Exon" information available for 3WYD)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:193
 aligned with A0A0A6YVN5_9 | A0A0A6YVN5 from UniProtKB/TrEMBL  Length:208

    Alignment length:199
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
         A0A0A6YVN5_9     2 PYRLYVPTTYDGTKAFPLVIALHGMGGDENSYFDSYQRGAFMIEAENRGYIVACPKGRQPASMYVGPAERDVMDVIAEVRRDYKIDPDRIYMTGHSMGGYGTWSIAMNHPDVFAALAPVAGGGNPLGMANIAHIPQLVVHGDNDKTVPVERSRVMVEAAKKHGTEIKYIEIPGGDHVSVAARTFKDVFDWFDSHKRKRP 200
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..........eeeeeee.......hhhhhhhhhhhhhhhhhhhh.eeeee..------..hhhhhhhhhhhhhhhhhh.eeeeeeeeeeehhhhhhhhhhhhhh.....eeeee....hhhhhhhhh...eeeeee.......hhhhhhhhhhhhh....eeeeee......hhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3wyd A 304 PYRLYVPTTYDGTKAFPLVIALHGMGGDENSYFDSYQRGAFMIEAENRGYIVACPKG------YVGPAERDVMDVIAEVRRDYKIDPDRIYMTGHSMGGYGTWSIAMNHPDVFAALAPVAGGGNPLGMANIAHIPQLVVHGDNDKTVPVERSRVMVEAAKKHGTEIKYIEIPGGDHVSVAARTFKDVFDWFDSHKRKRP 502
                                   313       323       333       343       353      |  -   |   373       383       393       403       413       423       433       443       453       463       473       483       493
                                                                                  360    367


Chain B from PDB  Type:PROTEIN  Length:191
 aligned with A0A0A6YVN5_9 | A0A0A6YVN5 from UniProtKB/TrEMBL  Length:208

    Alignment length:197
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
         A0A0A6YVN5_9     2 PYRLYVPTTYDGTKAFPLVIALHGMGGDENSYFDSYQRGAFMIEAENRGYIVACPKGRQPASMYVGPAERDVMDVIAEVRRDYKIDPDRIYMTGHSMGGYGTWSIAMNHPDVFAALAPVAGGGNPLGMANIAHIPQLVVHGDNDKTVPVERSRVMVEAAKKHGTEIKYIEIPGGDHVSVAARTFKDVFDWFDSHKRK 198
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeee..........eeeeeee.......hhhhhhhhhhhhhhhhhhhh.eeeee..------..hhhhhhhhhhhhhhhhhh.eeeeeeeeeeehhhhhhhhhhhhhh.....eeeee....hhhhhhhhh...eeeeee.......hhhhhhhhhhhhhh...eeeeee......hhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3wyd B 304 PYRLYVPTTYDGTKAFPLVIALHGMGGDENSYFDSYQRGAFMIEAENRGYIVACPKG------YVGPAERDVMDVIAEVRRDYKIDPDRIYMTGHSMGGYGTWSIAMNHPDVFAALAPVAGGGNPLGMANIAHIPQLVVHGDNDKTVPVERSRVMVEAAKKHGTEIKYIEIPGGDHVSVAARTFKDVFDWFDSHKRK 500
                                   313       323       333       343       353      |  -   |   373       383       393       403       413       423       433       443       453       463       473       483       493
                                                                                  360    367
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'
