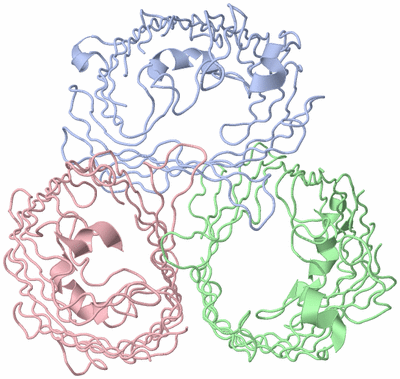

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  SALMONELLA TYPHI OSMOPORIN(OMPC):AN OUTER MEMBRANE PROTEIN

Authors :  P. Prasanth, B. K. Putcha, A. Arockiasamy, S. Krishnaswamy
Date :  27 Nov 11  (Deposition) - 28 Nov 12  (Release) - 28 Nov 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.59
Chains :  Asym./Biol. Unit :  A,B,C
Keywords :  Beta Barrel, Non Specific Porin, Osmoporin, Outer Membrane, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  P. Prasanth, B. K. Putcha, A. Arockiasamy, S. Krishnaswamy
Crystal Structure Of Outer Membrane Protein Ompc From Salmonella Typhi.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - OUTER MEMBRANE PROTEIN C
    Chains: A, B, C
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET21B+
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: OMPC, STM2267
    Organism Scientific: SALMONELLA ENTERICA SUBSP. ENTERICA SEROVAR TYPHIMURIUM
    Organism Taxid: 90371
    Strain: TY21A
    Synonym: PORIN OMPC

 Structural Features

(-) Chains, Units

  123
Asymmetric/Biological Unit : ABC

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3UU2)

(-) Sites  (0, 0)

(no "Site" information available for 3UU2)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3UU2)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3UU2)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3UU2)

(-) PROSITE Motifs  (1, 3)

Asymmetric/Biological Unit (1, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GRAM_NEG_PORINPS00576 General diffusion Gram-negative porins signature.OMPC_SALTI330-346

 		  3A:309-325
B:309-325
C:309-325
OMPC_SALTY330-346

 		  3A:309-325
B:309-325
C:309-325

(-) Exons   (0, 0)

(no "Exon" information available for 3UU2)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTI | P0A264 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTI    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh..............................hhhh.............------------------..........................-------------------.........................----------------------.........................................................................hhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 A   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263


Chain A from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTY | P0A263 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTY    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh..............................hhhh.............------------------..........................-------------------.........................----------------------.........................................................................hhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 A   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263


Chain B from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTI | P0A264 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTI    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh............................hhhhhhh............------------------..........................-------------------.........................----------------------........................................................................hhhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 B   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263


Chain B from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTY | P0A263 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTY    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh............................hhhhhhh............------------------..........................-------------------.........................----------------------........................................................................hhhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 B   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263


Chain C from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTI | P0A264 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTI    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh...............................................------------------..........................-------------------.........................----------------------........................................................................hhhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 C   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263


Chain C from PDB  Type:PROTEIN  Length:298
 aligned with OMPC_SALTY | P0A263 from UniProtKB/Swiss-Prot  Length:378

    Alignment length:357
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341       351       361       371
           OMPC_SALTY    22 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGKNGSVSGENTNGRSLLNQNGDGYGGSLTYAIGEGFSVGGAITTSKRTADQNNTANARLYGNGDRATVYTGGLKYDANNIYLAAQYSQTYNATRFGTSNGSNPSTSYGFANKAQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 378
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ................................................................................................hhhhhhhhh...............................................------------------..........................-------------------.........................----------------------........................................................................hhhhhhh................ Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------GRAM_NEG_PORIN   -------------------------------- PROSITE (2)
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3uu2 C   1 AEIYNKDGNKLDLFGKVDGLHYFSDDKGSDGDQTYMRIGFKGETQVNDQLTGYGQWEYQIQGNQTEGSNDSWTRVAFAGLKFADAGSFDYGRNYGVTYDVTSWTDVLPEFGGDTYGADNFMQQRGNGYATYRNTDFFGLVDGLDFALQYQGK------------------GDGYGGSLTYAIGEGFSVGGAITTSK-------------------ATVYTGGLKYDANNIYLAAQYSQTY----------------------AQNFEVVAQYQFDFGLRPSVAYLQSKGKDISNGYGASYGDQDIVKYVDVGATYYFNKNMSTYVDYKINLLDKNDFTRDAGINTDDIVALGLVYQF 357
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150 |       -         -|      180       190     |   -         -     | 220       230       240         -         -  |    270       280       290       300       310       320       330       340       350
                                                                                                                                                                                 152                171                      196                 216                     240                    263
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3UU2)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3UU2)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3UU2)

(-) Gene Ontology  (8, 16)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C   (OMPC_SALTI | P0A264)
molecular function
    GO:0015288    porin activity    Catalysis of the transfer of substances, sized less than 1000 Da, from one side of the membrane to the other. The transmembrane portions of porins consist exclusively of beta-strands which form a beta-barrel. They are found in the outer membranes of Gram-negative bacteria, mitochondria, plastids and possibly acid-fast Gram-positive bacteria.
biological process
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0046930    pore complex    Any small opening in a membrane that allows the passage of gases and/or liquids.

Chain A,B,C   (OMPC_SALTY | P0A263)
molecular function
    GO:0015288    porin activity    Catalysis of the transfer of substances, sized less than 1000 Da, from one side of the membrane to the other. The transmembrane portions of porins consist exclusively of beta-strands which form a beta-barrel. They are found in the outer membranes of Gram-negative bacteria, mitochondria, plastids and possibly acid-fast Gram-positive bacteria.
biological process
    GO:0006811    ion transport    The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0055085    transmembrane transport    The process in which a solute is transported across a lipid bilayer, from one side of a membrane to the other
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0009279    cell outer membrane    A lipid bilayer that forms the outermost membrane of the cell envelope; enriched in polysaccharide and protein; the outer leaflet of the membrane contains specific lipopolysaccharide structures.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0046930    pore complex    Any small opening in a membrane that allows the passage of gases and/or liquids.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3uu2)

  Sites
(no "Sites" information available for 3uu2)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3uu2)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3uu2
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OMPC_SALTI | P0A264
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  OMPC_SALTY | P0A263
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  OMPC_SALTI | P0A264
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  OMPC_SALTY | P0A263
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        OMPC_SALTI | P0A264: 1iiv 3upg
        OMPC_SALTY | P0A263: 1iiv 3upg

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3UU2)
