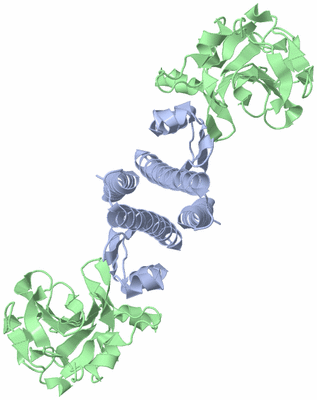

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE SPOIIQ-SPOIIIAH PORE FORMING COMPLEX.

Authors :  V. M. Levdikov, E. V. Blagova, A. J. Wilkinson
Date :  16 Sep 11  (Deposition) - 14 Mar 12  (Release) - 18 Jul 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.26
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (2x)
Keywords :  Intercellular Signalling, Intercellular Channel, Sporulation, Cell Engulfment And Signalling, Intercellular Space, Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  V. M. Levdikov, E. V. Blagova, A. Mcfeat, M. J. Fogg, K. S. Wilson, A. J. Wilkinson
Structure Of Components Of An Intercellular Channel Complex In Sporulating Bacillus Subtilis.
Proc. Natl. Acad. Sci. Usa V. 109 5441 2012
PubMed-ID: 22431604  |  Reference-DOI: 10.1073/PNAS.1120087109

(-) Compounds

Molecule 1 - STAGE III SPORULATION PROTEIN AH
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-YSBLIC
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: EXTRACELLULAR DOMAIN
    Gene: BSU24360, SPOIIIAH
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Strain: 168

Molecule 2 - STAGE II SPORULATION PROTEIN Q
    Chains: B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET-YSBLIC
    Expression System Strain: BL21
    Expression System Taxid: 511693
    Expression System Vector Type: PLASMID
    Fragment: EXTRACELLULAR DOMAIN
    Gene: BSU36550, SPOIIQ, YWNI
    Organism Scientific: BACILLUS SUBTILIS
    Organism Taxid: 1423
    Strain: 168

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3TUF)

(-) Sites  (0, 0)

(no "Site" information available for 3TUF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3TUF)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Ala B:230 -Ala B:231

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3TUF)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3TUF)

(-) Exons   (0, 0)

(no "Exon" information available for 3TUF)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:115
 aligned with SP3AH_BACSU | P49785 from UniProtKB/Swiss-Prot  Length:218

    Alignment length:115
                                   112       122       132       142       152       162       172       182       192       202       212
          SP3AH_BACSU   103 DDLFTTYRLDLEDARSKEREELNAIVSSDDATAKEKSEAYDKMTALSEVEGTEKQLETLIKTQGYEDALVNAEGDKINITVKSDKHSKSKATAIIDLVAKEIKTMKDVAVTFEPS 217
               SCOP domains ------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeee....eeeeeee....hhhhhhhhhhh.hhhhhh..eeeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------- Transcript
                 3tuf A 103 DDLFTTYRLDLEDARSKEREELNAIVSSDDATAKEKSEAYDKMTALSEVEGTEKQLETLIKTQGYEDALVNAEGDKINITVKSDKHSKSKATAIIDLVAKEIKTMKDVAVTFEPS 217
                                   112       122       132       142       152       162       172       182       192       202       212


Chain B from PDB  Type:PROTEIN  Length:158
 aligned with SP2Q_BACSU | P71044 from UniProtKB/Swiss-Prot  Length:283

    Alignment length:158
                                    84        94       104       114       124       134       144       154       164       174       184       194       204       214       224
           SP2Q_BACSU    75 SMENVAMPVVDSENVSVVKKFYETDAAKEEKEAALVTYNNTYSLSKGIDLAEKDGKDFDVSASLSGTVVKAEKDPVLGYVVEVEHADGLSTVYQSLSEVSVEQGDKVKQNQVIGKSGKNLYSEDSGNHVHFEIRKDGVAMNPLNFMDKPVSSIEKAAT 232
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhh.eeeee.......hhhhhhhheee...eeee...eeeee......eee....eeeeeeeee...eeeeeee....eeeeeeee.ee......ee....eeee......hhhhh..eeeeeee..eeehhhhh...hhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3tuf B  75 SMENVAMPVVDSENVSVVKKFYETDAAKEEKEAALVTYNNTYSLSKGIDLAEKDGKDFDVSASLSGTVVKAEKDPVLGYVVEVEHADGLSTVYQSLSEVSVEQGDKVKQNQVIGKSGKNLYSEDSGNHVHFEIRKDGVAMNPLNFMDKPVSSIEKAAT 232
                                    84        94       104       114       124       134       144       154       164       174       184       194       204       214       224
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3TUF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3TUF)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3TUF)

(-) Gene Ontology  (6, 10)

Asymmetric Unit(hide GO term definitions)
Chain A   (SP3AH_BACSU | P49785)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

Chain B   (SP2Q_BACSU | P71044)
molecular function
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0030435    sporulation resulting in formation of a cellular spore    The process in which a relatively unspecialized cell acquires the specialized features of a cellular spore, a cell form that can be used for dissemination, for survival of adverse conditions because of its heat and dessication resistance, and/or for reproduction.
cellular component
    GO:0042601    endospore-forming forespore    Portion of the cell formed during the process of bacterial sporulation that will ultimately become the core of the endospore. An endospore is a type of dormant cell that is resistant to adverse conditions.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3tuf)

  Sites
(no "Sites" information available for 3tuf)

  Cis Peptide Bonds
    Ala B:230 - Ala B:231   [ RasMol ]

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3tuf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  SP2Q_BACSU | P71044
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  SP3AH_BACSU | P49785
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  SP2Q_BACSU | P71044
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  SP3AH_BACSU | P49785
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        SP2Q_BACSU | P71044: 3uz0
        SP3AH_BACSU | P49785: 3uz0

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3TUF)
