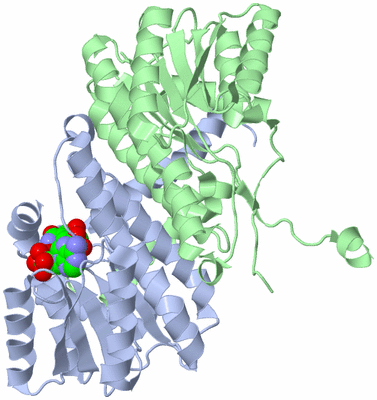

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A RV0851C ORTHOLOG SHORT CHAIN DEHYDROGENASE FROM MYCOBACTERIUM PARATUBERCULOSIS

Authors :  Seattle Structural Genomics Center For Infectious Disease (S
Date :  24 Aug 11  (Deposition) - 31 Aug 11  (Release) - 22 Apr 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Structural Genomics, Seattle Structural Genomics Center For Infectious Disease, Ssgcid, Scd, Nad, Nucleotide Adenine Dinucleotide, 5-Hydroxy Nad, Putative Uncharacterized Protein, Asymmetric Substrate Or Cofactor Recognition, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Baugh, I. Phan, D. W. Begley, M. C. Clifton, B. Armour, D. M. Dranow, B. M. Taylor, M. M. Muruthi, J. Abendroth, J. W. Fairman, D. Fox, S. H. Dieterich, B. L. Staker, A. S. Gardberg, R. Choi, S. N. Hewitt, A. J. Napuli, J. Myers, L. K. Barrett, Y. Zhang, M. Ferrell, E. Mundt, K. Thompkins, N. Tran, S. Lyons-Abbott, A. Abramov, A. Sekar, D. Serbzhinskiy, D. Lorimer, G. W. Buchko, R. Stacy, L. J. Stewart, T. E. Edwards, W. C. Van Voorhis, P. J. Myler
Increasing The Structural Coverage Of Tuberculosis Drug Targets.
Tuberculosis (Edinb) V. 95 142 2015
PubMed-ID: 25613812  |  Reference-DOI: 10.1016/J.TUBE.2014.12.003

(-) Compounds

Molecule 1 - SHORT CHAIN DEHYDROGENASE
    Chains: A, B
    EC Number: 1.-.-.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PAVA0421
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MAP_0710C
    Organism Scientific: MYCOBACTERIUM AVIUM SUBSP. PARATUBERCULOSIS
    Organism Taxid: 1770

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1UNL1Ligand/IonUNKNOWN LIGAND

(-) Sites  (0, 0)

(no "Site" information available for 3TJR)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3TJR)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3TJR)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3TJR)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3TJR)

(-) Exons   (0, 0)

(no "Exon" information available for 3TJR)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:256
 aligned with Q742X5_MYCPA | Q742X5 from UniProtKB/TrEMBL  Length:280

    Alignment length:278
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272
         Q742X5_MYCPA     3 GFLSGFDGRAAVVTGGASGIGLATATEFARRGARLVLSDVDQPALEQAVNGLRGQGFDAHGVVCDVRHLDEMVRLADEAFRLLGGVDVVFSNAGIVVAGPLAQMNHDDWRWVIDIDLWGSIHAVEAFLPRLLEQGTGGHIAFTASFAGLVPNAGLGTYGVAKYGVVGLAETLAREVKPNGIGVSVLCPMVVETKLVSNSERIRGADYGMSATPEGAFGPLPTQDESVSADDVARLTADAILANRLYILPHAAARESIRRRFERIDRTFDEQAAEGWTH 280
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhh...eeeee....hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee.......hhhhhhhhhh----------------------..hhhhhhhhhhhhhhhh..ee....hhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3tjr A   3 GFLSGFDGRAAVVTGGASGIGLATATEFARRGARLVLSDVDQPALEQAVNGLRGQGFDAHGVVCDVRHLDEMVRLADEAFRLLGGVDVVFSNAGIVVAGPLAQMNHDDWRWVIDIDLWGSIHAVEAFLPRLLEQGTGGHIAFTASFAGLVPNAGLGTYGVAKYGVVGLAETLAREVKPNGIGVSVLCPMVVETKLVSNSERIR----------------------SVSADDVARLTADAILANRLYILPHAAARESIRRRFERIDRTFDEQAAEGWTH 280
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202  |      -         -     | 232       242       252       262       272
                                                                                                                                                                                                                                    205                    228


Chain B from PDB  Type:PROTEIN  Length:265
 aligned with Q742X5_MYCPA | Q742X5 from UniProtKB/TrEMBL  Length:280

    Alignment length:278
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272
         Q742X5_MYCPA     3 GFLSGFDGRAAVVTGGASGIGLATATEFARRGARLVLSDVDQPALEQAVNGLRGQGFDAHGVVCDVRHLDEMVRLADEAFRLLGGVDVVFSNAGIVVAGPLAQMNHDDWRWVIDIDLWGSIHAVEAFLPRLLEQGTGGHIAFTASFAGLVPNAGLGTYGVAKYGVVGLAETLAREVKPNGIGVSVLCPMVVETKLVSNSERIRGADYGMSATPEGAFGPLPTQDESVSADDVARLTADAILANRLYILPHAAARESIRRRFERIDRTFDEQAAEGWTH 280
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........eeeee...hhhhhhhhhhhhhh..eeeeee.hhhhhhhhhhhhhhh...eeeee....hhhhhhhhhhhhhhhhh...eeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..eeeeee.hhhhh.....hhhhhhhhhhhhhhhhhhhhhhh...eeeeee...ee....hhhhhhh-------------......ee....hhhhhhhhhhhhhhhh..ee....hhhhhhhhhhhhhhhhhhhhhhh.... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3tjr B   3 GFLSGFDGRAAVVTGGASGIGLATATEFARRGARLVLSDVDQPALEQAVNGLRGQGFDAHGVVCDVRHLDEMVRLADEAFRLLGGVDVVFSNAGIVVAGPLAQMNHDDWRWVIDIDLWGSIHAVEAFLPRLLEQGTGGHIAFTASFAGLVPNAGLGTYGVAKYGVVGLAETLAREVKPNGIGVSVLCPMVVETKLVSNSERI-------------AFGPLPTQDESVSADDVARLTADAILANRLYILPHAAARESIRRRFERIDRTFDEQAAEGWTH 280
                                    12        22        32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202 |       -     | 222       232       242       252       262       272
                                                                                                                                                                                                                                   204           218
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3TJR)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3TJR)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3TJR)

(-) Gene Ontology  (2, 2)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q742X5_MYCPA | Q742X5)
molecular function
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
biological process
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    UNL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3tjr)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3tjr)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3tjr
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q742X5_MYCPA | Q742X5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  1.-.-.-
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q742X5_MYCPA | Q742X5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
