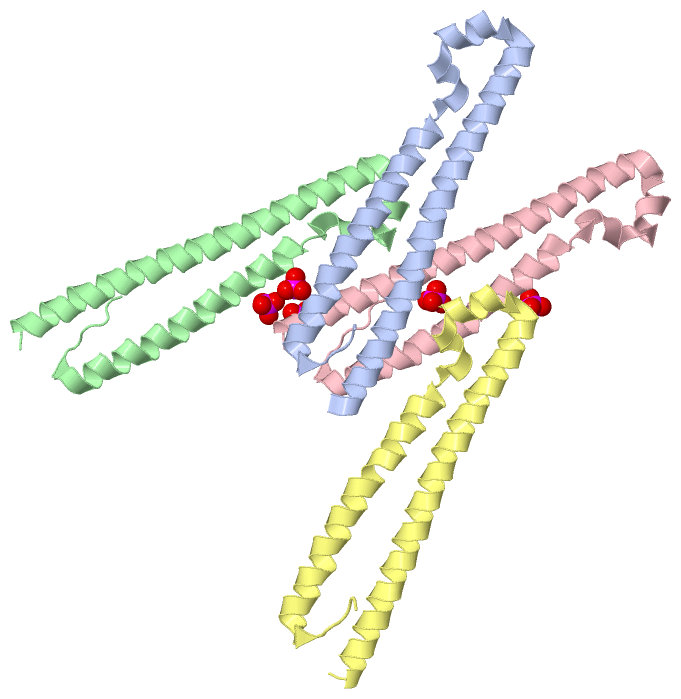

Asymmetric Unit (Jmol Viewer)

Asym. Unit - sites (Jmol Viewer)

Biological Unit 1 (Jmol Viewer)

Biol. Unit 1 - sites (Jmol Viewer)

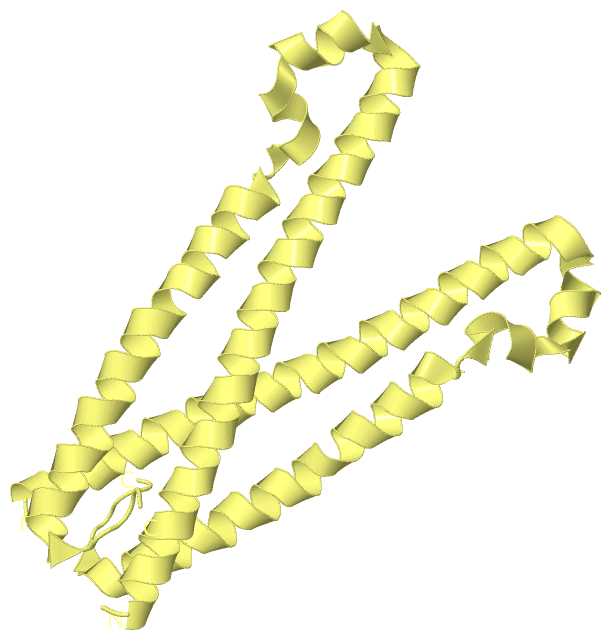

Biological Unit 2 (Jmol Viewer)

Biological Unit 3 (Jmol Viewer)

Title :   CRYSTAL STRUCTURE OF SOAR DOMAIN

Authors :   X. Yang, H. Jin, X. Cai, Y. Shen

Date :   15 Aug 11 (Deposition) - 11 Apr 12 (Release) - 10 Jul 13 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   1.90

Chains :   Asym. Unit : A,B,C,D
Biol. Unit 1: A,C  (1x)
Biol. Unit 2: B  (2x)
Biol. Unit 3: D  (2x)

Keywords :   Signaling Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   X. Yang, H. Jin, X. Cai, S. Li, Y. Shen
Structural And Mechanistic Insights Into The Activation Of Stromal Interaction Molecule 1 (Stim1).
Proc. Natl. Acad. Sci. Usa V. 109 5657 2012
PubMed-ID: 22451904 | Reference-DOI: 10.1073/PNAS.1118947109

Molecule 1 - STROMAL INTERACTION MOLECULE 1
	Chains	:	A, B, C, D
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Taxid	:	562
	Fragment	:	SOAR DOMAIN (UNP RESIDUES 344-444)
	Gene	:	STIM1, GOK
	Mutation	:	YES
	Organism Common	:	HUMAN
	Organism Scientific	:	HOMO SAPIENS
	Organism Taxid	:	9606

		1	2	3	4
Asymmetric Unit	:	A	B	C	D
Biological Unit 1 (1x)	:	A		C
Biological Unit 2 (2x)	:		B
Biological Unit 3 (2x)	:				D

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (1, 5)

No.	Name	Count	Type	Full Name
1	PO4	5	Ligand/Ion	PHOSPHATE ION

Biological Unit 1 (1, 5)

No.	Name	Count	Type	Full Name
1	PO4	5	Ligand/Ion	PHOSPHATE ION

Biological Unit 2 (0, 0)

No.	Name	Count	Type	Full Name
1	PO4	-1	Ligand/Ion	PHOSPHATE ION

Biological Unit 3 (0, 0)

No.	Name	Count	Type	Full Name
1	PO4	-1	Ligand/Ion	PHOSPHATE ION

Asymmetric Unit (5, 5)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	VAL A:357 , GLN A:360 , TYR A:361 , HOH A:456 , HOH A:492 , HIS D:398 , SER D:399	BINDING SITE FOR RESIDUE PO4 A 2
2	AC2	SOFTWARE	HIS A:428 , GLN A:431 , GLN A:432 , HOH A:466 , HOH C:18 , HOH D:452	BINDING SITE FOR RESIDUE PO4 A 5
3	AC3	SOFTWARE	GLU B:345 , LYS B:349 , LYS C:413 , GLN C:414 , HOH C:594	BINDING SITE FOR RESIDUE PO4 C 1
4	AC4	SOFTWARE	HOH B:146 , LYS B:413 , GLN B:414 , SER B:417 , GLU C:345 , ALA C:346 , LYS C:349 , HOH C:472	BINDING SITE FOR RESIDUE PO4 C 4
5	AC5	SOFTWARE	GLU C:345 , GLN C:348 , LYS C:349 , GLN C:352	BINDING SITE FOR RESIDUE PO4 C 6

(no "SS Bond" information available for 3TEQ)

(no "Cis Peptide Bond" information available for 3TEQ)

Asymmetric Unit (2, 8)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_071477	R	426	C	STIM1_HUMAN	Disease	---	A/B/C/D	R	426	C
2	UniProt	VAR_069896	R	429	C	STIM1_HUMAN	Disease (IMD10)	397514671	A/B/C/D	R	429	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 1 (2, 4)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_071477	R	426	C	STIM1_HUMAN	Disease	---	A/C	R	426	C
2	UniProt	VAR_069896	R	429	C	STIM1_HUMAN	Disease (IMD10)	397514671	A/C	R	429	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 2 (2, 4)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_071477	R	426	C	STIM1_HUMAN	Disease	---	B	R	426	C
2	UniProt	VAR_069896	R	429	C	STIM1_HUMAN	Disease (IMD10)	397514671	B	R	429	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

Biological Unit 3 (2, 4)

								dbSNP	PDB
No.	Source	Variant ID	Variant			UniProt ID	Status	ID	Chain	Variant
1	UniProt	VAR_071477	R	426	C	STIM1_HUMAN	Disease	---	D	R	426	C
2	UniProt	VAR_069896	R	429	C	STIM1_HUMAN	Disease (IMD10)	397514671	D	R	429	C

SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(no "PROSITE Motif" information available for 3TEQ)

(no "Exon" information available for 3TEQ)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

Chain A from PDB  Type:PROTEIN  Length:100
 aligned with STIM1_HUMAN | Q13586 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:100
                                   353       363       373       383       393       403       413       423       433       443
          STIM1_HUMAN   344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEVTAALRERLHRWQQIEILCGFQIVN 443
               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------C--C-------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 3teq A 344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLMVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEATAALRERLHRWQQIEILTGFQIVN 443
                                   353       363       373       383       393       403       413       423       433       443

Chain B from PDB  Type:PROTEIN  Length:101
 aligned with STIM1_HUMAN | Q13586 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:101
                                   353       363       373       383       393       403       413       423       433       443
          STIM1_HUMAN   344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEVTAALRERLHRWQQIEILCGFQIVNN 444
               SCOP domains ----------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------C--C--------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 3teq B 344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLMVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEATAALRERLHRWQQIEILTGFQIVNN 444
                                   353       363       373       383       393       403       413       423       433       443

Chain C from PDB  Type:PROTEIN  Length:101
 aligned with STIM1_HUMAN | Q13586 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:101
                                   353       363       373       383       393       403       413       423       433       443
          STIM1_HUMAN   344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEVTAALRERLHRWQQIEILCGFQIVNN 444
               SCOP domains ----------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------C--C--------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------- Transcript
                 3teq C 344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLMVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEATAALRERLHRWQQIEILTGFQIVNN 444
                                   353       363       373       383       393       403       413       423       433       443

Chain D from PDB  Type:PROTEIN  Length:100
 aligned with STIM1_HUMAN | Q13586 from UniProtKB/Swiss-Prot  Length:685

    Alignment length:100
                                   353       363       373       383       393       403       413       423       433       443
          STIM1_HUMAN   344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEVTAALRERLHRWQQIEILCGFQIVN 443
               SCOP domains ---------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------C--C-------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------- Transcript
                 3teq D 344 PEALQKWLQLTHEVEVQYYNIKKQNAEKQLMVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEATAALRERLHRWQQIEILTGFQIVN 443
                                   353       363       373       383       393       403       413       423       433       443

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

(no "SCOP Domain" information available for 3TEQ)

(no "CATH Domain" information available for 3TEQ)

(no "Pfam Domain" information available for 3TEQ)

Asymmetric Unit(hide GO term definitions)

Chain A,B,C,D (STIM1_HUMAN | Q13586)

molecular function
	GO:0005246	calcium channel regulator activity	Modulates the activity of a calcium channel.
	GO:0005509	calcium ion binding	Interacting selectively and non-covalently with calcium ions (Ca2+).
	GO:0042802	identical protein binding	Interacting selectively and non-covalently with an identical protein or proteins.
	GO:0046872	metal ion binding	Interacting selectively and non-covalently with any metal ion.
	GO:0051010	microtubule plus-end binding	Interacting selectively and non-covalently with the plus end of a microtubule.
	GO:0002020	protease binding	Interacting selectively and non-covalently with any protease or peptidase.
	GO:0005515	protein binding	Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
	GO:0032237	activation of store-operated calcium channel activity	A process that initiates the activity of an inactive store-operated calcium channel.
	GO:0006816	calcium ion transport	The directed movement of calcium (Ca) ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0005513	detection of calcium ion	The series of events in which a calcium ion stimulus is received by a cell and converted into a molecular signal.
	GO:0070166	enamel mineralization	The process in which calcium salts, mainly carbonated hydroxyapatite, are deposited in tooth enamel.
	GO:0006811	ion transport	The directed movement of charged atoms or small charged molecules into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:0051924	regulation of calcium ion transport	Any process that modulates the frequency, rate or extent of the directed movement of calcium ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
	GO:1903779	regulation of cardiac conduction	Any process that modulates the frequency, rate or extent of cardiac conduction.
	GO:0006810	transport	The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
	GO:0032541	cortical endoplasmic reticulum	A cortical network of highly dynamic tubules that are juxtaposed to the plasma membrane and undergo ring closure and tubule-branching movements.
	GO:0005737	cytoplasm	All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
	GO:0005856	cytoskeleton	Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
	GO:0005783	endoplasmic reticulum	The irregular network of unit membranes, visible only by electron microscopy, that occurs in the cytoplasm of many eukaryotic cells. The membranes form a complex meshwork of tubular channels, which are often expanded into slitlike cavities called cisternae. The ER takes two forms, rough (or granular), with ribosomes adhering to the outer surface, and smooth (with no ribosomes attached).
	GO:0005789	endoplasmic reticulum membrane	The lipid bilayer surrounding the endoplasmic reticulum.
	GO:0030176	integral component of endoplasmic reticulum membrane	The component of the endoplasmic reticulum membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016021	integral component of membrane	The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0005887	integral component of plasma membrane	The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
	GO:0016020	membrane	A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
	GO:0005874	microtubule	Any of the long, generally straight, hollow tubes of internal diameter 12-15 nm and external diameter 24 nm found in a wide variety of eukaryotic cells; each consists (usually) of 13 protofilaments of polymeric tubulin, staggered in such a manner that the tubulin monomers are arranged in a helical pattern on the microtubular surface, and with the alpha/beta axes of the tubulin subunits parallel to the long axis of the tubule; exist in equilibrium with pool of tubulin monomers and can be rapidly assembled or disassembled in response to physiological stimuli; concerned with force generation, e.g. in the spindle.
	GO:0005886	plasma membrane	The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
	GO:0016529	sarcoplasmic reticulum	A fine reticular network of membrane-limited elements that pervades the sarcoplasm of a muscle cell; continuous over large portions of the cell and with the nuclear envelope; that part of the endoplasmic reticulum specialized for calcium release, uptake and storage.
	GO:0033017	sarcoplasmic reticulum membrane	The lipid bilayer surrounding the sarcoplasmic reticulum.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		PO4	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3teq)

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]
		Biological Unit 3	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format \| Biol. Unit 3 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3teq
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	STIM1_HUMAN \| Q13586
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	(no 'Enzyme Classificator' available)
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	612783
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	STIM1_HUMAN \| Q13586
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	STIM1_HUMAN \| Q13586	:	2k60 2maj 2mak 4o9b

(no "Related Entries Specified in the PDB File" available for 3TEQ)

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (1, 5)

Sites (5, 5)

SS Bonds (0, 0)

Cis Peptide Bonds (0, 0)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (2, 8)

PROSITE Motifs (0, 0)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (0, 0)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (28, 28)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
