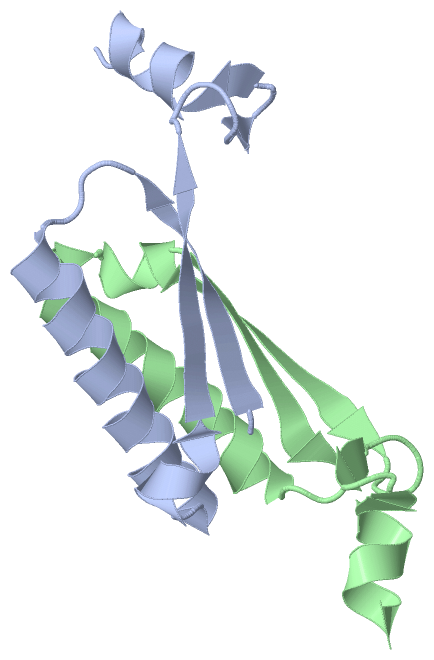

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

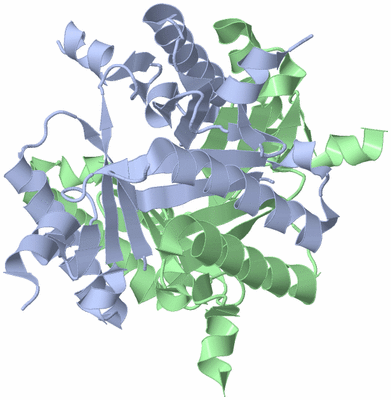

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF TOMN, A 4-OXALOCROTONATE TAUTOMERASE HOMOLOGUE IN TOMAYMYCIN BIOSYNTHETIC PATHWAY

Authors :  Y. Zhang, W. P. Yan, W. Z. Li, C. P. Whitman
Date :  10 May 11  (Deposition) - 17 Aug 11  (Release) - 14 Sep 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.40
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A,B  (3x)
Keywords :  4 Oxalocrotonate Tautomerase Family, Tautomerase, Isomerase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  E. A. Burks, W. Yan, W. H. Johnson, W. Li, G. K. Schroeder, C. Min, B. Gerratana, Y. Zhang, C. P. Whitman
Kinetic, Crystallographic, And Mechanistic Characterization Of Tomn: Elucidation Of A Function For A 4-Oxalocrotonate Tautomerase Homologue In The Tomaymycin Biosynthetic Pathway.
Biochemistry V. 50 7600 2011
PubMed-ID: 21809870  |  Reference-DOI: 10.1021/BI200947W

(-) Compounds

Molecule 1 - PUTATIVE TAUTOMERASE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET24
    Expression System Strain: BL21 (GOLD)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: TOMN
    Organism Scientific: STREPTOMYCES ACHROMOGENES
    Organism Taxid: 67255

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (3x): AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3RY0)

(-) Sites  (0, 0)

(no "Site" information available for 3RY0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3RY0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3RY0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3RY0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3RY0)

(-) Exons   (0, 0)

(no "Exon" information available for 3RY0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:65
 aligned with C0LTT5_STRAH | C0LTT5 from UniProtKB/TrEMBL  Length:66

    Alignment length:65
                                    11        21        31        41        51        61
          C0LTT5_STRAH    2 PLIRVTLLEGRSPQEVAALGEALTAAAHETLGTPVEAVRVIVEETPPERWFVGGRSVAERRASPS 66
               SCOP domains ----------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee...hhhhhhhhhhhhhhhhhhhhh.hhhhheeeeeee.....ee..eehhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------- Transcript
                  3ry0 A  1 PLIRVTLLEGRSPQEVAALGEALTAAAHETLGTPVEAVRVIVEETPPERWFVGGRSVAERRASPS 65
                                    10        20        30        40        50        60


Chain B from PDB  Type:PROTEIN  Length:63
 aligned with C0LTT5_STRAH | C0LTT5 from UniProtKB/TrEMBL  Length:66

    Alignment length:63
                                    11        21        31        41        51        61
          C0LTT5_STRAH    2 PLIRVTLLEGRSPQEVAALGEALTAAAHETLGTPVEAVRVIVEETPPERWFVGGRSVAERRAS 64
               SCOP domains --------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeee...hhhhhhhhhhhhhhhhhhhhh.hhhhheeeeeee.....ee..eehhhhhhh Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------- Transcript
                  3ry0 B  1 PLIRVTLLEGRSPQEVAALGEALTAAAHETLGTPVEAVRVIVEETPPERWFVGGRSVAERRAS 63
                                    10        20        30        40        50        60
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3RY0)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3RY0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3RY0)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (C0LTT5_STRAH | C0LTT5)
molecular function
    GO:0016853    isomerase activity    Catalysis of the geometric or structural changes within one molecule. Isomerase is the systematic name for any enzyme of EC class 5.
biological process
    GO:0006725    cellular aromatic compound metabolic process    The chemical reactions and pathways involving aromatic compounds, any organic compound characterized by one or more planar rings, each of which contains conjugated double bonds and delocalized pi electrons, as carried out by individual cells.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3ry0)

  Sites
(no "Sites" information available for 3ry0)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3ry0)

Biological Unit
  Complete Structure
    Biological Unit 1  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3ry0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  C0LTT5_STRAH | C0LTT5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  C0LTT5_STRAH | C0LTT5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3RY0)

(-) Related Entries Specified in the PDB File

4ota HOMOLOGUE PROTEIN
