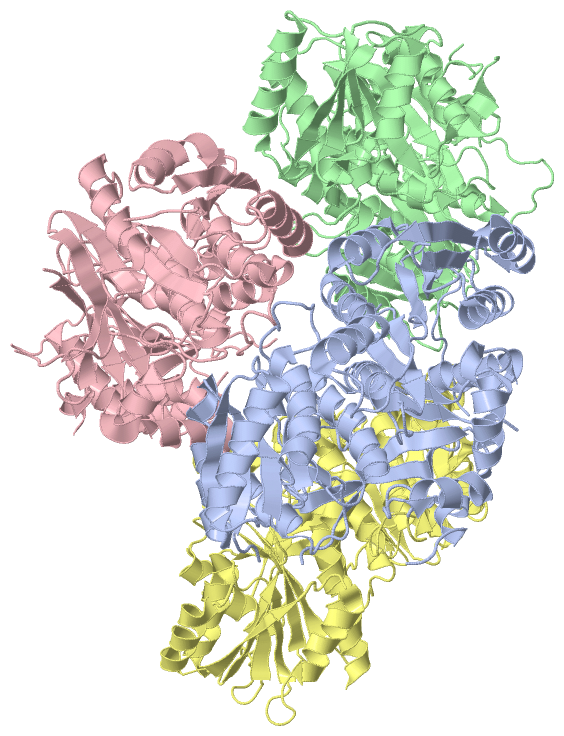

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

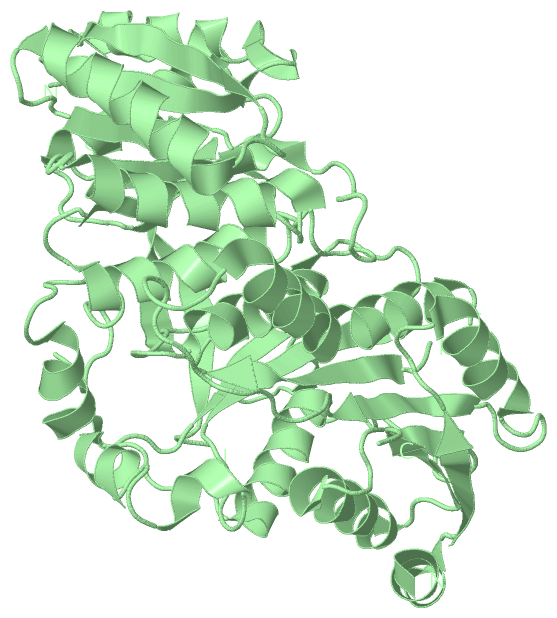

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF A C2-TYPE KETOREDUCTASE FROM A MODULAR POLYKETIDE SYNTHASE

Authors :  J. Zheng, A. T. Keatinge-Clay
Date :  11 Feb 11  (Deposition) - 11 May 11  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.88
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Rossmann Fold, Ketoreductase, Epimerization, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. Zheng, A. T. Keatinge-Clay
Structural And Functional Analysis Of C2-Type Ketoreductase From Modular Polyketide Synthases.
J. Mol. Biol. V. 410 105 2011
PubMed-ID: 21570406  |  Reference-DOI: 10.1016/J.JMB.2011.04.065

(-) Compounds

Molecule 1 - TYPE I POLYKETIDE SYNTHASE PIKAII
    Chains: A, B, C, D
    EC Number: 1.1.1.100
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Fragment: UNP RESIDUES 920-1423
    Gene: PIKAII
    Organism Scientific: STREPTOMYCES VENEZUELAE
    Organism Taxid: 54571
    Strain: ATCC15439

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3QP9)

(-) Sites  (0, 0)

(no "Site" information available for 3QP9)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3QP9)

(-) Cis Peptide Bonds  (9, 9)

Asymmetric Unit
No.Residues
1Ala A:105 -Pro A:106
2Gly A:412 -Pro A:413
3Ala B:105 -Pro B:106
4Gly B:412 -Pro B:413
5Gly B:434 -Glu B:435
6Ala C:105 -Pro C:106
7Gly C:412 -Pro C:413
8Ala D:105 -Pro D:106
9Gly D:412 -Pro D:413

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QP9)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3QP9)

(-) Exons   (0, 0)

(no "Exon" information available for 3QP9)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:470
 aligned with PIKA2_STRVZ | Q9ZGI4 from UniProtKB/Swiss-Prot  Length:3739

    Alignment length:498
                                   931       941       951       961       971       981       991      1001      1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191      1201      1211      1221      1231      1241      1251      1261      1271      1281      1291      1301      1311      1321      1331      1341      1351      1361      1371      1381      1391      1401      1411
         PIKA2_STRVZ    922 VQDSWRYRIDWKRLAVADASERAGLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLPAHGTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPSGSEGAEGTSGAAEDSGLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAAAAGGRPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEARRALDE 1419
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhh.eeeeeeee....------....eeeeeee.hhh..hhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhh.....eeee.hhhh...........hhhhhhhhhhhhhhhhh.....eeeeee............hhhhhhhhhhhhhhhhhh...eeeeeee....hhhhhhhhhhhhh......eeeee..eeeeeeeee...---...........eeee....hhhhhhhhhhhhhhh..eeeeee...---------------.hhhhhhhhhhhh.eeeeee....hhhhhhhhhhh......eeeeee.............hhhhhhhhhhhhhhhhhhhhhhhhhh.----...eeeeeee.........hhhhhhhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..eeee...hhhhhhhhhhh.........hhhhhh.... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3qp9 A    3 VQDSWRYRIDWKRLAVA------GLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASL---GTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPS---------------GLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAA----RPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEARRALDE  500
                                    12      |  -   |    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212    |  222       232       242       252       262  |      -       282       292       302       312       322       332       342       352       362    |  372       382       392       402       412       422       432       442       452       462       472       482       492
                                           19     26                                                                                                                                                                                            217 221                                         265             281                                                                                   367  372


Chain B from PDB  Type:PROTEIN  Length:460
 aligned with PIKA2_STRVZ | Q9ZGI4 from UniProtKB/Swiss-Prot  Length:3739

    Alignment length:491
                                   933       943       953       963       973       983       993      1003      1013      1023      1033      1043      1053      1063      1073      1083      1093      1103      1113      1123      1133      1143      1153      1163      1173      1183      1193      1203      1213      1223      1233      1243      1253      1263      1273      1283      1293      1303      1313      1323      1333      1343      1353      1363      1373      1383      1393      1403      1413
         PIKA2_STRVZ    924 DSWRYRIDWKRLAVADASERAGLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLPAHGTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPSGSEGAEGTSGAAEDSGLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAAAAGGRPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEAR 1414
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeee...-------....eeeeeee.hhh..hhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhh.....eeee.hhhh...........hhhhhhhhhhhhhhhhh.....eeeeee...............hhhhhhhhhhhhhhh...eeeeeee....hhhhhhhhhhhhhh.....eeeee..eeeeeeeee.................eeee....hhhhhhhhhhhhhh...eeeeee...------------------hhhhhhhhhh.eeeeee....hhhhhhhhhhh......eeeeee.............hhhhhhhhhhhhhhhhhhhhhhhh..------..eeeeeee.........hhhhhhhhhhhhhhhh.......eeeeeee.....hhhhh....hhhhhh.....hhhhhhhhhhhhhhh...eeee...hhhhhhhhhh............... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3qp9 B    5 DSWRYRIDWKRLAV-------GLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLPAHGTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPS------------------GLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREA------PPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEAR  495
                                    14   |     - |      34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264|        -       284       294       304       314       324       334       344       354       364 |     374       384       394       404       414       424       434       444       454       464       474       484       494
                                        18      26                                                                                                                                                                                                                                            265                284                                                                               366    373


Chain C from PDB  Type:PROTEIN  Length:465
 aligned with PIKA2_STRVZ | Q9ZGI4 from UniProtKB/Swiss-Prot  Length:3739

    Alignment length:492
                                   931       941       951       961       971       981       991      1001      1011      1021      1031      1041      1051      1061      1071      1081      1091      1101      1111      1121      1131      1141      1151      1161      1171      1181      1191      1201      1211      1221      1231      1241      1251      1261      1271      1281      1291      1301      1311      1321      1331      1341      1351      1361      1371      1381      1391      1401      1411
         PIKA2_STRVZ    922 VQDSWRYRIDWKRLAVADASERAGLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLPAHGTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPSGSEGAEGTSGAAEDSGLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAAAAGGRPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEA 1413
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author hhhh.eeeeeeee..--------....eeeeeee.hhhhhhhhhhhhhhh...eeeeeee....hhhhhhhhhhhhhhh......eeee.hhhh...........hhhhhhhhhhhhhhhhhh....eeeeee............hhhhhhhhhhhhhhhhhh...eeeeeee....hhhhhhhhhhhhhh.....eeeee..eeeeeeeee....--...........eeee....hhhhhhhhhhhhhhh..eeeeee....--------------.hhhhhhhhhhhh.eeeeee....hhhhhhhhhhh......eeeeee.............hhhhhhhhhhhhhhhhhhhhhhhh..---.....eeeeeee.........hhhhhhhhhhhhhhhh.......eeeeeee.....hhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhh...eeee...hhhhhhhhhh.............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3qp9 C    3 VQDSWRYRIDWKRLA--------GLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLP--GTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPSG--------------GLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREA---GGRPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLPEA  494
                                    12    |    -   |    32        42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212     | 222       232       242       252       262   |     -       282       292       302       312       322       332       342       352       362   |   372       382       392       402       412       422       432       442       452       462       472       482       492
                                         17       26                                                                                                                                                                                             218  |                                          266            281                                                                                  366 370
                                                                                                                                                                                                                                                    221


Chain D from PDB  Type:PROTEIN  Length:457
 aligned with PIKA2_STRVZ | Q9ZGI4 from UniProtKB/Swiss-Prot  Length:3739

    Alignment length:487
                                   934       944       954       964       974       984       994      1004      1014      1024      1034      1044      1054      1064      1074      1084      1094      1104      1114      1124      1134      1144      1154      1164      1174      1184      1194      1204      1214      1224      1234      1244      1254      1264      1274      1284      1294      1304      1314      1324      1334      1344      1354      1364      1374      1384      1394      1404
         PIKA2_STRVZ    925 SWRYRIDWKRLAVADASERAGLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASLPAHGTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPSGSEGAEGTSGAAEDSGLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAAAAGGRPPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLP 1411
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeee..--------....eeeeeee......hhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhh......eeee.hhhh...........hhhhhhhhhhhhhhhhh.....eeeeee............hhhhhhhhhhhhhhhhhh...eeeeeee....hhhhhhhhhhhhh......eeeee..eeeeeeeee...---...........eeee....hhhhhhhhhhhhhhh..eeeeee...--------------..hhhhhhhhhhhh.eeeeee....hhhhhhhhhhh......eeeeee........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh-----..eeeeeee.hhh.....hhhhhhhhhhhhhhhh.......eeeeeee.........hhhhhhhhhhhh....hhhhhhhhhhhhhhh...eeee...hhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                3qp9 D    6 SWRYRIDWKRLA--------GLSGRWLVVVPEDRSAEAAPVLAALSGAGADPVQLDVSPLGDRQRLAATLGEALAAAGGAVDGVLSLLAWDESAHPGHPAPFTRGTGATLTLVQALEDAGVAAPLWCVTHGAVSVGRADHVTSPAQAMVWGMGRVAALEHPERWGGLIDLPSDADRAALDRMTTVLAGGTGEDQVAVRASGLLARRLVRASL---GTASPWWQADGTVLVTGAEEPAAAEAARRLARDGAGHLLLHTTPS--------------SGLAGLVAELADLGATATVVTCDLTDAEAAARLLAGVSDAHPLSAVLHLPPTVDSEPLAATDADALARVVTAKATAALHLDRLLREAA-----PPVLVLFSSVAAIWGGAGQGAYAAGTAFLDALAGQHRADGPTVTSVAWSPWEGSRVTEGATGERLRRLGLRPLAPATALTALDTALGHGDTAVTIADVDWSSFAPGFTTARPGTLLADLP  492
                                    15 |       -|       35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215 |   | 225       235       245       255       265         -    |  285       295       305       315       325       335       345       355       365 |     375       385       395       405       415       425       435       445       455       465       475       485
                                      17       26                                                                                                                                                                                            217 221                                         265            280                                                                                    367   373
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QP9)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QP9)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3QP9)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (PIKA2_STRVZ | Q9ZGI4)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0048037    cofactor binding    Interacting selectively and non-covalently with a cofactor, a substance that is required for the activity of an enzyme or other protein. Cofactors may be inorganic, such as the metal atoms zinc, iron, and copper in certain forms, or organic, in which case they are referred to as coenzymes. Cofactors may either be bound tightly to active sites or bind loosely with the substrate.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0031177    phosphopantetheine binding    Interacting selectively and non-covalently with phosphopantetheine, the vitamin pantetheine 4'-(dihydrogen phosphate).
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0016747    transferase activity, transferring acyl groups other than amino-acyl groups    Catalysis of the transfer of an acyl group, other than amino-acyl, from one compound (donor) to another (acceptor).
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0033068    macrolide biosynthetic process    The chemical reactions and pathways leading to the formation of macrolides, any of a large group of polyketide compounds that contain a large lactone ring with few or no double bonds and no nitrogen atoms, linked glycosidically to one or more sugar groups. The macrolides include the carbomycins, the erythromycins, oleandomycin, oligomycins, and the spiramycins, and act as antibiotics, mainly against Gram-positive bacteria.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3qp9)

  Sites
(no "Sites" information available for 3qp9)

  Cis Peptide Bonds
    Ala A:105 - Pro A:106   [ RasMol ]
    Ala B:105 - Pro B:106   [ RasMol ]
    Ala C:105 - Pro C:106   [ RasMol ]
    Ala D:105 - Pro D:106   [ RasMol ]
    Gly A:412 - Pro A:413   [ RasMol ]
    Gly B:412 - Pro B:413   [ RasMol ]
    Gly B:434 - Glu B:435   [ RasMol ]
    Gly C:412 - Pro C:413   [ RasMol ]
    Gly D:412 - Pro D:413   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3qp9
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PIKA2_STRVZ | Q9ZGI4
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  1.1.1.100
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PIKA2_STRVZ | Q9ZGI4
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3QP9)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3QP9)
