Title :   THE CRYSTAL STRUCTURE OF RICE (ORYZA SATIVA L.) OS4BGLU12 WITH 2-FLUOROGLUCOPYRANOSIDE

Authors :   S. Sansenya, R. Opassiri, B. Kuaprasert, C. J. Chen, J. R. Ketudat Cair

Date :   03 Dec 10 (Deposition) - 18 May 11 (Release) - 18 May 11 (Revision)

Method :   X-RAY DIFFRACTION

Resolution :   2.40

Chains :   Asym. Unit : A,B
Biol. Unit 1: A  (1x)
Biol. Unit 2: B  (1x)

Keywords :   Beta-Alpha Barrel, Glycosidase, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :   S. Sansenya, R. Opassiri, B. Kuaprasert, C. J. Chen, J. R. Ketudat Cairns
The Crystal Structure Of Rice (Oryza Sativa L. ) Os4Bglu12, An Oligosaccharide And Tuberonic Acid Glucoside-Hydrolyzing Beta-Glucosidase With Significant Thioglucohydrolase Activity
Arch. Biochem. Biophys. V. 510 62 2011
PubMed-ID: 21521631 | Reference-DOI: 10.1016/J.ABB.2011.04.005

Molecule 1 - BETA-GLUCOSIDASE OS4BGLU12
	Chains	:	A, B
	EC Number	:	3.2.1.21
	Engineered	:	YES
	Expression System	:	ESCHERICHIA COLI
	Expression System Plasmid	:	PET32A(+)/DEST
	Expression System Strain	:	ORIGAMI B(DE3)
	Expression System Taxid	:	562
	Expression System Vector Type	:	PLASMID
	Gene	:	OS04G0474800
	Organism Common	:	RICE
	Organism Scientific	:	ORYZA SATIVA
	Organism Taxid	:	4530
	Strain	:	KDML 105
	Synonym	:	OSIGBA0135C13.7 PROTEIN

		1	2
Asymmetric Unit	:	A	B
Biological Unit 1 (1x)	:	A
Biological Unit 2 (1x)	:		B

Summary Information (see also Sequences/Alignments below)

Asymmetric Unit (3, 9)

No.	Name	Count	Type	Full Name
1	G2F	2	Ligand/Ion	2-DEOXY-2-FLUORO-ALPHA-D-GLUCOPYRANOSE
2	GOL	6	Ligand/Ion	GLYCEROL
3	ZN	1	Ligand/Ion	ZINC ION

Biological Unit 1 (2, 5)

No.	Name	Count	Type	Full Name
1	G2F	1	Ligand/Ion	2-DEOXY-2-FLUORO-ALPHA-D-GLUCOPYRANOSE
2	GOL	4	Ligand/Ion	GLYCEROL
3	ZN	-1	Ligand/Ion	ZINC ION

Biological Unit 2 (2, 3)

No.	Name	Count	Type	Full Name
1	G2F	1	Ligand/Ion	2-DEOXY-2-FLUORO-ALPHA-D-GLUCOPYRANOSE
2	GOL	2	Ligand/Ion	GLYCEROL
3	ZN	-1	Ligand/Ion	ZINC ION

Asymmetric Unit (9, 9)

No.	Name	Evidence	Residues	Description
1	AC1	SOFTWARE	GLN A:29 , HIS A:133 , ASN A:178 , GLU A:179 , TYR A:322 , TRP A:365 , GLU A:393 , TRP A:442 , GLU A:449 , TRP A:450 , GOL A:3969	BINDING SITE FOR RESIDUE G2F A 1000
2	AC2	SOFTWARE	ASP A:66 , HIS A:69 , GLU B:36 , HIS B:69	BINDING SITE FOR RESIDUE ZN A 1001
3	AC3	SOFTWARE	GLU A:179 , THR A:182 , TYR A:322 , TRP A:365 , G2F A:1000 , GOL A:3973	BINDING SITE FOR RESIDUE GOL A 3969
4	AC4	SOFTWARE	TYR A:465 , ARG A:469 , HOH A:503 , HOH A:581 , HOH B:510	BINDING SITE FOR RESIDUE GOL A 3971
5	AC5	SOFTWARE	TRP A:253 , PHE A:254 , ALA A:267 , LYS A:268 , HOH A:518	BINDING SITE FOR RESIDUE GOL A 3972
6	AC6	SOFTWARE	ASN A:186 , PHE A:193 , TRP A:365 , HOH A:642 , HOH A:744 , GOL A:3969	BINDING SITE FOR RESIDUE GOL A 3973
7	AC7	SOFTWARE	GLN B:29 , HIS B:133 , ASN B:178 , GLU B:179 , TYR B:322 , TRP B:365 , GLU B:393 , TRP B:442 , GLU B:449 , TRP B:450 , PHE B:458 , GOL B:3968	BINDING SITE FOR RESIDUE G2F B 1001
8	AC8	SOFTWARE	GLU B:179 , TYR B:322 , TRP B:365 , G2F B:1001	BINDING SITE FOR RESIDUE GOL B 3968
9	AC9	SOFTWARE	GLU A:36 , TYR B:68 , GLU B:108 , ASN B:115	BINDING SITE FOR RESIDUE GOL B 3970

Asymmetric Unit

No.	Residues
1	A:184	-	A:219
2	A:198	-	A:206
3	B:184	-	B:219
4	B:198	-	B:206

Asymmetric Unit

No.	Residues
1	Ala A:194	-	Pro A:195
2	Ser A:333	-	Asn A:334
3	Trp A:442	-	Ser A:443
4	Ala B:194	-	Pro B:195
5	Ser B:333	-	Asn B:334
6	Asn B:334	-	Gly B:335
7	Trp B:442	-	Ser B:443
8	Leu B:485	-	Lys B:486

(no "SAP(SNP)/Variant" information available for 3PTM)

Asymmetric Unit (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSI	43-57	2	A:19-33 B:19-33
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSJ	43-57	2	A:19-33 B:19-33

Biological Unit 1 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSI	43-57	1	A:19-33 -
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSJ	43-57	1	A:19-33 -

Biological Unit 2 (1, 2)

	PROSITE			UniProtKB		PDB
No.	ID	AC	Description	ID	Location	Count	Location
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSI	43-57	1	- B:19-33
1	GLYCOSYL_HYDROL_F1_2	PS00653	Glycosyl hydrolases family 1 N-terminal signature.	BGL12_ORYSJ	43-57	1	- B:19-33

(no "Exon" information available for 3PTM)

Asymmetric Unit

Reformat:	Number of residues per line = ('0' or empty: single-line sequence representation)
	Number of residues per labelling interval =
	UniProt sequence: complete aligned part

Show mapping:	SCOP domains	CATH domains	Pfam domains	Secondary structure (by author)
	SAPs(SNPs)	PROSITE motifs	Exons
	(details for a mapped element are shown in a popup box when the mouse pointer rests over it)

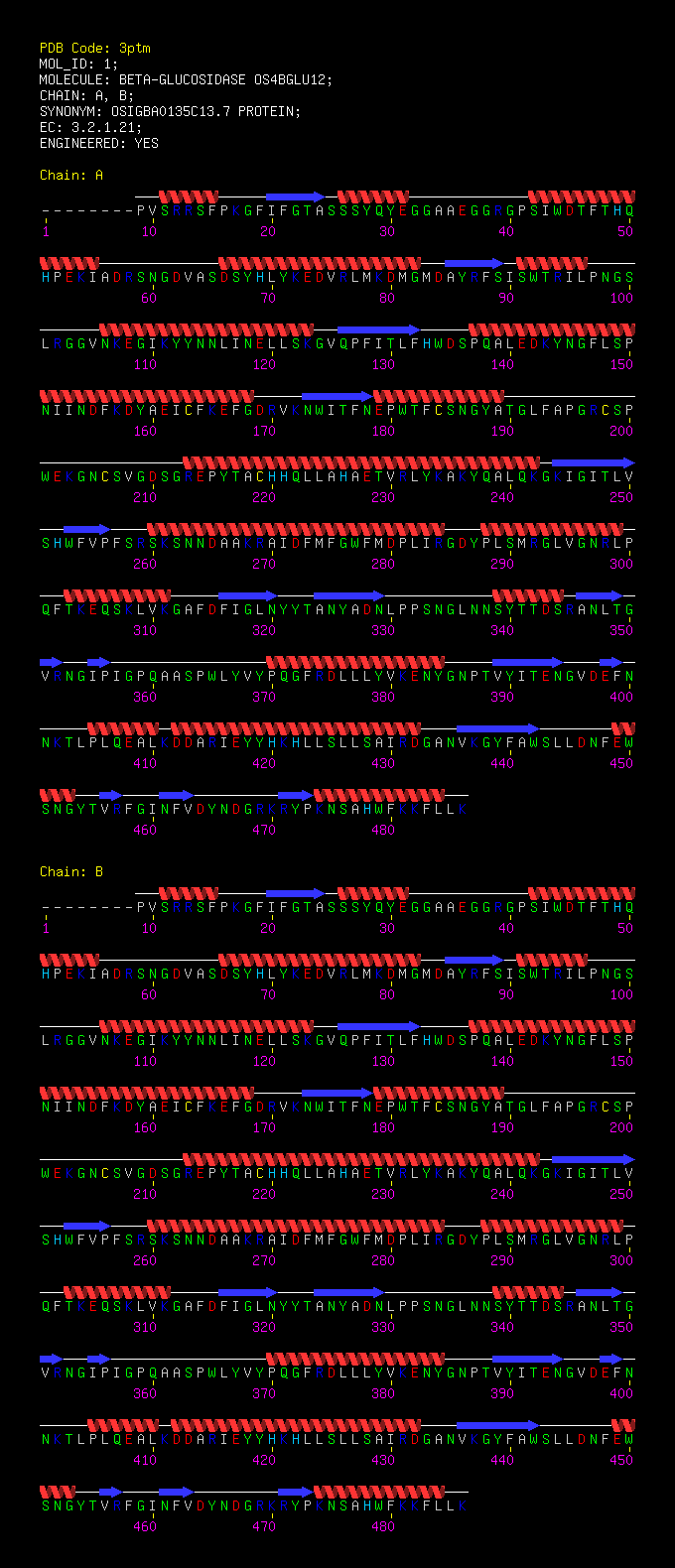

Chain A from PDB  Type:PROTEIN  Length:478
 aligned with BGL12_ORYSI | B8AVF0 from UniProtKB/Swiss-Prot  Length:510

    Alignment length:478
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502
          BGL12_ORYSI    33 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 510
               SCOP domains d3ptma_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh....eeeee.hhhhhh..........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhh..eeeee.hhhhhh.........hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..eeee...hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh...hhhhhhhhh....eeeee...eeeeee.........hhhhhh.eeee.ee..ee.............hhhhhhhhhhhhhhh....eeeeee...ee.....hhhhhh.hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh..ee...eee.......eeehhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------GLYCOSYL_HYDROL--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ptm A   9 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 486
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478

Chain A from PDB  Type:PROTEIN  Length:478
 aligned with BGL12_ORYSJ | Q7XKV4 from UniProtKB/Swiss-Prot  Length:510

    Alignment length:478
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502
          BGL12_ORYSJ    33 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNDDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 510
               SCOP domains d3ptma_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh....eeeee.hhhhhh..........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhh..eeeee.hhhhhh.........hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..eeee...hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh...hhhhhhhhh....eeeee...eeeeee.........hhhhhh.eeee.ee..ee.............hhhhhhhhhhhhhhh....eeeeee...ee.....hhhhhh.hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh..ee...eee.......eeehhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------GLYCOSYL_HYDROL--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ptm A   9 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 486
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478

Chain B from PDB  Type:PROTEIN  Length:478
 aligned with BGL12_ORYSI | B8AVF0 from UniProtKB/Swiss-Prot  Length:510

    Alignment length:478
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502
          BGL12_ORYSI    33 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 510
               SCOP domains d3ptmb_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh....eeeee.hhhhhh..........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhh..eeeee.hhhhhh.........hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..eeee...hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh...hhhhhhhhh....eeeee...eeeeee.........hhhhhh.eeee.ee..ee.............hhhhhhhhhhhhhhh....eeeeee...ee.....hhhhhh.hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh..ee...eee.......eeehhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------GLYCOSYL_HYDROL--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ptm B   9 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 486
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478

Chain B from PDB  Type:PROTEIN  Length:478
 aligned with BGL12_ORYSJ | Q7XKV4 from UniProtKB/Swiss-Prot  Length:510

    Alignment length:478
                                    42        52        62        72        82        92       102       112       122       132       142       152       162       172       182       192       202       212       222       232       242       252       262       272       282       292       302       312       322       332       342       352       362       372       382       392       402       412       422       432       442       452       462       472       482       492       502
          BGL12_ORYSJ    33 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNDDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 510
               SCOP domains d3ptmb_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                                                                                                                   SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhh....eeeee.hhhhhh..........hhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhh..eeeee.hhhhhh.........hhhhhhhhhhhhhhhhhh..eeeeeee....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....eeeeeehhhhhhhhhhh.......................hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.eeeeeee..eeee...hhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhh...hhhhhhhhh....eeeee...eeeeee.........hhhhhh.eeee.ee..ee.............hhhhhhhhhhhhhhh....eeeeee...ee.....hhhhhh.hhhhhhhhhhhhhhhhhhhhh...eeeeeee......hhhhh..ee...eee.......eeehhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------GLYCOSYL_HYDROL--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ptm B   9 PVSRRSFPKGFIFGTASSSYQYEGGAAEGGRGPSIWDTFTHQHPEKIADRSNGDVASDSYHLYKEDVRLMKDMGMDAYRFSISWTRILPNGSLRGGVNKEGIKYYNNLINELLSKGVQPFITLFHWDSPQALEDKYNGFLSPNIINDFKDYAEICFKEFGDRVKNWITFNEPWTFCSNGYATGLFAPGRCSPWEKGNCSVGDSGREPYTACHHQLLAHAETVRLYKAKYQALQKGKIGITLVSHWFVPFSRSKSNNDAAKRAIDFMFGWFMDPLIRGDYPLSMRGLVGNRLPQFTKEQSKLVKGAFDFIGLNYYTANYADNLPPSNGLNNSYTTDSRANLTGVRNGIPIGPQAASPWLYVYPQGFRDLLLYVKENYGNPTVYITENGVDEFNNKTLPLQEALKDDARIEYYHKHLLSLLSAIRDGANVKGYFAWSLLDNFEWSNGYTVRFGINFVDYNDGRKRYPKNSAHWFKKFLLK 486
                                    18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318       328       338       348       358       368       378       388       398       408       418       428       438       448       458       468       478

Legend:		→ Mismatch	(orange background)
	-	→ Gap	(green background, '-', border residues have a numbering label)
		→ Modified Residue	(blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
	x	→ Chemical Group	(purple background, 'x', labelled with number + name, e.g. ACE or NH2)
	extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '\|'

Asymmetric Unit

Classes(

)

Folds(

)

Superfamilies( (-)

)

Families(

)

Protein Domains( (-)

)

Organisms( (-)

)

Class: Alpha and beta proteins (a/b) (23833)

Fold: TIM beta/alpha-barrel (3956)

Superfamily: (Trans)glycosidases (1191)

Family: automated matches (180)

Protein domain: automated matches (180)

Rice (Oryza sativa) [TaxId: 4530] (3)

1a	d3ptma_	A:
1b	d3ptmb_	B:

(no "CATH Domain" information available for 3PTM)

(no "Pfam Domain" information available for 3PTM)

Asymmetric Unit(hide GO term definitions)

Chain A,B (BGL12_ORYSI | B8AVF0)

molecular function
	GO:0008422	beta-glucosidase activity	Catalysis of the hydrolysis of terminal, non-reducing beta-D-glucose residues with release of beta-D-glucose.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016798	hydrolase activity, acting on glycosyl bonds	Catalysis of the hydrolysis of any glycosyl bond.
	GO:0004553	hydrolase activity, hydrolyzing O-glycosyl compounds	Catalysis of the hydrolysis of any O-glycosyl bond.
	GO:0102483	scopolin beta-glucosidase activity	Catalysis of the reaction: H2O + scopolin <=> beta-D-glucose + scopoletin
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Chain A,B (BGL12_ORYSJ | Q7XKV4)

molecular function
	GO:0033907	beta-D-fucosidase activity	Catalysis of the hydrolysis of terminal non-reducing beta-D-fucose residues in beta-D-fucosides.
	GO:0047701	beta-L-arabinosidase activity	Catalysis of the reaction: H2O + a beta-L-arabinoside = L-arabinose + an alcohol.
	GO:0004565	beta-galactosidase activity	Catalysis of the hydrolysis of terminal, non-reducing beta-D-galactose residues in beta-D-galactosides.
	GO:0080083	beta-gentiobiose beta-glucosidase activity	Catalysis of the hydrolysis of glucosidic link in beta-gentiobiose.
	GO:0008422	beta-glucosidase activity	Catalysis of the hydrolysis of terminal, non-reducing beta-D-glucose residues with release of beta-D-glucose.
	GO:0004338	glucan exo-1,3-beta-glucosidase activity	Catalysis of the successive hydrolysis of beta-D-glucose units from the non-reducing ends of (1->3)-beta-D-glucans, releasing alpha-glucose.
	GO:0016787	hydrolase activity	Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
	GO:0016798	hydrolase activity, acting on glycosyl bonds	Catalysis of the hydrolysis of any glycosyl bond.
	GO:0004553	hydrolase activity, hydrolyzing O-glycosyl compounds	Catalysis of the hydrolysis of any O-glycosyl bond.
	GO:0102483	scopolin beta-glucosidase activity	Catalysis of the reaction: H2O + scopolin <=> beta-D-glucose + scopoletin
biological process
	GO:0005975	carbohydrate metabolic process	The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
	GO:1901657	glycosyl compound metabolic process	The chemical reactions and pathways involving glycosyl compound.
	GO:0008152	metabolic process	The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
cellular component
	GO:0005576	extracellular region	The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

Asymmetric Unit
	Complete Structure
		Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
		WebMol \| AstexViewer[tm]@PDBe (Java Applets, require no local installation except for Java; loading may be slow)
		STRAP (Java WebStart application, automatic local installation, requires Java; full application with system access!)
		RasMol (require local installation)
		Molscript (VRML) (requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

	Ligands, Modified Residues, Ions
		G2F	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		GOL	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]
		ZN	[ RasMol \| Jena3D ]	+environment [ RasMol \| Jena3D ]

	Sites
		AC1	[ RasMol ]	+environment [ RasMol ]
		AC2	[ RasMol ]	+environment [ RasMol ]
		AC3	[ RasMol ]	+environment [ RasMol ]
		AC4	[ RasMol ]	+environment [ RasMol ]
		AC5	[ RasMol ]	+environment [ RasMol ]
		AC6	[ RasMol ]	+environment [ RasMol ]
		AC7	[ RasMol ]	+environment [ RasMol ]
		AC8	[ RasMol ]	+environment [ RasMol ]
		AC9	[ RasMol ]	+environment [ RasMol ]

	Cis Peptide Bonds
		Ala A:194 - Pro A:195	[ RasMol ]
		Ala B:194 - Pro B:195	[ RasMol ]
		Asn B:334 - Gly B:335	[ RasMol ]
		Leu B:485 - Lys B:486	[ RasMol ]
		Ser A:333 - Asn A:334	[ RasMol ]
		Ser B:333 - Asn B:334	[ RasMol ]
		Trp A:442 - Ser A:443	[ RasMol ]
		Trp B:442 - Ser B:443	[ RasMol ]

Biological Units
	Complete Structure
		Biological Unit 1	[ Jena3D ]
		Biological Unit 2	[ Jena3D ]

Jmol
	protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick [ Asym. Unit PNG format \| Asym. Unit - sites PNG format \| Biol. Unit 1 PNG format \| Biol. Unit 1 - sites PNG format \| Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
	protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick [ mono PDF format \| stereo PDF format ](default orientation, automatically generated)

Access by PDB/NDB ID
	3ptm
		Family and Domain Information	:	ProDom \| SYSTERS
		General Structural Information	:	GlycoscienceDB \| MMDB \| NDB \| OCA \| PDB \| PDBe \| PDBj \| PDBsum \| PDBWiki \| PQS \| PROTEOPEDIA
		Orientation in Membranes	:	OPM
		Protein Surface	:	SURFACE
		Secondary Structure	:	DSSP (structure derived) \| HSSP (homology derived)
		Structural Genomics	:	GeneCensus
		Structural Neighbours	:	CE \| VAST
		Structure Classification	:	CATH \| Dali \| SCOP
		Validation and Original Data	:	BMRB Data View \| BMRB Restraints Grid \| EDS \| PROCHECK \| RECOORD \| WHAT_CHECK

Access by UniProt ID/Accession number
	BGL12_ORYSI \| B8AVF0
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt
	BGL12_ORYSJ \| Q7XKV4
		Comparative Protein Structure Models	:	ModBase
		Genomic Information	:	Ensembl
		Protein-protein Interaction	:	DIP
		Sequence, Family and Domain Information	:	InterPro \| Pfam \| SMART \| UniProtKB/SwissProt

Access by Enzyme Classificator (EC Number)
	3.2.1.21
		General Enzyme Information	:	BRENDA \| EC-PDB \| Enzyme \| IntEnz
		Pathway	:	KEGG \| MetaCyc

Access by Disease Identifier (MIM ID)
	(no 'MIM ID' available)
		Disease Information	:	OMIM

Access by GenAge ID
	(no 'GenAge ID' available)
		Age Related Information	:	GenAge

Access by PDB/NDB ID
		Domain Information	:	XDom
		Interatomic Contacts of Structural Units	:	CSU
		Ligand-protein Contacts	:	LPC
		Protein Cavities	:	castP
		Sequence and Secondary Structure	:	PDBCartoon
		Structure Alignment	:	STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
		Structure and Sequence Browser	:	STING

Access by UniProt ID/Accession number
	BGL12_ORYSI \| B8AVF0
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)
	BGL12_ORYSJ \| Q7XKV4
		Protein Disorder Prediction	:	DisEMBL \| FoldIndex \| GLOBPLOT (for more information see DisProt)

UniProtKB/Swiss-Prot
	BGL12_ORYSI \| B8AVF0	:	3ptk 3ptq
	BGL12_ORYSJ \| Q7XKV4	:	3ptk 3ptq

Description

Compounds

Structural Features

Chains, Units

Ligands, Modified Residues, Ions (3, 9)

Sites (9, 9)

SS Bonds (4, 4)

Cis Peptide Bonds (8, 8)

Sequence-Structure Mapping

SAPs(SNPs)/Variants (0, 0)

PROSITE Motifs (1, 2)

Exons (0, 0)

Sequences/Alignments

Classification and Annotation

SCOP Domains (1, 2)

CATH Domains (0, 0)

Pfam Domains (0, 0)

Gene Ontology (14, 22)

Visualization

Interactive Views

Still Images

Databases and Analysis Tools

Databases

Analysis Tools

Related Entries

Entries Sharing at Least One Protein Chain (UniProt ID)

Related Entries Specified in the PDB File
