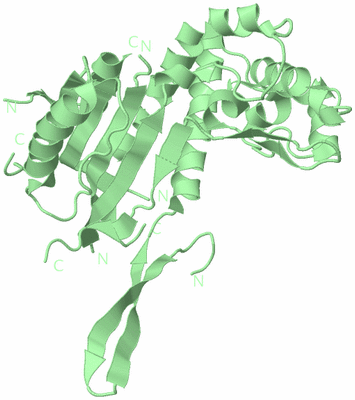

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  THE STRUCTURE OF THE CRISPR-ASSOCIATED PROTEIN, CSA2, FROM SULFOLOBUS SOLFATARICUS

Authors :  N. G. Lintner, M. Sdano, M. J. Young, C. M. Lawrence
Date :  30 Nov 10  (Deposition) - 20 Apr 11  (Release) - 14 Sep 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.00
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Crispr-Associated, Viral Resistance, Crispr, Cas, Cass, Rna-Binding, Rna-Recognition Motif, Nucleic-Acid Binding, Protein-Protein Interactions, Rna-Binding Protein, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  N. G. Lintner, M. Kerou, S. K. Brumfield, S. Graham, H. Liu, J. H. Naismith, M. Sdano, N. Peng, Q. She, V. Copie, M. J. Young, M. F. White, C. M. Lawrence
Structural And Functional Characterization Of An Archaeal Clustered Regularly Interspaced Short Palindromic Repeat (Crispr)-Associated Complex For Antiviral Defense (Cascade)
J. Biol. Chem. V. 286 21643 2011
PubMed-ID: 21507944  |  Reference-DOI: 10.1074/JBC.M111.238485

(-) Compounds

Molecule 1 - CRISPR-ASSOCIATED PROTEIN, CSA2
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PDEST14
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: SSO1442
    Organism Scientific: SULFOLOBUS SOLFATARICUS
    Organism Taxid: 273057
    Strain: P2

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3PS0)

(-) Sites  (0, 0)

(no "Site" information available for 3PS0)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3PS0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3PS0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3PS0)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3PS0)

(-) Exons   (0, 0)

(no "Exon" information available for 3PS0)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:293
 aligned with CSA2B_SULSO | Q97Y91 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:322
                              1
                              |      8        18        28        38        48        58        68        78        88        98       108       118       128       138       148       158       168       178       188       198       208       218       228       238       248       258       268       278       288       298       308       318
          CSA2B_SULSO     - --MISGSVRFLVNLESLNGVESIGNLTKHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRFSNKPVSGSQAIFNVEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGNFGGKRSRFLPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVGEGVTVLSTVEDLVVKLEE 320
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeeeeeeeehhhhh----------.eeeeeeeee..eeeeeeeee.hhhhhhhhhhhhhhhhhhhhh.....hhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.eee.....eee...eee...ee.....hhhhhhhhhh.....--------........eeeeeeeeee.hhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhh.--------....eeeeeeeeeee............hhhhhhhhhhhhhhhhh....eeeeeee.......---....hhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ps0 A  -1 HHMISGSVRFLVNLESLN----------HRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRFS--------AIFNVEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSG--------FLPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVG---TVLSTVEDLVVKLEE 320
                                     8       | -        28        38        48        58        68        78        88        98       108       118       128       138       148       158     |   -    |  178       188       198       208       218       228   |     -  |    248       258       268       278       288       298   |   308       318
                                            16         27                                                                                                                                      164      173                                                        232      241                                                          302 306


Chain B from PDB  Type:PROTEIN  Length:272
 aligned with CSA2B_SULSO | Q97Y91 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:322
                               1
                               |     7        17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
          CSA2B_SULSO     - ---MISGSVRFLVNLESLNGVESIGNLTKHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRFSNKPVSGSQAIFNVEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGNFGGKRSRFLPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVGEGVTVLSTVEDLVVKLE 319
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee...--------......eeeeeeee..eeeeeeee..hhhhhhhhhhhhhhhhhhhhh...hhhhhh.......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.eee.....eee...eee...ee....-------------------------------.eeeeeeeeee.hhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhh.---------..eeeeeeeeeee............hhhhhhhhhhhhhhhhhh...eeeeeee......--..eee.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ps0 B  -2 HHHMISGSVRFLVNLES--------NLTKHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRG-------------------------------SSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGN---------PSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEV--GVTVLSTVEDLVVKLE 319
                                     7      |  -     |  27        37        47        57        67        77        87        97       107       117       127       137       147|        -         -         -  |    187       197       207       217       227     |   -     | 247       257       267       277       287       297   |  |307       317
                                           14       23                                                                                                                          148                             180                                                  233       243                                                       301  |
                                                                                                                                                                                                                                                                                                                                            304


Chain C from PDB  Type:PROTEIN  Length:292
 aligned with CSA2B_SULSO | Q97Y91 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:324
                               1
                               |     7        17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
          CSA2B_SULSO     - ---MISGSVRFLVNLESLNGVESIGNLTKHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRFSNKPVSGSQAIFNVEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGNFGGKRSRFLPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVGEGVTVLSTVEDLVVKLEEE 321
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ...eeeeeeeeeee....----------..eeeeeeee....eeeeeeee.hhhhhhhhhhhhhhhhhhhhh.....hhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhh.eee.....eee...eee...ee.....hhhhhhhhhh....-------------....eeeeeeeeee.hhhh...........hhhhhhhhhhhhhhhhhhhhhhhhhh---------...eeeeeeeeeee............hhhhhhhhhhhhhhhhh....eeeeeee...........ee.hhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3ps0 C  -2 HHHMISGSVRFLVNLESL----------KHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRF-------------VEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSG---------LPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVGEGVTVLSTVEDLVVKLEEE 321
                                     7       | -        27        37        47        57        67        77        87        97       107       117       127       137       147       157     |   -       177       187       197       207       217       227    |    -    |  247       257       267       277       287       297       307       317
                                            15         26                                                                                                                                      163           177                                                    232       242


Chain D from PDB  Type:PROTEIN  Length:272
 aligned with CSA2B_SULSO | Q97Y91 from UniProtKB/Swiss-Prot  Length:321

    Alignment length:323
                               1
                               |     7        17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287       297       307       317
          CSA2B_SULSO     - ---MISGSVRFLVNLESLNGVESIGNLTKHRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRGDEIPAQLEAQFHVRFSNKPVSGSQAIFNVEVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGNFGGKRSRFLPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIEVGEGVTVLSTVEDLVVKLEE 320
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeeeeeeeee....-----------..eeeeeee....eeeeeee..hhhhhhhhhhhhhhhhhhhhh.....hhhhh......hhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhheee.....eee...eee...ee....-----------------------------...eeeeeeeeee.hhhh...........hhhhhhhhhhhhhhhhhhhhhhhhh..--------...eeeeeeeeeee............hhhhhhhhhhhhhhhhhh...eeeeeee.....---..eee.hhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ps0 D  -2 HHHMISGSVRFLVNLESL-----------HRTAPVVLKTSTGYLVRYVPVISGEALAHAYQASLVDIAKKEGLPVGSLSSQYEFIKFSTDEALKIEGIKEPKDYNDARRFEVEVMLKDVIADVGGFMYAGGAPVRRTSRIKLGYMIPALRG-----------------------------EVSSALYTFSFELDEDLIAVPSTFGEKVKGEEELERQKAKRVKSAIKALYSLLSGN--------LPSMKLMSLVVTKTDFPFMPEPAHDDDYIKTTIMRLGKAKGVLNGNLAKAYVINNEGIE---GVTVLSTVEDLVVKLEE 320
                                     7       | -        27        37        47        57        67        77        87        97       107       117       127       137       147|        -         -         -|      187       197       207       217       227     |   -    |  247       257       267       277       287       297  |   |307       317
                                            15          27                                                                                                                      148                           178                                                    233      242                                                       300 304
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3PS0)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3PS0)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3PS0)

(-) Gene Ontology  (2, 2)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (CSA2B_SULSO | Q97Y91)
molecular function
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
biological process
    GO:0051607    defense response to virus    Reactions triggered in response to the presence of a virus that act to protect the cell or organism.
