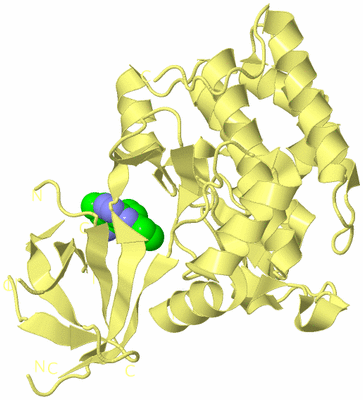

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  HUMAN VACCINIA-RELATED KINASE 1

Authors :  C. K. Allerston, S. Uttarkar, P. Savitsky, J. M. Elkins, P. Filippakopo T. Krojer, P. Rellos, O. Fedorov, J. Eswaran, B. Brenner, T. Keates, S. O. King, R. Chalk, G. Berridge, F. Von Delft, O. Gileadi, C. H. Arrowsm A. M. Edwards, J. Weigelt, C. Bountra, S. Knapp, Structural Genomics Consortium (Sgc)
Date :  31 Aug 10  (Deposition) - 22 Sep 10  (Release) - 29 Aug 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.40
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Adenosine Triphosphate, Amino Acid Sequence, Binding Sites, Catalytic Domain, Models, Molecular, Molecular Sequence Data, Phosphotransferases, Protein Conformation, Protein Folding, Surface Entropy Reduction, Structural Genomics, Structural Genomics Consortium, Sgc, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  C. K. Allerston, S. Uttarkar, P. Savitsky, J. M. Elkins, P. Filippakopoulos, T. Krojer, P. Rellos, O. Fedorov, J. Eswaran, B. Brenner, T. Keates, S. Das, O. King, R. Chalk, G. Berridge, F. Von Delft, O. Gileadi, C. H. Arrowsmith, A. M. Edwards, J. Weigelt, C. Bountra, S. Knapp
Human Vaccinia-Related Kinase 1
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - SERINE/THREONINE-PROTEIN KINASE VRK1
    ChainsA, B, C, D
    EC Number2.7.11.1
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPNIC28-BSA4
    Expression System StrainBL21(DE3)-R3-PRARE2
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    FragmentKINASE DOMAIN, RESIDUES 3-369
    GeneVRK1
    MutationYES
    Organism CommonHUMAN
    Organism ScientificHOMO SAPIENS
    Organism Taxid9606
    SynonymVACCINIA-RELATED KINASE 1

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit ABCD
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (1x)  C
Biological Unit 4 (1x)   D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 11)

Asymmetric Unit (3, 11)
No.NameCountTypeFull Name
1EDO5Ligand/Ion1,2-ETHANEDIOL
2GOL2Ligand/IonGLYCEROL
3REB4Ligand/Ion[4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETONITRILE
Biological Unit 1 (3, 3)
No.NameCountTypeFull Name
1EDO1Ligand/Ion1,2-ETHANEDIOL
2GOL1Ligand/IonGLYCEROL
3REB1Ligand/Ion[4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETONITRILE
Biological Unit 2 (3, 3)
No.NameCountTypeFull Name
1EDO1Ligand/Ion1,2-ETHANEDIOL
2GOL1Ligand/IonGLYCEROL
3REB1Ligand/Ion[4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETONITRILE
Biological Unit 3 (2, 4)
No.NameCountTypeFull Name
1EDO3Ligand/Ion1,2-ETHANEDIOL
2GOL-1Ligand/IonGLYCEROL
3REB1Ligand/Ion[4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETONITRILE
Biological Unit 4 (1, 1)
No.NameCountTypeFull Name
1EDO-1Ligand/Ion1,2-ETHANEDIOL
2GOL-1Ligand/IonGLYCEROL
3REB1Ligand/Ion[4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]PYRIMIDIN-2-YL}AMINO)PHENYL]ACETONITRILE

(-) Sites  (11, 11)

Asymmetric Unit (11, 11)
No.NameEvidenceResiduesDescription
01AC1SOFTWAREILE A:43 , GLY A:44 , GLN A:45 , PHE A:48 , ILE A:51 , VAL A:69 , TYR A:87 , MET A:131 , ASP A:132 , ARG A:133 , PHE A:134 , HOH A:368 , HOH A:487BINDING SITE FOR RESIDUE REB A 365
02AC2SOFTWAREGLN A:139 , ALA A:180 , PHE A:227 , CYS A:250 , GLN A:253 , TRP A:254 , HOH A:412BINDING SITE FOR RESIDUE EDO A 366
03AC3SOFTWARELYS A:85 , ARG A:89 , HOH A:427 , HOH A:456 , HOH C:532BINDING SITE FOR RESIDUE GOL A 367
04AC4SOFTWAREGLY B:44 , GLN B:45 , PHE B:48 , ILE B:51 , VAL B:69 , LYS B:71 , TYR B:87 , MET B:131 , ASP B:132 , ARG B:133 , PHE B:134 , HOH B:369BINDING SITE FOR RESIDUE REB B 365
05AC5SOFTWAREARG B:89 , HOH B:370 , HOH B:447 , HOH D:411BINDING SITE FOR RESIDUE GOL B 366
06AC6SOFTWARESER B:229 , ILE B:230 , ASP B:231 , ARG B:241 , GLU B:245 , ARG B:279 , HOH B:395BINDING SITE FOR RESIDUE EDO B 367
07AC7SOFTWAREILE C:43 , GLY C:44 , ILE C:51 , VAL C:69 , MET C:131 , ASP C:132 , ARG C:133 , PHE C:134 , HOH C:369 , HOH C:449BINDING SITE FOR RESIDUE REB C 365
08AC8SOFTWARESER C:229 , ILE C:230 , ASP C:231 , GLU C:245 , ARG C:279 , HOH C:399BINDING SITE FOR RESIDUE EDO C 366
09AC9SOFTWARELYS A:85 , GLN A:88 , ARG A:89 , LYS A:92 , ASP C:310 , GLU C:313 , EDO C:368BINDING SITE FOR RESIDUE EDO C 367
10BC1SOFTWAREASP C:310 , THR C:312 , GLU C:313 , EDO C:367BINDING SITE FOR RESIDUE EDO C 368
11BC2SOFTWAREILE D:43 , ILE D:51 , VAL D:69 , MET D:131 , ASP D:132 , ARG D:133 , PHE D:134 , HOH D:366BINDING SITE FOR RESIDUE REB D 365

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3OP5)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric Unit
No.Residues
1Val D:25 -Gly D:26

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3OP5)

(-) PROSITE Motifs  (2, 8)

Asymmetric Unit (2, 8)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.VRK1_HUMAN43-71



  4A:43-71
B:43-71
C:43-71
D:43-71
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.VRK1_HUMAN173-185



  4A:173-185
B:173-185
C:173-185
D:173-185
Biological Unit 1 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.VRK1_HUMAN43-71



  1A:43-71
-
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.VRK1_HUMAN173-185



  1A:173-185
-
-
-
Biological Unit 2 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.VRK1_HUMAN43-71



  1-
B:43-71
-
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.VRK1_HUMAN173-185



  1-
B:173-185
-
-
Biological Unit 3 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.VRK1_HUMAN43-71



  1-
-
C:43-71
-
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.VRK1_HUMAN173-185



  1-
-
C:173-185
-
Biological Unit 4 (2, 2)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEIN_KINASE_ATPPS00107 Protein kinases ATP-binding region signature.VRK1_HUMAN43-71



  1-
-
-
D:43-71
2PROTEIN_KINASE_STPS00108 Serine/Threonine protein kinases active-site signature.VRK1_HUMAN173-185



  1-
-
-
D:173-185

(-) Exons   (0, 0)

(no "Exon" information available for 3OP5)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:320
 aligned with VRK1_HUMAN | Q99986 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:321
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
           VRK1_HUMAN    21 EQFAVGEIITDMAKKEWKVGLPIGQGGFGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKEYKEDPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPEKNKPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eee.....eeeeeee....-..eeeeeee...........eeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhh.........eeeeeeeee..eeeeeeeee.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eeee......eee......ee.hhhhh...................hhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------PROTEIN_KINASE_ATP           -----------------------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3op5 A  21 EQFAVGEIITDMAAAAWKVGLPIGQG-FGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKAYAADPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPAANAPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
                                    30        40     | |50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
                                                    46 |
                                                      48

Chain B from PDB  Type:PROTEIN  Length:319
 aligned with VRK1_HUMAN | Q99986 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:321
                                    30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
           VRK1_HUMAN    21 EQFAVGEIITDMAKKEWKVGLPIGQGGFGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKEYKEDPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPEKNKPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .......eee.....eeeeeee...--..eeeeeee...........eeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhh.........eeeeeeeee..eeeeeeeee.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eeee......eee......ee.hhhhh...................hhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------PROTEIN_KINASE_ATP           -----------------------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3op5 B  21 EQFAVGEIITDMAAAAWKVGLPIGQ--FGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKAYAADPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPAANAPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
                                    30        40    |  |50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340
                                                   45 48

Chain C from PDB  Type:PROTEIN  Length:308
 aligned with VRK1_HUMAN | Q99986 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:320
                                    31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341
           VRK1_HUMAN    22 QFAVGEIITDMAKKEWKVGLPIGQGGFGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKEYKEDPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPEKNKPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......eee.....eeeeeeeee..--.eeeeeee....---....eeeee.------hhhhhhhhhhhhhhhhhhhhhhhh.........eeeeeeee..-.eeeeeeee.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eeee......eee......ee.hhhhh...................hhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------PROTEIN_KINASE_ATP           -----------------------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3op5 C  22 QFAVGEIITDMAAAAWKVGLPIGQG--GCIYLADMNSSE---SDAPCVVKVE------LFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKN-KSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKAYAADPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPAANAPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
                                    31        41    |  |51        |-  |     71 |      81        91       101       111       121| |    131       141       151       161       171       181       191       201       211       221       231       241       251       261       271       281       291       301       311       321       331       341
                                                   46 49         60  64       73     80                                       122 |
                                                                                                                                124

Chain D from PDB  Type:PROTEIN  Length:302
 aligned with VRK1_HUMAN | Q99986 from UniProtKB/Swiss-Prot  Length:396

    Alignment length:317
                                    34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334
           VRK1_HUMAN    25 VGEIITDMAKKEWKVGLPIGQGGFGCIYLADMNSSESVGSDAPCVVKVEPSDNGPLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHDKNGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKEYKEDPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPEKNKPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------Pkinase      -3op5D01      D:37-325                                                                                                                                                                                                                                                              ---------------- Pfam domains (1)
           Pfam domains (2) ------------Pkinase      -3op5D02      D:37-325                                                                                                                                                                                                                                                              ---------------- Pfam domains (2)
           Pfam domains (3) ------------Pkinase      -3op5D03      D:37-325                                                                                                                                                                                                                                                              ---------------- Pfam domains (3)
           Pfam domains (4) ------------Pkinase      -3op5D04      D:37-325                                                                                                                                                                                                                                                              ---------------- Pfam domains (4)
         Sec.struct. author ...eee.....eeeeeee.------.eeeeee..-----....eeeeeee.---hhhhhhhhhhhhhhhhhhhhhhhhhh........eeeeeee.-....eeeeeee.eeeehhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh.ee....hhh.eeee......eee......ee.hhhhh......hhhhh........hhhhhh....hhhhhhhhhhhhhhhhhhh...hhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhh.......hhhhhhhhhhhhhhhh.......... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------PROTEIN_KINASE_ATP           -----------------------------------------------------------------------------------------------------PROTEIN_KINAS------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3op5 D  25 VGEIITDMAAAAWKVGLPI------CIYLADMNS-----SDAPCVVKVEPS---PLFTELKFYQRAAKPEQIQKWIRTRKLKYLGVPKYWGSGLHD-NGKSYRFMIMDRFGSDLQKIYEANAKRFSRKTVLQLSLRILDILEYIHEHEYVHGDIKASNLLLNYKNPDQVYLVDYGLAYRYCPEGVHKAYAADPKRCHDGTIEFTSIDAHNGVAPSRRGDLEILGYCMIQWLTGHLPWEDNLKDPKYVRDSKIRYRENIASLMDKCFPAANAPGEIAKYMETVKLLDYTEKPLYENLRDILLQGLKAIGSKDDGKLDL 341
                                    34        |-     |  54   |    64        74|   |   84        94       104       114     | 124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334
                                             43     50      58    64         75  79                                      120 |
                                                                                                                           122

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3OP5)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3OP5)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: PKinase (934)

(-) Gene Ontology  (30, 30)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (VRK1_HUMAN | Q99986)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0035175    histone kinase activity (H3-S10 specific)    Catalysis of the transfer of a phosphate group to the serine-10 residue of the N-terminal tail of histone H3.
    GO:0072354    histone kinase activity (H3-T3 specific)    Catalysis of the transfer of a phosphate group to the threonine-3 residue of the N-terminal tail of histone H3.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0031493    nucleosomal histone binding    Interacting selectively and non-covalently with a histone that is assembled into a nucleosome.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004672    protein kinase activity    Catalysis of the phosphorylation of an amino acid residue in a protein, usually according to the reaction: a protein + ATP = a phosphoprotein + ADP.
    GO:0019901    protein kinase binding    Interacting selectively and non-covalently with a protein kinase, any enzyme that catalyzes the transfer of a phosphate group, usually from ATP, to a protein substrate.
    GO:0004674    protein serine/threonine kinase activity    Catalysis of the reactions: ATP + protein serine = ADP + protein serine phosphate, and ATP + protein threonine = ADP + protein threonine phosphate.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0090166    Golgi disassembly    A cellular process that results in the breakdown of a Golgi apparatus that contributes to Golgi inheritance.
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.
    GO:0043987    histone H3-S10 phosphorylation    The modification of histone H3 by the addition of an phosphate group to a serine residue at position 10 of the histone.
    GO:0072355    histone H3-T3 phosphorylation    The modification of histone H3 by the addition of an phosphate group to a threonine residue at position 3 of the histone.
    GO:0007077    mitotic nuclear envelope disassembly    The cell cycle process in which the controlled breakdown of the nuclear envelope during mitotic cell division occurs.
    GO:0007084    mitotic nuclear envelope reassembly    The cell cycle process that results in reformation of the nuclear envelope during mitotic cell division.
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
    GO:0046777    protein autophosphorylation    The phosphorylation by a protein of one or more of its own amino acid residues (cis-autophosphorylation), or residues on an identical protein (trans-autophosphorylation).
    GO:0006468    protein phosphorylation    The process of introducing a phosphate group on to a protein.
    GO:0008360    regulation of cell shape    Any process that modulates the surface configuration of a cell.
cellular component
    GO:0005795    Golgi stack    The set of thin, flattened membrane-bounded compartments, called cisternae, that form the central portion of the Golgi complex. The stack usually comprises cis, medial, and trans cisternae; the cis- and trans-Golgi networks are not considered part of the stack.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005856    cytoskeleton    Any of the various filamentous elements that form the internal framework of cells, and typically remain after treatment of the cells with mild detergent to remove membrane constituents and soluble components of the cytoplasm. The term embraces intermediate filaments, microfilaments, microtubules, the microtrabecular lattice, and other structures characterized by a polymeric filamentous nature and long-range order within the cell. The various elements of the cytoskeleton not only serve in the maintenance of cellular shape but also have roles in other cellular functions, including cellular movement, cell division, endocytosis, and movement of organelles.
    GO:0005829    cytosol    The part of the cytoplasm that does not contain organelles but which does contain other particulate matter, such as protein complexes.
    GO:0005730    nucleolus    A small, dense body one or more of which are present in the nucleus of eukaryotic cells. It is rich in RNA and protein, is not bounded by a limiting membrane, and is not seen during mitosis. Its prime function is the transcription of the nucleolar DNA into 45S ribosomal-precursor RNA, the processing of this RNA into 5.8S, 18S, and 28S components of ribosomal RNA, and the association of these components with 5S RNA and proteins synthesized outside the nucleolus. This association results in the formation of ribonucleoprotein precursors; these pass into the cytoplasm and mature into the 40S and 60S subunits of the ribosome.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.
    GO:0005819    spindle    The array of microtubules and associated molecules that forms between opposite poles of a eukaryotic cell during mitosis or meiosis and serves to move the duplicated chromosomes apart.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    EDO  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    GOL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    REB  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Val D:25 - Gly D:26   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3op5
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  VRK1_HUMAN | Q99986
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  2.7.11.1
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  VRK1_HUMAN | Q99986
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        VRK1_HUMAN | Q999862kty 2kul 2lav 2rsv 5ukf 5uvf

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3OP5)
