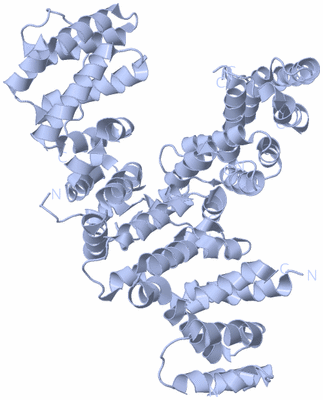

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)
Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

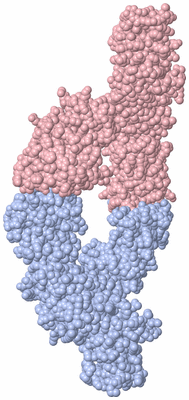

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)
Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)

(-) Description

Title :  TEL2 STRUCTURE AND FUNCTION IN THE HSP90-DEPENDENT MATURATION OF MTOR AND ATR COMPLEXES

Authors :  Y. Xie, N. P. Pavletich
Date :  27 Jul 10  (Deposition) - 15 Sep 10  (Release) - 13 Oct 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.10
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  A,C  (1x)
Biol. Unit 6:  B,D  (1x)
Keywords :  Heat Like Helical Repeats, Protein Binding (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  H. Takai, Y. Xie, T. De Lange, N. P. Pavletich
Tel2 Structure And Function In The Hsp90-Dependent Maturation Of Mtor And Atr Complexes.
Genes Dev. V. 24 2019 2010
PubMed-ID: 20801936  |  Reference-DOI: 10.1101/GAD.1956410

(-) Compounds

Molecule 1 - TELOMERE LENGTH REGULATION PROTEIN TEL2
    Chains: A, B, C, D
    Engineered: YES
    Expression System: TRICHOPLUSIA NI
    Expression System Cell Line: HI-5 INSECT CELLS
    Expression System Taxid: 7111
    Gene: TEL2, YGR099W
    Organism Common: BREWER'S YEAST,LAGER BEER YEAST,YEAST
    Organism Scientific: SACCHAROMYCES CEREVISIAE
    Organism Taxid: 4932

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D
Biological Unit 5 (1x): A C
Biological Unit 6 (1x):  B D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3O4Z)

(-) Sites  (0, 0)

(no "Site" information available for 3O4Z)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3O4Z)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3O4Z)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (1, 4)

Asymmetric Unit (1, 4)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---A/B/C/DS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 1 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---AS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 2 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---BS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 3 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---CS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 4 (1, 1)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---DS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 5 (1, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---A/CS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)
Biological Unit 6 (1, 2)
  dbSNPPDB
No.SourceVariant IDVariantUniProt IDStatusIDChainVariant
1UniProtVAR_TEL2_YEAST_001 *S129RTEL2_YEAST  ---  ---B/DS129R
   * ID not provided by source
  SNP/SAP Summary Statistics (UniProtKB/Swiss-Prot)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3O4Z)

(-) Exons   (0, 0)

(no "Exon" information available for 3O4Z)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:572
 aligned with TEL2_YEAST | P53038 from UniProtKB/Swiss-Prot  Length:688

    Alignment length:688
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680
           TEL2_YEAST     1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTISGRDGLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVKFESNSDDKIIDFQSLKNPSICNTQTDVGKDKITEVSGHVQSLTLDCSDSDDEDENDEREIVKRIVFLKDLMKEYEKTGESRKAPLIPLLKQTVKLIRQKADFQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLDDPTIVKPKFDFPTNRLPWDDQSHHNSRLVEVQESTSMIKKTKTVWKSRKLGKDREKGTQNRFRKYAGLFFYPLAHGWLNGIDVGTYNQLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh----.hhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh.hhhhhhhh...hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................----......hhhhhh-----------------------------------------.hhhhhh.hhhhhhhhhh.---.....hhhhhhhhhhhhhh..-...hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh..hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhh..---------------------------------------------------------....hhhhhhhhhhhhhhhhhhh.------hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------R------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o4z A   1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTI----GLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVK----SDDKIIDFQSLK-----------------------------------------REIVKRIVFLKDLMKEYEK---SRKAPLIPLLKQTVKLIRQKA-FQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLD---------------------------------------------------------TQNRFRKYAGLFFYPLAHGWLNGI------QLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
                                    10        20        30        40        50        60        70       | -  |     90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370    |  380     |   -         -         -         -       430       440     | 450       460       470 |     480       490       500       510       520       530       540       550  |      -         -         -         -         -         -|      620       630   |     -|      650       660       670       680
                                                                                                        78   83                                                                                                                                                                                                                                                                                            370  375        386                                       428               446 450                 470 |                                                                              553                                                       611                    634    641
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 472


Chain B from PDB  Type:PROTEIN  Length:572
 aligned with TEL2_YEAST | P53038 from UniProtKB/Swiss-Prot  Length:688

    Alignment length:688
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680
           TEL2_YEAST     1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTISGRDGLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVKFESNSDDKIIDFQSLKNPSICNTQTDVGKDKITEVSGHVQSLTLDCSDSDDEDENDEREIVKRIVFLKDLMKEYEKTGESRKAPLIPLLKQTVKLIRQKADFQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLDDPTIVKPKFDFPTNRLPWDDQSHHNSRLVEVQESTSMIKKTKTVWKSRKLGKDREKGTQNRFRKYAGLFFYPLAHGWLNGIDVGTYNQLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh----.hhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh.hhhhhhhh...hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................----......hhhhhh-----------------------------------------.hhhhhh.hhhhhhhhhh.---.....hhhhhhhhhhhhhh..-...hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh..---------------------------------------------------------....hhhhhhhhhhhhhhhhhhh.------hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------R------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o4z B   1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTI----GLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVK----SDDKIIDFQSLK-----------------------------------------REIVKRIVFLKDLMKEYEK---SRKAPLIPLLKQTVKLIRQKA-FQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLD---------------------------------------------------------TQNRFRKYAGLFFYPLAHGWLNGI------QLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
                                    10        20        30        40        50        60        70       | -  |     90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370    |  380     |   -         -         -         -       430       440     | 450       460       470 |     480       490       500       510       520       530       540       550  |      -         -         -         -         -         -|      620       630   |     -|      650       660       670       680
                                                                                                        78   83                                                                                                                                                                                                                                                                                            370  375        386                                       428               446 450                 470 |                                                                              553                                                       611                    634    641
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 472


Chain C from PDB  Type:PROTEIN  Length:572
 aligned with TEL2_YEAST | P53038 from UniProtKB/Swiss-Prot  Length:688

    Alignment length:688
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680
           TEL2_YEAST     1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTISGRDGLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVKFESNSDDKIIDFQSLKNPSICNTQTDVGKDKITEVSGHVQSLTLDCSDSDDEDENDEREIVKRIVFLKDLMKEYEKTGESRKAPLIPLLKQTVKLIRQKADFQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLDDPTIVKPKFDFPTNRLPWDDQSHHNSRLVEVQESTSMIKKTKTVWKSRKLGKDREKGTQNRFRKYAGLFFYPLAHGWLNGIDVGTYNQLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh----.hhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh.hhhhhhhh...hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................----......hhhhhh-----------------------------------------.hhhhhh.hhhhhhhhhh.---.....hhhhhhhhhhhhhh..-...hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh..---------------------------------------------------------....hhhhhhhhhhhhhhhhhhh.------hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------R------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o4z C   1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTI----GLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVK----SDDKIIDFQSLK-----------------------------------------REIVKRIVFLKDLMKEYEK---SRKAPLIPLLKQTVKLIRQKA-FQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLD---------------------------------------------------------TQNRFRKYAGLFFYPLAHGWLNGI------QLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
                                    10        20        30        40        50        60        70       | -  |     90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370    |  380     |   -         -         -         -       430       440     | 450       460       470 |     480       490       500       510       520       530       540       550  |      -         -         -         -         -         -|      620       630   |     -|      650       660       670       680
                                                                                                        78   83                                                                                                                                                                                                                                                                                            370  375        386                                       428               446 450                 470 |                                                                              553                                                       611                    634    641
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 472


Chain D from PDB  Type:PROTEIN  Length:572
 aligned with TEL2_YEAST | P53038 from UniProtKB/Swiss-Prot  Length:688

    Alignment length:688
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530       540       550       560       570       580       590       600       610       620       630       640       650       660       670       680
           TEL2_YEAST     1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTISGRDGLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVKFESNSDDKIIDFQSLKNPSICNTQTDVGKDKITEVSGHVQSLTLDCSDSDDEDENDEREIVKRIVFLKDLMKEYEKTGESRKAPLIPLLKQTVKLIRQKADFQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLDDPTIVKPKFDFPTNRLPWDDQSHHNSRLVEVQESTSMIKKTKTVWKSRKLGKDREKGTQNRFRKYAGLFFYPLAHGWLNGIDVGTYNQLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) ------------------------------------------------------------------------------    ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------    ------------                                         -----Telomere_reg-2   -3o4zD01 D:433-546                                                                               -------                                                         ------------------------      ------------------------------------------------ Pfam domains (1)
           Pfam domains (2) ------------------------------------------------------------------------------    ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------    ------------                                         -----Telomere_reg-2   -3o4zD02 D:433-546                                                                               -------                                                         ------------------------      ------------------------------------------------ Pfam domains (2)
           Pfam domains (3) ------------------------------------------------------------------------------    ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------    ------------                                         -----Telomere_reg-2   -3o4zD03 D:433-546                                                                               -------                                                         ------------------------      ------------------------------------------------ Pfam domains (3)
           Pfam domains (4) ------------------------------------------------------------------------------    ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------    ------------                                         -----Telomere_reg-2   -3o4zD04 D:433-546                                                                               -------                                                         ------------------------      ------------------------------------------------ Pfam domains (4)
         Sec.struct. author hhhhhh....hhhhhhhhhhhhhh......hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhh----.hhhhhhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhh.hhhhhhhh...hhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhh.hhhhhhhhhh..hhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh..................----......hhhhhh-----------------------------------------.hhhhhh.hhhhhhhhhh.---.....hhhhhhhhhhhhhh..-...hhhhhhhhhhhhhhhh.........hhhhhhhhhhhhhhh..hhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhh..---------------------------------------------------------....hhhhhhhhhhhhhhhhhhh.------hhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhh...... Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------R------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3o4z D   1 MVLETLKQGLDSSQIHEALIQLDSYPREPVDLDASMVLIKFVIPVYPSLPERSKVILRRLASKSFTFLCQIVTFSRTI----GLQEIRIYQEILEDIISFEPGCLTFYLKASTTSKADRDSIKALFFGSKLFNVLANRIDMAKYLGYLRLQWKFLLESNETDPPGFLGEWLVSSFLLNPVLAADMLLGELFLLKESYFFSFQKIISASSLIDQKRLIAKFLLPYIQVIVTLENLNDVRKILRRFDLDKIISLSVLFEIQSLPLKEVIVRLMSNHSSTKFVSALVSKFADFTDEEVDTKTCELLVLFAVHNLNHSQREEIAHDERFLNGVTKHLGSNEREARERAMFIAKLLSGGHLKYESDFKINIPNVK----SDDKIIDFQSLK-----------------------------------------REIVKRIVFLKDLMKEYEK---SRKAPLIPLLKQTVKLIRQKA-FQLEVGYYAQGILSSIVCLNNEFDEPLFEQWRINALTSILVVLPEKVNGAINILFNSELSLQQRMSLLSALGLSARELRGLD---------------------------------------------------------TQNRFRKYAGLFFYPLAHGWLNGI------QLFKSHYLTTLRIIYSCANPVHDFESMTELMNHIISSAIEEGISLNKG 688
                                    10        20        30        40        50        60        70       | -  |     90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370    |  380     |   -         -         -         -       430       440     | 450       460       470 |     480       490       500       510       520       530       540       550  |      -         -         -         -         -         -|      620       630   |     -|      650       660       670       680
                                                                                                        78   83                                                                                                                                                                                                                                                                                            370  375        386                                       428               446 450                 470 |                                                                              553                                                       611                    634    641
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                 472
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3O4Z)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3O4Z)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: no clan defined [family: Telomere_reg-2] (1)

(-) Gene Ontology  (9, 9)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (TEL2_YEAST | P53038)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0042162    telomeric DNA binding    Interacting selectively and non-covalently with a telomere, a specific structure at the end of a linear chromosome required for the integrity and maintenance of the end.
biological process
    GO:0034502    protein localization to chromosome    Any process in which a protein is transported to, or maintained at, a specific location on a chromosome.
    GO:0000723    telomere maintenance    Any process that contributes to the maintenance of proper telomeric length and structure by affecting and monitoring the activity of telomeric proteins, the length of telomeric DNA and the replication and repair of the DNA. These processes includes those that shorten, lengthen, replicate and repair the telomeric DNA sequences.
    GO:0007004    telomere maintenance via telomerase    The maintenance of proper telomeric length by the addition of telomeric repeats by telomerase.
cellular component
    GO:0005694    chromosome    A structure composed of a very long molecule of DNA and associated proteins (e.g. histones) that carries hereditary information.
    GO:0000781    chromosome, telomeric region    The terminal region of a linear chromosome that includes the telomeric DNA repeats and associated proteins.
    GO:0000784    nuclear chromosome, telomeric region    The terminal region of a linear nuclear chromosome that includes the telomeric DNA repeats and associated proteins.
    GO:0005634    nucleus    A membrane-bounded organelle of eukaryotic cells in which chromosomes are housed and replicated. In most cells, the nucleus contains all of the cell's chromosomes except the organellar chromosomes, and is the site of RNA synthesis and processing. In some species, or in specialized cell types, RNA metabolism or DNA replication may be absent.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3o4z)

  Sites
(no "Sites" information available for 3o4z)

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3o4z)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format | Biol. Unit 5 PNG format | Biol. Unit 6 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3o4z
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  TEL2_YEAST | P53038
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  TEL2_YEAST | P53038
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3O4Z)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3O4Z)
