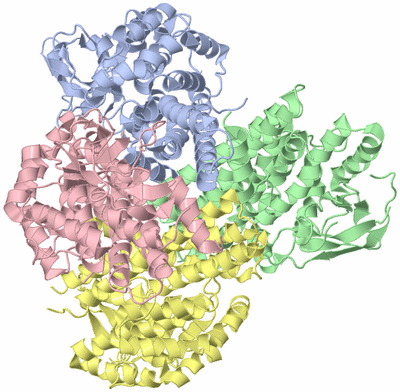

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF NITROSOSYNTHASE FROM MICROMONOSPORA CARBONACEA VAR. AFRICANA

Authors :  J. L. Vey, T. M. Iverson
Date :  07 May 10  (Deposition) - 09 Feb 11  (Release) - 09 Feb 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.15
Chains :  Asym./Biol. Unit :  A,B,C,D
Keywords :  Flavin Monooxygenase, Nitrososynthase, Acyl-Coa Dehydrogenase, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. L. Vey, A. Al-Mestarihi, Y. Hu, M. A. Funk, B. O. Bachmann, T. M. Iverson
Structure And Mechanism Of Orf36, An Amino Sugar Oxidizing Enzyme In Everninomicin Biosynthesis .
Biochemistry V. 49 9306 2010
PubMed-ID: 20866105  |  Reference-DOI: 10.1021/BI101336U

(-) Compounds

Molecule 1 - NITROSOSYNTHASE
    Chains: A, B, C, D
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28A
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: ORF36
    Organism Scientific: MICROMONOSPORA CARBONACEA
    Organism Taxid: 219305
    Strain: VAR. AFRICANA

 Structural Features

(-) Chains, Units

  1234
Asymmetric/Biological Unit : ABCD

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3MXL)

(-) Sites  (0, 0)

(no "Site" information available for 3MXL)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MXL)

(-) Cis Peptide Bonds  (8, 8)

Asymmetric/Biological Unit
No.Residues
1Gln A:376 -Pro A:377
2Pro A:377 -Tyr A:378
3Gln B:376 -Pro B:377
4Pro B:377 -Tyr B:378
5Gln C:376 -Pro C:377
6Pro C:377 -Tyr C:378
7Gln D:376 -Pro D:377
8Pro D:377 -Tyr D:378

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MXL)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3MXL)

(-) Exons   (0, 0)

(no "Exon" information available for 3MXL)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:394
 aligned with B5APQ9_9ACTN | B5APQ9 from UniProtKB/TrEMBL  Length:412

    Alignment length:394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
         B5APQ9_9ACTN     1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADELLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh...ee...........eeee.....eeeeeeeeee.hhhhh.ee...eeee.....eeee...ee.....eeee.............eeeeeeeeeehhhhh.eeee......hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mxl A   1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADELLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390


Chain B from PDB  Type:PROTEIN  Length:370
 aligned with B5APQ9_9ACTN | B5APQ9 from UniProtKB/TrEMBL  Length:412

    Alignment length:394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
         B5APQ9_9ACTN     1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADELLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh...ee...........---------..eeeeeeee.......ee......--------.....ee.....eeee.............eeeeeeee.......-------....hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mxl B   1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVT---------WLLSGRKVLVSMAPIATHFFVHAQR--------LAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADEL-------ARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140 |       - |     160       170     |   -    |  190       200       210       220       | -     | 240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
                                                                                                                                                                       142       152                     176      185                                        228     236


Chain C from PDB  Type:PROTEIN  Length:369
 aligned with B5APQ9_9ACTN | B5APQ9 from UniProtKB/TrEMBL  Length:412

    Alignment length:394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
         B5APQ9_9ACTN     1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADELLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhh......ee............-------------.eeee.......eee....-------.eee..eee......eee.............eeee----........eeee.-....hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mxl C   1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTE-------------RKVLVSMAPIATHFFVHAQ-------VFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVV----PVRADELLERGPV-ARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140  |      -      |160       170    |    -  |    190       200       210      |  - |     230   | | 240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
                                                                                                                                                                        143           157               175     183                               217  222         234 |
                                                                                                                                                                                                                                                                     236


Chain D from PDB  Type:PROTEIN  Length:391
 aligned with B5APQ9_9ACTN | B5APQ9 from UniProtKB/TrEMBL  Length:412

    Alignment length:394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390
         B5APQ9_9ACTN     1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRADELLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLSGDPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .........hhhhhhhhhhhh.hhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh............hhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhh...eeee.........eeee.....eeeeeeeeee.......eeee.eeee.....eeeee.eee.....eeee.............eeeeeeeeee..--.eeeee......hhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....-..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhh...hhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mxl D   1 MAADLRAPLTPAGRTVVDLLAGVIPRISAEAADRDRTGTFPVEAFEQFAKLGLMGATVPAELGGLGLTRLYDVATALMRLAEADASTALAWHVQLSRGLTLTYEWQHGTPPVRAMAERLLRAMAEGEAAVCGALKDAPGVVTELHSDGAGGWLLSGRKVLVSMAPIATHFFVHAQRRDDDGSVFLAVPVVHRDAPGLTVLDNWDGLGMRASGTLEVVFDRCPVRA--LLERGPVGARRDAVLAGQTVSSITMLGIYAGIAQAARDIAVGFCAGRGGEPRAGARALVAGLDTRLYALRTTVGAALTNADAASVDLS-DPDERGRRMMTPFQYAKMTVNELAPAVVDDCLSLVGGLAYTAGHPLSRLYRDVRAGGFMQPYSYVDAVDYLSGQALGL 394
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220    |  230       240       250       260       270       280       290       300       310    | |320       330       340       350       360       370       380       390
                                                                                                                                                                                                                                                          225  |                                                                                    315 |
                                                                                                                                                                                                                                                             228                                                                                      317
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3MXL)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MXL)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3MXL)

(-) Gene Ontology  (6, 6)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B,C,D   (B5APQ9_9ACTN | B5APQ9)
molecular function
    GO:0003995    acyl-CoA dehydrogenase activity    Catalysis of the reaction: acyl-CoA + acceptor = 2,3-dehydroacyl-CoA + reduced acceptor.
    GO:0050660    flavin adenine dinucleotide binding    Interacting selectively and non-covalently with FAD, flavin-adenine dinucleotide, the coenzyme or the prosthetic group of various flavoprotein oxidoreductase enzymes, in either the oxidized form, FAD, or the reduced form, FADH2.
    GO:0016491    oxidoreductase activity    Catalysis of an oxidation-reduction (redox) reaction, a reversible chemical reaction in which the oxidation state of an atom or atoms within a molecule is altered. One substrate acts as a hydrogen or electron donor and becomes oxidized, while the other acts as hydrogen or electron acceptor and becomes reduced.
    GO:0016627    oxidoreductase activity, acting on the CH-CH group of donors    Catalysis of an oxidation-reduction (redox) reaction in which a CH-CH group acts as a hydrogen or electron donor and reduces a hydrogen or electron acceptor.
biological process
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0055114    oxidation-reduction process    A metabolic process that results in the removal or addition of one or more electrons to or from a substance, with or without the concomitant removal or addition of a proton or protons.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3mxl)

  Sites
(no "Sites" information available for 3mxl)

  Cis Peptide Bonds
    Gln A:376 - Pro A:377   [ RasMol ]
    Gln B:376 - Pro B:377   [ RasMol ]
    Gln C:376 - Pro C:377   [ RasMol ]
    Gln D:376 - Pro D:377   [ RasMol ]
    Pro A:377 - Tyr A:378   [ RasMol ]
    Pro B:377 - Tyr B:378   [ RasMol ]
    Pro C:377 - Tyr C:378   [ RasMol ]
    Pro D:377 - Tyr D:378   [ RasMol ]


(-) Still Images

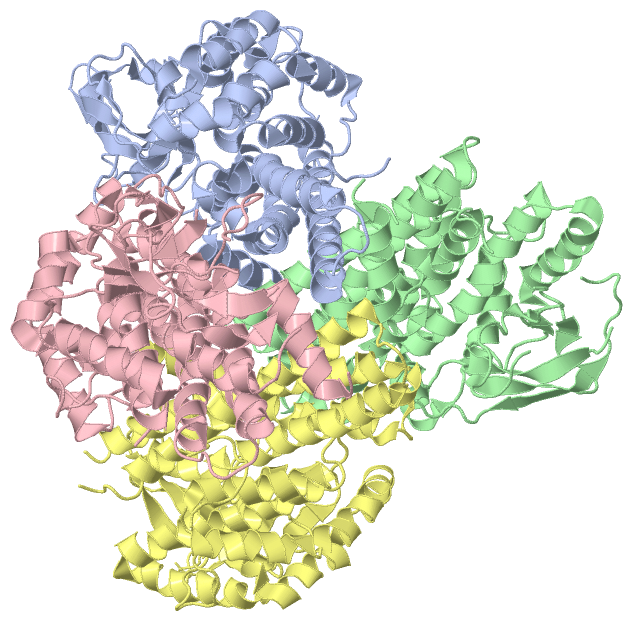

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3mxl
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  B5APQ9_9ACTN | B5APQ9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  B5APQ9_9ACTN | B5APQ9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3MXL)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3MXL)
