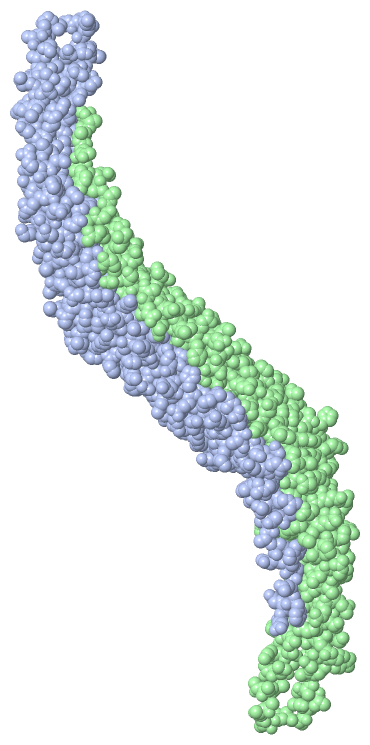

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRCUTURE OF MOUSE PACSIN3 BAR DOMAIN MUTANT

Authors :  G. Meng, X. Y. Bai
Date :  10 Mar 10  (Deposition) - 16 Mar 11  (Release) - 05 Mar 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.60
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Mouse, Pacsin3, Bar Domain, Endocytosis (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  X. Y. Bai, G. Meng, M. Luo, X. F. Zheng
Rigidity Of Wedge Loop In Pacsin 3 Protein Is A Key Factor In Dictating Diameters Of Tubules
J. Biol. Chem. V. 287 22387 2012
PubMed-ID: 22573331  |  Reference-DOI: 10.1074/JBC.M112.358960

(-) Compounds

Molecule 1 - PROTEIN KINASE C AND CASEIN KINASE II SUBSTRATE PROTEIN 3
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET28
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: BAR DOMAIN, RESIDUES 1-320
    Mutation: YES
    Organism Common: MOUSE
    Organism Scientific: MUS MUSCULUS
    Organism Taxid: 10090
    Synonym: PACSIN3

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3M3W)

(-) Sites  (0, 0)

(no "Site" information available for 3M3W)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3M3W)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ser B:179 -Met B:180

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3M3W)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3M3W)

(-) Exons   (0, 0)

(no "Exon" information available for 3M3W)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:280
 aligned with PACN3_MOUSE | Q99JB8 from UniProtKB/Swiss-Prot  Length:424

    Alignment length:288
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
          PACN3_MOUSE    14 GSFWEAGNYRRTVQRVEDGHRLCGDLVSCFQERARIEKAYAQQLADWARKWRGAVEKGPQYGTLEKAWHAFFTAAERLSELHLEVREKLHGPDSERVRTWQRGAFHRPVLGGFRESRAAEDGFRKAQKPWLKRLKEVEASKKSYHTARKDEKTAQTRESHAKADSSMSQEQLRKLQERVGRCTKEAEKMKTQYEQTLAELNRYTPRYMEDMEQAFESCQAAERQRLLFFKDVLLTLHQHLDLSSSDKFHELHRDLQQSIEAASDEEDLRWWRSTHGPGMAMNWPQFEE 301
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.-----.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.........---.........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3m3w A  14 GSFWEAGNYRRTVQRVEDGHRLCGDLVSCFQERARIEKAYAQQLADWARKWRGAVEKGPQYGTLEKAWHAFFTAAERLSELHLEVREKLHGPDSERVRTWQRGAFH-----GFRASRAAEDGFRKAQKPWLKRLKEVEASKKSYHTARKDEKTAQTRESHAKADSSM---QLRKLQERVGRCTKEAEKMKTQYEQTLAELNRYTPRYMEDMEQAFESCQAAERQRLLFFKDVLLTLHQHLDLSSSDKFHELHRDLQQSIEAASDEEDLRWWRSTHGPGMAMNWPQFEE 301
                                    23        33        43        53        63        73        83        93       103       113     |   - |     133       143       153       163       173      |  -|      193       203       213       223       233       243       253       263       273       283       293
                                                                                                                                   119   125                                                    180 184


Chain B from PDB  Type:PROTEIN  Length:286
 aligned with PACN3_MOUSE | Q99JB8 from UniProtKB/Swiss-Prot  Length:424

    Alignment length:289
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293
          PACN3_MOUSE    14 GSFWEAGNYRRTVQRVEDGHRLCGDLVSCFQERARIEKAYAQQLADWARKWRGAVEKGPQYGTLEKAWHAFFTAAERLSELHLEVREKLHGPDSERVRTWQRGAFHRPVLGGFRESRAAEDGFRKAQKPWLKRLKEVEASKKSYHTARKDEKTAQTRESHAKADSSMSQEQLRKLQERVGRCTKEAEKMKTQYEQTLAELNRYTPRYMEDMEQAFESCQAAERQRLLFFKDVLLTLHQHLDLSSSDKFHELHRDLQQSIEAASDEEDLRWWRSTHGPGMAMNWPQFEEW 302
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.......hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...........................---........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhh............. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3m3w B  14 GSFWEAGNYRRTVQRVEDGHRLCGDLVSCFQERARIEKAYAQQLADWARKWRGAVEKGPQYGTLEKAWHAFFTAAERLSELHLEVREKLHGPDSERVRTWQRGAFHRPVLGGFRASRAAEDGFRKAQKPWLKRLKEVEASKKSYHTARKDEKTAQTRESHAKADSSMSQE---KLQERVGRCTKEAEKMKTQYEQTLAELNRYTPRYMEDMEQAFESCQAAERQRLLFFKDVLLTLHQHLDLSSSDKFHELHRDLQQSIEAASDEEDLRWWRSTHGPGMAMNWPQFEEW 302
                                    23        33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183   |   193       203       213       223       233       243       253       263       273       283       293
                                                                                                                                                                                                   183 187
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3M3W)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3M3W)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3M3W)

(-) Gene Ontology  (16, 16)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (PACN3_MOUSE | Q99JB8)
molecular function
    GO:0019855    calcium channel inhibitor activity    Stops, prevents, or reduces the activity of a calcium channel.
    GO:0008092    cytoskeletal protein binding    Interacting selectively and non-covalently with any protein component of any cytoskeleton (actin, microtubule, or intermediate filament cytoskeleton).
    GO:0008289    lipid binding    Interacting selectively and non-covalently with a lipid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
biological process
    GO:0006897    endocytosis    A vesicle-mediated transport process in which cells take up external materials or membrane constituents by the invagination of a small region of the plasma membrane to form a new membrane-bounded vesicle.
    GO:0051926    negative regulation of calcium ion transport    Any process that stops, prevents, or reduces the frequency, rate or extent of the directed movement of calcium ions into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0045806    negative regulation of endocytosis    Any process that stops, prevents, or reduces the frequency, rate or extent of endocytosis.
    GO:0097320    plasma membrane tubulation    A membrane tubulation process occurring in a plasma membrane.
    GO:0051044    positive regulation of membrane protein ectodomain proteolysis    Any process that activates or increases the frequency, rate or extent of membrane protein ectodomain peptidolysis.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005768    endosome    A vacuole to which materials ingested by endocytosis are delivered.
    GO:0070062    extracellular exosome    A vesicle that is released into the extracellular region by fusion of the limiting endosomal membrane of a multivesicular body with the plasma membrane. Extracellular exosomes, also simply called exosomes, have a diameter of about 40-100 nm.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005654    nucleoplasm    That part of the nuclear content other than the chromosomes or the nucleolus.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0005802    trans-Golgi network    The network of interconnected tubular and cisternal structures located within the Golgi apparatus on the side distal to the endoplasmic reticulum, from which secretory vesicles emerge. The trans-Golgi network is important in the later stages of protein secretion where it is thought to play a key role in the sorting and targeting of secreted proteins to the correct destination.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3m3w)

  Sites
(no "Sites" information available for 3m3w)

  Cis Peptide Bonds
    Ser B:179 - Met B:180   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3m3w
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PACN3_MOUSE | Q99JB8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PACN3_MOUSE | Q99JB8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PACN3_MOUSE | Q99JB8: 3qe6 3syv
