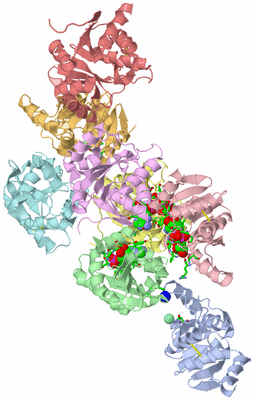

Image Asym. Unit - sites
Asym. Unit - sites  (Jmol Viewer)
Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biol. Unit 1 - sites
Biol. Unit 1 - sites  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

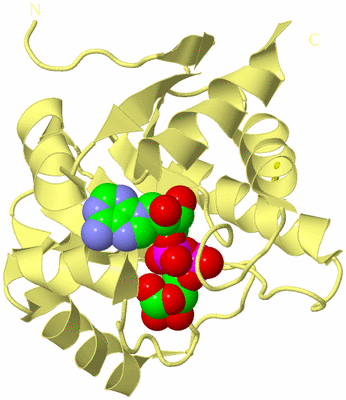

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

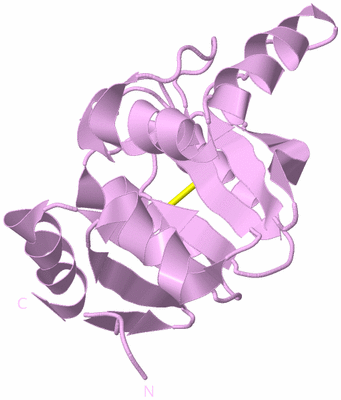

Image Biological Unit 5
Biological Unit 5  (Jmol Viewer)

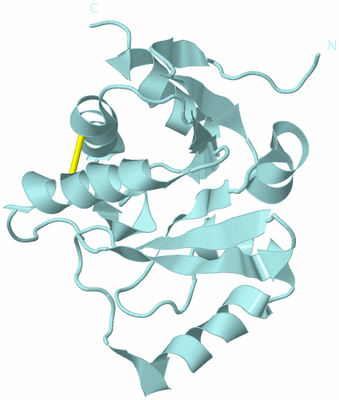

Image Biological Unit 6
Biological Unit 6  (Jmol Viewer)

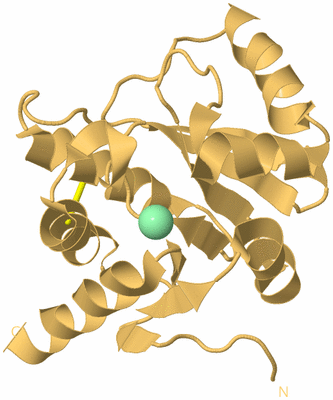

Image Biological Unit 7
Biological Unit 7  (Jmol Viewer)

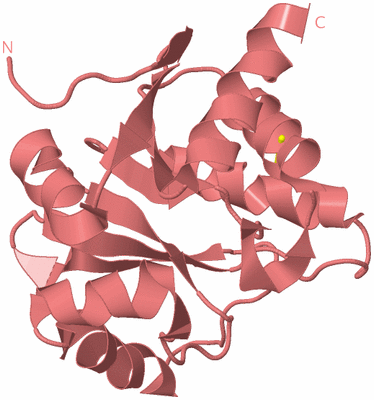

Image Biological Unit 8
Biological Unit 8  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF A CUBIC CRYSTAL FORM OF X (ADRP) DOMAIN FROM FCOV WITH ADP-RIBOSE

Authors :  J. A. Wojdyla, I. Manolaridis, P. A. Tucker
Date :  24 Sep 09  (Deposition) - 12 Jan 10  (Release) - 12 Jan 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.91
Chains :  Asym. Unit :  A,B,C,D,E,F,G,H
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Biol. Unit 5:  E  (1x)
Biol. Unit 6:  F  (1x)
Biol. Unit 7:  G  (1x)
Biol. Unit 8:  H  (1x)
Keywords :  Adrp Domain, X Domain, Macro Domain, Adp-Ribose, Coronavirus, Rna Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google))

Reference :  J. A. Wojdyla, I. Manolaridis, E. J. Snijder, A. E. Gorbalenya, B. Coutard, Y. Piotrowski, R. Hilgenfeld, P. A. Tucker
Structure Of The X (Adrp) Domain Of Nsp3 From Feline Coronavirus
Acta Crystallogr. , Sect. D V. 65 1292 2009
PubMed-ID: 19966415  |  Reference-DOI: 10.1107/S0907444909040074
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - MACRO DOMAIN OF NON-STRUCTURAL PROTEIN 3
    ChainsA, B, C, D, E, F, G, H
    EngineeredYES
    Expression SystemESCHERICHIA COLI
    Expression System PlasmidPETM11
    Expression System StrainBL21(DE3)RIL
    Expression System Taxid469008
    Expression System Vector TypePLASMID
    GeneREP, 1A-1B
    Organism CommonFCOV
    Organism ScientificFELINE CORONAVIRUS
    Organism Taxid33734
    StrainFIPV WSU-79/1146
    SynonymADRP (X) DOMAIN

 Structural Features

(-) Chains, Units

  12345678
Asymmetric Unit ABCDEFGH
Biological Unit 1 (1x)A
Biological Unit 2 (1x) B
Biological Unit 3 (1x)  C
Biological Unit 4 (1x)   D
Biological Unit 5 (1x)    E
Biological Unit 6 (1x)     F
Biological Unit 7 (1x)      G
Biological Unit 8 (1x)       H

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (3, 6)

Asymmetric Unit (3, 6)
No.NameCountTypeFull Name
1APR3Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL2Ligand/IonCHLORIDE ION
3NA1Ligand/IonSODIUM ION
Biological Unit 1 (0, 0)
No.NameCountTypeFull Name
1APR-1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 2 (1, 1)
No.NameCountTypeFull Name
1APR1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 3 (1, 1)
No.NameCountTypeFull Name
1APR1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 4 (1, 1)
No.NameCountTypeFull Name
1APR1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 5 (0, 0)
No.NameCountTypeFull Name
1APR-1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 6 (0, 0)
No.NameCountTypeFull Name
1APR-1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 7 (0, 0)
No.NameCountTypeFull Name
1APR-1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION
Biological Unit 8 (0, 0)
No.NameCountTypeFull Name
1APR-1Ligand/IonADENOSINE-5-DIPHOSPHORIBOSE
2CL-1Ligand/IonCHLORIDE ION
3NA-1Ligand/IonSODIUM ION

(-) Sites  (6, 6)

Asymmetric Unit (6, 6)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREALA B:67 , ALA B:68 , ASN B:69 , ARG B:73 , VAL B:75 , GLY B:76 , GLY B:77 , VAL B:78 , SER B:158 , VAL B:159 , GLY B:160 , ILE B:161 , PHE B:162 , TYR B:187 , GLU B:191BINDING SITE FOR RESIDUE APR B 477
2AC2SOFTWAREGLY C:50 , LEU C:52 , ALA C:67 , ASN C:69 , ARG C:73 , VAL C:75 , GLY C:76 , GLY C:77 , VAL C:78 , SER C:158 , VAL C:159 , GLY C:160 , ILE C:161 , PHE C:162 , TYR C:187 , GLU C:191BINDING SITE FOR RESIDUE APR C 477
3AC3SOFTWARELEU D:52 , ALA D:67 , ASN D:69 , ARG D:73 , VAL D:75 , GLY D:76 , GLY D:77 , VAL D:78 , ALA D:79 , SER D:158 , VAL D:159 , GLY D:160 , ILE D:161 , PHE D:162 , TYR D:187 , GLU D:191BINDING SITE FOR RESIDUE APR D 477
4AC4SOFTWAREASN A:108BINDING SITE FOR RESIDUE CL A 1
5AC5SOFTWAREVAL G:186 , GLU G:191BINDING SITE FOR RESIDUE CL G 2
6AC6SOFTWARELYS B:92 , ARG B:93BINDING SITE FOR RESIDUE NA B 3

(-) SS Bonds  (8, 8)

Asymmetric Unit
No.Residues
1A:139 -A:172
2B:139 -B:172
3C:139 -C:172
4D:139 -D:172
5E:139 -E:172
6F:139 -F:172
7G:139 -G:172
8H:139 -H:172

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3JZT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3JZT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3JZT)

(-) Exons   (0, 0)

(no "Exon" information available for 3JZT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeee.......hhhhhhhhhhhh.hhhhhhhhhhhh.........eeeeeeee..eeeeee........hhhhhhhhhhhhhhh....eee....hhhhh.hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt A   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain B from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeeee.......hhhhhhhhhhh.hhhhhhhhhhhhhh.......eeeeeeee..eeeeeee.......hhhhhhhhhhhhhhh....eeee.........hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt B   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain C from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeeee.......hhhhhhhhhhh.hhhhhhhhhhhhhh.......eeeeeeee..eeeeeee.......hhhhhhhhhhhhhhh....eeee.........hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt C   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain D from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeeee.......hhhhhhhhhhh.hhhhhhhhhhhhhh.......eeeeeeee..eeeeeee.......hhhhhhhhhhhhhhh....eeee.........hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt D   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain E from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeee.......hhhhhhhhhhhh.hhhhhhhhhhhh.........eeeeeeee..eeeeee........hhhhhhhhhhhhhhh....eee....hhhhh.hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt E   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain F from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeee..........hhhhhhhhh.hhhhhhhhhhhhhh.......eeeeeeee..eeeeee........hhhhhhhhhhhhhhhh...eee....hhhhh.hhhhhhhhhhhhh.....eeee.hhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt F   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain G from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeee.......hhhhhhhhhhhh.hhhhhhhhhhhh.........eeeeeeee..eeeeee........hhhhhhhhhhhhhhh....eee....hhhhh.hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt G   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

Chain H from PDB  Type:PROTEIN  Length:168
 aligned with R1AB_FIPV | Q98VG9 from UniProtKB/Swiss-Prot  Length:6709

    Alignment length:168
                                  1340      1350      1360      1370      1380      1390      1400      1410      1420      1430      1440      1450      1460      1470      1480      1490
           R1AB_FIPV   1331 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG 1498
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -------------------------------Macro-3jztH01 H:65-173                                                                                       ---------------------------- Pfam domains (1)
           Pfam domains (2) -------------------------------Macro-3jztH02 H:65-173                                                                                       ---------------------------- Pfam domains (2)
           Pfam domains (3) -------------------------------Macro-3jztH03 H:65-173                                                                                       ---------------------------- Pfam domains (3)
           Pfam domains (4) -------------------------------Macro-3jztH04 H:65-173                                                                                       ---------------------------- Pfam domains (4)
           Pfam domains (5) -------------------------------Macro-3jztH05 H:65-173                                                                                       ---------------------------- Pfam domains (5)
           Pfam domains (6) -------------------------------Macro-3jztH06 H:65-173                                                                                       ---------------------------- Pfam domains (6)
           Pfam domains (7) -------------------------------Macro-3jztH07 H:65-173                                                                                       ---------------------------- Pfam domains (7)
           Pfam domains (8) -------------------------------Macro-3jztH08 H:65-173                                                                                       ---------------------------- Pfam domains (8)
         Sec.struct. author ......eee..eeeee.hhhhhhhhhh..eeeee.......hhhhhhhhhhhh.hhhhhhhhhhhh.........eeeeeeee..eeeeee........hhhhhhhhhhhhhhh....eeee...hhhhh.hhhhhhhhhhhhh....eeeee.hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                3jzt H   34 DLILPFYKAGKVSFYQGDLDVLINFLEPDVLVNAANGDLRHVGGVARAIDVFTGGKLTKRSKEYLKSSKAIAPGNAVLFENVLEHLSVLNAVGPRNGDSRVEGKLCNVYKAIAKCDGKILTPLISVGIFKVKLEVSLQCLLKTVTDRDLNVFVYTDQERVTIENFFNG  201
                                    43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193

   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3JZT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3JZT)

(-) Pfam Domains  (1, 8)

Asymmetric Unit
(-)
Clan: MACRO (14)

(-) Gene Ontology  (40, 40)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E,F,G,H   (R1AB_FIPV | Q98VG9)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0003723    RNA binding    Interacting selectively and non-covalently with an RNA molecule or a portion thereof.
    GO:0003968    RNA-directed 5'-3' RNA polymerase activity    Catalysis of the reaction: nucleoside triphosphate + RNA(n) = diphosphate + RNA(n+1); uses an RNA template, i.e. the catalysis of RNA-template-directed extension of the 3'-end of an RNA strand by one nucleotide at a time.
    GO:0004197    cysteine-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0008234    cysteine-type peptidase activity    Catalysis of the hydrolysis of peptide bonds in a polypeptide chain by a mechanism in which the sulfhydryl group of a cysteine residue at the active center acts as a nucleophile.
    GO:0004519    endonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by creating internal breaks.
    GO:0004527    exonuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids by removing nucleotide residues from the 3' or 5' end.
    GO:0016896    exoribonuclease activity, producing 5'-phosphomonoesters    Catalysis of the hydrolysis of ester linkages within ribonucleic acids by removing nucleotide residues from the 3' or 5' end to yield 5' phosphomonoesters.
    GO:0004386    helicase activity    Catalysis of the reaction: NTP + H2O = NDP + phosphate, to drive the unwinding of a DNA or RNA helix.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0008168    methyltransferase activity    Catalysis of the transfer of a methyl group to an acceptor molecule.
    GO:0004518    nuclease activity    Catalysis of the hydrolysis of ester linkages within nucleic acids.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016779    nucleotidyltransferase activity    Catalysis of the transfer of a nucleotidyl group to a reactant.
    GO:0008242    omega peptidase activity    Catalysis of the removal of terminal peptide residues that are substituted, cyclized or linked by isopeptide bonds (peptide linkages other than those of alpha-carboxyl to alpha-amino groups).
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0036459    thiol-dependent ubiquitinyl hydrolase activity    Catalysis of the thiol-dependent hydrolysis of an ester, thioester, amide, peptide or isopeptide bond formed by the C-terminal glycine of ubiquitin.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
    GO:0008270    zinc ion binding    Interacting selectively and non-covalently with zinc (Zn) ions.
biological process
    GO:0090503    RNA phosphodiester bond hydrolysis, exonucleolytic    The chemical reactions and pathways involving the hydrolysis of terminal 3',5'-phosphodiester bonds in one or two strands of ribonucleotides.
    GO:0030683    evasion or tolerance by virus of host immune response    Any process, either active or passive, by which a virus avoids the effects of the host organism's immune response. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0039520    induction by virus of host autophagy    Any process in which a virus activates or increases the frequency, rate or extent of autophagy in the host.
    GO:0032259    methylation    The process in which a methyl group is covalently attached to a molecule.
    GO:0039648    modulation by virus of host protein ubiquitination    Any process in which a virus modulates the frequency, rate or extent of protein ubiquitination in the host organism. Ubiquitination is the process in which one or more ubiquitin groups are added to a protein.
    GO:0090305    nucleic acid phosphodiester bond hydrolysis    The nucleic acid metabolic process in which the phosphodiester bonds between nucleotides are cleaved by hydrolysis.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0039548    suppression by virus of host IRF3 activity    Any process in which a virus stops, prevents, or reduces the activity of host IRF3 (interferon regulatory factor-3), a transcription factor in the RIG-I/MDA-5 signaling pathway. Viral infection triggers phosphorylation of cytoplasmic IRF3, which allows IRF3 to form a homodimer, migrate to the nucleus, and activate transcription of IFN-alpha and IFN-beta genes.
    GO:0039503    suppression by virus of host innate immune response    Any process in which a virus stops, prevents, or reduces the frequency, rate or extent of the innate immune response of the host organism, the host's first line of defense.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
    GO:0001172    transcription, RNA-templated    The cellular synthesis of RNA on a template of RNA.
    GO:0019079    viral genome replication    Any process involved directly in viral genome replication, including viral nucleotide metabolism.
    GO:0016032    viral process    A multi-organism process in which a virus is a participant. The other participant is the host. Includes infection of a host cell, replication of the viral genome, and assembly of progeny virus particles. In some cases the viral genetic material may integrate into the host genome and only subsequently, under particular circumstances, 'complete' its life cycle.
    GO:0019082    viral protein processing    Any protein maturation process achieved by the cleavage of a peptide bond or bonds within a viral protein.
cellular component
    GO:0030430    host cell cytoplasm    The cytoplasm of a host cell.
    GO:0044172    host cell endoplasmic reticulum-Golgi intermediate compartment    A complex system of membrane-bounded compartments located between host cell endoplasmic reticulum (ER) and the host Golgi complex, with a distinctive membrane protein composition; involved in ER-to-Golgi transport.
    GO:0033644    host cell membrane    Double layer of lipid molecules as it encloses host cells, and, in eukaryotes, many organelles; may be a single or double lipid bilayer; also includes associated proteins. The host is defined as the larger of the organisms involved in a symbiotic interaction.
    GO:0044220    host cell perinuclear region of cytoplasm    The host cell cytoplasm situated near, or occurring around, the host nucleus.
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    APR  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    CL  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    NA  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3jzt)

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]
    Biological Unit 5  [ Jena3D ]
    Biological Unit 6  [ Jena3D ]
    Biological Unit 7  [ Jena3D ]
    Biological Unit 8  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3jzt
    Family and Domain InformationProDom | SYSTERS
    General Structural InformationGlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in MembranesOPM
    Protein SurfaceSURFACE
    Secondary StructureDSSP (structure derived) | HSSP (homology derived)
    Structural GenomicsGeneCensus
    Structural NeighboursCE | VAST
    Structure ClassificationCATH | Dali | SCOP
    Validation and Original DataBMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  R1AB_FIPV | Q98VG9
    Comparative Protein Structure ModelsModBase
    Genomic InformationEnsembl
    Protein-protein InteractionDIP
    Sequence, Family and Domain InformationInterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme InformationBRENDA | EC-PDB | Enzyme | IntEnz
    PathwayKEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease InformationOMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related InformationGenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain InformationXDom
    Interatomic Contacts of Structural UnitsCSU
    Ligand-protein ContactsLPC
    Protein CavitiescastP
    Sequence and Secondary StructurePDBCartoon
    Structure AlignmentSTRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence BrowserSTING

Access by UniProt ID/Accession number
  R1AB_FIPV | Q98VG9
    Protein Disorder PredictionDisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        R1AB_FIPV | Q98VG93eti 3ew5 3gzf 3ub0 4zro 5eu8

(-) Related Entries Specified in the PDB File

3eti 3ew5
