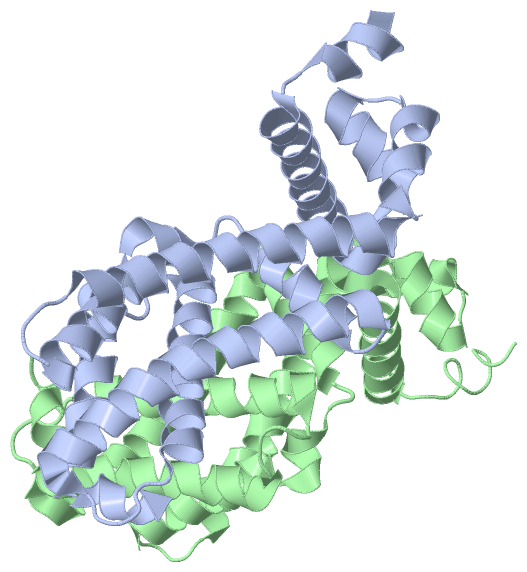

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE PUTATIVE TRANSCRIPTIONAL REGULATOR FROM PSEUDOMONAS AERUGINOSA PAO1

Authors :  R. Zhang, T. Skarina, O. Kagan, A. Savchenko, A. Edwards, A. Joachimiak Center For Structural Genomics (Mcsg)
Date :  18 Aug 08  (Deposition) - 14 Oct 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Transcriptional Regulator, Structural Genomics, Psi, Mcsg, Protein Structure Initiative, Midwest Center For Structural Genomics, Dna- Binding, Transcription, Transcription Regulation, Transcription Regulator (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, T. Skarine, O. Kagan, A. Savchenko, A. Edwards, A. Joachimia
The Crystal Structure Of The Putative Transcriptional Regulator From Pseudomonas Aeruginosa Pao1
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - TRANSCRIPTIONAL REGULATOR
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21
    Expression System Vector Type: PLASMID
    Gene: PA4984
    Organism Scientific: PSEUDOMONAS AERUGINOSA
    Organism Taxid: 287
    Strain: PAO1

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3E7Q)

(-) Sites  (0, 0)

(no "Site" information available for 3E7Q)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3E7Q)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3E7Q)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3E7Q)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3E7Q)

(-) Exons   (0, 0)

(no "Exon" information available for 3E7Q)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:208
 aligned with Q9HUI1_PSEAE | Q9HUI1 from UniProtKB/TrEMBL  Length:215

    Alignment length:208
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201
         Q9HUI1_PSEAE     2 NQEVRFSRLEPEQRKALLIEATLACLKRHGFQGASVRKICAEAGVSVGLINHHYDGKDALVAEAYLAVTGRVMRLLRGAIDTAPGGARPRLSAFFEASFSAELLDPQLLDAWLAFWGAVGSIEAIGRVHDHSYGEYRALLVGVLRQLAEEGGWADFDAELAAISLSALLDGLWLESGLNPATFTPRQGVQICEAWVDGLEAGAHRRFR 209
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3e7q A   2 NQEVRFSRLEPEQRKALLIEATLACLKRHGFQGASVRKICAEAGVSVGLINHHYDGKDALVAEAYLAVTGRVMRLLRGAIDTAPGGARPRLSAFFEASFSAELLDPQLLDAWLAFWGAVGSIEAIGRVHDHSYGEYRALLVGVLRQLAEEGGWADFDAELAAISLSALLDGLWLESGLNPATFTPRQGVQICEAWVDGLEAGAHRRFR 209
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191       201


Chain B from PDB  Type:PROTEIN  Length:210
 aligned with Q9HUI1_PSEAE | Q9HUI1 from UniProtKB/TrEMBL  Length:215

    Alignment length:210
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
         Q9HUI1_PSEAE     1 MNQEVRFSRLEPEQRKALLIEATLACLKRHGFQGASVRKICAEAGVSVGLINHHYDGKDALVAEAYLAVTGRVMRLLRGAIDTAPGGARPRLSAFFEASFSAELLDPQLLDAWLAFWGAVGSIEAIGRVHDHSYGEYRALLVGVLRQLAEEGGWADFDAELAAISLSALLDGLWLESGLNPATFTPRQGVQICEAWVDGLEAGAHRRFRR 210
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3e7q B   1 MNQEVRFSRLEPEQRKALLIEATLACLKRHGFQGASVRKICAEAGVSVGLINHHYDGKDALVAEAYLAVTGRVMRLLRGAIDTAPGGARPRLSAFFEASFSAELLDPQLLDAWLAFWGAVGSIEAIGRVHDHSYGEYRALLVGVLRQLAEEGGWADFDAELAAISLSALLDGLWLESGLNPATFTPRQGVQICEAWVDGLEAGAHRRFRR 210
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3E7Q)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3E7Q)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3E7Q)

(-) Gene Ontology  (4, 4)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (Q9HUI1_PSEAE | Q9HUI1)
molecular function
    GO:0003677    DNA binding    Any molecular function by which a gene product interacts selectively and non-covalently with DNA (deoxyribonucleic acid).
    GO:0003700    transcription factor activity, sequence-specific DNA binding    Interacting selectively and non-covalently with a specific DNA sequence in order to modulate transcription. The transcription factor may or may not also interact selectively with a protein or macromolecular complex.
biological process
    GO:0006355    regulation of transcription, DNA-templated    Any process that modulates the frequency, rate or extent of cellular DNA-templated transcription.
    GO:0006351    transcription, DNA-templated    The cellular synthesis of RNA on a template of DNA.
