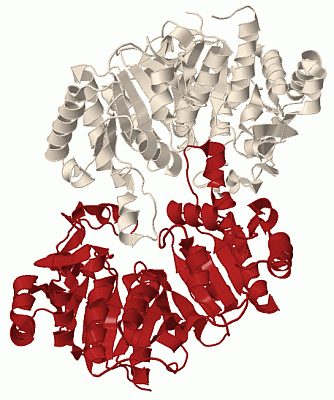

Image Biol.Unit 1 - manually
Biol.Unit 1 - manually  (Jmol Viewer)

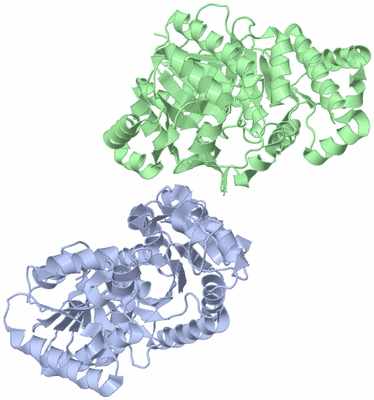

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

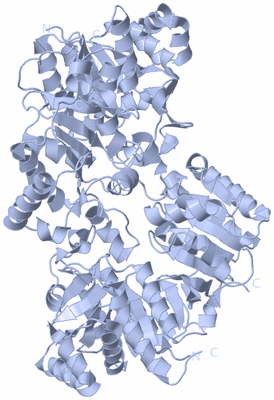

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  THE CRYSTAL STRUCTURE OF THE PUTATIVE TRNA SYNTHASE FROM SALMONELLA TYPHIMURIUM LT2

Authors :  R. Zhang, M. Gu, M. Zhou, W. Anderson, A. Joachimiak, Center For Struc Genomics Of Infectious Diseases (Csgid)
Date :  09 Jul 08  (Deposition) - 22 Jul 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  B  (1x)
Keywords :  Trna Synthase, Salmonella Typhimurium, Structural Genomics, Csgid, Unknown Function, Center For Structural Genomics Of Infectious Diseases (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  R. Zhang, M. Gu, M. Zhou, W. Anderson, A. Joachimiak
The Crystal Structure Of The Putative Trna Synthase From Salmonella Typhimurium Lt2
To Be Published 2008
PubMed: search

(-) Compounds

Molecule 1 - PUTATIVE TRNA SYNTHASE
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PMCSG7
    Expression System Strain: BL21
    Expression System Vector Type: PLASMID
    Gene: YGBK, STM2917
    Organism Scientific: SALMONELLA TYPHIMURIUM
    Organism Taxid: 602
    Strain: LT2

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (2x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3DQQ)

(-) Sites  (0, 0)

(no "Site" information available for 3DQQ)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3DQQ)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Gly A:93 -Asn A:94
2Gly B:93 -Asn B:94

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3DQQ)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3DQQ)

(-) Exons   (0, 0)

(no "Exon" information available for 3DQQ)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:419
 aligned with OTNK_SALTY | Q8ZMG5 from UniProtKB/Swiss-Prot  Length:420

    Alignment length:421
                             1
                             |       9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239       249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419
           OTNK_SALTY     - -MLKIGVIADDFTGATDIASFLVENGMPTVQINDVPTGTQPEGCDAVVISLKTRSCPAQEAIKQSLAALVWLKKQGCQQVYFKYCSTFDSTAEGNIGPVTDALMVALDTSFTVISPALPVNGRTVYQGYLFVMNHLLAESGMRHHPINPMTDSYLPRLMEAQAQGRCGVIPAQTLDEGVAATRAALSRLQQEGYRYAVLDALNERHLEIQGEVLRDAPLVTGGSGLAMGLARQWAKHGVSQARSAGYPLSGRAVVLSGSCSQMTNQQVAFYRQHAPTRDVDVARCLSSETREAYAEALAQWVLSQDSELAPMISATASTQALAAIQQQYGATEASHAVEALFSLLAARLAEGGITRFIVAGGETSGVVTQSLGITGFHIGPCISPGVPWVNALHAPVSLALKSGNFGDESFFIRAQREFQV 420
               SCOP domains d3dqqa_ A: automated matches                                                                                                                                                                                                                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeee.hhhhhhhhhhhhhhh...eeeee............eeeee......hhhhhhhhhhhhhhhhhhh...eeeee...........hhhhhhhhhhhhh....eeee..hhhh.eeee..eeee..ee.hhhhhhhh........hhhhhhhh.....eeeehhhhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhhh...eeeehhhhhhhhhhhhhh....--hhhhh.....eeeee...hhhhhhhhhhhh....eee.hhhhh.hhhhhhhhhhhhhhhhhhh......eee..hhhhhhhhhh........hhhhhhhhhhhhhhhhhh...eeeeehhhhhhhhhhhh...eeeeeeeee..eeeeee.....eeeee.......hhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dqq A   0 GMLKIGVIADDFTGATDIASFLVENGMPTVQINDVPTGTQPEGCDAVVISLKTRSCPAQEAIKQSLAALVWLKKQGCQQVYFKYCSTFDSTAEGNIGPVTDALMVALDTSFTVISPALPVNGRTVYQGYLFVMNHLLAESGMRHHPINPMTDSYLPRLMEAQAQGRCGVIPAQTLDEGVAATRAALSRLQQEGYRYAVLDALNERHLEIQGEVLRDAPLVTGGSGLAMGLARQWAKHGVS--RSAGYPLSGRAVVLSGSCSQMTNQQVAFYRQHAPTRDVDVARCLSSETREAYAEALAQWVLSQDSELAPMISATASTQALAAIQQQYGATEASHAVEALFSLLAARLAEGGITRFIVAGGETSGVVTQSLGITGFHIGPCISPGVPWVNALHAPVSLALKSGNFGDESFFIRAQREFQV 420
                                     9        19        29        39        49        59        69        79        89        99       109       119       129       139       149       159       169       179       189       199       209       219       229       239  |    249       259       269       279       289       299       309       319       329       339       349       359       369       379       389       399       409       419
                                                                                                                                                                                                                                                                         239  |
                                                                                                                                                                                                                                                                            242


Chain B from PDB  Type:PROTEIN  Length:412
 aligned with OTNK_SALTY | Q8ZMG5 from UniProtKB/Swiss-Prot  Length:420

    Alignment length:419
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410
           OTNK_SALTY     1 MLKIGVIADDFTGATDIASFLVENGMPTVQINDVPTGTQPEGCDAVVISLKTRSCPAQEAIKQSLAALVWLKKQGCQQVYFKYCSTFDSTAEGNIGPVTDALMVALDTSFTVISPALPVNGRTVYQGYLFVMNHLLAESGMRHHPINPMTDSYLPRLMEAQAQGRCGVIPAQTLDEGVAATRAALSRLQQEGYRYAVLDALNERHLEIQGEVLRDAPLVTGGSGLAMGLARQWAKHGVSQARSAGYPLSGRAVVLSGSCSQMTNQQVAFYRQHAPTRDVDVARCLSSETREAYAEALAQWVLSQDSELAPMISATASTQALAAIQQQYGATEASHAVEALFSLLAARLAEGGITRFIVAGGETSGVVTQSLGITGFHIGPCISPGVPWVNALHAPVSLALKSGNFGDESFFIRAQREFQ 419
               SCOP domains d3dqqb_ B: automated matches                                                                                                                                                                                                                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeeee.hhhhhhhhhhhhhh....eeeee............eeeee......hhhhhhhhhhhhhhhhhhh....eeee...........hhhhhhhhhhhhhh...eeee..hhhh.eeee..eeee..ee.hhhhhhhh........hhhhhhhhhh...eeeehhhhhhhhhhhhhhhhhhhhhh...eeee...hhhhhhhhhhhh....eeee.hhhhhhhhhhhhh-------.........eeeee...hhhhhhhhhhhhhh..eee.hhhhhhhhhhhhhhhhhhhhhhhh.......eee...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...eeeeehhhhhhhhhhhhh..eeeeeeeee..eeeeee.....eeeee.......hhhhhhhhh.. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3dqq B   1 MLKIGVIADDFTGATDIASFLVENGMPTVQINDVPTGTQPEGCDAVVISLKTRSCPAQEAIKQSLAALVWLKKQGCQQVYFKYCSTFDSTAEGNIGPVTDALMVALDTSFTVISPALPVNGRTVYQGYLFVMNHLLAESGMRHHPINPMTDSYLPRLMEAQAQGRCGVIPAQTLDEGVAATRAALSRLQQEGYRYAVLDALNERHLEIQGEVLRDAPLVTGGSGLAMGLARQWAK-------SAGYPLSGRAVVLSGSCSQMTNQQVAFYRQHAPTRDVDVARCLSSETREAYAEALAQWVLSQDSELAPMISATASTQALAAIQQQYGATEASHAVEALFSLLAARLAEGGITRFIVAGGETSGVVTQSLGITGFHIGPCISPGVPWVNALHAPVSLALKSGNFGDESFFIRAQREFQ 419
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230    |    -  |    250       260       270       280       290       300       310       320       330       340       350       360       370       380       390       400       410
                                                                                                                                                                                                                                                                    235     243
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 2)

Asymmetric Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3DQQ)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3DQQ)

(-) Gene Ontology  (0, 0)

Asymmetric Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3DQQ)

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3dqq)

  Sites
(no "Sites" information available for 3dqq)

  Cis Peptide Bonds
    Gly A:93 - Asn A:94   [ RasMol ]
    Gly B:93 - Asn B:94   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

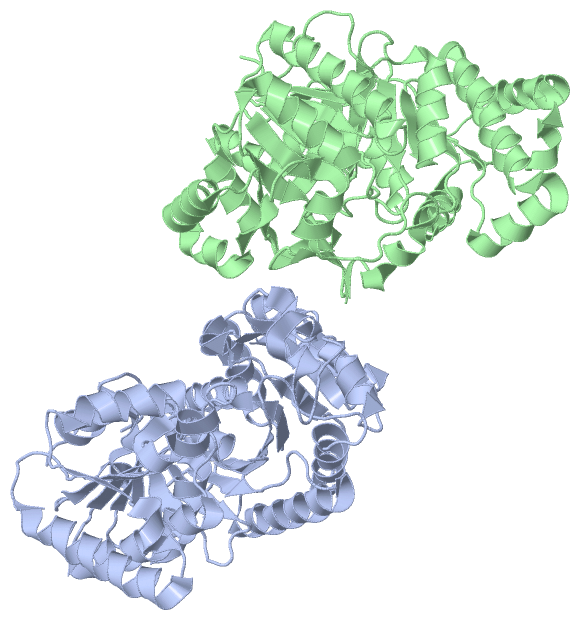

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

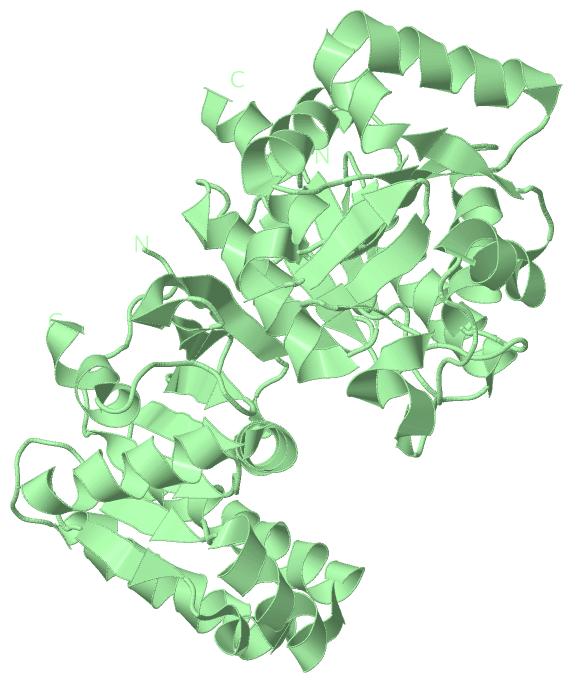

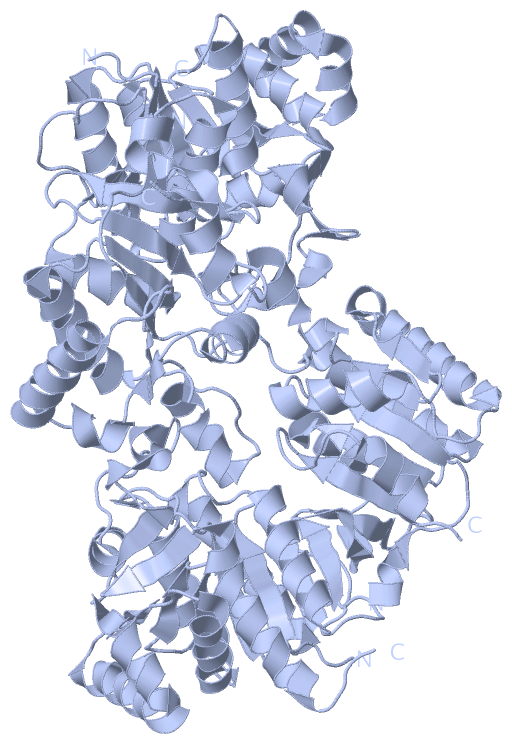

[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3dqq
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  OTNK_SALTY | Q8ZMG5
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  OTNK_SALTY | Q8ZMG5
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

(no "Entries Sharing at Least One Protein Chain" available for 3DQQ)

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3DQQ)
