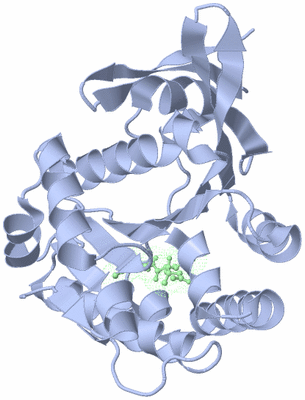

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF UNCHARACTERIZED PROTEIN PH0321 FROM PYROCOCCUS HORIKOSHII IN COMPLEX WITH AN UNKNOWN PEPTIDE

Authors :  J. B. Bonanno, J. Freeman, K. T. Bain, S. Hu, R. Romero, D. Smith, S. Wasse J. M. Sauder, S. K. Burley, S. C. Almo, New York Sgx Research Center Structural Genomics (Nysgxrc)
Date :  21 Dec 07  (Deposition) - 15 Jan 08  (Release) - 13 Jul 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.60
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Structural Genomics, Unknown Function, Psi-2, Protein Structure Initiative, New York Sgx Research Center For Structural Genomics, Nysgxrc (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. B. Bonanno, J. Freeman, K. T. Bain, S. Hu, R. Romero, D. Smith, S. Wasserman, J. M. Sauder, S. K. Burley, S. C. Almo
Crystal Structure Of Uncharacterized Protein Ph0321 From Pyrococcus Horikoshii In Complex With An Unknown Peptide.
To Be Published
PubMed: search

(-) Compounds

Molecule 1 - UNCHARACTERIZED PROTEIN PH0321
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI BL21(DE3)
    Expression System Plasmid: MODIFIED PET26
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 469008
    Expression System Vector: PET
    Expression System Vector Type: PLASMID
    Gene: PH0321
    Organism Scientific: PYROCOCCUS HORIKOSHII
    Organism Taxid: 70601
    Strain: OT3

Molecule 2 - UNKNOWN PEPTIDE
    Chains: B
    Engineered: YES
    Other Details: UNKNOWN PEPTIDE
    Synthetic: YES

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3BS4)

(-) Sites  (0, 0)

(no "Site" information available for 3BS4)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3BS4)

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Ile A:145 -Ser A:146

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3BS4)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3BS4)

(-) Exons   (0, 0)

(no "Exon" information available for 3BS4)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:245
 aligned with O58059_PYRHO | O58059 from UniProtKB/TrEMBL  Length:253

    Alignment length:253
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
         O58059_PYRHO     1 MISWEIEELDREIGKIKKHSLILIHEEDASSRGKDILFYILSRKLKSDNLVGMFSISYPLQLIIRILSRFGVDVIKYLENHRLAIVDTFGSFHGIKATMPGVWYLEGMLSSETLPIKYAKAVEDHKKVWMDLNLFEGRELYGFAISMSGYLEVFTPEETLRYLETSAEVRYGHPAYKKYPRGTNFWLWEGVKDKRVLLSVYRRADYVLKTRSSLGENGIKRELLVIKTPKPIEELVRFEYEFKGNEPKLRRVD 253
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains 3bs4A00 A:1-253 P-loop containing nucleotide triphosphate hydrolases                                                                                                                                                                                          CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....hhhhhhhhh......eeeeee.hhhhhhhhhhhhhhhhhhhh..eeeeee...hhhhhhhhhhhh..hhhhhhhh..eeeehhhhhhhh.---...ee.........hhhhhhhhhhhhhhhhhhhh.......eeeeeehhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh....eeeeeee...hhhhhhhhhhhh.eeeeeeeeee..eeeeeeeeee...-----.eeeeeee..eeeeee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3bs4 A   1 SLSWEIEELDREIGKIKKHSLILIHEEDASSRGKDILFYILSRKLKSDNLVGMFSISYPLQLIIRILSRFGVDVIKYLENHRLAIVDTFGSFHGI---MPGVWYLEGMLSSETLPIKYAKAVEDHKKVWMDLNLFEGRELYGFAISMSGYLEVFTPEETLRYLETSAEVRYGHPAYKKYPRGTNFWLWEGVKDKRVLLSVYRRADYVLKTRSSLGENGIKRELLVIKTPK-----VRFEYEFKGNEPKLRREG 253
                                    10        20        30        40        50        60        70        80        90    |  100       110       120       130       140       150       160       170       180       190       200       210       220       230     | 240       250
                                                                                                                         95  99                                                                                                                                230   236


Chain B from PDB  Type:PROTEIN  Length:3

               SCOP domains --- SCOP domains
               CATH domains --- CATH domains
               Pfam domains --- Pfam domains
         Sec.struct. author ... Sec.struct. author
                 SAPs(SNPs) --- SAPs(SNPs)
                    PROSITE --- PROSITE
                 Transcript --- Transcript
                 3bs4 B   1 NIF   3
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3BS4)

(-) CATH Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3BS4)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3BS4)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3bs4)

  Sites
(no "Sites" information available for 3bs4)

  Cis Peptide Bonds
    Ile A:145 - Ser A:146   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
