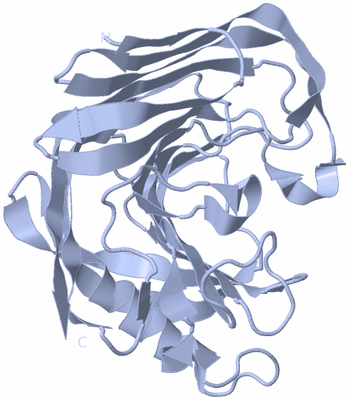

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF CELLULASE 12A FROM THERMOTOGA MARITIMA

Authors :  Y. -S. Cheng, T. -P. Ko, J. -R. Liu, R. -T. Guo
Date :  20 Aug 10  (Deposition) - 16 Mar 11  (Release) - 29 Jan 14  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.09
Chains :  Asym. Unit :  A,B
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Keywords :  Beta Jellyroll, Glucanase, Cellulose, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Y. -S. Cheng, T. -P. Ko, T. -H. Wu, Y. Ma, C. -H. Huang, H. -L. Lai, A. H. -J. Wang, J. -R. Liu, R. -T. Guo
Crystal Structure And Substrate-Binding Mode Of Cellulase 12A From Thermotoga Maritima
Proteins V. 79 1193 2011
PubMed-ID: 21268113  |  Reference-DOI: 10.1002/PROT.22953

(-) Compounds

Molecule 1 - ENDO-1,4-BETA-GLUCANASE
    Chains: A, B
    EC Number: 3.2.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET16B
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: CELA
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336
    Synonym: CELLULASE 12A

 Structural Features

(-) Chains, Units

  12
Asymmetric Unit : AB
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3AMH)

(-) Sites  (0, 0)

(no "Site" information available for 3AMH)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3AMH)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric Unit
No.Residues
1Leu A:85 -Pro A:86
2Leu B:85 -Pro B:86

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3AMH)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3AMH)

(-) Exons   (0, 0)

(no "Exon" information available for 3AMH)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:256
 aligned with Q60032_THEMT | Q60032 from UniProtKB/TrEMBL  Length:257

    Alignment length:256
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250
         Q60032_THEMT     1 MVLMTKPGTSDFVWNGIPLSMELNLWNIKEYSGSVAMKFDGEKITFDADIQNLSPKEPERYVLGYPEFYYGYKPWENHTAEGSKLPVPVSSMKSFSVEVSFDIHHEPSLPLNFAMETWLTREKYQTEASIGDVEIMVWFYFNNLTPGGEKIEEFTIPFVLNGESVEGTWELWLAEWGWDYLAFRLKDPVKKGRVKFDVRHFLDAAGKALSSSARVKDFEDLYFTVWEIGTEFGSPETKSAQFGWKFENFSIDLEVR 256
               SCOP domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eee...eeeeeee..eeeeeee....eeeeeeeeeeee...eeeeeeeeeeeee.hhhhh.....eeeee.hhhhh.........ee...eeeeeeeeeeeeee.....eeeeeeeeee............eeeeeeeeee......eeeeeeeeeeee..eeeeeeeeeeeee...eeeeeee.....eeeeeeehhhhhhhhhhhh.......hhhh.ee.eeeee..........eeeeeeeeeeeeeeee. Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3amh A   1 MVLMTKPGTSDFVWNGIPLSMELNLWNIKEYSGSVAMKFDGEKITFDADIQNLSPKEPERYVLGYPEFYYGYKPWENHTAEGSKLPVPVSSMKSFSVEVSFDIHHEPSLPLNFAMETWLTREKYQTEASIGDVEIMVWFYFNNLTPGGEKIEEFTIPFVLNGESVEGTWELWLAEWGWDYLAFRLKDPVKKGRVKFDVRHFLDAAGKALSSSARVKDFEDLYFTVWEIGTEFGSPETKSAQFGWKFENFSIDLEVR 256
                                    10        20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250


Chain B from PDB  Type:PROTEIN  Length:261
 aligned with Q60032_THEMT | Q60032 from UniProtKB/TrEMBL  Length:257

    Alignment length:261
                                1
                                |    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256
         Q60032_THEMT     - ----MVLMTKPGTSDFVWNGIPLSMELNLWNIKEYSGSVAMKFDGEKITFDADIQNLSPKEPERYVLGYPEFYYGYKPWENHTAEGSKLPVPVSSMKSFSVEVSFDIHHEPSLPLNFAMETWLTREKYQTEASIGDVEIMVWFYFNNLTPGGEKIEEFTIPFVLNGESVEGTWELWLAEWGWDYLAFRLKDPVKKGRVKFDVRHFLDAAGKALSSSARVKDFEDLYFTVWEIGTEFGSPETKSAQFGWKFENFSIDLEVRE 257
               SCOP domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .....eee...eeeeeee..eeeeeee....eeeeeeeeeeee....eeeeeeeeeeee.hhhhh.....eeeee.hhhhh.........ee...eeeeeeeeeeeeee.....eeeeeeeeee............eeeeeeeeee......eeeeeeeeeeee..eeeeeeeeeeeee...eeeeeee.....eeeeeeehhhhhhhhhhhhh......hhhh.ee.eeeee..........eeeeeeeeeeeeeeee.. Sec.struct. author
                 SAPs(SNPs) --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3amh B  -4 HHHHMVLMTKPGTSDFVWNGIPLSMELNLWNIKEYSGSVAMKFDGEKITFDADIQNLSPKEPERYVLGYPEFYYGYKPWENHTAEGSKLPVPVSSMKSFSVEVSFDIHHEPSLPLNFAMETWLTREKYQTEASIGDVEIMVWFYFNNLTPGGEKIEEFTIPFVLNGESVEGTWELWLAEWGWDYLAFRLKDPVKKGRVKFDVRHFLDAAGKALSSSARVKDFEDLYFTVWEIGTEFGSPETKSAQFGWKFENFSIDLEVRE 257
                               ||    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226       236       246       256
                              -1|
                                1
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3AMH)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3AMH)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3AMH)

(-) Gene Ontology  (7, 7)

Asymmetric Unit(hide GO term definitions)
Chain A,B   (Q60032_THEMT | Q60032)
molecular function
    GO:0008810    cellulase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-glucosidic linkages in cellulose, lichenin and cereal beta-D-glucans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3amh)

  Sites
(no "Sites" information available for 3amh)

  Cis Peptide Bonds
    Leu A:85 - Pro A:86   [ RasMol ]
    Leu B:85 - Pro B:86   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3amh
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  Q60032_THEMT | Q60032
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/TrEMBL

Access by Enzyme Classificator   (EC Number)
  3.2.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  Q60032_THEMT | Q60032
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/TrEMBL
        Q60032_THEMT | Q60032: 3amm 3amn 3amp 3amq 3vhn 3vho 3vhp

(-) Related Entries Specified in the PDB File

3amm WILD-TYPE PROTEIN CELLOTETRAOSE COMPLEX
3amn E134C MUTANT CRYSTAL SOAKED WITH CELLOBIOSE
3amp E134C MUTANT CRYSTAL SOAKED WITH CELLOTETRAOSE
3amq E134C MUTANT CELLOBIOSE CO-CRYSTAL
