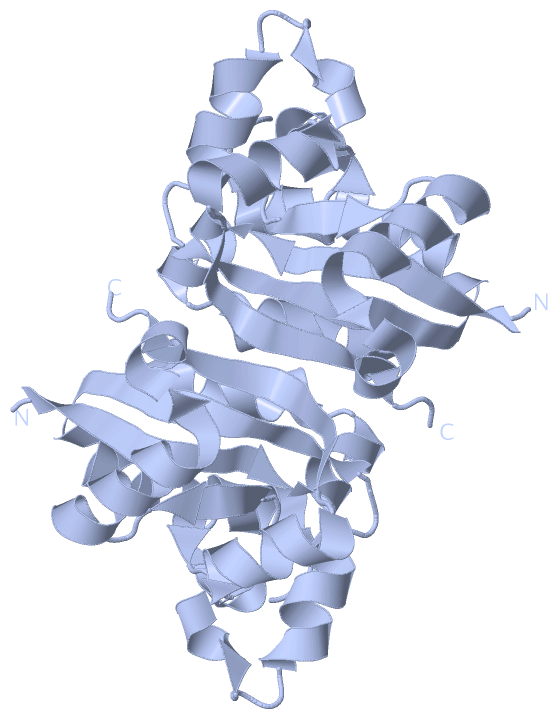

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)
Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)
Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

(-) Description

Title :  WILD-TYPE NUCLEOSIDE DIPHOSPHATE KINASE DERIVED FROM HALOMONAS SP. 593

Authors :  N. Okazaki, Y. Yonezawa, S. Arai, F. Matsumoto, T. Tamada, H. Tokunaga, M. Ishibashi, M. Tokunaga, R. Kuroki
Date :  21 Aug 11  (Deposition) - 11 Jul 12  (Release) - 11 Jul 12  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.70
Chains :  Asym. Unit :  A,B,C,D,E
Biol. Unit 1:  A  (2x)
Biol. Unit 2:  B,C  (1x)
Biol. Unit 3:  D,E  (1x)
Keywords :  Halophilic, Kinase, Ferredoxin Fold, Atp-Binding, Nucleotide-Binding, Transferase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  S. Arai, Y. Yonezawa, N. Okazaki, F. Matsumoto, T. Tamada, H. Tokunaga M. Ishibashi, M. Blaber, M. Tokunaga, R. Kuroki
A Structural Mechanism For Dimeric To Tetrameric Oligomer Conversion In Halomonas Sp. Nucleoside Diphosphate Kinase
Protein Sci. V. 21 498 2012
PubMed-ID: 22275000  |  Reference-DOI: 10.1002/PRO.2032

(-) Compounds

Molecule 1 - NUCLEOSIDE DIPHOSPHATE KINASE
    Chains: A, B, C, D, E
    EC Number: 2.7.4.6
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PET
    Expression System Strain: BL21(DE3)
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: NDK
    Organism Scientific: HALOMONAS
    Organism Taxid: 195704
    Strain: 593
    Synonym: NDK, NDP KINASE, NUCLEOSIDE-2-P KINASE

 Structural Features

(-) Chains, Units

  12345
Asymmetric Unit : ABCDE
Biological Unit 1 (2x): A
Biological Unit 2 (1x):  BC
Biological Unit 3 (1x):    DE

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3VGT)

(-) Sites  (0, 0)

(no "Site" information available for 3VGT)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3VGT)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3VGT)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3VGT)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3VGT)

(-) Exons   (0, 0)

(no "Exon" information available for 3VGT)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:140
 aligned with Q83WH5_9GAMM | Q83WH5 from UniProtKB/TrEMBL  Length:141

    Alignment length:140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q83WH5_9GAMM     2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhhh.hhhhhhhhhhhh..eeeeeeeee.hhhhhhhhhhhhh...hhhhhhhhh...eeeeeeeeeehhhhhhhhhhh..hhhhh...hhhhhhh.......eee..hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3vgt A   2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain B from PDB  Type:PROTEIN  Length:140
 aligned with Q83WH5_9GAMM | Q83WH5 from UniProtKB/TrEMBL  Length:141

    Alignment length:140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q83WH5_9GAMM     2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhhh.hhhhhhhhhhhh..eeeeeeee..hhhhhhhhhhhhh...hhhhhhhhhh...eeeeeeeeehhhhhhhhhhh..hhhhh...hhhhhhh.......eee..hhhhhhhhhhh..hhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3vgt B   2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain C from PDB  Type:PROTEIN  Length:140
 aligned with Q83WH5_9GAMM | Q83WH5 from UniProtKB/TrEMBL  Length:141

    Alignment length:140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q83WH5_9GAMM     2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhhh.hhhhhhhhhhhh..eeeeeeee..hhhhhhhhhhhhh...hhhhhhhhhh...eeeeeeeeehhhhhhhhhhh..........hhhhhhh............hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3vgt C   2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain D from PDB  Type:PROTEIN  Length:140
 aligned with Q83WH5_9GAMM | Q83WH5 from UniProtKB/TrEMBL  Length:141

    Alignment length:140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q83WH5_9GAMM     2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhh..hhhhhhhhhhhh..eeeeeeee..hhhhhhhhhhhhh...hhhhhhhhhhh..eeeeeeeeehhhhhhhhhhh..hhhhh...hhhhhhh.......eee..hhhhhhhhhhhhh........ Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3vgt D   2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141


Chain E from PDB  Type:PROTEIN  Length:140
 aligned with Q83WH5_9GAMM | Q83WH5 from UniProtKB/TrEMBL  Length:141

    Alignment length:140
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
         Q83WH5_9GAMM     2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .eeeeeeeehhhhhhh.hhhhhhhhhhh...eeeeeeee..hhhhhhhhhhhhh...hhhhhhhhhh...eeeeeeeeehhhhhhhhhhh..hhhhh...hhhhhhh............hhhhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3vgt E   2 ATERTLSIIKPDAVAKNVIGEIESRFEKAGLKIVAAKMLQLSQEQAEGFYAEHKERPFFGDLVGFMTSGPVVVQVLEGENAIAANRDLMGATNPKEAEAGTIRADYAQSIDANAVHGSDSPESAAREIAYFFEESEICSR 141
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3VGT)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3VGT)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3VGT)

(-) Gene Ontology  (13, 13)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D,E   (Q83WH5_9GAMM | Q83WH5)
molecular function
    GO:0005524    ATP binding    Interacting selectively and non-covalently with ATP, adenosine 5'-triphosphate, a universally important coenzyme and enzyme regulator.
    GO:0016301    kinase activity    Catalysis of the transfer of a phosphate group, usually from ATP, to a substrate molecule.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0004550    nucleoside diphosphate kinase activity    Catalysis of the reaction: ATP + nucleoside diphosphate = ADP + nucleoside triphosphate.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
    GO:0016740    transferase activity    Catalysis of the transfer of a group, e.g. a methyl group, glycosyl group, acyl group, phosphorus-containing, or other groups, from one compound (generally regarded as the donor) to another compound (generally regarded as the acceptor). Transferase is the systematic name for any enzyme of EC class 2.
biological process
    GO:0006241    CTP biosynthetic process    The chemical reactions and pathways resulting in the formation of CTP, cytidine 5'-triphosphate.
    GO:0006183    GTP biosynthetic process    The chemical reactions and pathways resulting in the formation of GTP, guanosine triphosphate.
    GO:0006228    UTP biosynthetic process    The chemical reactions and pathways resulting in the formation of UTP, uridine (5'-)triphosphate.
    GO:0006165    nucleoside diphosphate phosphorylation    The process of introducing a phosphate group into a nucleoside diphosphate to produce a nucleoside triphosphate.
    GO:0009117    nucleotide metabolic process    The chemical reactions and pathways involving a nucleotide, a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the glycose moiety; may be mono-, di- or triphosphate; this definition includes cyclic nucleotides (nucleoside cyclic phosphates).
    GO:0016310    phosphorylation    The process of introducing a phosphate group into a molecule, usually with the formation of a phosphoric ester, a phosphoric anhydride or a phosphoric amide.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
