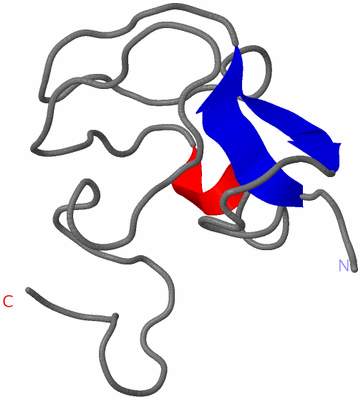

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

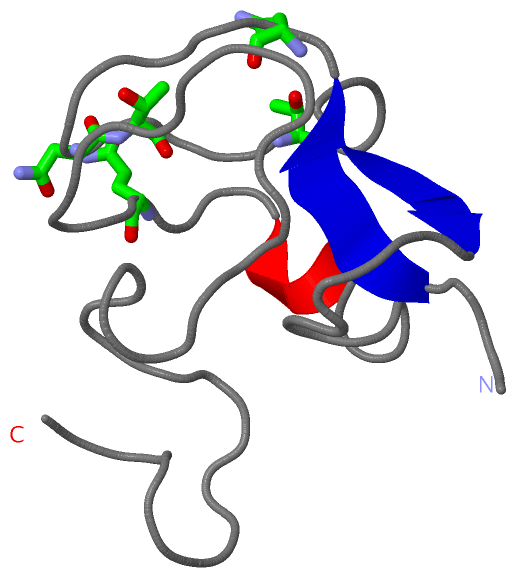

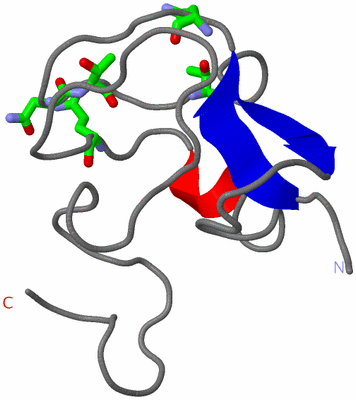

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

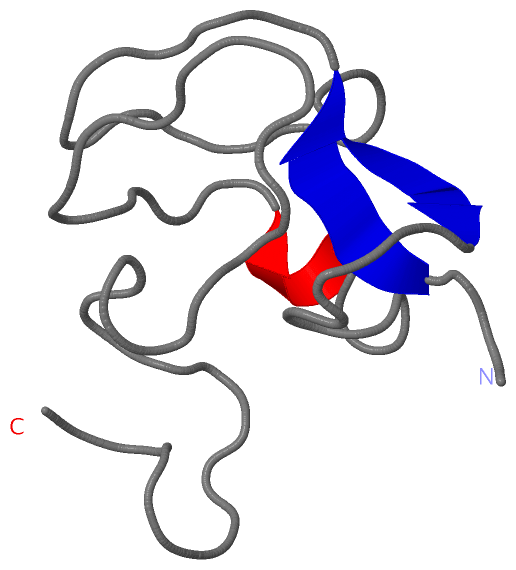

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE N-TERMINAL DOMAIN WITH A LINKER PORTION OF ANTARCTIC EEL POUT ANTIFREEZE PROTEIN RD3, MINIMIZED AVERAGE STRUCTURE

Authors :  K. Miura, S. Ohgiya, T. Hoshino, N. Nemoto, K. Hikichi, S. Tsuda
Date :  24 Feb 98  (Deposition) - 23 Feb 99  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A
Keywords :  Antifreeze Protein, Thermal Hysteresis Protein, Ice Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Jia, C. I. Deluca, H. Chao, P. L. Davies
Structural Basis For The Binding Of A Globular Antifreeze Protein To Ice.
Nature V. 384 285 1996
PubMed-ID: 8918883  |  Reference-DOI: 10.1038/384285A0
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ANTIFREEZE PROTEIN RD3 TYPE III
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKK223-3UC
    Expression System Strain: JM105
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: N-TERMINAL DOMAIN WITH A LINKER PORTION
    Organ: BLOOD
    Organism Common: ANTARCTIC EEL POUT
    Organism Scientific: LYCODICHTHYS DEARBORNI
    Organism Taxid: 8201
    Synonym: RD3-NL
    Tissue: BLOOD PLASMA
    Variant: RD3

 Structural Features

(-) Chains, Units


NMR Structure :

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3RDN)

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
11UNKNOWNGLN A:9 , ASN A:14 , THR A:15 , THR A:18 , GLN A:44ICE BINDING SITE.

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3RDN)

(-) Cis Peptide Bonds  (1, 1)

NMR Structure
No.Residues
1Thr A:28 -Pro A:29

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3RDN)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1AFP_LIKEPS50844 Antifreeze protein-like domain profile.ANP3_LYCDA4-63
74-133		  1A:4-63
-

(-) Exons   (0, 0)

(no "Exon" information available for 3RDN)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:73
 aligned with ANP3_LYCDA | P35753 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:73
                                    10        20        30        40        50        60        70
            ANP3_LYCDA    1 NKASVVANQLIPINTALTLIMMKAEVVTPMGIPAEEIPNLVGMQVNRAVPLGTTLMPDMVKNYEDGTTSPGLK 73
               SCOP domains d3rdna_ A: Type III antifreeze protein, AFP III                           SCOP domains
               CATH domains 3rdnA00 A:1-73 Type Iii Antifreeze Protein Isoform Hplc 12                CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee..............eeee...........hhhh................................. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---AFP_LIKE  PDB: A:4-63 UniProt: 4-63                         ---------- PROSITE
                 Transcript ------------------------------------------------------------------------- Transcript
                  3rdn A  1 NKASVVANQLIPINTALTLIMMKAEVVTPMGIPAEEIPNLVGMQVNRAVPLGTTLMPDMVKNYEDGTTSPGLK 73
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3RDN)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (ANP3_LYCDA | P35753)
biological process
    GO:0050826    response to freezing    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a freezing stimulus, temperatures below 0 degrees Celsius.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
