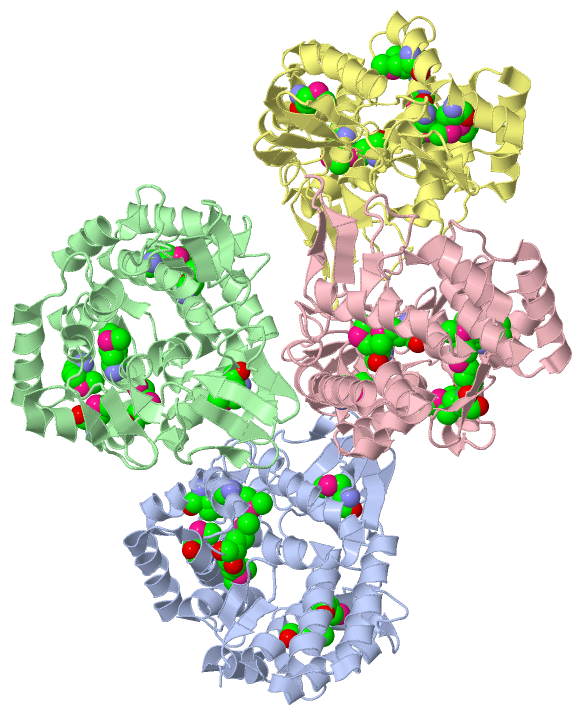

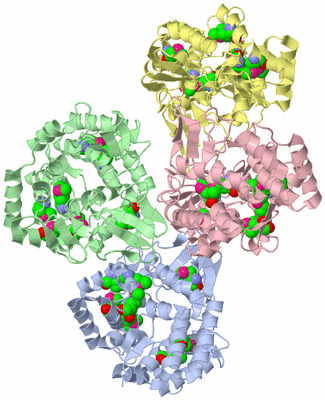

Image Asymmetric Unit
Asymmetric Unit  (Jmol Viewer)

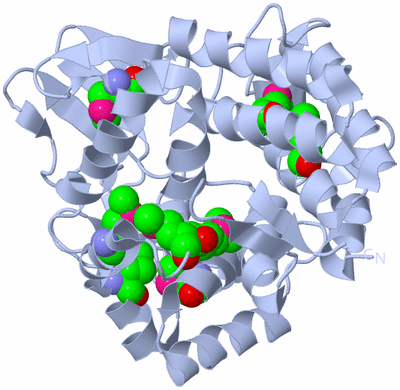

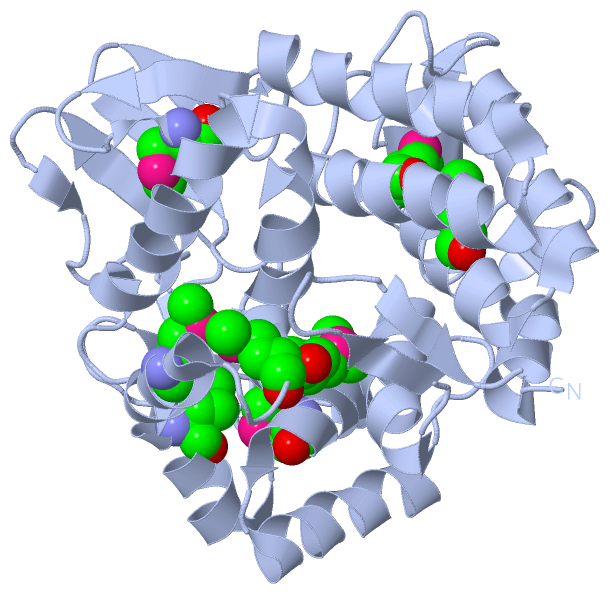

Image Biological Unit 1
Biological Unit 1  (Jmol Viewer)

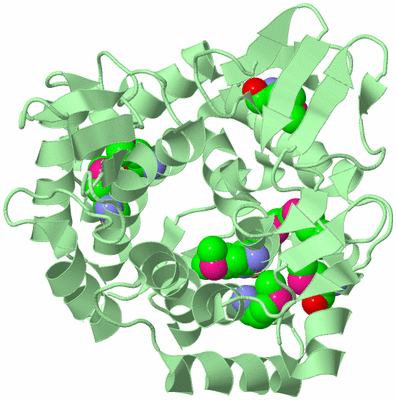

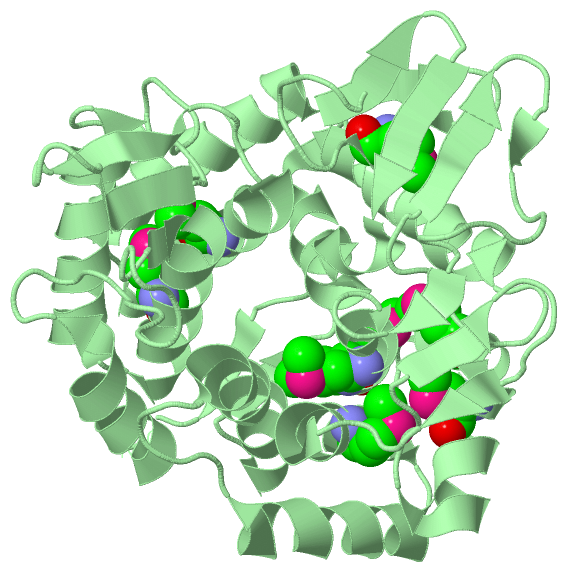

Image Biological Unit 2
Biological Unit 2  (Jmol Viewer)

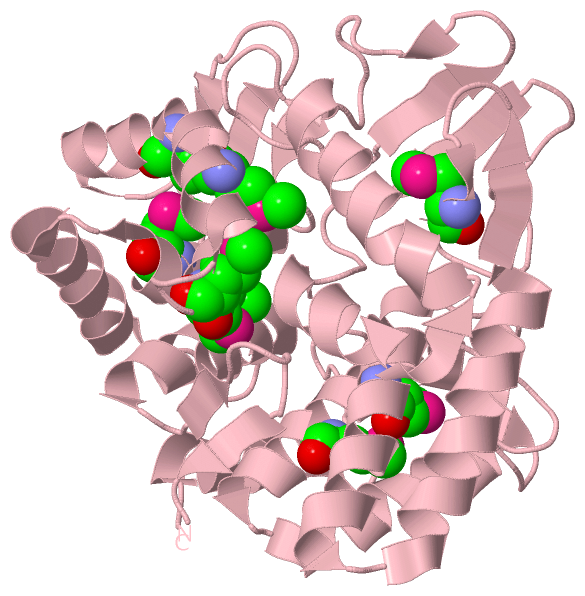

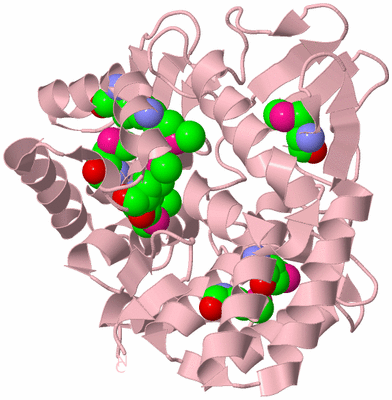

Image Biological Unit 3
Biological Unit 3  (Jmol Viewer)

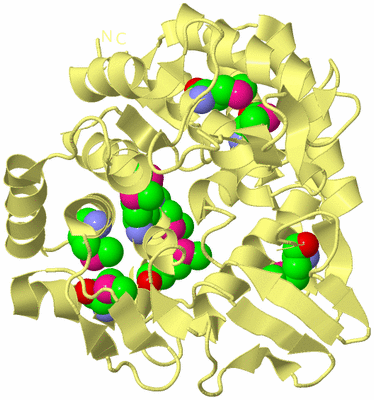

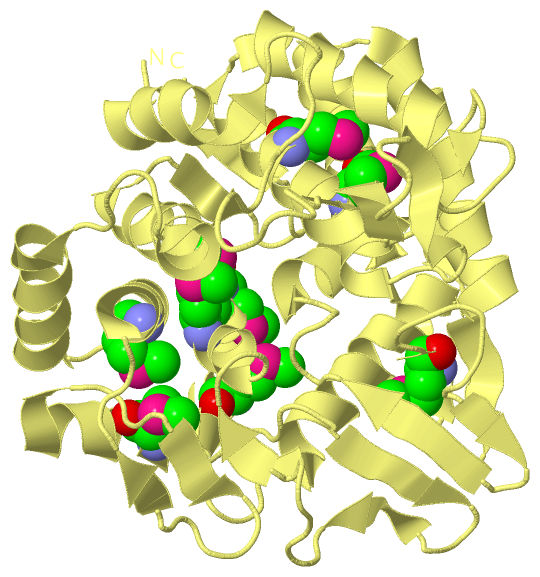

Image Biological Unit 4
Biological Unit 4  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF THE BACTERIAL CELLULOSE SYNTHASE SUBUNIT Z

Authors :  J. Zimmer
Date :  01 Mar 11  (Deposition) - 30 Mar 11  (Release) - 10 Aug 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.85
Chains :  Asym. Unit :  A,B,C,D
Biol. Unit 1:  A  (1x)
Biol. Unit 2:  B  (1x)
Biol. Unit 3:  C  (1x)
Biol. Unit 4:  D  (1x)
Keywords :  Cellulase, Gh8, Cellulose Synthesis, Cellulose Degradation, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  O. Mazur, J. Zimmer
Apo- And Cellopentaose-Bound Structures Of The Bacterial Cellulose Synthase Subunit Bcsz.
J. Biol. Chem. V. 286 17601 2011
PubMed-ID: 21454578  |  Reference-DOI: 10.1074/JBC.M111.227660

(-) Compounds

Molecule 1 - ENDOGLUCANASE
    Chains: A, B, C, D
    EC Number: 3.2.1.4
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Taxid: 562
    Gene: BCSZ, BCSC, YHJM, B3531, JW3499
    Organism Scientific: ESCHERICHIA COLI K-12
    Organism Taxid: 83333
    Strain: K12
    Synonym: CARBOXYMETHYLCELLULASE, CMCASE, CELLULASE, ENDO-1,4-BETA- GLUCANASE

 Structural Features

(-) Chains, Units

  1234
Asymmetric Unit : ABCD
Biological Unit 1 (1x): A
Biological Unit 2 (1x):  B
Biological Unit 3 (1x):   C
Biological Unit 4 (1x):    D

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 36)

Asymmetric Unit (1, 36)
No.NameCountTypeFull Name
1MSE36Mod. Amino AcidSELENOMETHIONINE
Biological Unit 1 (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE
Biological Unit 2 (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE
Biological Unit 3 (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE
Biological Unit 4 (1, 9)
No.NameCountTypeFull Name
1MSE9Mod. Amino AcidSELENOMETHIONINE

(-) Sites  (0, 0)

(no "Site" information available for 3QXF)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3QXF)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric Unit
No.Residues
1Ala A:196 -Pro A:197
2Ala B:196 -Pro B:197
3Ala C:196 -Pro C:197
4Ala D:196 -Pro D:197

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QXF)

(-) PROSITE Motifs  (1, 4)

Asymmetric Unit (1, 4)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F8PS00812 Glycosyl hydrolases family 8 signature.GUN_ECOLI114-132


 		  4A:114-132
B:114-132
C:114-132
D:114-132
Biological Unit 1 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F8PS00812 Glycosyl hydrolases family 8 signature.GUN_ECOLI114-132


 		  1A:114-132
-
-
-
Biological Unit 2 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F8PS00812 Glycosyl hydrolases family 8 signature.GUN_ECOLI114-132


 		  1-
B:114-132
-
-
Biological Unit 3 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F8PS00812 Glycosyl hydrolases family 8 signature.GUN_ECOLI114-132


 		  1-
-
C:114-132
-
Biological Unit 4 (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1GLYCOSYL_HYDROL_F8PS00812 Glycosyl hydrolases family 8 signature.GUN_ECOLI114-132


 		  1-
-
-
D:114-132

(-) Exons   (0, 0)

(no "Exon" information available for 3QXF)

(-) Sequences/Alignments

Asymmetric Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:337
 aligned with GUN_ECOLI | P37651 from UniProtKB/Swiss-Prot  Length:368

    Alignment length:337
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353
            GUN_ECOLI    24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGMFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWMAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSMLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYMWVGMMPDSDPQKARMLNRFKPMATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAMLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...............eehhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...........eeee.....eeeee...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhheeee...eeee.......ee..eeee.....hhhhhhhhhhhh.hhhhhhhhhhhhhhhh.........eeee...ee........ee...hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh....eee.....ee...hhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..eee.....eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------GLYCOSYL_HYDROL_F8 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxf A  24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGmFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWmAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSmLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYmWVGmmPDSDPQKARmLNRFKPmATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAmLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
                                    33        43        53       |63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243     | 253|      263|      273       283       293       303|      313       323       333       343       353
                                                                61-MSE                                                     121-MSE                                  162-MSE                                                                                249-MSE|       264-MSE  |                              304-MSE
                                                                                                                                                                                                                                                               253-MSE           271-MSE
                                                                                                                                                                                                                                                                254-MSE


Chain B from PDB  Type:PROTEIN  Length:337
 aligned with GUN_ECOLI | P37651 from UniProtKB/Swiss-Prot  Length:368

    Alignment length:337
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353
            GUN_ECOLI    24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGMFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWMAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSMLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYMWVGMMPDSDPQKARMLNRFKPMATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAMLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...............eehhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...........eeee.....eeeee...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhheeee...eeee.......ee..eeeehhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhh.........eeee...ee........ee...hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh....eee.....ee...hhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..eee.....eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------GLYCOSYL_HYDROL_F8 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxf B  24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGmFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWmAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSmLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYmWVGmmPDSDPQKARmLNRFKPmATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAmLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
                                    33        43        53       |63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243     | 253|      263|      273       283       293       303|      313       323       333       343       353
                                                                61-MSE                                                     121-MSE                                  162-MSE                                                                                249-MSE|       264-MSE  |                              304-MSE
                                                                                                                                                                                                                                                               253-MSE           271-MSE
                                                                                                                                                                                                                                                                254-MSE


Chain C from PDB  Type:PROTEIN  Length:337
 aligned with GUN_ECOLI | P37651 from UniProtKB/Swiss-Prot  Length:368

    Alignment length:337
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353
            GUN_ECOLI    24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGMFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWMAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSMLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYMWVGMMPDSDPQKARMLNRFKPMATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAMLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhh...............eehhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...........eeee.....eeeee...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhheeee...eeee...........eeee.....hhhhhhhhhhhh.hhhhhhhhhhhhhhhh.........eeee...ee........ee...hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh....eee.....ee...hhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..eee.....eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------GLYCOSYL_HYDROL_F8 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxf C  24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGmFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWmAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSmLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYmWVGmmPDSDPQKARmLNRFKPmATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAmLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
                                    33        43        53       |63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243     | 253|      263|      273       283       293       303|      313       323       333       343       353
                                                                61-MSE                                                     121-MSE                                  162-MSE                                                                                249-MSE|       264-MSE  |                              304-MSE
                                                                                                                                                                                                                                                               253-MSE           271-MSE
                                                                                                                                                                                                                                                                254-MSE


Chain D from PDB  Type:PROTEIN  Length:337
 aligned with GUN_ECOLI | P37651 from UniProtKB/Swiss-Prot  Length:368

    Alignment length:337
                                    33        43        53        63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243       253       263       273       283       293       303       313       323       333       343       353
            GUN_ECOLI    24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGMFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWMAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSMLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYMWVGMMPDSDPQKARMLNRFKPMATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAMLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Glyco_hydro_8-3qxfD01 D:24-346                                                                                                                                                                                                                                                                                                     -------------- Pfam domains (1)
           Pfam domains (2) Glyco_hydro_8-3qxfD02 D:24-346                                                                                                                                                                                                                                                                                                     -------------- Pfam domains (2)
           Pfam domains (3) Glyco_hydro_8-3qxfD03 D:24-346                                                                                                                                                                                                                                                                                                     -------------- Pfam domains (3)
           Pfam domains (4) Glyco_hydro_8-3qxfD04 D:24-346                                                                                                                                                                                                                                                                                                     -------------- Pfam domains (4)
         Sec.struct. author .hhhhhhhhhhhh...............eehhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhh...........eeee.....eeeee...hhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhheeee...eeee.......ee..eeee.....hhhhhhhhhhhh.hhhhhhhhhhhhhhhh.........eeee...eee.......ee...hhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhh....eee.....ee...hhhhhhhhhhhh.hhhhhhhhhhhhhhh.....hhhhhhhhhhhhhhhh..eee.....eee.. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------GLYCOSYL_HYDROL_F8 ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qxf D  24 TWPAWEQFKKDYISQEGRVIDPSDARKITTSEGQSYGmFSALAANDRAAFDNILDWTQNNLAQGSLKERLPAWLWGKKENSKWEVLDSNSASDGDVWmAWSLLEAGRLWKEQRYTDIGSALLKRIAREEVVTVPGLGSmLLPGKVGFAEDNSWRFNPSYLPPTLAQYFTRFGAPWTTLRETNQRLLLETAPKGFSPDWVRYEKDKGWQLKAEKTLISSYDAIRVYmWVGmmPDSDPQKARmLNRFKPmATFTEKNGYPPEKVDVATGKAQGKGPVGFSAAmLPFLQNRDAQAVQRQRVADNFPGSDAYYNYVLTLFGQGWDQHRFRFSTKGELLPDW 360
                                    33        43        53       |63        73        83        93       103       113       123       133       143       153       163       173       183       193       203       213       223       233       243     | 253|      263|      273       283       293       303|      313       323       333       343       353
                                                                61-MSE                                                     121-MSE                                  162-MSE                                                                                249-MSE|       264-MSE  |                              304-MSE
                                                                                                                                                                                                                                                               253-MSE           271-MSE
                                                                                                                                                                                                                                                                254-MSE
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QXF)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QXF)

(-) Pfam Domains  (1, 4)

Asymmetric Unit
(-)
Clan: 6_Hairpin (120)

(-) Gene Ontology  (10, 10)

Asymmetric Unit(hide GO term definitions)
Chain A,B,C,D   (GUN_ECOLI | P37651)
molecular function
    GO:0003824    catalytic activity    Catalysis of a biochemical reaction at physiological temperatures. In biologically catalyzed reactions, the reactants are known as substrates, and the catalysts are naturally occurring macromolecular substances known as enzymes. Enzymes possess specific binding sites for substrates, and are usually composed wholly or largely of protein, but RNA that has catalytic activity (ribozyme) is often also regarded as enzymatic.
    GO:0008810    cellulase activity    Catalysis of the endohydrolysis of (1->4)-beta-D-glucosidic linkages in cellulose, lichenin and cereal beta-D-glucans.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0016798    hydrolase activity, acting on glycosyl bonds    Catalysis of the hydrolysis of any glycosyl bond.
    GO:0004553    hydrolase activity, hydrolyzing O-glycosyl compounds    Catalysis of the hydrolysis of any O-glycosyl bond.
biological process
    GO:0005975    carbohydrate metabolic process    The chemical reactions and pathways involving carbohydrates, any of a group of organic compounds based of the general formula Cx(H2O)y. Includes the formation of carbohydrate derivatives by the addition of a carbohydrate residue to another molecule.
    GO:0030245    cellulose catabolic process    The chemical reactions and pathways resulting in the breakdown of cellulose, a linear beta1-4 glucan of molecular mass 50-400 kDa with the pyranose units in the -4C1 conformation.
    GO:0008152    metabolic process    The chemical reactions and pathways, including anabolism and catabolism, by which living organisms transform chemical substances. Metabolic processes typically transform small molecules, but also include macromolecular processes such as DNA repair and replication, and protein synthesis and degradation.
    GO:0000272    polysaccharide catabolic process    The chemical reactions and pathways resulting in the breakdown of a polysaccharide, a polymer of many (typically more than 10) monosaccharide residues linked glycosidically.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    MSE  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
(no "Sites" information available for 3qxf)

  Cis Peptide Bonds
    Ala A:196 - Pro A:197   [ RasMol ]
    Ala B:196 - Pro B:197   [ RasMol ]
    Ala C:196 - Pro C:197   [ RasMol ]
    Ala D:196 - Pro D:197   [ RasMol ]

Biological Units
  Complete Structure
    Biological Unit 1  [ Jena3D ]
    Biological Unit 2  [ Jena3D ]
    Biological Unit 3  [ Jena3D ]
    Biological Unit 4  [ Jena3D ]

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym. Unit PNG format | Biol. Unit 1 PNG format | Biol. Unit 2 PNG format | Biol. Unit 3 PNG format | Biol. Unit 4 PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3qxf
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  GUN_ECOLI | P37651
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.2.1.4
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  GUN_ECOLI | P37651
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        GUN_ECOLI | P37651: 3qxq

(-) Related Entries Specified in the PDB File

1wzz STRUCTURE OF ENDO-BETA-1,4-GLUCANASE CMCAX FROM ACETOBACTER XYLINUM
3qxq
