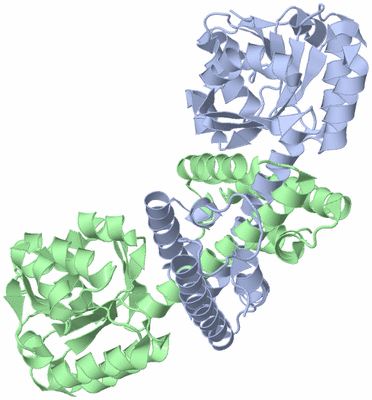

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF A PUTATIVE OXIDOREDUCTASE FROM MYCOBACTERIUM AVIUM 104

Authors :  Seattle Structural Genomics Center For Infectious Disease (S
Date :  25 Jan 11  (Deposition) - 09 Feb 11  (Release) - 22 Apr 15  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.25
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Seattle Structural Genomics Center For Infectious Disease, Ssgcid, Mycobacterium Avium 104, Rossmann Fold, Putative Oxidoreductase, Oxidoreductase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Baugh, I. Phan, D. W. Begley, M. C. Clifton, B. Armour, D. M. Dranow, B. M. Taylor, M. M. Muruthi, J. Abendroth, J. W. Fairman, D. Fox, S. H. Dieterich, B. L. Staker, A. S. Gardberg, R. Choi, S. N. Hewitt, A. J. Napuli, J. Myers, L. K. Barrett, Y. Zhang, M. Ferrell, E. Mundt, K. Thompkins, N. Tran, S. Lyons-Abbott, A. Abramov, A. Sekar, D. Serbzhinskiy, D. Lorimer, G. W. Buchko, R. Stacy, L. J. Stewart, T. E. Edwards, W. C. Van Voorhis, P. J. Myler
Increasing The Structural Coverage Of Tuberculosis Drug Targets.
Tuberculosis (Edinb) V. 95 142 2015
PubMed-ID: 25613812  |  Reference-DOI: 10.1016/J.TUBE.2014.12.003

(-) Compounds

Molecule 1 - PUTATIVE OXIDOREDUCTASE
    Chains: A, B
    EC Number: 1.1.-.-
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: AVA0241
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: A0QAQ2_MYCA1, MAV_0715
    Organism Scientific: MYCOBACTERIUM AVIUM
    Organism Taxid: 243243
    Strain: 104

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3QHA)

(-) Sites  (0, 0)

(no "Site" information available for 3QHA)

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3QHA)

(-) Cis Peptide Bonds  (2, 2)

Asymmetric/Biological Unit
No.Residues
1Ser A:128 -Gly A:129
2Ser B:128 -Gly B:129

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3QHA)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3QHA)

(-) Exons   (0, 0)

(no "Exon" information available for 3QHA)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:277
 aligned with A0A0H2ZSR3_M | A0A0H2ZSR3 from UniProtKB/TrEMBL  Length:292

    Alignment length:277
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
         A0A0H2ZSR3_M    11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPH 287
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhhh.....eeee......hhhhhhh..ee..hhhhhh...eeee...hhhhhhhhhhhhhh......eeee....hhhhhhhhhhhhhhhh.eeee..ee.hhhhhhhh.eeeeee.hhhhhhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qha A  11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPH 287
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain A from PDB  Type:PROTEIN  Length:277
 aligned with A0A0M3KKT9_M | A0A0M3KKT9 from UniProtKB/TrEMBL  Length:296

    Alignment length:277
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
         A0A0M3KKT9_M    15 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPH 291
               SCOP domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhhh.....eeee......hhhhhhh..ee..hhhhhh...eeee...hhhhhhhhhhhhhh......eeee....hhhhhhhhhhhhhhhh.eeee..ee.hhhhhhhh.eeeeee.hhhhhhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhh... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qha A  11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPH 287
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain B from PDB  Type:PROTEIN  Length:278
 aligned with A0A0H2ZSR3_M | A0A0H2ZSR3 from UniProtKB/TrEMBL  Length:292

    Alignment length:278
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
         A0A0H2ZSR3_M    11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPHK 288
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhhhhh...eeee..hhhhhhhhhh...ee..hhhhhh...eeee...hhhhhhhhhhhhhh......eeee....hhhhhhhhhhhhhhhh.eeee..ee.hhhhhhhh.eeeeee.hhhhhhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qha B  11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPHK 288
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280


Chain B from PDB  Type:PROTEIN  Length:278
 aligned with A0A0M3KKT9_M | A0A0M3KKT9 from UniProtKB/TrEMBL  Length:296

    Alignment length:278
                                    24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284
         A0A0M3KKT9_M    15 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPHK 292
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee....hhhhhhhhhhhh...eeee..hhhhhhhhhh...ee..hhhhhh...eeee...hhhhhhhhhhhhhh......eeee....hhhhhhhhhhhhhhhh.eeee..ee.hhhhhhhh.eeeeee.hhhhhhhhhhhhhhheeeeeeee..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhh.............hhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhh..... Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3qha B  11 QLKLGYIGLGNMGAPMATRMTEWPGGVTVYDIRIEAMTPLAEAGATLADSVADVAAADLIHITVLDDAQVREVVGELAGHAKPGTVIAIHSTISDTTAVELARDLKARDIHIVDAPVSGGAAAAARGELATMVGADREVYERIKPAFKHWAAVVIHAGEPGAGTRMKLARNMLTFTSYAAACEAMKLAEAAGLDLQALGRVVRHTDALTGGPGAIMVRDNMKDLEPDNFLYQPFLHTRGLGEKDLSLALALGEAVSVDLPLARLAYEGLAAGLGVPHK 288
                                    20        30        40        50        60        70        80        90       100       110       120       130       140       150       160       170       180       190       200       210       220       230       240       250       260       270       280
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3QHA)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3QHA)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3QHA)

(-) Gene Ontology  (0, 0)

Asymmetric/Biological Unit(hide GO term definitions)
    (no "Gene Ontology" information available for 3QHA)

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3qha)

  Sites
(no "Sites" information available for 3qha)

  Cis Peptide Bonds
    Ser A:128 - Gly A:129   [ RasMol ]
    Ser B:128 - Gly B:129   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
