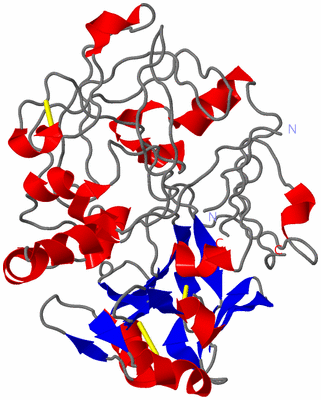

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

(-) Description

Title :  THE HIGH RESOLUTION CRYSTAL STRUCTURE OF PORCINE PEPSINOGEN

Authors :  J. A. Hartsuck, G. Koelsch, S. J. Remington
Date :  03 Sep 91  (Deposition) - 15 Jan 93  (Release) - 24 Feb 09  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  1.65
Chains :  Asym./Biol. Unit :  A
Keywords :  Hydrolase(Acid Proteinase Zymogen) (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  J. A. Hartsuck, G. Koelsch, S. J. Remington
The High-Resolution Crystal Structure Of Porcine Pepsinogen.
Proteins V. 13 1 1992
PubMed-ID: 1594574  |  Reference-DOI: 10.1002/PROT.340130102
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - PEPSINOGEN
    Chains: A
    Engineered: YES
    Organism Common: PIG
    Organism Scientific: SUS SCROFA
    Organism Taxid: 9823

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3PSG)

(-) Sites  (0, 0)

(no "Site" information available for 3PSG)

(-) SS Bonds  (3, 3)

Asymmetric/Biological Unit
No.Residues
1A:45 -A:50
2A:206 -A:210
3A:249 -A:282

(-) Cis Peptide Bonds  (1, 1)

Asymmetric/Biological Unit
No.Residues
1Thr A:22 -Pro A:23

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3PSG)

(-) PROSITE Motifs  (2, 3)

Asymmetric/Biological Unit (2, 3)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PEPTIDASE_A1PS51767 Peptidase family A1 domain profile.PEPA_PIG73-382  1A:14-323
2ASP_PROTEASEPS00141 Eukaryotic and viral aspartyl proteases active site.PEPA_PIG88-99
271-282		  2A:29-40
A:212-223

(-) Exons   (0, 0)

(no "Exon" information available for 3PSG)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:365
 aligned with PEPA_PIG | P00791 from UniProtKB/Swiss-Prot  Length:385

    Alignment length:370
                                    25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225       235       245       255       265       275       285       295       305       315       325       335       345       355       365       375       385
             PEPA_PIG    16 LVKVPLVRKKSLRQNLIKNGKLKDFLKTHKHNPASKYFPEAAALIGDEPLENYLDTEYFGTIGIGTPAQDFTVIFDTGSSNLWVPSVYCSSLACSDHNQFNPDDSSTFEATSQELSITYGTGSMTGILGYDTVQVGGISDTNQIFGLSETEPGSFLYYAPFDGILGLAYPSISASGATPVFDNLWDQGLVSQDLFSVYLSSNDDSGSVVLLGGIDSSYYTGSLNWVPVSVEGYWQITLDSITMDGETIACSGGCQAIVDTGTSLLTGPTSAIANIQSDIGASENSDGEMVISCSSIDSLPDIVFTINGVQYPLSPSAYILQDDDSCTSGFEGMDVPTSSGELWILGDVFIRQYYTVFDRANNKVGLAPVA 385
               SCOP domains d3psga_ A: Pepsin(ogen)                                                                                                                                                                                                                                                                                                                                                            SCOP domains
               CATH domains --------------------------------------------3psgA01 A:1-170 Acid Proteases                                                                                                                                            3psgA02 A:171-325 Acid Proteases                                                                                                                           - CATH domains
               Pfam domains ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..........hhhhhhhhh.hhhhhhhhh..hhhhhh............hhhhh....................................hhhhh.....hhhhh...............................................hhhhhhh.........hhhhhhhhh.hhhhhhhhh.............-----.........hhhh................eeee.eee....eee....eeeee......eeeehhhhhhhhhhh..ee.....ee.hhhhhhhh..eeeee..eeeeehhhhheee....eee.eeee........eeeehhhhhh................... Sec.struct. author
                 SAPs(SNPs) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (1) ---------------------------------------------------------PEPTIDASE_A1  PDB: A:14-323 UniProt: 73-382                                                                                                                                                                                                                                                                           --- PROSITE (1)
                PROSITE (2) ------------------------------------------------------------------------ASP_PROTEASE---------------------------------------------------------------------------------------------------------------------------------------------------------------------------ASP_PROTEASE------------------------------------------------------------------------------------------------------- PROSITE (2)
                 Transcript ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3psg A  1P LVKVPLVRKKSLRQNLIKDGKLKDFLKTHKHNPASKYFPEAAALIGDEPLENYLDTEYFGTIGIGTPAQDFTVIFDTGSSNLWVPSVYCSSLACSDHNQFNPDDSSTFEATSQELSITYGTGSMTGILGYDTVQVGGISDTNQIFGLSETEPGSFLYYAPFDGILGLAYPSISASGATPVFDNLWDQGLVSQDLFSVYLS-----GSVVLLGGIDSSYYTGSLNWVPVSVEGYWQITLDSITMDGETIACSGGCQAIVDTGTSLLTGPTSAIANIQSDIGASENSDGEMVISCSSIDSLPDIVFTIDGVQYPLSPSAYILQDDDSCTSGFEGMDVPTSSGELWILGDVFIRQYYTVFDRANNKVGLAPVA 326
                            |||||||10P|||||||20P|||||||30P|||||||40P|||||    6        16        26        36        46        56        66        76        86        96       106       116       126       136       146       156     | 166       176       186       196       206       216       226       236       246       256       266       276       286       296       306       316       326
                            |||||||9P||||||18P||||||27P||||||36P||||||||1                                                                                                                                                        156   162
                           1P||||||10P||||||19P||||||28P||||||37P|||||||
                            2P||||||11P||||||20P||||||29P||||||38P||||||
                             3P||||| 12P||||| 21P||||| 30P||||| 39P|||||
                              4P||||  13P||||  22P||||  31P||||  40P||||
                               5P|||   14P|||   23P|||   32P|||   41P|||
                                6P||    15P||    24P||    33P||    42P||
                                 7P|     16P|     25P|     34P|     43P|
                                  8P      17P      26P      35P      44P
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Class: Mainly Beta (13760)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3PSG)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (PEPA_PIG | P00791)
molecular function
    GO:0004190    aspartic-type endopeptidase activity    Catalysis of the hydrolysis of internal, alpha-peptide bonds in a polypeptide chain by a mechanism in which a water molecule bound by the side chains of aspartic residues at the active center acts as a nucleophile.
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
biological process
    GO:0007586    digestion    The whole of the physical, chemical, and biochemical processes carried out by multicellular organisms to break down ingested nutrients into components that may be easily absorbed and directed into metabolism.
    GO:0030163    protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein by the destruction of the native, active configuration, with or without the hydrolysis of peptide bonds.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3psg)

  Sites
(no "Sites" information available for 3psg)

  Cis Peptide Bonds
    Thr A:22 - Pro A:23   [ RasMol ]

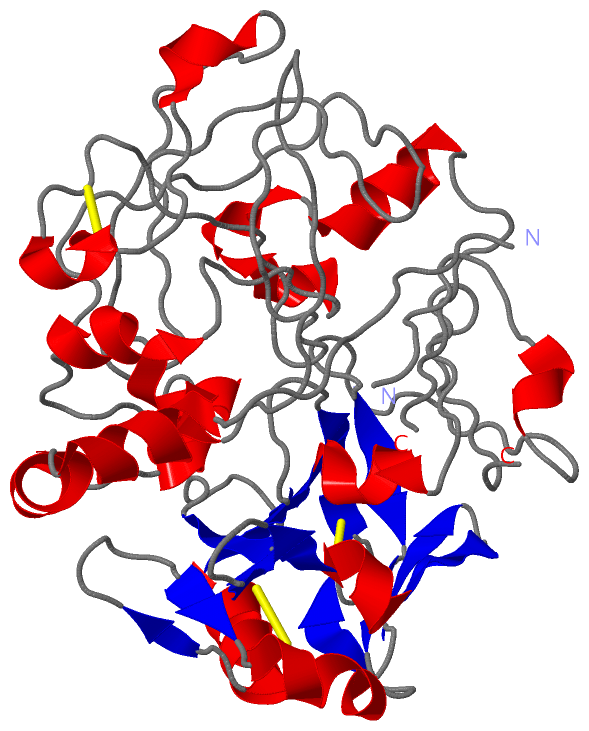

(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3psg
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PEPA_PIG | P00791
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PEPA_PIG | P00791
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PEPA_PIG | P00791: 1f34 1psa 1yx9 2psg 3pep 4pep 5pep
