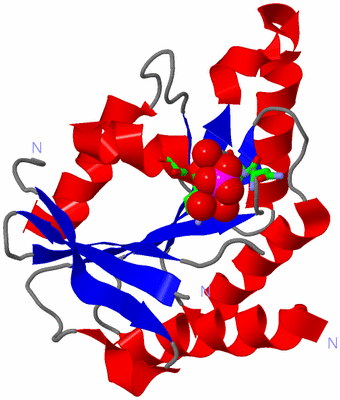

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF APO THERMOTOGA MARITIMA RIBOSOME BIOGENESIS GTP-BINDING PROTEIN ENGB

Authors :  K. H. Chan, K. B. Wong
Date :  29 Nov 10  (Deposition) - 08 Jun 11  (Release) - 23 Nov 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.30
Chains :  Asym./Biol. Unit :  A
Keywords :  Rossmann Fold, Hydrolase, Gtp Binding, Cell Cycle (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  K. H. Chan, K. B. Wong
Structure Of An Essential Gtpase, Ysxc, From Thermotoga Maritima
Acta Crystallogr. , Sect. F V. 67 640 2011
PubMed-ID: 21636901  |  Reference-DOI: 10.1107/S1744309111011651

(-) Compounds

Molecule 1 - PROBABLE GTP-BINDING PROTEIN ENGB
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PRSETA
    Expression System Strain: BL21(DE3)PLYSS
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: ENGB, TM_1466
    Organism Scientific: THERMOTOGA MARITIMA
    Organism Taxid: 2336

 Structural Features

(-) Chains, Units

  1
Asymmetric/Biological Unit : A

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 1)

Asymmetric/Biological Unit (1, 1)
No.NameCountTypeFull Name
1PO41Ligand/IonPHOSPHATE ION

(-) Sites  (1, 1)

Asymmetric Unit (1, 1)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREASN A:33 , VAL A:34 , GLY A:35 , LYS A:36 , SER A:37 , HOH A:203 , HOH A:210 , HOH A:218BINDING SITE FOR RESIDUE PO4 A 196

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3PR1)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3PR1)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3PR1)

(-) PROSITE Motifs  (1, 1)

Asymmetric/Biological Unit (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1G_ENGBPS51706 EngB-type guanine nucleotide-binding (G) domain profile.ENGB_THEMA22-194  1A:22-193

(-) Exons   (0, 0)

(no "Exon" information available for 3PR1)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:172
 aligned with ENGB_THEMA | Q9X1H7 from UniProtKB/Swiss-Prot  Length:195

    Alignment length:192
                                    11        21        31        41        51        61        71        81        91       101       111       121       131       141       151       161       171       181       191
           ENGB_THEMA     2 IIRDVELVKVARTPGDYPPPLKGEVAFVGRSNVGKSSLLNALFNRKIAFVSKTPGKTRSINFYLVNSKYYFVDLPGYGYAKVSKKERMLWKRLVEDYFKNRWSLQMVFLLVDGRIPPQDSDLMMVEWMKSLNIPFTIVLTKMDKVKMSERAKKLEEHRKVFSKYGEYTIIPTSSVTGEGISELLDLISTLLK 193
               SCOP domains d3pr1a_ A: automated matches                                                                                                                                                                     SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains -----------------------MMR_HSR1-3pr1A01 A:25-             142                                                                                --------------------------------------------------- Pfam domains
         Sec.struct. author ....eeeeeee.hhhhh......eeeeee....hhhhhhhhhhh.-------------.eeeeee...eeeee....-------hhhhhhhhhhhhhhhhh....eeeeeee.....hhhhhhhhhhhhhh...eeeeeehhhhhhhhhhhhhhhhhhhhhh......eee.......hhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE --------------------G_ENGB  PDB: A:22-193 UniProt: 22-194                                                                                                                                        PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3pr1 A   2 IIRDVELVKVARTPGDYPPPLKGEVAFVGRSNVGKSSLLNALFNR-------------SINFYLVNSKYYFVDLPGY-------KERMLWKRLVEDYFKNRWSLQMVFLLVDGRIPPQDSDLMMVEWMKSLNIPFTIVLTKMDKVKMSERAKKLEEHRKVFSKYGEYTIIPTSSVTGEGISELLDLISTLLK 193
                                    11        21        31        41    |    -        61        71      |  -    |   91       101       111       121       131       141       151       161       171       181       191
                                                                       46            60                78      86
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a/b) (23833)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3PR1)

(-) Pfam Domains  (1, 1)

Asymmetric/Biological Unit
(-)
Clan: P-loop_NTPase (1112)

(-) Gene Ontology  (7, 7)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A   (ENGB_THEMA | Q9X1H7)
molecular function
    GO:0005525    GTP binding    Interacting selectively and non-covalently with GTP, guanosine triphosphate.
    GO:0003924    GTPase activity    Catalysis of the reaction: GTP + H2O = GDP + phosphate.
    GO:0000287    magnesium ion binding    Interacting selectively and non-covalently with magnesium (Mg) ions.
    GO:0046872    metal ion binding    Interacting selectively and non-covalently with any metal ion.
    GO:0000166    nucleotide binding    Interacting selectively and non-covalently with a nucleotide, any compound consisting of a nucleoside that is esterified with (ortho)phosphate or an oligophosphate at any hydroxyl group on the ribose or deoxyribose.
biological process
    GO:0007049    cell cycle    The progression of biochemical and morphological phases and events that occur in a cell during successive cell replication or nuclear replication events. Canonically, the cell cycle comprises the replication and segregation of genetic material followed by the division of the cell, but in endocycles or syncytial cells nuclear replication or nuclear division may not be followed by cell division.
    GO:0051301    cell division    The process resulting in division and partitioning of components of a cell to form more cells; may or may not be accompanied by the physical separation of a cell into distinct, individually membrane-bounded daughter cells.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    PO4  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3pr1)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick

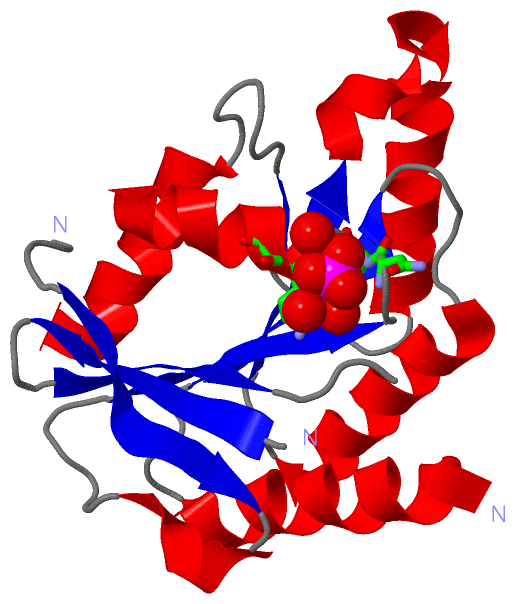

[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3pr1
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ENGB_THEMA | Q9X1H7
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ENGB_THEMA | Q9X1H7
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ENGB_THEMA | Q9X1H7: 3pqc

(-) Related Entries Specified in the PDB File

3pqc
