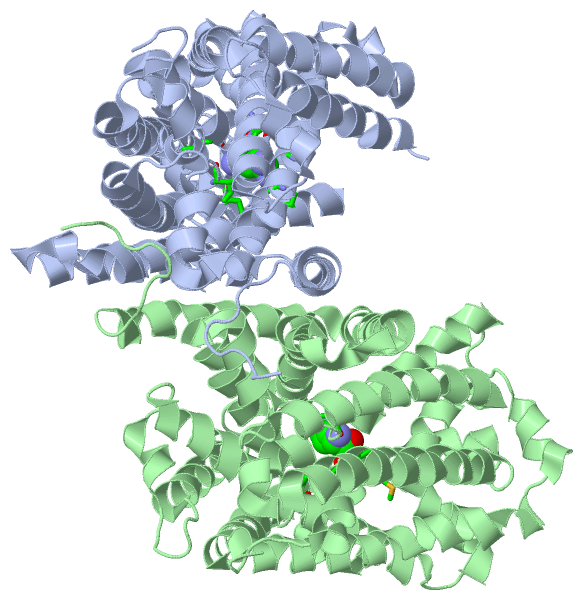

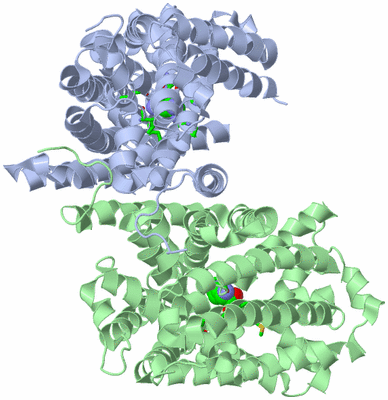

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  STRUCTURE OF ADIC(N101A) IN THE OPEN-TO-OUT ARG+ BOUND CONFORMATION

Authors :  X. Carpena, L. Kowalczyk, M. Ratera, E. Valencia, J. L. Vazquez-Lbar, I M. Palacin
Date :  06 Aug 10  (Deposition) - 16 Mar 11  (Release) - 30 Mar 11  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  3.00
Chains :  Asym./Biol. Unit :  A,B
Keywords :  Amino Acid Antiporter, Arginine, Membrane, Transmembrane Antiporter, Apc-T, 5+5 Inverted Repeat, Membrane Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  L. Kowalczyk, M. Ratera, A. Paladino, P. Bartoccioni, E. Errasti-Murugarren, E. Valencia, G. Portella, S. Bial, A. Zorzano I. Fita, M. Orozco, X. Carpena, J. L. Vazquez-Ibar, M. Palacin
Molecular Basis Of Substrate-Induced Permeation By An Amino Acid Antiporter.
Proc. Natl. Acad. Sci. Usa V. 108 3935 2011
PubMed-ID: 21368142  |  Reference-DOI: 10.1073/PNAS.1018081108

(-) Compounds

Molecule 1
    Chains: A, B
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PTTQ18-HIS6-ADIC
    Expression System Taxid: 469008
    Expression System Vector Type: PLASMID
    Gene: ADIC, B21_03947
    Mutation: YES
    Organism Scientific: ESCHERICHIA COLI
    Organism Taxid: 562
    Synonym: ADIC

 Structural Features

(-) Chains, Units

  12
Asymmetric/Biological Unit : AB

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (1, 2)

Asymmetric/Biological Unit (1, 2)
No.NameCountTypeFull Name
1ARG2Mod. Amino AcidARGININE

(-) Sites  (2, 2)

Asymmetric Unit (2, 2)
No.NameEvidenceResiduesDescription
1AC1SOFTWAREILE A:23 , SER A:26 , GLY A:27 , ALA A:96 , GLY A:100 , TRP A:202 , ILE A:205 , TRP A:293 , SER A:357BINDING SITE FOR RESIDUE ARG A 450
2AC2SOFTWAREASN B:22 , ILE B:23 , MET B:24 , SER B:26 , MET B:104 , ILE B:107 , ILE B:205BINDING SITE FOR RESIDUE ARG B 450

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3OB6)

(-) Cis Peptide Bonds  (4, 4)

Asymmetric/Biological Unit
No.Residues
1Asp A:6 -Ala A:7
2Ser A:343 -Pro A:344
3Asp B:6 -Ala B:7
4Glu B:349 -Phe B:350

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3OB6)

(-) PROSITE Motifs  (0, 0)

(no "PROSITE Motif" information available for 3OB6)

(-) Exons   (0, 0)

(no "Exon" information available for 3OB6)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:431
 aligned with ADIC_ECOLI | P60061 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:440
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434       444
           ADIC_ECOLI     5 ADAHKVGLIPVTLMVSGNIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGNIAMVVIGVGYLSYFFPILKDPLVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMAAWNVSGLGTFGAIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISPNATKEFGLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDAPISK 444
               SCOP domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ......hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh......hhhhhhhhhhhhhhhhh...hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhhh..hhhhhhh..hhhhhhhhhhh..hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh......hhhhhhhhhhhhhhhhhh....------hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh...........---. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ob6 A   5 ADAHKVGLIPVTLMVSGNIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGAIAMVVIGVGYLSYFFPILKDPLVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMAAWNVSGLGTFGAIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISP------GLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDA---R 450
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344      |354       364       374       384       394       404       414       424       434     | 450
                                                                                                                                                                                                                                                                                                                                                                             344    351                                                                                      440 450


Chain B from PDB  Type:PROTEIN  Length:437
 aligned with ADIC_ECOLI | P60061 from UniProtKB/Swiss-Prot  Length:445

    Alignment length:437
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434
           ADIC_ECOLI     5 ADAHKVGLIPVTLMVSGNIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGNIAMVVIGVGYLSYFFPILKDPLVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMAAWNVSGLGTFGAIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISPNATKEFGLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDAP 441
               SCOP domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) -----AA_permease_2-3ob6B01 B:10-428                                                                                                                                                                                                                                                                                                                                                                                                     ------------- Pfam domains (1)
           Pfam domains (2) -----AA_permease_2-3ob6B02 B:10-428                                                                                                                                                                                                                                                                                                                                                                                                     ------------- Pfam domains (2)
         Sec.struct. author ......hhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh....hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhh......hhhhhhhhhhhhhhhhhh..hhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhh..hhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...hhhhhh......hhhhhhhhhhhhhhhhhh..........hhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhhhhhh............ Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3ob6 B   5 ADAHKVGLIPVTLMVSGNIMGSGVFLLPANLASTGGIAIYGWLVTIIGALGLSMVYAKMSFLDPSPGGSYAYARRCFGPFLGYQTNVLYWLACWIGAIAMVVIGVGYLSYFFPILKDPLVLTITCVVVLWIFVLLNIVGPKMITRVQAVATVLALIPIVGIAVFGWFWFRGETYMAAWNVSGLGTFGAIQSTLNVTLWSFIGVESASVAAGVVKNPKRNVPIATIGGVLIAAVCYVLSTTAIMGMIPNAALRVSASPFGDAARMALGDTAGAIVSFCAAAGCLGSLGGWTLLAGQTAKAAADDGLFPPIFARVNKAGTPVAGLIIVGILMTIFQLSSISPNATKEFGLVSSVSVIFTLVPYLYTCAALLLLGHGHFGKARPAYLAVTTIAFLYCIWAVVGSGAKEVMWSFVTLMVITAMYALNYNRLHKNPYPLDAR 450
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234       244       254       264       274       284       294       304       314       324       334       344       354       364       374       384       394       404       414       424       434     ||
                                                                                                                                                                                                                                                                                                                                                                                                                                                                             440|
                                                                                                                                                                                                                                                                                                                                                                                                                                                                              450
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (0, 0)

(no "SCOP Domain" information available for 3OB6)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3OB6)

(-) Pfam Domains  (1, 2)

Asymmetric/Biological Unit
(-)
Clan: APC (6)

(-) Gene Ontology  (15, 15)

Asymmetric/Biological Unit(hide GO term definitions)
Chain A,B   (ADIC_ECOLI | P60061)
molecular function
    GO:0015179    L-amino acid transmembrane transporter activity    Enables the transfer of an L-amino acid from one side of a membrane to the other. L-amino acids are the L-enantiomers of amino acids.
    GO:0015171    amino acid transmembrane transporter activity    Enables the transfer of amino acids from one side of a membrane to the other. Amino acids are organic molecules that contain an amino group and a carboxyl group.
    GO:0015297    antiporter activity    Enables the active transport of a solute across a membrane by a mechanism whereby two or more species are transported in opposite directions in a tightly coupled process not directly linked to a form of energy other than chemiosmotic energy. The reaction is: solute A(out) + solute B(in) = solute A(in) + solute B(out).
    GO:0015181    arginine transmembrane transporter activity    Enables the stereospecific transfer of arginine, 2-amino-5-guanidinopentanoic acid, across a biological membrane.
biological process
    GO:1902475    L-alpha-amino acid transmembrane transport    The directed movement of L-alpha-amino acid across a membrane.
    GO:0015807    L-amino acid transport    The directed movement of L-enantiomer amino acids into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:0003333    amino acid transmembrane transport    The directed movement of amino acids, organic acids containing one or more amino substituents across a membrane by means of some agent such as a transporter or pore.
    GO:0006865    amino acid transport    The directed movement of amino acids, organic acids containing one or more amino substituents, into, out of or within a cell, or between cells, by means of some agent such as a transporter or pore.
    GO:1903826    arginine transmembrane transport    The directed movement of arginine across a membrane.
    GO:0051454    intracellular pH elevation    Any process that increases the internal pH of a cell, measured by the concentration of the hydrogen ion.
    GO:0006810    transport    The directed movement of substances (such as macromolecules, small molecules, ions) or cellular components (such as complexes and organelles) into, out of or within a cell, or between cells, or within a multicellular organism by means of some agent such as a transporter, pore or motor protein.
cellular component
    GO:0016021    integral component of membrane    The component of a membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0005887    integral component of plasma membrane    The component of the plasma membrane consisting of the gene products and protein complexes having at least some part of their peptide sequence embedded in the hydrophobic region of the membrane.
    GO:0016020    membrane    A lipid bilayer along with all the proteins and protein complexes embedded in it an attached to it.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    ARG  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Asp A:6 - Ala A:7   [ RasMol ]
    Asp B:6 - Ala B:7   [ RasMol ]
    Glu B:349 - Phe B:350   [ RasMol ]
    Ser A:343 - Pro A:344   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)
