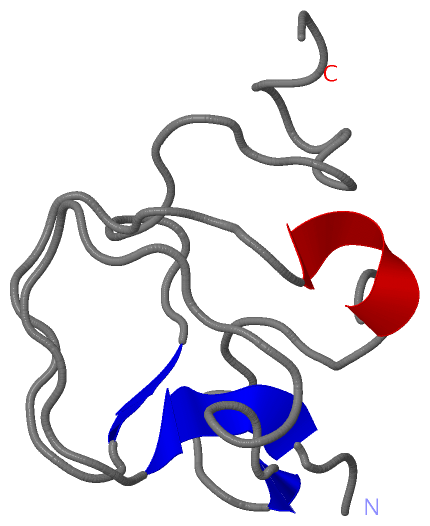

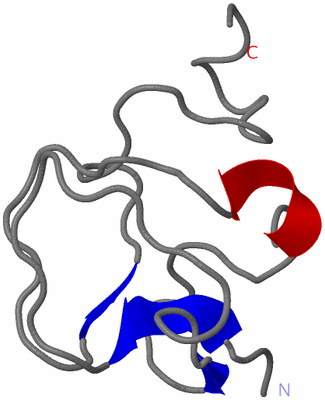

Image NMR Structure - model 1
NMR Structure - model 1  (Jmol Viewer)

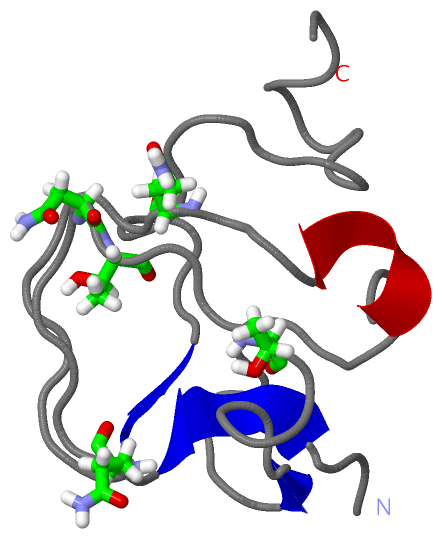

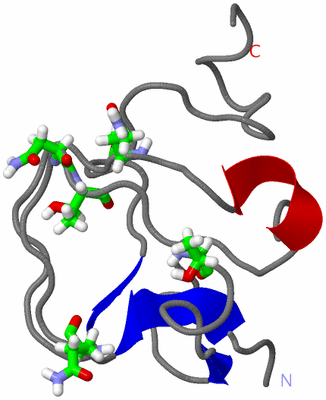

Image NMR Structure - model 1, sites
NMR Structure - model 1, sites  (Jmol Viewer)

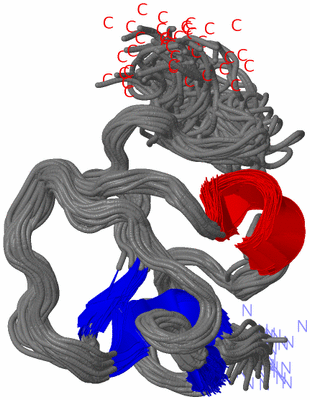

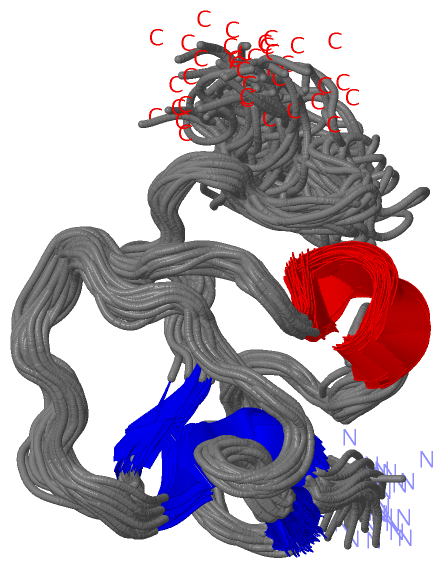

Image NMR Structure - all models
NMR Structure - all models  (Jmol Viewer)

(-) Description

Title :  NMR STRUCTURE OF THE N-TERMINAL DOMAIN WITH A LINKER PORTION OF ANTARCTIC EEL POUT ANTIFREEZE PROTEIN RD3, 40 STRUCTURES

Authors :  K. Miura, S. Ohgiya, T. Hoshino, N. Nemoto, K. Hikichi, S. Tsuda
Date :  24 Feb 98  (Deposition) - 23 Feb 99  (Release) - 24 Feb 09  (Revision)
Method :  SOLUTION NMR
Resolution :  NOT APPLICABLE
Chains :  NMR Structure  :  A  (40x)
Keywords :  Antifreeze Protein, Thermal Hysteresis Protein, Ice Binding Protein (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  Z. Jia, C. I. Deluca, H. Chao, P. L. Davies
Structural Basis For The Binding Of A Globular Antifreeze Protein To Ice.
Nature V. 384 285 1996
PubMed-ID: 8918883  |  Reference-DOI: 10.1038/384285A0
(for further references see the PDB file header)

(-) Compounds

Molecule 1 - ANTIFREEZE PROTEIN RD3 TYPE III
    Chains: A
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PKK223-3UC
    Expression System Strain: JM105
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Fragment: N-TERMINAL DOMAIN WITH A LINKER PORTION
    Organ: BLOOD
    Organism Common: ANTARCTIC EEL POUT
    Organism Scientific: LYCODICHTHYS DEARBORNI
    Organism Taxid: 8201
    Synonym: RD3-NL
    Tissue: BLOOD PLASMA
    Variant: RD3

 Structural Features

(-) Chains, Units


NMR Structure (40x):

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (0, 0)

(no "Ligand,Modified Residues,Ions" information available for 3NLA)

(-) Sites  (1, 1)

NMR Structure (1, 1)
No.NameEvidenceResiduesDescription
11UNKNOWNGLN A:9 , ASN A:14 , THR A:15 , THR A:18 , GLN A:44ICE BINDING SITE.

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3NLA)

(-) Cis Peptide Bonds  (1, 40)

NMR Structure
No.ModelResidues
11, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40Thr A:28 -Pro A:29

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3NLA)

(-) PROSITE Motifs  (1, 1)

NMR Structure (1, 1)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1AFP_LIKEPS50844 Antifreeze protein-like domain profile.ANP3_LYCDA4-63
74-133		  1A:4-63
-

(-) Exons   (0, 0)

(no "Exon" information available for 3NLA)

(-) Sequences/Alignments

NMR Structure
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain A from PDB  Type:PROTEIN  Length:73
 aligned with ANP3_LYCDA | P35753 from UniProtKB/Swiss-Prot  Length:134

    Alignment length:73
                                    10        20        30        40        50        60        70
            ANP3_LYCDA    1 NKASVVANQLIPINTALTLIMMKAEVVTPMGIPAEEIPNLVGMQVNRAVPLGTTLMPDMVKNYEDGTTSPGLK 73
               SCOP domains d3nlaa_ A: Type III antifreeze protein, AFP III                           SCOP domains
               CATH domains 3nlaA00 A:1-73 Type Iii Antifreeze Protein Isoform Hplc 12                CATH domains
               Pfam domains ------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...eeee................ee...........hhhh............ee................... Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---AFP_LIKE  PDB: A:4-63 UniProt: 4-63                         ---------- PROSITE
                 Transcript ------------------------------------------------------------------------- Transcript
                  3nla A  1 NKASVVANQLIPINTALTLIMMKAEVVTPMGIPAEEIPNLVGMQVNRAVPLGTTLMPDMVKNYEDGTTSPGLK 73
                                    10        20        30        40        50        60        70
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 1)

NMR Structure
(-)
Class: All beta proteins (24004)

(-) CATH Domains  (1, 1)

NMR Structure
(-)
Class: Alpha Beta (26913)

(-) Pfam Domains  (0, 0)

(no "Pfam Domain" information available for 3NLA)

(-) Gene Ontology  (2, 2)

NMR Structure(hide GO term definitions)
Chain A   (ANP3_LYCDA | P35753)
biological process
    GO:0050826    response to freezing    Any process that results in a change in state or activity of a cell or an organism (in terms of movement, secretion, enzyme production, gene expression, etc.) as a result of a freezing stimulus, temperatures below 0 degrees Celsius.
cellular component
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.

 Visualization

(-) Interactive Views

NMR Structure
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
(no "Ligands, Modified Residues, Ions" information available for 3nla)

  Sites
    1  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
    Thr A:28 - Pro A:29   [ RasMol ]


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ NMR Structure - model 1 PNG format | NMR Structure - model 1, sites PNG format | NMR Structure - all models PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3nla
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  ANP3_LYCDA | P35753
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  (no 'Enzyme Classificator' available)
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  ANP3_LYCDA | P35753
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        ANP3_LYCDA | P35753: 1c89 1c8a 3rdn

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3NLA)
