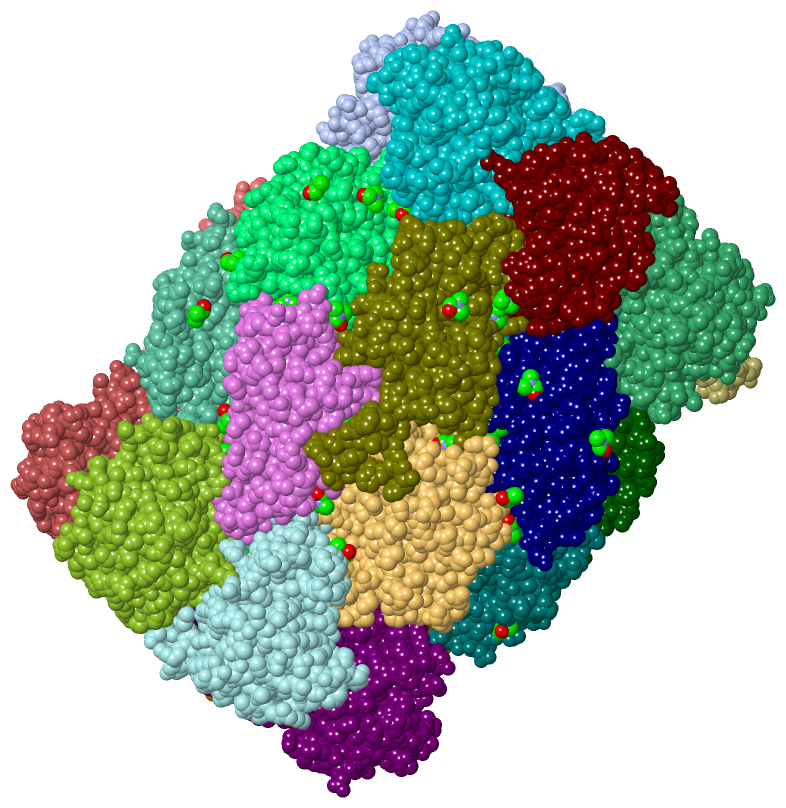

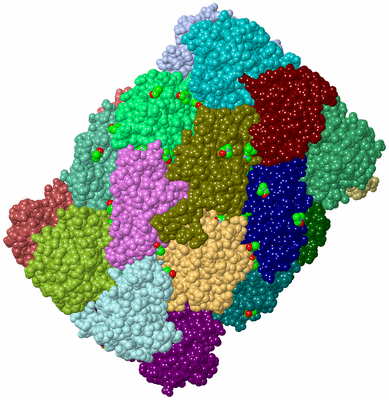

Image Asym./Biol. Unit
Asym./Biol. Unit  (Jmol Viewer)

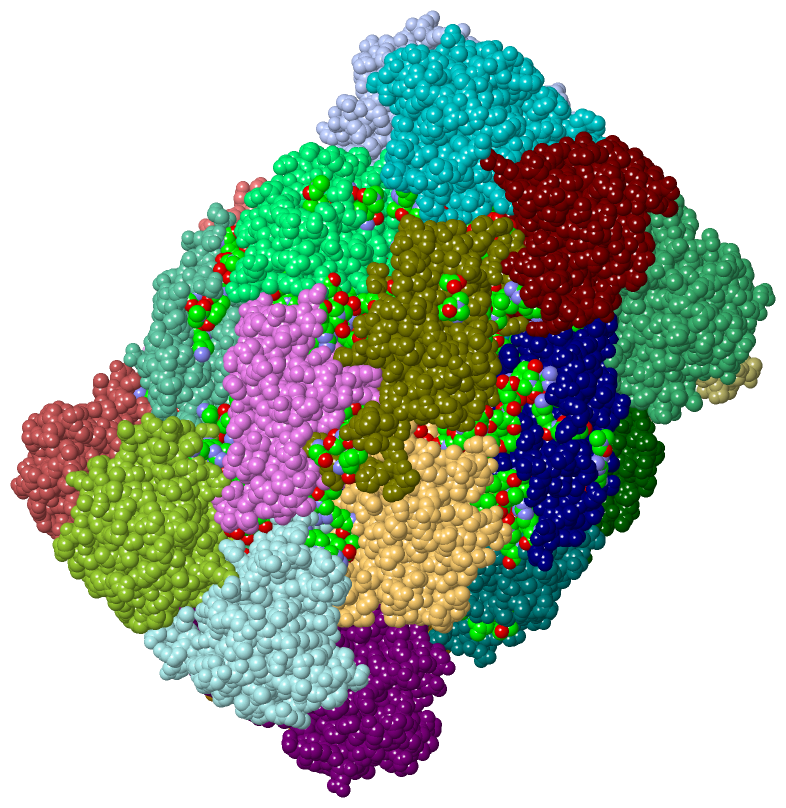

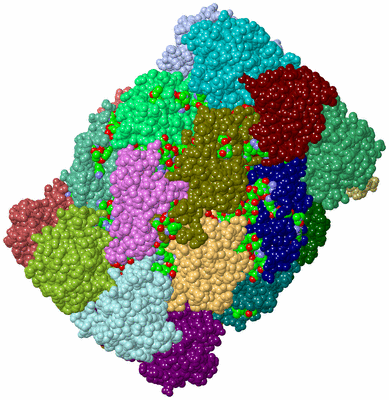

Image Asym./Biol. Unit - sites
Asym./Biol. Unit - sites  (Jmol Viewer)

(-) Description

Title :  CRYSTAL STRUCTURE OF MYCOBACTERIUM TUBERCULOSIS PROTEASOME AT 2.2 A

Authors :  D. Li, H. Li
Date :  09 Apr 10  (Deposition) - 23 Jun 10  (Release) - 23 Jun 10  (Revision)
Method :  X-RAY DIFFRACTION
Resolution :  2.20
Chains :  Asym./Biol. Unit :  A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,1,2
Keywords :  Enzyme Inhibitors, Lactones, Proteasome Endopeptidase Complex, Mycobacterium Tuberculosis, Hydrolase (Keyword Search: [Gene Ontology, PubMed, Web (Google)] )

Reference :  D. Li, H. Li, T. Wang, H. Pan, G. Lin, H. Li
Structural Basis For The Assembly And Gate Closure Mechanisms Of The Mycobacterium Tuberculosis 20S Proteasome.
Embo J. 2010
PubMed-ID: 20461058  |  Reference-DOI: 10.1038/EMBOJ.2010.95

(-) Compounds

Molecule 1 - PROTEASOME SUBUNIT ALPHA
    Chains: A, B, D, F, I, K, M, O, Q, S, U, W, Y, 1
    EC Number: 3.4.25.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PACYCDUET
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MT2169, PRCA, RV2109C
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Strain: RV2109C
    Synonym: PROTEASOME CORE PROTEIN PRCA, 20S PROTEASOME ALPHA SUBUNIT

Molecule 2 - PROTEASOME SUBUNIT BETA
    Chains: C, E, G, H, J, L, N, P, R, T, V, X, Z, 2
    EC Number: 3.4.25.1
    Engineered: YES
    Expression System: ESCHERICHIA COLI
    Expression System Plasmid: PACYCDUET
    Expression System Strain: BL21
    Expression System Taxid: 562
    Expression System Vector Type: PLASMID
    Gene: MT2170, PRCB, RV2110C
    Organism Scientific: MYCOBACTERIUM TUBERCULOSIS
    Organism Taxid: 1773
    Strain: RV2109C
    Synonym: PROTEASOME CORE PROTEIN PRCB, 20S PROTEASOME BETA SUBUNIT

 Structural Features

(-) Chains, Units

  12345678910111213141516171819202122232425262728
Asymmetric/Biological Unit : ABCDEFGHIJKLMNOPQRSTUVWXYZ12

Summary Information (see also Sequences/Alignments below)

(-) Ligands, Modified Residues, Ions  (2, 137)

Asymmetric/Biological Unit (2, 137)
No.NameCountTypeFull Name
1DMF123Ligand/IonDIMETHYLFORMAMIDE
2SA614Ligand/Ion(2R,3S,4R)-2-[(S)-(1S)-CYCLOHEX-2-EN-1-YL(HYDROXY)METHYL]-4-ETHYL-3-HYDROXY-3-METHYL-5-OXOPYRROLIDINE-2-CARBALDEHYDE

(-) Sites  (137, 137)

Asymmetric Unit (137, 137)
No.NameEvidenceResiduesDescription
001AC1SOFTWAREARG F:91 , ARG F:219 , ALA G:360BINDING SITE FOR RESIDUE DMF F 249
002AC2SOFTWAREARG N:521 , ARG P:488 , HOH P:791 , HOH P:2350 , HOH P:2510 , LYS V:451 , HOH V:1262BINDING SITE FOR RESIDUE DMF P 2
003AC3SOFTWAREARG O:85 , TYR O:89 , HOH O:1702 , HIS V:365 , TYR V:366 , LEU V:369 , GLU V:370BINDING SITE FOR RESIDUE DMF O 249
004AC4SOFTWAREGLU 2:432 , GLU 2:434 , TYR 2:436 , GLN 2:437 , LYS 2:447 , HOH 2:1168 , HOH G:1391 , DMF V:83 , ARG V:329BINDING SITE FOR RESIDUE DMF 2 4
005AC5SOFTWAREGLY O:77 , VAL O:102 , TYR O:103 , THR O:106BINDING SITE FOR RESIDUE DMF O 250
006AC6SOFTWAREGLY A:77 , GLY A:78 , VAL A:102 , THR A:106BINDING SITE FOR RESIDUE DMF A 249
007AC7SOFTWAREGLY U:77 , GLY U:78 , TYR U:103 , THR U:106BINDING SITE FOR RESIDUE DMF U 249
008AC8SOFTWARELEU B:74BINDING SITE FOR RESIDUE DMF B 249
009AC9SOFTWAREGLY M:77 , TYR M:103 , THR M:106BINDING SITE FOR RESIDUE DMF M 249
010BC1SOFTWAREGLU 2:354 , ALA T:384 , ILE T:385 , GLY T:427BINDING SITE FOR RESIDUE DMF T 10
011BC2SOFTWAREARG M:91 , ARG M:219 , ALA N:360 , GLU N:364BINDING SITE FOR RESIDUE DMF M 250
012BC3SOFTWAREHOH G:124 , TYR G:472 , ALA G:475 , ASP G:476 , GLY G:483 , HOH G:857 , HOH G:2627 , HOH V:723BINDING SITE FOR RESIDUE DMF G 12
013BC4SOFTWAREARG I:91 , ALA J:360 , GLU J:364BINDING SITE FOR RESIDUE DMF I 249
014BC5SOFTWARETYR P:472 , ALA P:475 , ASP P:476BINDING SITE FOR RESIDUE DMF P 14
015BC6SOFTWAREGLU X:432 , GLU X:434 , TYR X:436 , HOH X:1898 , ARG Z:329BINDING SITE FOR RESIDUE DMF X 15
016BC7SOFTWAREDMF W:250 , TYR X:335 , ILE X:336 , THR X:337BINDING SITE FOR RESIDUE DMF X 16
017BC8SOFTWAREGLY K:77 , THR K:106BINDING SITE FOR RESIDUE DMF K 249
018BC9SOFTWARETYR Z:472 , ALA Z:475 , ASP Z:476 , GLY Z:483 , HOH Z:932 , HOH Z:2483BINDING SITE FOR RESIDUE DMF Z 18
019CC1SOFTWAREGLY 1:77 , VAL 1:102 , TYR 1:103BINDING SITE FOR RESIDUE DMF 1 249
020CC2SOFTWARETYR E:472 , ALA E:475 , ASP E:476 , HOH E:2349BINDING SITE FOR RESIDUE DMF E 20
021CC3SOFTWAREGLY I:77 , VAL I:102 , THR I:106BINDING SITE FOR RESIDUE DMF I 250
022CC4SOFTWARETYR N:472 , ALA N:475 , HOH N:674 , HOH N:2569BINDING SITE FOR RESIDUE DMF N 22
023CC5SOFTWAREARG B:91 , ARG B:219BINDING SITE FOR RESIDUE DMF B 250
024CC6SOFTWARELYS 2:452 , LEU 2:453 , LYS G:452 , LEU G:453BINDING SITE FOR RESIDUE DMF G 24
025CC7SOFTWAREGLY Q:77 , VAL Q:102 , TYR Q:103 , THR Q:106BINDING SITE FOR RESIDUE DMF Q 249
026CC8SOFTWAREALA Q:12 , MET Q:13 , ARG Q:16 , THR Q:112BINDING SITE FOR RESIDUE DMF Q 250
027CC9SOFTWAREDMF U:250 , TYR V:335 , ILE V:336 , ALA V:356 , ALA V:360BINDING SITE FOR RESIDUE DMF V 27
028DC1SOFTWAREILE E:336 , ALA E:356 , ARG E:357 , ALA E:360BINDING SITE FOR RESIDUE DMF E 28
029DC2SOFTWAREDMF S:250 , TYR T:335 , ILE T:336 , ALA T:356 , ARG T:357 , ALA T:360BINDING SITE FOR RESIDUE DMF T 29
030DC3SOFTWAREARG Y:91 , ARG Y:219 , ALA Z:360 , GLU Z:364BINDING SITE FOR RESIDUE DMF Y 249
031DC4SOFTWARELEU W:74 , GLY W:77 , VAL W:102 , THR W:106BINDING SITE FOR RESIDUE DMF W 249
032DC5SOFTWAREDMF N:118 , ARG P:329 , GLU V:432 , GLU V:434 , TYR V:436 , GLN V:437 , LYS V:447BINDING SITE FOR RESIDUE DMF V 32
033DC6SOFTWARELYS L:452 , LEU L:453 , HOH L:1466 , LYS P:452 , HOH P:1873BINDING SITE FOR RESIDUE DMF P 33
034DC7SOFTWAREARG Q:91 , ARG Q:219 , ALA R:360BINDING SITE FOR RESIDUE DMF Q 251
035DC8SOFTWAREARG K:91 , ARG K:219 , HOH K:1480 , GLU L:364 , HOH L:1474BINDING SITE FOR RESIDUE DMF K 250
036DC9SOFTWAREALA L:377 , TRP L:429 , TYR M:89 , ARG N:357BINDING SITE FOR RESIDUE DMF L 36
037EC1SOFTWAREGLY S:77 , GLY S:78 , VAL S:102 , TYR S:103 , THR S:106BINDING SITE FOR RESIDUE DMF S 249
038EC2SOFTWAREASP C:498 , VAL C:503 , HOH C:1447BINDING SITE FOR RESIDUE DMF C 38
039EC3SOFTWAREILE V:496 , ASP V:498BINDING SITE FOR RESIDUE DMF V 39
040EC4SOFTWAREILE X:496 , VAL X:503BINDING SITE FOR RESIDUE DMF X 40
041EC5SOFTWAREALA X:377 , ASN X:381 , TRP X:429 , ARG Z:357BINDING SITE FOR RESIDUE DMF X 41
042EC6SOFTWAREHOH O:2444 , ARG P:357 , ALA V:377 , ILE V:380 , ASN V:381 , TRP V:429BINDING SITE FOR RESIDUE DMF V 42
043EC7SOFTWAREDMF C:103 , ARG C:329 , GLU H:432 , GLU H:434 , TYR H:436 , GLN H:437 , LYS H:447 , HOH H:553 , HOH H:1774BINDING SITE FOR RESIDUE DMF H 43
044EC8SOFTWAREGLY D:77 , VAL D:102BINDING SITE FOR RESIDUE DMF D 249
045EC9SOFTWARETYR J:472 , ASP J:476BINDING SITE FOR RESIDUE DMF J 45
046FC1SOFTWAREGLY F:77 , VAL F:102 , THR F:106BINDING SITE FOR RESIDUE DMF F 250
047FC2SOFTWAREALA C:377 , ILE C:380 , TRP C:429 , ARG J:357BINDING SITE FOR RESIDUE DMF C 47
048FC3SOFTWAREARG D:76 , HOH E:2201 , GLN K:98 , ASN K:101 , VAL K:102 , GLN K:105 , HOH K:2534BINDING SITE FOR RESIDUE DMF K 251
049FC4SOFTWARETYR 2:472 , ASP 2:476BINDING SITE FOR RESIDUE DMF 2 49
050FC5SOFTWARELYS L:307 , TYR L:454 , VAL L:457BINDING SITE FOR RESIDUE DMF L 50
051FC6SOFTWAREILE P:496BINDING SITE FOR RESIDUE DMF P 51
052FC7SOFTWARETYR 2:308 , ARG 2:509BINDING SITE FOR RESIDUE DMF 2 52
053FC8SOFTWAREALA E:377 , ASN E:381 , TRP E:429BINDING SITE FOR RESIDUE DMF E 53
054FC9SOFTWAREHOH Q:2679 , ARG R:357 , ALA Z:377 , ASN Z:381 , TRP Z:429BINDING SITE FOR RESIDUE DMF Z 54
055GC1SOFTWAREARG D:91 , ARG D:219 , ALA E:360 , GLU E:364BINDING SITE FOR RESIDUE DMF D 250
056GC2SOFTWAREHOH A:2511 , ARG H:357 , ALA P:377 , ASN P:381 , TRP P:429BINDING SITE FOR RESIDUE DMF P 56
057GC3SOFTWAREHIS 2:365BINDING SITE FOR RESIDUE DMF 2 57
058GC4SOFTWARETHR K:106 , GLN K:114BINDING SITE FOR RESIDUE DMF K 252
059GC5SOFTWAREGLY R:440 , SER R:441 , GLY R:442 , SER R:443 , LEU R:444 , PHE R:445BINDING SITE FOR RESIDUE DMF R 59
060GC6SOFTWAREARG A:85 , TYR A:89 , HIS P:365 , TYR P:366 , LEU P:369 , GLU P:370 , HOH P:1351BINDING SITE FOR RESIDUE DMF P 60
061GC7SOFTWAREARG W:91 , DMF X:16 , ALA X:360 , HOH X:2517BINDING SITE FOR RESIDUE DMF W 250
062GC8SOFTWAREVAL G:361 , HIS G:365BINDING SITE FOR RESIDUE DMF G 62
063GC9SOFTWAREHIS C:365 , TYR C:366 , LEU C:369 , GLU C:370 , HOH C:1381 , ARG I:85 , TYR I:89BINDING SITE FOR RESIDUE DMF C 63
064HC1SOFTWAREGLY G:440 , SER G:441 , GLY G:442 , SER G:443 , LEU G:444 , PHE G:445BINDING SITE FOR RESIDUE DMF G 64
065HC2SOFTWAREARG U:91 , ARG U:219 , DMF V:27BINDING SITE FOR RESIDUE DMF U 250
066HC3SOFTWAREARG H:332 , TYR H:335BINDING SITE FOR RESIDUE DMF H 66
067HC4SOFTWAREARG K:76 , GLN M:98 , VAL M:102 , GLN M:105BINDING SITE FOR RESIDUE DMF M 251
068HC5SOFTWAREGLN D:105 , GLY D:108 , THR D:109 , ASN Q:69 , ASN Q:73 , TYR Q:118BINDING SITE FOR RESIDUE DMF D 251
069HC6SOFTWAREARG C:521 , HOH C:557 , VAL E:487 , ARG E:488BINDING SITE FOR RESIDUE DMF C 69
070HC7SOFTWAREASP G:476 , ARG G:521 , VAL V:487 , ARG V:488BINDING SITE FOR RESIDUE DMF G 70
071HC8SOFTWAREHOH H:282 , ARG H:488 , ARG L:521BINDING SITE FOR RESIDUE DMF H 71
072HC9SOFTWAREGLY H:440 , SER H:443 , LEU H:444 , HOH H:1630BINDING SITE FOR RESIDUE DMF H 72
073IC1SOFTWARESER E:508 , ARG E:509 , GLU E:512BINDING SITE FOR RESIDUE DMF E 73
074IC2SOFTWAREARG A:91 , ARG A:219 , THR H:337BINDING SITE FOR RESIDUE DMF A 250
075IC3SOFTWAREGLU E:432 , GLU E:434 , TYR E:436 , GLN E:437 , HOH E:726BINDING SITE FOR RESIDUE DMF E 75
076IC4SOFTWARELEU Y:74 , GLY Y:77 , GLY Y:78 , VAL Y:102 , TYR Y:103BINDING SITE FOR RESIDUE DMF Y 250
077IC5SOFTWAREGLY G:347 , LEU G:401 , GLY G:440 , HOH G:546 , HOH G:2109BINDING SITE FOR RESIDUE DMF G 77
078IC6SOFTWAREARG S:91 , DMF T:29BINDING SITE FOR RESIDUE DMF S 250
079IC7SOFTWAREARG F:85 , TYR F:89 , HOH F:346 , HIS N:365 , TYR N:366 , LEU N:369 , GLU N:370BINDING SITE FOR RESIDUE DMF F 251
080IC8SOFTWAREASP R:461 , ARG R:509 , GLY V:528 , SER V:529 , GLY V:532 , LYS V:534BINDING SITE FOR RESIDUE DMF R 80
081IC9SOFTWAREHOH H:833 , TYR L:472 , ASP L:476 , HOH L:1810BINDING SITE FOR RESIDUE DMF L 81
082JC1SOFTWAREHOH P:223 , SER P:320 , SER P:327 , GLY P:328 , ASN V:430 , GLU V:432 , HOH V:1638BINDING SITE FOR RESIDUE DMF V 82
083JC2SOFTWAREDMF 2:4 , LYS 2:447 , PHE G:445 , ASP G:477 , ILE V:326 , HOH V:1742 , HOH V:2075 , HOH V:2660BINDING SITE FOR RESIDUE DMF V 83
084JC3SOFTWARETYR T:472 , ALA T:475 , ASP T:476 , HOH T:2221 , ARG Z:488BINDING SITE FOR RESIDUE DMF T 84
085JC4SOFTWAREARG O:91 , ARG O:219BINDING SITE FOR RESIDUE DMF O 251
086JC5SOFTWAREILE P:336 , ALA P:502BINDING SITE FOR RESIDUE DMF P 86
087JC6SOFTWAREHIS 2:365 , TYR 2:366 , LEU 2:369 , GLU 2:370 , HOH 2:804 , ARG U:85 , TYR U:89BINDING SITE FOR RESIDUE DMF 2 87
088JC7SOFTWAREPHE C:445 , ASP C:477 , ILE E:326 , LYS R:447BINDING SITE FOR RESIDUE DMF C 88
089JC8SOFTWARESER R:320 , SER R:327 , GLY R:328 , HOH R:2053 , SER Z:422 , ASN Z:430BINDING SITE FOR RESIDUE DMF R 89
090JC9SOFTWAREGLU N:432 , GLU N:434 , TYR N:436 , GLN N:437 , DMF V:120BINDING SITE FOR RESIDUE DMF N 90
091KC1SOFTWARETYR H:472 , ALA H:475 , ASP H:476 , GLY H:483BINDING SITE FOR RESIDUE DMF H 91
092KC2SOFTWAREGLU C:433 , HOH C:2367 , ASP R:525 , GLY R:528 , SER R:529 , LYS R:534 , HOH R:1869 , HOH R:2634BINDING SITE FOR RESIDUE DMF R 92
093KC3SOFTWARETYR F:89 , ARG G:357 , ALA N:377 , ASN N:381 , TRP N:429BINDING SITE FOR RESIDUE DMF N 93
094KC4SOFTWAREARG T:521 , HOH T:548 , HOH X:2666 , ARG Z:488BINDING SITE FOR RESIDUE DMF Z 94
095KC5SOFTWARESER E:320 , SER E:327 , GLY E:328 , HOH R:267 , ASN R:430 , GLU R:432BINDING SITE FOR RESIDUE DMF R 95
096KC6SOFTWAREARG D:85 , TYR D:89 , HOH D:590 , TYR R:366 , LEU R:369 , GLU R:370BINDING SITE FOR RESIDUE DMF D 252
097KC7SOFTWARESA6 L:300 , ALA L:346 , GLY L:347 , LEU L:401 , GLY L:440 , HOH L:556BINDING SITE FOR RESIDUE DMF L 97
098KC8SOFTWAREASN G:430 , GLU G:432 , HOH G:2673 , SER X:320 , SER X:327 , GLY X:328BINDING SITE FOR RESIDUE DMF G 98
099KC9SOFTWAREHIS L:365 , TYR L:366 , LEU L:369 , GLU L:370 , ARG M:85 , TYR M:89 , HOH M:255BINDING SITE FOR RESIDUE DMF M 252
100LC1SOFTWAREVAL C:487 , HOH E:35 , ARG E:521 , HOH H:2605BINDING SITE FOR RESIDUE DMF E 100
101LC2SOFTWAREALA 2:384 , ILE 2:385 , ARG 2:388 , GLY 2:427 , GLU V:354BINDING SITE FOR RESIDUE DMF 2 101
102LC3SOFTWARELYS T:452 , LYS X:452 , LEU X:453BINDING SITE FOR RESIDUE DMF T 102
103LC4SOFTWAREILE C:326 , HOH C:1438 , ASP E:477 , DMF H:43 , LYS H:447BINDING SITE FOR RESIDUE DMF C 103
104LC5SOFTWARESER G:320 , SER G:327 , GLY G:328 , SER N:422 , ASN N:430 , GLU N:432BINDING SITE FOR RESIDUE DMF N 104
105LC6SOFTWAREASN Y:45 , LEU Y:50 , LYS Y:52BINDING SITE FOR RESIDUE DMF Y 251
106LC7SOFTWAREGLN D:80 , THR D:84 , VAL E:361 , HIS E:365BINDING SITE FOR RESIDUE DMF D 253
107LC8SOFTWAREGLU P:432 , GLU P:434 , TYR P:436 , GLN P:437 , LYS P:447 , HOH P:1589BINDING SITE FOR RESIDUE DMF P 107
108LC9SOFTWARELYS 2:307 , GLY 2:418 , ARG 2:419 , ILE 2:431 , GLU 2:433 , HOH 2:543 , HOH 2:1666BINDING SITE FOR RESIDUE DMF 2 108
109MC1SOFTWARESA6 V:300 , ALA V:346 , GLY V:347 , LEU V:399 , LEU V:401 , GLY V:440 , HOH V:996BINDING SITE FOR RESIDUE DMF V 109
110MC2SOFTWAREASN J:381 , ALA J:426 , GLY J:427 , HOH J:2090BINDING SITE FOR RESIDUE DMF J 110
111MC3SOFTWAREARG 2:521 , HOH 2:807 , LYS G:451 , ARG X:488 , HOH X:1958BINDING SITE FOR RESIDUE DMF G 111
112MC4SOFTWAREILE 2:326 , ARG 2:329 , DMF T:113 , LYS T:447 , HOH T:1568 , PHE X:445 , ASP X:477BINDING SITE FOR RESIDUE DMF 2 112
113MC5SOFTWAREDMF 2:112 , GLU T:432 , GLU T:434 , TYR T:436 , GLN T:437 , HOH T:1568BINDING SITE FOR RESIDUE DMF T 113
114MC6SOFTWAREPHE J:445 , ASP J:477 , ILE R:326 , HOH R:1926 , LYS Z:447 , HOH Z:2460BINDING SITE FOR RESIDUE DMF Z 114
115MC7SOFTWARELEU J:444 , LYS J:447 , ILE T:326 , ASP Z:477BINDING SITE FOR RESIDUE DMF T 115
116MC8SOFTWAREHOH G:2419 , TYR V:472 , ALA V:475 , ASP V:476 , GLY V:483 , HOH V:1032 , HOH V:2127BINDING SITE FOR RESIDUE DMF V 116
117MC9SOFTWAREGLY H:347 , GLY H:440 , SER H:441 , HOH H:555BINDING SITE FOR RESIDUE DMF H 117
118NC1SOFTWAREASP N:477 , ILE P:326 , DMF V:32 , LEU V:444 , LYS V:447BINDING SITE FOR RESIDUE DMF N 118
119NC2SOFTWAREGLU G:432 , GLU G:434 , TYR G:436 , GLN G:437 , LYS G:447BINDING SITE FOR RESIDUE DMF G 119
120NC3SOFTWAREILE G:326 , ARG G:329 , HOH G:1578 , DMF N:90 , LYS N:447 , ASP V:477 , HOH V:688BINDING SITE FOR RESIDUE DMF V 120
121NC4SOFTWARETYR C:472 , ALA C:475 , ASP C:476 , GLY C:483 , HOH C:2459BINDING SITE FOR RESIDUE DMF C 121
122NC5SOFTWARETYR X:472 , ALA X:475 , ASP X:476 , GLY X:483 , HOH X:548BINDING SITE FOR RESIDUE DMF X 122
123NC6SOFTWAREARG J:465 , GLU J:469 , ALA J:516 , ILE J:517 , SER J:520BINDING SITE FOR RESIDUE DMF J 123
124NC7SOFTWARETHR C:301 , SER C:320 , THR C:321 , VAL C:331 , ILE C:345 , ALA C:346 , GLY C:347 , ALA C:349 , ALA C:352 , ALA C:480 , HOH C:1020 , HOH C:1709 , HOH C:2403BINDING SITE FOR RESIDUE SA6 C 300
125NC8SOFTWARETHR E:301 , SER E:320 , THR E:321 , VAL E:331 , LYS E:333 , ILE E:345 , GLY E:347 , ALA E:349 , ALA E:480 , HOH E:903 , HOH E:1271BINDING SITE FOR RESIDUE SA6 E 300
126NC9SOFTWARETHR G:301 , SER G:320 , THR G:321 , VAL G:331 , ILE G:345 , ALA G:346 , GLY G:347 , ALA G:349 , ALA G:352 , ALA G:480 , HOH G:544 , HOH G:546 , HOH G:2133BINDING SITE FOR RESIDUE SA6 G 300
127OC1SOFTWARETHR H:301 , SER H:320 , THR H:321 , VAL H:331 , ILE H:345 , ALA H:346 , GLY H:347 , ALA H:349 , ALA H:480 , HOH H:1350BINDING SITE FOR RESIDUE SA6 H 300
128OC2SOFTWARETHR J:301 , SER J:320 , THR J:321 , VAL J:331 , ILE J:345 , GLY J:347 , ALA J:349 , ALA J:352 , ALA J:480 , HOH J:894 , HOH J:2409BINDING SITE FOR RESIDUE SA6 J 300
129OC3SOFTWAREDMF L:97 , THR L:301 , SER L:320 , THR L:321 , VAL L:331 , ILE L:345 , ALA L:346 , GLY L:347 , ALA L:352 , ALA L:480 , HOH L:541 , HOH L:556BINDING SITE FOR RESIDUE SA6 L 300
130OC4SOFTWAREHOH N:236 , THR N:301 , SER N:320 , THR N:321 , VAL N:331 , ILE N:345 , GLY N:347 , ALA N:480 , HOH N:2582BINDING SITE FOR RESIDUE SA6 N 300
131OC5SOFTWAREHOH P:234 , THR P:301 , SER P:320 , THR P:321 , VAL P:331 , ILE P:345 , ALA P:346 , GLY P:347 , ALA P:349 , ALA P:352 , ALA P:480 , HOH P:1068BINDING SITE FOR RESIDUE SA6 P 300
132OC6SOFTWARETHR R:301 , SER R:320 , THR R:321 , VAL R:331 , ILE R:345 , ALA R:346 , GLY R:347 , ALA R:352 , ALA R:480 , HOH R:1845BINDING SITE FOR RESIDUE SA6 R 300
133OC7SOFTWARETHR T:301 , SER T:320 , THR T:321 , VAL T:331 , ILE T:345 , GLY T:347 , ALA T:349 , ALA T:352 , ALA T:480BINDING SITE FOR RESIDUE SA6 T 300
134OC8SOFTWAREDMF V:109 , THR V:301 , SER V:320 , THR V:321 , VAL V:331 , ILE V:345 , ALA V:346 , GLY V:347 , ALA V:352 , ALA V:480 , HOH V:996 , HOH V:2200BINDING SITE FOR RESIDUE SA6 V 300
135OC9SOFTWARETHR X:301 , ARG X:319 , SER X:320 , THR X:321 , VAL X:331 , ILE X:345 , ALA X:346 , GLY X:347 , ALA X:349 , ALA X:480 , HOH X:1203 , HOH X:1393BINDING SITE FOR RESIDUE SA6 X 300
136PC1SOFTWAREHOH Z:146 , THR Z:301 , SER Z:320 , THR Z:321 , VAL Z:331 , ILE Z:345 , ALA Z:346 , GLY Z:347 , ALA Z:349 , ALA Z:480 , HOH Z:2353BINDING SITE FOR RESIDUE SA6 Z 300
137PC2SOFTWARETHR 2:301 , SER 2:320 , THR 2:321 , VAL 2:331 , ILE 2:345 , ALA 2:346 , GLY 2:347 , ALA 2:480 , HOH 2:2525BINDING SITE FOR RESIDUE SA6 2 300

(-) SS Bonds  (0, 0)

(no "SS Bond" information available for 3MI0)

(-) Cis Peptide Bonds  (0, 0)

(no "Cis Peptide Bond" information available for 3MI0)

 Sequence-Structure Mapping

(-) SAPs(SNPs)/Variants  (0, 0)

(no "SAP(SNP)/Variant" information available for 3MI0)

(-) PROSITE Motifs  (1, 14)

Asymmetric/Biological Unit (1, 14)
 PROSITEUniProtKBPDB
No.IDACDescriptionIDLocationCountLocation
1PROTEASOME_ALPHA_2PS51475 Proteasome alpha-type subunit profile.PSA_MYCTO16-234












 		  141:16-234
A:16-234
B:16-233
D:16-234
F:16-234
I:16-233
K:16-234
M:16-234
O:16-234
Q:16-234
S:16-234
U:16-234
W:16-234
Y:16-234
PSA_MYCTU16-234












 		  141:16-234
A:16-234
B:16-233
D:16-234
F:16-234
I:16-233
K:16-234
M:16-234
O:16-234
Q:16-234
S:16-234
U:16-234
W:16-234
Y:16-234

(-) Exons   (0, 0)

(no "Exon" information available for 3MI0)

(-) Sequences/Alignments

Asymmetric/Biological Unit
   Reformat: Number of residues per line =  ('0' or empty: single-line sequence representation)
  Number of residues per labelling interval =
  UniProt sequence: complete  aligned part
   Show mapping: SCOP domains CATH domains Pfam domains Secondary structure (by author)
SAPs(SNPs) PROSITE motifs Exons
(details for a mapped element are shown in a popup box when the mouse pointer rests over it)
Chain 1 from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTO     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi01_ 1: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------PROTEASOME_ALPHA_2  PDB: 1:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 1   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187  |      -     | 207       217       227
                                                                                                                                                                                                                190          203


Chain 1 from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTU     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi01_ 1: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------PROTEASOME_ALPHA_2  PDB: 1:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 1   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187  |      -     | 207       217       227
                                                                                                                                                                                                                190          203


Chain 2 from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi02_ 2: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 2 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain 2 from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi02_ 2: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 2 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain A from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTO     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0a_ A: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhhh------------....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------PROTEASOME_ALPHA_2  PDB: A:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 A   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187   |     -      |207       217       227
                                                                                                                                                                                                                 191          204


Chain A from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTU     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0a_ A: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhhh------------....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------PROTEASOME_ALPHA_2  PDB: A:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 A   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187   |     -      |207       217       227
                                                                                                                                                                                                                 191          204


Chain B from PDB  Type:PROTEIN  Length:213
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQAL 233
               SCOP domains d3mi0b_ B: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh.--------------..eeeeeee.......eee.hhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: B:16-233 UniProt: 16-234                                                                                                                                                                          PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 B   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG--------------ASLEVAVLDANRPRRAFRRITGSALQAL 233
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186    |    -       206       216       226
                                                                                                                                                                                                                  191            206


Chain B from PDB  Type:PROTEIN  Length:213
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQAL 233
               SCOP domains d3mi0b_ B: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh.--------------..eeeeeee.......eee.hhhhhhh. Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: B:16-233 UniProt: 16-234                                                                                                                                                                          PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 B   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG--------------ASLEVAVLDANRPRRAFRRITGSALQAL 233
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186    |    -       206       216       226
                                                                                                                                                                                                                  191            206


Chain C from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0c_ C: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 C 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain C from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0c_ C: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 C 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain D from PDB  Type:PROTEIN  Length:214
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTO     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0d_ D: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeeee....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------hhhhheeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) --------PROTEASOME_ALPHA_2  PDB: D:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 D   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187  |      -      |207       217       227
                                                                                                                                                                                                                190           204


Chain D from PDB  Type:PROTEIN  Length:214
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:227
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227
            PSA_MYCTU     8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0d_ D: automated matches                                                                                                                                                                                                        SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeee.........eee....eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeeee....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------hhhhheeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE --------PROTEASOME_ALPHA_2  PDB: D:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 D   8 SPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    17        27        37        47        57        67        77        87        97       107       117       127       137       147       157       167       177       187  |      -      |207       217       227
                                                                                                                                                                                                                190           204


Chain E from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0e_ E: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 E 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain E from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0e_ E: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 E 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain F from PDB  Type:PROTEIN  Length:220
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:230
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234
            PSA_MYCTO     5 YFISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0f_ F: automated matches                                                                                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.----------.....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) -----------PROTEASOME_ALPHA_2  PDB: F:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 F   5 YFISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGS----------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       | -       204       214       224       234
                                                                                                                                                                                                                     192        203


Chain F from PDB  Type:PROTEIN  Length:220
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:230
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       194       204       214       224       234
            PSA_MYCTU     5 YFISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0f_ F: automated matches                                                                                                                                                                                                           SCOP domains
               CATH domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ...hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhhh.----------.....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE -----------PROTEASOME_ALPHA_2  PDB: F:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 F   5 YFISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGS----------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    14        24        34        44        54        64        74        84        94       104       114       124       134       144       154       164       174       184       | -       204       214       224       234
                                                                                                                                                                                                                     192        203


Chain G from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0g_ G: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 G 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain G from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0g_ G: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 G 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain H from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0h_ H: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 H 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain H from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0h_ H: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 H 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain I from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225
            PSA_MYCTO     6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQAL 233
               SCOP domains d3mi0i_ I: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ----------PROTEASOME_ALPHA_2  PDB: I:16-233 UniProt: 16-234                                                                                                                                                                          PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 I   6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQAL 233
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185    |    -       205       215       225
                                                                                                                                                                                                                  190          203


Chain I from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225
            PSA_MYCTU     6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQAL 233
               SCOP domains d3mi0i_ I: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ----------PROTEASOME_ALPHA_2  PDB: I:16-233 UniProt: 16-234                                                                                                                                                                          PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 I   6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQAL 233
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185    |    -       205       215       225
                                                                                                                                                                                                                  190          203


Chain J from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0j_ J: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 J 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain J from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0j_ J: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 J 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain K from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0k_ K: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: K:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 K   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain K from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0k_ K: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: K:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 K   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain L from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0l_ L: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 L 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain L from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0l_ L: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 L 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain M from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0m_ M: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh..eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: M:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 M   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain M from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0m_ M: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhhh..eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: M:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 M   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain N from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0n_ N: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 N 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain N from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0n_ N: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 N 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain O from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0o_ O: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: O:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 O   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain O from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0o_ O: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: O:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 O   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain P from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0p_ P: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 P 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain P from PDB  Type:PROTEIN  Length:222
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:222
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 279
               SCOP domains d3mi0p_ P: automated matches                                                                                                                                                                                                   SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 P 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRS 522
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain Q from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0q_ Q: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: Q:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 Q   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -       206       216       226
                                                                                                                                                                                                                 190           204


Chain Q from PDB  Type:PROTEIN  Length:215
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0q_ Q: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: Q:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 Q   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -       206       216       226
                                                                                                                                                                                                                 190           204


Chain R from PDB  Type:PROTEIN  Length:239
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:239
                                                                                                                                                                                                                                                                   291
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287   |
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEK-----   -
               SCOP domains d3mi0r_ R: automated matches                                                                                                                                                                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 R 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEKHHHHH 539
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530


Chain R from PDB  Type:PROTEIN  Length:239
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:239
                                                                                                                                                                                                                                                                   291
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287   |
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEK-----   -
               SCOP domains d3mi0r_ R: automated matches                                                                                                                                                                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 R 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEKHHHHH 539
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530


Chain S from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:229
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALLV 235
               SCOP domains d3mi0s_ S: automated matches                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------....eeeeeee.......eee.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: S:16-234 UniProt: 16-234                                                                                                                                                                          - PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 S   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALLV 235
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -       206       216       226
                                                                                                                                                                                                                 190           204


Chain S from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:229
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALLV 235
               SCOP domains d3mi0s_ S: automated matches                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------....eeeeeee.......eee.hhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: S:16-234 UniProt: 16-234                                                                                                                                                                          - PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 S   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALLV 235
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -       206       216       226
                                                                                                                                                                                                                 190           204


Chain T from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0t_ T: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 T 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain T from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0t_ T: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 T 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain U from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0u_ U: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh.------------....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: U:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 U   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186    |    -       206       216       226
                                                                                                                                                                                                                  191          204


Chain U from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0u_ U: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Pfam domains
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh.------------....eeeeeee.......eee.hhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: U:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 U   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAG------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186    |    -       206       216       226
                                                                                                                                                                                                                  191          204


Chain V from PDB  Type:PROTEIN  Length:239
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:239
                                                                                                                                                                                                                                                                   291
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287   |
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEK-----   -
               SCOP domains d3mi0v_ V: automated matches                                                                                                                                                                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 V 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEKHHHHH 539
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530


Chain V from PDB  Type:PROTEIN  Length:239
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:239
                                                                                                                                                                                                                                                                   291
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277       287   |
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEK-----   -
               SCOP domains d3mi0v_ V: automated matches                                                                                                                                                                                                                    SCOP domains
               CATH domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhhhhhhh........... Sec.struct. author
                 SAPs(SNPs) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 V 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSGADTFGSDGGEKHHHHH 539
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520       530


Chain W from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:229
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225
            PSA_MYCTO     6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0w_ W: automated matches                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                PROSITE (2) ----------PROTEASOME_ALPHA_2  PDB: W:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 W   6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185    |    -       205       215       225
                                                                                                                                                                                                                  190           204


Chain W from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:229
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185       195       205       215       225
            PSA_MYCTU     6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0w_ W: automated matches                                                                                                                                                                                                          SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh-------------....eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ----------PROTEASOME_ALPHA_2  PDB: W:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 W   6 FISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA-------------GVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    15        25        35        45        55        65        75        85        95       105       115       125       135       145       155       165       175       185    |    -       205       215       225
                                                                                                                                                                                                                  190           204


Chain X from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0x_ X: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 X 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain X from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0x_ X: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
               Pfam domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Pfam domains
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 X 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain Y from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTO | P9WHU0 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTO     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKPPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0y_ Y: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -----------------Proteasome-3mi0Y01 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (1)
           Pfam domains (2) -----------------Proteasome-3mi0Y02 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (2)
           Pfam domains (3) -----------------Proteasome-3mi0Y03 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (3)
           Pfam domains (4) -----------------Proteasome-3mi0Y04 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (4)
           Pfam domains (5) -----------------Proteasome-3mi0Y05 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (5)
           Pfam domains (6) -----------------Proteasome-3mi0Y06 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (6)
           Pfam domains (7) -----------------Proteasome-3mi0Y07 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (7)
           Pfam domains (8) -----------------Proteasome-3mi0Y08 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (8)
           Pfam domains (9) -----------------Proteasome-3mi0Y09 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (9)
          Pfam domains (10) -----------------Proteasome-3mi0Y10 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (10)
          Pfam domains (11) -----------------Proteasome-3mi0Y11 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (11)
          Pfam domains (12) -----------------Proteasome-3mi0Y12 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (12)
          Pfam domains (13) -----------------Proteasome-3mi0Y13 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (13)
          Pfam domains (14) -----------------Proteasome-3mi0Y14 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (14)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                PROSITE (2) ---------PROTEASOME_ALPHA_2  PDB: Y:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE (2)
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 Y   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain Y from PDB  Type:PROTEIN  Length:216
 aligned with PSA_MYCTU | P9WHU1 from UniProtKB/Swiss-Prot  Length:248

    Alignment length:228
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186       196       206       216       226
            PSA_MYCTU     7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRAGSADTSGGDQPTLGVASLEVAVLDANRPRRAFRRITGSALQALL 234
               SCOP domains d3mi0y_ Y: automated matches                                                                                                                                                                                                         SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ CATH domains
           Pfam domains (1) -----------------Proteasome-3mi0Y01 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (1)
           Pfam domains (2) -----------------Proteasome-3mi0Y02 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (2)
           Pfam domains (3) -----------------Proteasome-3mi0Y03 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (3)
           Pfam domains (4) -----------------Proteasome-3mi0Y04 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (4)
           Pfam domains (5) -----------------Proteasome-3mi0Y05 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (5)
           Pfam domains (6) -----------------Proteasome-3mi0Y06 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (6)
           Pfam domains (7) -----------------Proteasome-3mi0Y07 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (7)
           Pfam domains (8) -----------------Proteasome-3mi0Y08 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (8)
           Pfam domains (9) -----------------Proteasome-3mi0Y09 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (9)
          Pfam domains (10) -----------------Proteasome-3mi0Y10 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (10)
          Pfam domains (11) -----------------Proteasome-3mi0Y11 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (11)
          Pfam domains (12) -----------------Proteasome-3mi0Y12 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (12)
          Pfam domains (13) -----------------Proteasome-3mi0Y13 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (13)
          Pfam domains (14) -----------------Proteasome-3mi0Y14 Y:24-206                                                                                                                                                            ---------------------------- Pfam domains (14)
         Sec.struct. author .hhhhhhhhhhhhhhhhhhh...eeeeee..eeeeeee........eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh.....eeeeeee..........eeeee.....eeee..eeee..hhhhhhhhhhhhh....hhhhhhhhhhhhhhh------------.hhh.eeeeeee.......eee.hhhhhhhh. Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ SAPs(SNPs)
                    PROSITE ---------PROTEASOME_ALPHA_2  PDB: Y:16-234 UniProt: 16-234                                                                                                                                                                           PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ Transcript
                 3mi0 Y   7 ISPEQAMRERSELARKGIARAKSVVALAYAGGVLFVAENPSRSLQKISELYDRVGFAAAGKFNEFDNLRRGGIQFADTRGYAYDRRDVTGRQLANVYAQTLGTIFTEQAKPYEVELCVAEVAHYGETKRPELYRITYDGSIADEPHFVVMGGTTEPIANALKESYAENASLTDALRIAVAALRA------------LGVASLEVAVLDANRPRRAFRRITGSALQALL 234
                                    16        26        36        46        56        66        76        86        96       106       116       126       136       146       156       166       176       186   |     -      |206       216       226
                                                                                                                                                                                                                 190          203


Chain Z from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTO | P9WHT8 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTO    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0z_ Z: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Proteasome-3mi0Z01 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (1)
           Pfam domains (2) Proteasome-3mi0Z02 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (2)
           Pfam domains (3) Proteasome-3mi0Z03 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (3)
           Pfam domains (4) Proteasome-3mi0Z04 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (4)
           Pfam domains (5) Proteasome-3mi0Z05 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (5)
           Pfam domains (6) Proteasome-3mi0Z06 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (6)
           Pfam domains (7) Proteasome-3mi0Z07 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (7)
           Pfam domains (8) Proteasome-3mi0Z08 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (8)
           Pfam domains (9) Proteasome-3mi0Z09 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (9)
          Pfam domains (10) Proteasome-3mi0Z10 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (10)
          Pfam domains (11) Proteasome-3mi0Z11 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (11)
          Pfam domains (12) Proteasome-3mi0Z12 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (12)
          Pfam domains (13) Proteasome-3mi0Z13 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (13)
          Pfam domains (14) Proteasome-3mi0Z14 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (14)
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 Z 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520


Chain Z from PDB  Type:PROTEIN  Length:223
 aligned with PSB_MYCTU | P9WHT9 from UniProtKB/Swiss-Prot  Length:291

    Alignment length:223
                                    67        77        87        97       107       117       127       137       147       157       167       177       187       197       207       217       227       237       247       257       267       277
            PSB_MYCTU    58 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 280
               SCOP domains d3mi0z_ Z: automated matches                                                                                                                                                                                                    SCOP domains
               CATH domains ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- CATH domains
           Pfam domains (1) Proteasome-3mi0Z01 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (1)
           Pfam domains (2) Proteasome-3mi0Z02 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (2)
           Pfam domains (3) Proteasome-3mi0Z03 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (3)
           Pfam domains (4) Proteasome-3mi0Z04 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (4)
           Pfam domains (5) Proteasome-3mi0Z05 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (5)
           Pfam domains (6) Proteasome-3mi0Z06 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (6)
           Pfam domains (7) Proteasome-3mi0Z07 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (7)
           Pfam domains (8) Proteasome-3mi0Z08 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (8)
           Pfam domains (9) Proteasome-3mi0Z09 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (9)
          Pfam domains (10) Proteasome-3mi0Z10 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (10)
          Pfam domains (11) Proteasome-3mi0Z11 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (11)
          Pfam domains (12) Proteasome-3mi0Z12 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (12)
          Pfam domains (13) Proteasome-3mi0Z13 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (13)
          Pfam domains (14) Proteasome-3mi0Z14 Z:301-487                                                                                                                                                               ------------------------------------ Pfam domains (14)
         Sec.struct. author ..eeeeee..eeeeee...eee..eeee.....eeeee..eeeeeeehhhhhhhhhhhhhhhhhhhhhhhh...hhhhhhhhhhhhhhhhhhhhhh...eeeeeeee.....hhhh.eeeeee.....eee....eeee..hhhhhhhhhhhhhhhh.hhhhhhhhhhhhhhhhhhhh..............eeeeee..eeee.hhhhhhhhhhhhhhhhhh Sec.struct. author
                 SAPs(SNPs) ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- SAPs(SNPs)
                    PROSITE ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- PROSITE
                 Transcript ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Transcript
                 3mi0 Z 301 TTIVALKYPGGVVMAGDRRSTQGNMISGRDVRKVYITDDYTATGIAGTAAVAVEFARLYAVELEHYEKLEGVPLTFAGKINRLAIMVRGNLAAAMQGLLALPLLAGYDIHASDPQSAGRIVSFDAAGGWNIEEEGYQAVGSGSLFAKSSMKKLYSQVTDGDSGLRVAVEALYDAADDDSATGGPDLVRGIFPTAVIIDADGAVDVPESRIAELARAIIESRSG 523
                                   310       320       330       340       350       360       370       380       390       400       410       420       430       440       450       460       470       480       490       500       510       520
   Legend:   → Mismatch (orange background)
  - → Gap (green background, '-', border residues have a numbering label)
    → Modified Residue (blue background, lower-case, 'x' indicates undefined single-letter code, labelled with number + name)
  x → Chemical Group (purple background, 'x', labelled with number + name, e.g. ACE or NH2)
  extra numbering lines below/above indicate numbering irregularities and modified residue names etc., number ends below/above '|'

 Classification and Annotation

(-) SCOP Domains  (1, 28)

Asymmetric/Biological Unit
(-)
Class: Alpha and beta proteins (a+b) (23004)

(-) CATH Domains  (0, 0)

(no "CATH Domain" information available for 3MI0)

(-) Pfam Domains  (1, 28)

Asymmetric/Biological Unit
(-)
Clan: NTN (93)

(-) Gene Ontology  (18, 56)

Asymmetric/Biological Unit(hide GO term definitions)
Chain 1,A,B,D,F,I,K,M,O,Q,S,U,W,Y   (PSA_MYCTO | P9WHU0)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004298    threonine-type endopeptidase activity    Catalysis of the hydrolysis of internal peptide bonds in a polypeptide chain by a mechanism in which the hydroxyl group of a threonine residue at the active center acts as a nucleophile.
biological process
    GO:0019941    modification-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent modification of the target protein.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0010498    proteasomal protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds that is mediated by the proteasome.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0051603    proteolysis involved in cellular protein catabolic process    The hydrolysis of a peptide bond or bonds within a protein as part of the chemical reactions and pathways resulting in the breakdown of a protein by individual cells.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0000502    proteasome complex    A large multisubunit complex which catalyzes protein degradation, found in eukaryotes, archaea and some bacteria. In eukaryotes, this complex consists of the barrel shaped proteasome core complex and one or two associated proteins or complexes that act in regulating entry into or exit from the core.
    GO:0005839    proteasome core complex    A multisubunit barrel shaped endoprotease complex, which is the core of the proteasome complex.
    GO:0019773    proteasome core complex, alpha-subunit complex    The proteasome core subcomplex that constitutes the two outer rings of the proteasome core complex. An example of this component is found in Mus musculus.

Chain 1,A,B,D,F,I,K,M,O,Q,S,U,W,Y   (PSA_MYCTU | P9WHU1)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004298    threonine-type endopeptidase activity    Catalysis of the hydrolysis of internal peptide bonds in a polypeptide chain by a mechanism in which the hydroxyl group of a threonine residue at the active center acts as a nucleophile.
biological process
    GO:0040007    growth    The increase in size or mass of an entire organism, a part of an organism or a cell.
    GO:0019941    modification-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent modification of the target protein.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0010498    proteasomal protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds that is mediated by the proteasome.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0051603    proteolysis involved in cellular protein catabolic process    The hydrolysis of a peptide bond or bonds within a protein as part of the chemical reactions and pathways resulting in the breakdown of a protein by individual cells.
cellular component
    GO:0005618    cell wall    The rigid or semi-rigid envelope lying outside the cell membrane of plant, fungal, most prokaryotic cells and some protozoan parasites, maintaining their shape and protecting them from osmotic lysis. In plants it is made of cellulose and, often, lignin; in fungi it is composed largely of polysaccharides; in bacteria it is composed of peptidoglycan; in protozoan parasites such as Giardia species, it's made of carbohydrates and proteins.
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0000502    proteasome complex    A large multisubunit complex which catalyzes protein degradation, found in eukaryotes, archaea and some bacteria. In eukaryotes, this complex consists of the barrel shaped proteasome core complex and one or two associated proteins or complexes that act in regulating entry into or exit from the core.
    GO:0005839    proteasome core complex    A multisubunit barrel shaped endoprotease complex, which is the core of the proteasome complex.
    GO:0019773    proteasome core complex, alpha-subunit complex    The proteasome core subcomplex that constitutes the two outer rings of the proteasome core complex. An example of this component is found in Mus musculus.

Chain 2,C,E,G,H,J,L,N,P,R,T,V,X,Z   (PSB_MYCTO | P9WHT8)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0004298    threonine-type endopeptidase activity    Catalysis of the hydrolysis of internal peptide bonds in a polypeptide chain by a mechanism in which the hydroxyl group of a threonine residue at the active center acts as a nucleophile.
biological process
    GO:0019941    modification-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent modification of the target protein.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0010498    proteasomal protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds that is mediated by the proteasome.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0051603    proteolysis involved in cellular protein catabolic process    The hydrolysis of a peptide bond or bonds within a protein as part of the chemical reactions and pathways resulting in the breakdown of a protein by individual cells.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0000502    proteasome complex    A large multisubunit complex which catalyzes protein degradation, found in eukaryotes, archaea and some bacteria. In eukaryotes, this complex consists of the barrel shaped proteasome core complex and one or two associated proteins or complexes that act in regulating entry into or exit from the core.
    GO:0005839    proteasome core complex    A multisubunit barrel shaped endoprotease complex, which is the core of the proteasome complex.
    GO:0019774    proteasome core complex, beta-subunit complex    The proteasome core subcomplex that constitutes the two inner rings of the proteasome core complex. An example of this component is found in Mus musculus.

Chain 2,C,E,G,H,J,L,N,P,R,T,V,X,Z   (PSB_MYCTU | P9WHT9)
molecular function
    GO:0016787    hydrolase activity    Catalysis of the hydrolysis of various bonds, e.g. C-O, C-N, C-C, phosphoric anhydride bonds, etc. Hydrolase is the systematic name for any enzyme of EC class 3.
    GO:0008233    peptidase activity    Catalysis of the hydrolysis of a peptide bond. A peptide bond is a covalent bond formed when the carbon atom from the carboxyl group of one amino acid shares electrons with the nitrogen atom from the amino group of a second amino acid.
    GO:0005515    protein binding    Interacting selectively and non-covalently with any protein or protein complex (a complex of two or more proteins that may include other nonprotein molecules).
    GO:0004298    threonine-type endopeptidase activity    Catalysis of the hydrolysis of internal peptide bonds in a polypeptide chain by a mechanism in which the hydroxyl group of a threonine residue at the active center acts as a nucleophile.
biological process
    GO:0040007    growth    The increase in size or mass of an entire organism, a part of an organism or a cell.
    GO:0019941    modification-dependent protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds, initiated by the covalent modification of the target protein.
    GO:0009405    pathogenesis    The set of specific processes that generate the ability of an organism to induce an abnormal, generally detrimental state in another organism.
    GO:0010498    proteasomal protein catabolic process    The chemical reactions and pathways resulting in the breakdown of a protein or peptide by hydrolysis of its peptide bonds that is mediated by the proteasome.
    GO:0006508    proteolysis    The hydrolysis of proteins into smaller polypeptides and/or amino acids by cleavage of their peptide bonds.
    GO:0051603    proteolysis involved in cellular protein catabolic process    The hydrolysis of a peptide bond or bonds within a protein as part of the chemical reactions and pathways resulting in the breakdown of a protein by individual cells.
cellular component
    GO:0005737    cytoplasm    All of the contents of a cell excluding the plasma membrane and nucleus, but including other subcellular structures.
    GO:0005576    extracellular region    The space external to the outermost structure of a cell. For cells without external protective or external encapsulating structures this refers to space outside of the plasma membrane. This term covers the host cell environment outside an intracellular parasite.
    GO:0005886    plasma membrane    The membrane surrounding a cell that separates the cell from its external environment. It consists of a phospholipid bilayer and associated proteins.
    GO:0000502    proteasome complex    A large multisubunit complex which catalyzes protein degradation, found in eukaryotes, archaea and some bacteria. In eukaryotes, this complex consists of the barrel shaped proteasome core complex and one or two associated proteins or complexes that act in regulating entry into or exit from the core.
    GO:0005839    proteasome core complex    A multisubunit barrel shaped endoprotease complex, which is the core of the proteasome complex.
    GO:0019774    proteasome core complex, beta-subunit complex    The proteasome core subcomplex that constitutes the two inner rings of the proteasome core complex. An example of this component is found in Mus musculus.

 Visualization

(-) Interactive Views

Asymmetric/Biological Unit
  Complete Structure
    Jena3D(integrated viewing of ligand, site, SAP, PROSITE, SCOP information)
    WebMol | AstexViewer[tm]@PDBe
(Java Applets, require no local installation except for Java; loading may be slow)
    STRAP
(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    RasMol
(require local installation)
    Molscript (VRML)
(requires installation of a VRML viewer; select preferred view via VRML and generate a mono or stereo PDF format file)

  Ligands, Modified Residues, Ions
    DMF  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]
    SA6  [ RasMol | Jena3D ]  +environment [ RasMol | Jena3D ]

  Sites
    AC1  [ RasMol ]  +environment [ RasMol ]
    AC2  [ RasMol ]  +environment [ RasMol ]
    AC3  [ RasMol ]  +environment [ RasMol ]
    AC4  [ RasMol ]  +environment [ RasMol ]
    AC5  [ RasMol ]  +environment [ RasMol ]
    AC6  [ RasMol ]  +environment [ RasMol ]
    AC7  [ RasMol ]  +environment [ RasMol ]
    AC8  [ RasMol ]  +environment [ RasMol ]
    AC9  [ RasMol ]  +environment [ RasMol ]
    BC1  [ RasMol ]  +environment [ RasMol ]
    BC2  [ RasMol ]  +environment [ RasMol ]
    BC3  [ RasMol ]  +environment [ RasMol ]
    BC4  [ RasMol ]  +environment [ RasMol ]
    BC5  [ RasMol ]  +environment [ RasMol ]
    BC6  [ RasMol ]  +environment [ RasMol ]
    BC7  [ RasMol ]  +environment [ RasMol ]
    BC8  [ RasMol ]  +environment [ RasMol ]
    BC9  [ RasMol ]  +environment [ RasMol ]
    CC1  [ RasMol ]  +environment [ RasMol ]
    CC2  [ RasMol ]  +environment [ RasMol ]
    CC3  [ RasMol ]  +environment [ RasMol ]
    CC4  [ RasMol ]  +environment [ RasMol ]
    CC5  [ RasMol ]  +environment [ RasMol ]
    CC6  [ RasMol ]  +environment [ RasMol ]
    CC7  [ RasMol ]  +environment [ RasMol ]
    CC8  [ RasMol ]  +environment [ RasMol ]
    CC9  [ RasMol ]  +environment [ RasMol ]
    DC1  [ RasMol ]  +environment [ RasMol ]
    DC2  [ RasMol ]  +environment [ RasMol ]
    DC3  [ RasMol ]  +environment [ RasMol ]
    DC4  [ RasMol ]  +environment [ RasMol ]
    DC5  [ RasMol ]  +environment [ RasMol ]
    DC6  [ RasMol ]  +environment [ RasMol ]
    DC7  [ RasMol ]  +environment [ RasMol ]
    DC8  [ RasMol ]  +environment [ RasMol ]
    DC9  [ RasMol ]  +environment [ RasMol ]
    EC1  [ RasMol ]  +environment [ RasMol ]
    EC2  [ RasMol ]  +environment [ RasMol ]
    EC3  [ RasMol ]  +environment [ RasMol ]
    EC4  [ RasMol ]  +environment [ RasMol ]
    EC5  [ RasMol ]  +environment [ RasMol ]
    EC6  [ RasMol ]  +environment [ RasMol ]
    EC7  [ RasMol ]  +environment [ RasMol ]
    EC8  [ RasMol ]  +environment [ RasMol ]
    EC9  [ RasMol ]  +environment [ RasMol ]
    FC1  [ RasMol ]  +environment [ RasMol ]
    FC2  [ RasMol ]  +environment [ RasMol ]
    FC3  [ RasMol ]  +environment [ RasMol ]
    FC4  [ RasMol ]  +environment [ RasMol ]
    FC5  [ RasMol ]  +environment [ RasMol ]
    FC6  [ RasMol ]  +environment [ RasMol ]
    FC7  [ RasMol ]  +environment [ RasMol ]
    FC8  [ RasMol ]  +environment [ RasMol ]
    FC9  [ RasMol ]  +environment [ RasMol ]
    GC1  [ RasMol ]  +environment [ RasMol ]
    GC2  [ RasMol ]  +environment [ RasMol ]
    GC3  [ RasMol ]  +environment [ RasMol ]
    GC4  [ RasMol ]  +environment [ RasMol ]
    GC5  [ RasMol ]  +environment [ RasMol ]
    GC6  [ RasMol ]  +environment [ RasMol ]
    GC7  [ RasMol ]  +environment [ RasMol ]
    GC8  [ RasMol ]  +environment [ RasMol ]
    GC9  [ RasMol ]  +environment [ RasMol ]
    HC1  [ RasMol ]  +environment [ RasMol ]
    HC2  [ RasMol ]  +environment [ RasMol ]
    HC3  [ RasMol ]  +environment [ RasMol ]
    HC4  [ RasMol ]  +environment [ RasMol ]
    HC5  [ RasMol ]  +environment [ RasMol ]
    HC6  [ RasMol ]  +environment [ RasMol ]
    HC7  [ RasMol ]  +environment [ RasMol ]
    HC8  [ RasMol ]  +environment [ RasMol ]
    HC9  [ RasMol ]  +environment [ RasMol ]
    IC1  [ RasMol ]  +environment [ RasMol ]
    IC2  [ RasMol ]  +environment [ RasMol ]
    IC3  [ RasMol ]  +environment [ RasMol ]
    IC4  [ RasMol ]  +environment [ RasMol ]
    IC5  [ RasMol ]  +environment [ RasMol ]
    IC6  [ RasMol ]  +environment [ RasMol ]
    IC7  [ RasMol ]  +environment [ RasMol ]
    IC8  [ RasMol ]  +environment [ RasMol ]
    IC9  [ RasMol ]  +environment [ RasMol ]
    JC1  [ RasMol ]  +environment [ RasMol ]
    JC2  [ RasMol ]  +environment [ RasMol ]
    JC3  [ RasMol ]  +environment [ RasMol ]
    JC4  [ RasMol ]  +environment [ RasMol ]
    JC5  [ RasMol ]  +environment [ RasMol ]
    JC6  [ RasMol ]  +environment [ RasMol ]
    JC7  [ RasMol ]  +environment [ RasMol ]
    JC8  [ RasMol ]  +environment [ RasMol ]
    JC9  [ RasMol ]  +environment [ RasMol ]
    KC1  [ RasMol ]  +environment [ RasMol ]
    KC2  [ RasMol ]  +environment [ RasMol ]
    KC3  [ RasMol ]  +environment [ RasMol ]
    KC4  [ RasMol ]  +environment [ RasMol ]
    KC5  [ RasMol ]  +environment [ RasMol ]
    KC6  [ RasMol ]  +environment [ RasMol ]
    KC7  [ RasMol ]  +environment [ RasMol ]
    KC8  [ RasMol ]  +environment [ RasMol ]
    KC9  [ RasMol ]  +environment [ RasMol ]
    LC1  [ RasMol ]  +environment [ RasMol ]
    LC2  [ RasMol ]  +environment [ RasMol ]
    LC3  [ RasMol ]  +environment [ RasMol ]
    LC4  [ RasMol ]  +environment [ RasMol ]
    LC5  [ RasMol ]  +environment [ RasMol ]
    LC6  [ RasMol ]  +environment [ RasMol ]
    LC7  [ RasMol ]  +environment [ RasMol ]
    LC8  [ RasMol ]  +environment [ RasMol ]
    LC9  [ RasMol ]  +environment [ RasMol ]
    MC1  [ RasMol ]  +environment [ RasMol ]
    MC2  [ RasMol ]  +environment [ RasMol ]
    MC3  [ RasMol ]  +environment [ RasMol ]
    MC4  [ RasMol ]  +environment [ RasMol ]
    MC5  [ RasMol ]  +environment [ RasMol ]
    MC6  [ RasMol ]  +environment [ RasMol ]
    MC7  [ RasMol ]  +environment [ RasMol ]
    MC8  [ RasMol ]  +environment [ RasMol ]
    MC9  [ RasMol ]  +environment [ RasMol ]
    NC1  [ RasMol ]  +environment [ RasMol ]
    NC2  [ RasMol ]  +environment [ RasMol ]
    NC3  [ RasMol ]  +environment [ RasMol ]
    NC4  [ RasMol ]  +environment [ RasMol ]
    NC5  [ RasMol ]  +environment [ RasMol ]
    NC6  [ RasMol ]  +environment [ RasMol ]
    NC7  [ RasMol ]  +environment [ RasMol ]
    NC8  [ RasMol ]  +environment [ RasMol ]
    NC9  [ RasMol ]  +environment [ RasMol ]
    OC1  [ RasMol ]  +environment [ RasMol ]
    OC2  [ RasMol ]  +environment [ RasMol ]
    OC3  [ RasMol ]  +environment [ RasMol ]
    OC4  [ RasMol ]  +environment [ RasMol ]
    OC5  [ RasMol ]  +environment [ RasMol ]
    OC6  [ RasMol ]  +environment [ RasMol ]
    OC7  [ RasMol ]  +environment [ RasMol ]
    OC8  [ RasMol ]  +environment [ RasMol ]
    OC9  [ RasMol ]  +environment [ RasMol ]
    PC1  [ RasMol ]  +environment [ RasMol ]
    PC2  [ RasMol ]  +environment [ RasMol ]

  Cis Peptide Bonds
(no "Cis Peptide Bonds" information available for 3mi0)


(-) Still Images

Jmol
  protein: cartoon or spacefill or dots and stick; nucleic acid: cartoon and stick; ligands: spacefill; active site: stick
[ Asym./Biol. Unit PNG format | Asym./Biol. Unit - sites PNG format ](automatic orientation, automatically generated)
Molscript
  protein, nucleic acid: cartoon; ligands: spacefill; active site: ball and stick
[ mono PDF format | stereo PDF format ](default orientation, automatically generated)

 Databases and Analysis Tools

(-) Databases

Access by PDB/NDB ID
  3mi0
    Family and Domain Information: ProDom | SYSTERS
    General Structural Information: GlycoscienceDB | MMDB | NDB | OCA | PDB | PDBe | PDBj | PDBsum | PDBWiki | PQS | PROTEOPEDIA
    Orientation in Membranes: OPM
    Protein Surface: SURFACE
    Secondary Structure: DSSP (structure derived) | HSSP (homology derived)
    Structural Genomics: GeneCensus
    Structural Neighbours: CE | VAST
    Structure Classification: CATH | Dali | SCOP
    Validation and Original Data: BMRB Data View | BMRB Restraints Grid | EDS | PROCHECK | RECOORD | WHAT_CHECK

Access by UniProt ID/Accession number
  PSA_MYCTO | P9WHU0
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  PSA_MYCTU | P9WHU1
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  PSB_MYCTO | P9WHT8
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt
  PSB_MYCTU | P9WHT9
    Comparative Protein Structure Models: ModBase
    Genomic Information: Ensembl
    Protein-protein Interaction: DIP
    Sequence, Family and Domain Information: InterPro | Pfam | SMART | UniProtKB/SwissProt

Access by Enzyme Classificator   (EC Number)
  3.4.25.1
    General Enzyme Information: BRENDA | EC-PDB | Enzyme | IntEnz
    Pathway: KEGG | MetaCyc

Access by Disease Identifier   (MIM ID)
  (no 'MIM ID' available)
    Disease Information: OMIM

Access by GenAge ID
  (no 'GenAge ID' available)
    Age Related Information: GenAge

(-) Analysis Tools

Access by PDB/NDB ID
    Domain Information: XDom
    Interatomic Contacts of Structural Units: CSU
    Ligand-protein Contacts: LPC
    Protein Cavities: castP
    Sequence and Secondary Structure: PDBCartoon
    Structure Alignment: STRAP(Java WebStart application, automatic local installation, requires Java; full application with system access!)
    Structure and Sequence Browser: STING

Access by UniProt ID/Accession number
  PSA_MYCTO | P9WHU0
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  PSA_MYCTU | P9WHU1
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  PSB_MYCTO | P9WHT8
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)
  PSB_MYCTU | P9WHT9
    Protein Disorder Prediction: DisEMBL | FoldIndex | GLOBPLOT (for more information see DisProt)

 Related Entries

(-) Entries Sharing at Least One Protein Chain (UniProt ID)

UniProtKB/Swiss-Prot
        PSA_MYCTO | P9WHU0: 3h6f 3h6i 3hf9 3hfa 3krd 3mfe 3mka
        PSA_MYCTU | P9WHU1: 2fhg 2fhh 3h6f 3h6i 3hf9 3hfa 3krd 3mfe 3mka 5lzp 5tho 5trg 5trr 5trs 5try 5ts0
        PSB_MYCTO | P9WHT8: 2jay 3h6f 3h6i 3hf9 3hfa 3krd 3mfe 3mka
        PSB_MYCTU | P9WHT9: 2fhg 2fhh 2jay 3h6f 3h6i 3hf9 3hfa 3krd 3mfe 3mka 5lzp 5tho 5trg 5trr 5trs 5try 5ts0

(-) Related Entries Specified in the PDB File

(no "Related Entries Specified in the PDB File" available for 3MI0)
